ASV RC-100 Compact track loaders research
2025
ASV RC-100 Compact track loaders Technical specifications
General
Engine model
1104C-44
Operating weight
4,603 kg
Max speed forward
18.51 kph
Engine
Displacement
4391 cu cm
Aspiration
Turbocharged
Gross power
74.2 kw
Max torque
412.16 Nm
Operational specifications
Tipping angle
7,600 degrees
Undercarriage
Ground contact area
42770.33 cu cm
Tracks length
1 m
Ground pressure
0.24 bar
Number of track rollers per side
21
Track width
35.56 cm
Dimensions
Length without Bucket
2.99 m
Ground clearance
0.36 m
Width over tracks
0.46 m
Length with bucket
3.78 m
Hydraulic system
Pump flow cap
143.83 lpm
Relief valve pressure
227.52 bar
Loader
Loader lift cap
1723.65 kg
Service refill capacities
Cooling fluid cap
12.11 liters
Fuel cap
98.41 liters
Hydraulic fluid cap
75.7 liters
Refill capacities
Engine oil cap
32.17 liters
ASV RC-100 vs ASV RC-85

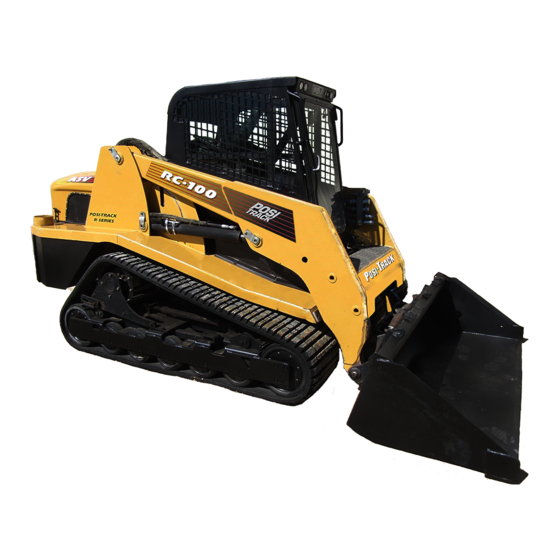

ASV RC-100 Compact track loaders

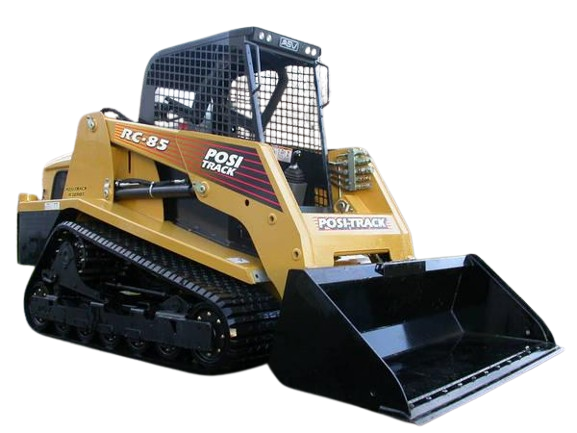

ASV RC-85 Compact track loaders
Engine model
1104C-44
1104C-44
Operating weight
4,603 kg
4,404 kg
Max speed forward
18.51 kph
9.82 kph
Market Average
AED 125,000
AED 125,000
price
-
-
Years
2025
2025
Displacement
4,391 cu cm
4,391 cu cm
Aspiration
Turbocharged
Naturally aspirated
Gross power
74.2 kw
64.13 kw
Max torque
412.16 Nm
300.99 Nm
Alternator supplied amperage
-
65 Amh
Operating voltage
-
12 V
Tipping angle
7,600 degrees
6,800 degrees
Ground contact area
42,770.33 cu cm
42,673.65 cu cm
Tracks length
1 m
1 m
Ground pressure
0.24 bar
0.23 bar
Number of track rollers per side
21
-
Track width
35.56 cm
45.72 cm
Track gauge
-
1.31 m
Length without Bucket
2.99 m
2.99 m
Ground clearance
0.36 m
0.36 m
Width over tracks
0.46 m
1.77 m
Length with bucket
3.78 m
3.78 m
Pump flow cap
143.83 lpm
143.83 lpm
Relief valve pressure
227.52 bar
227.52 bar
Loader lift cap
1,723.65 kg
1,542.22 kg
Cooling fluid cap
12.11 liters
12.11 liters
Fuel cap
98.41 liters
98.41 liters
Hydraulic fluid cap
75.7 liters
76.08 liters
Engine oil cap
32.17 liters
8.33 liters
