Bobcat T110 Compact track loaders tech specs

makana img
video play button
Video[1]

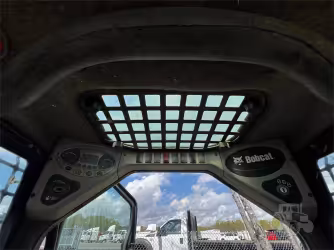

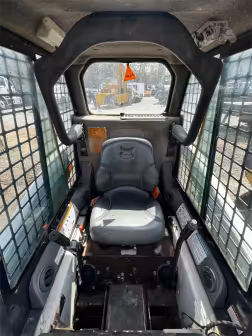

Interior [2]

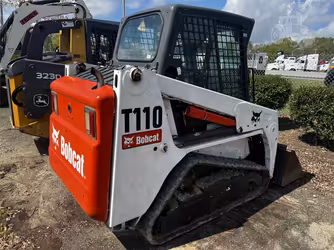

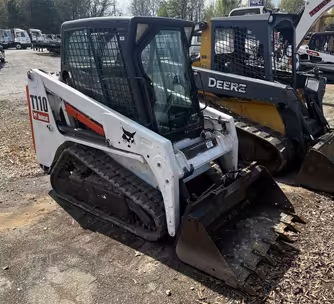

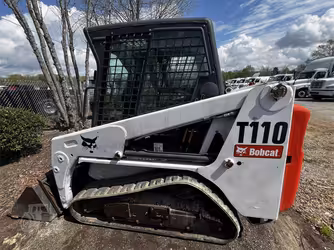

Exterior [4]

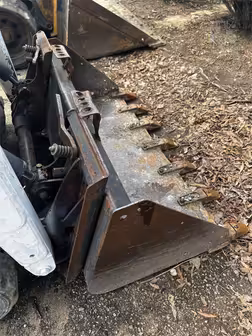

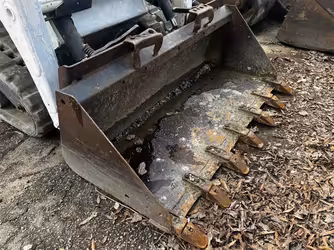

Attachments [2]
2009-2024
31.17 kw Gross power
0.32 bar Ground pressure
0.58 m Loader dump reach
498.95 kg Lifting capacity
2,359 kg Operating weight
1.27 m Overall Width

A 2.36-ton compact track loader built for tight access loading, grading, landscaping, and light site cleanup, the Bobcat T110 combines 31.17 kilowatt gross power with a 498.95 kg lifting capacity and low 0.32 bar ground pressure. With its narrow 1.27 m overall width, 47.31 lpm hydraulic pump flow, and 13.52 kph forward speed, it is suited for contractors who need a small tracked loader that can work on soft ground, pass through confined spaces, and handle daily bucket work without the size penalty of larger machines.

Operating weight 2,359 kg

Gross power 31.17 kilowatt

Lifting capacity 498.95 kg

Hydraulic pump flow 47.31 lpm

Ground pressure 0.32 bar

Overall width 1.27 m

Track width 24.89 cm

Makana rating

Owner rating

| 3

Market average

AED 105,000

Starting from

AED 62,000

Bobcat T110 Technical specifications

Engine

Aspiration

Naturally aspirated

Gross power

31.17 kw

Service refill capacities

Fuel cap

45.04 liter

Undercarriage

Ground pressure

0.32 bar

Track length

1.31 m

Track width

24.89 cm

Dimensions

Height - top of cab

1.89 m

Length with bucket

2.99 m

Length without Bucket

2.29 m

Overall Width

1.27 m

Width over tracks

1.22 m

General

Loader dump reach

0.58 m

Lifting capacity

498.95 kg

Max speed forward

13.52 kph

Operating weight

2,359 kg

Hydraulic system

Pump flow cap

47.31 lpm

Operating specifications

Rack back angle

31 º

View more
Download datasheets

Bobcat T110 expert review

Reviewed by Hussain E. on April 28, 2026

Overview

The Bobcat T110 (2009–2024) is a small compact track loader designed for tight-access loading, grading, landscaping, and light site cleanup. It delivers 31.17 kilowatt gross power, 498.95 kg lifting capacity, and low 0.32 bar ground pressure, making it useful where ground protection and compact size matter more than heavy lifting.

Expert rating: 4 stars

Pros Narrow body, low ground pressure, and useful stability for soft or confined jobsites.
Cons Limited lifting capacity compared with larger compact track loaders.

Performance & Efficiency

The naturally aspirated engine produces 31.17 kilowatt of gross power, giving the T110 practical output for light loading, grading, landscaping, and cleanup work. Its 498.95 kg lifting capacity, 47.31 lpm hydraulic pump flow, and 13.52 kph forward speed make it useful for daily small-loader tasks, while the 0.32 bar ground pressure helps it work on soft ground with less surface damage.

In Comparison

Cat 299: Far stronger and better for heavy production work.
John Deere 319: More lifting power and hydraulic capacity in a larger package.
Bobcat T110: More compact, lighter, and better suited for narrow access and low-impact ground work.

Final Verdict

Rated 4 stars, the Bobcat T110 is a useful compact track loader within the AED 62,000–105,000 range for buyers who need a small tracked machine for landscaping, tight-access work, and light material handling.

Show less

Bobcat T110 owner rating

Bobcat T110 Compact track loaders [2009-2024]

2009-2024

Overall rating

Based on 3 ratings

4.3
performance

4.3

comfort

4.3

fuel efficiency

4.3

safety

4.3

features

4.3

5 stars

33 %

4 stars

67 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros
Small width makes it easy to work through gates, narrow paths, and tight plots.
Cons
Lifting capacity is limited for heavier pallets or dense materials.
performance

4.0

comfort

5.0

fuel efficiency

4.0

safety

5.0

features

4.0

Pros
Low ground pressure helps reduce damage on lawns and soft ground.
Cons
Hydraulic flow is basic compared with larger attachment-focused loaders.
performance

5.0

comfort

4.0

fuel efficiency

5.0

safety

4.0

features

5.0

Valuation

Last 12 month
2009

Bobcat T110 similar models

Highlight differences
Bobcat T110
Cat 299C
John deere 319D
Engine
Aspiration Naturally aspirated
Aspiration Turbocharged
Aspiration Turbocharged
Gross power 31.17 kw
Gross power 70.1 kw
Gross power 50.86 kw
Alternator supplied amperage -
Alternator supplied amperage 90 Amh
Alternator supplied amperage 70 Amh
Bore -
Bore 9.4 cm
Bore -
Net power -
Net power 67.11 kw
Net power 47.13 kw
Number of cylinders -
Number of cylinders 4
Number of cylinders 4
Power measured @ -
Power measured @ 2,500 rpm
Power measured @ 2,300 rpm
Stroke -
Stroke 11.94 cm
Stroke -
Engine make -
Engine make -
Engine make John Deere
Torque measured @ -
Torque measured @ -
Torque measured @ 2,000 rpm
Years 2009-2024
Years 2009-2015
Years 2005-2013
Market Average AED 105,000
Market Average AED 140,000
Market Average AED 106,000
Price AED 62,000
Price AED 110,000
Price AED 77,000
Service refill capacities
Fuel cap 45.04 liter
Fuel cap 98.03 liter
Fuel cap 70.02 liter
Cooling fluid cap -
Cooling fluid cap 14 liter
Cooling fluid cap -
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase -
Hydraulic fluid cap -
Hydraulic fluid cap 57.15 liter
Hydraulic fluid cap -
Undercarriage
Ground pressure 0.32 bar
Ground pressure 0.3 bar
Ground pressure 0.37 bar
Track length 1.31 m
Track length 1.77 m
Track length -
Track width 24.89 cm
Track width -
Track width -
Ground contact area -
Ground contact area 41,033.3 cu cm
Ground contact area -
Number of track rollers per side -
Number of track rollers per side -
Number of track rollers per side 4
Dimensions
Height - top of cab 1.89 m
Height - top of cab 2.13 m
Height - top of cab 2 m
Length with bucket 2.99 m
Length with bucket 3.84 m
Length with bucket -
Length without Bucket 2.29 m
Length without Bucket -
Length without Bucket 2.74 m
Overall Width 1.27 m
Overall Width 1.98 m
Overall Width -
Width over tracks 1.22 m
Width over tracks 1.98 m
Width over tracks -
Ground clearance -
Ground clearance 0.23 m
Ground clearance 0.25 m
Max height to hinge pin -
Max height to hinge pin 19.56 cm
Max height to hinge pin 300.23 cm
Turning radius -
Turning radius 1.78 m
Turning radius 2.01 m
General
Loader dump reach 0.58 m
Loader dump reach 0.79 m
Loader dump reach 0.72 m
Lifting capacity 498.95 kg
Lifting capacity 1,882.41 kg
Lifting capacity 863.01 kg
Max speed forward 13.52 kph
Max speed forward 13.68 kph
Max speed forward -
Operating weight 2,359 kg
Operating weight 4,867 kg
Operating weight 3,882 kg
Bucket capacity -
Bucket capacity 0.46 cu m
Bucket capacity -
Displacement -
Displacement 3,293.81 cu cm
Displacement 2,400.71 cu cm
Engine model -
Engine model Cat C3.4T
Engine model E 4024HT
Loader dump height -
Loader dump height 2.5 m
Loader dump height 2.4 m
Max horizontal reach -
Max horizontal reach 1.27 m
Max horizontal reach -
Operating voltage -
Operating voltage 12 V
Operating voltage 12 V
Tipping load -
Tipping load 3,782 kg
Tipping load 2,542 kg
Max torque -
Max torque -
Max torque 230.08 Nm
Hydraulic system
Pump flow cap 47.31 lpm
Pump flow cap 124.91 lpm
Pump flow cap 59.05 lpm
Pump type -
Pump type High Flow XPS
Pump type -
Relief valve pressure -
Relief valve pressure 279.99 bar
Relief valve pressure 213.74 bar
Operating specifications
Rack back angle 31 º
Rack back angle 83 º
Rack back angle -
Angle of departure -
Angle of departure 38 º
Angle of departure -
Cab FOPS -
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS -
Cab FOPS level II -
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab FOPS level II -
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS -
Dump angle -
Dump angle 51 º
Dump angle 42 º
Loader
Breakout force - lift cylinder -
Breakout force - lift cylinder 3,314.86 kg
Breakout force - lift cylinder -
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 3,314.86 kg
Breakout force - tilt cylinder -
Breakout force -
Breakout force -
Breakout force 2,324.66 kg
Refill capacities
Engine oil cap -
Engine oil cap 10.22 liter
Engine oil cap -
