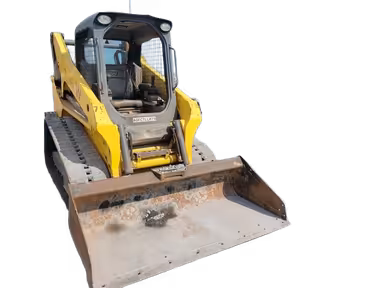

Wacker neuson ST31 Compact track loaders tech specs

makana img
video play button
Video[1]

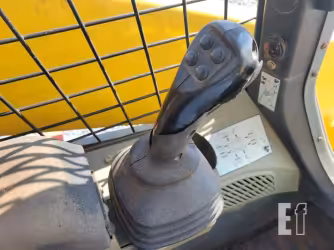

Interior [2]

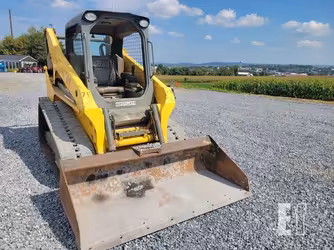

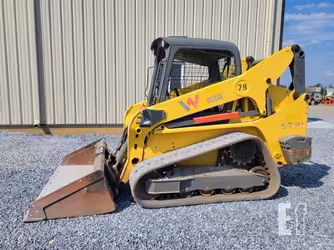

Exterior [4]

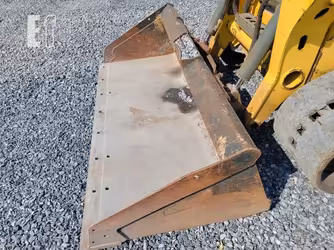

Attachments [2]
2023-2025
2,482.65 cu cm Displacement
55.18 kw Gross power
2.5 m Loader dump height
0.91 m Loader dump reach
1,406.14 kg Lifting capacity
3,671 kg Operating weight
Show features

Makana rating

Market average

AED 290,000

Starting from

AED 113,000

Wacker neuson ST31 Technical specifications

Loader

Breakout force

2267.96 kg

Loader dump height

2.5 m

Loader dump reach

0.91 m

Engine

Displacement

2482.65 cu cm

Engine make

Kohler

Gross power

55.18 kw

Power measured @

2,750 rpm

General

Engine model

KDI 2504 TCR

Lifting capacity

1406.14 kg

Max speed forward

16.09 kph

Operating weight

3,671 kg

Service refill capacities

Fuel cap

113.55 liter

Dimensions

Ground clearance

0.23 m

Height - top of cab

2.13 m

Length with bucket

3.47 m

Length without Bucket

2.71 m

Overall Width

1.7 m

Width over tracks

0.34 m

Hydraulic system

Pump flow cap

10.98 lpm

Relief valve pressure

241.31 bar

Operating specifications

Rack back angle

42 º

View more
Download datasheets
OEM product brochure

Wacker neuson ST31 similar models

Highlight differences
Wacker neuson ST31
ST31
Cat 247
247
Cat 249D
249D
Loader
Breakout force 2,267.96 kg
Breakout force -
Breakout force -
Loader dump height 2.5 m
Loader dump height 2.1 m
Loader dump height 2.25 m
Loader dump reach 0.91 m
Loader dump reach 0.64 m
Loader dump reach 0.73 m
Breakout force - lift cylinder -
Breakout force - lift cylinder 1,365.77 kg
Breakout force - lift cylinder -
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 1,603.9 kg
Breakout force - tilt cylinder 1,797.59 kg
Years 2023-2025
Years 2004-2008
Years 2016-2019
Market Average AED 290,000
Market Average AED 145,000
Market Average AED 228,000
Price AED 113,000
Price AED 130,000
Price AED 191,000
Engine
Displacement 2,482.65 cu cm
Displacement 2,998.84 cu cm
Displacement 2,200.79 cu cm
Engine make Kohler
Engine make -
Engine make -
Gross power 55.18 kw
Gross power 43.25 kw
Gross power 50.04 kw
Power measured @ 2,750 rpm
Power measured @ 2,600 rpm
Power measured @ -
Bore -
Bore 9.91 cm
Bore 8.38 cm
Net power -
Net power 40.27 kw
Net power 49.07 kw
Number of cylinders -
Number of cylinders 4
Number of cylinders -
Stroke -
Stroke 10.16 cm
Stroke 9.91 cm
Max torque -
Max torque -
Max torque 46.63 Nm
General
Engine model KDI 2504 TCR
Engine model Cat 3034 naturally aspirated
Engine model Cat C2.2 CRDI
Lifting capacity 1,406.14 kg
Lifting capacity 952.55 kg
Lifting capacity 1,043.26 kg
Max speed forward 16.09 kph
Max speed forward 12.07 kph
Max speed forward -
Operating weight 3,671 kg
Operating weight 3,023 kg
Operating weight -
Bucket capacity -
Bucket capacity 0.38 cu m
Bucket capacity -
Tipping load -
Tipping load 1,753 kg
Tipping load 2,086 kg
Max horizontal reach -
Max horizontal reach -
Max horizontal reach 1.32 m
Service refill capacities
Fuel cap 113.55 liter
Fuel cap 64.35 liter
Fuel cap 57.15 liter
Cooling fluid cap -
Cooling fluid cap 9.84 liter
Cooling fluid cap 12.11 liter
Engine crankcase -
Engine crankcase 6.81 liter
Engine crankcase 9.84 liter
Hydraulic fluid cap -
Hydraulic fluid cap 55.26 liter
Hydraulic fluid cap 45.04 liter
Dimensions
Ground clearance 0.23 m
Ground clearance 0.27 m
Ground clearance 0.21 m
Height - top of cab 2.13 m
Height - top of cab 2.01 m
Height - top of cab 2.04 m
Length with bucket 3.47 m
Length with bucket 3.32 m
Length with bucket 3.23 m
Length without Bucket 2.71 m
Length without Bucket 2.53 m
Length without Bucket 2.52 m
Overall Width 1.7 m
Overall Width -
Overall Width 1.68 m
Width over tracks 0.34 m
Width over tracks 1.68 m
Width over tracks -
Turning radius -
Turning radius 2.16 m
Turning radius 1.46 m
Max height to hinge pin -
Max height to hinge pin -
Max height to hinge pin 21.84 cm
Hydraulic system
Pump flow cap 10.98 lpm
Pump flow cap 54.5 lpm
Pump flow cap 98.41 lpm
Relief valve pressure 241.31 bar
Relief valve pressure -
Relief valve pressure 230.01 bar
Operating specifications
Rack back angle 42 º
Rack back angle 37 º
Rack back angle 87 º
Air conditioning -
Air conditioning -
Air conditioning Contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Angle of departure -
Angle of departure -
Angle of departure 34 º
Cab FOPS -
Cab FOPS -
Cab FOPS ISO 3449:2005 Level I
Cab FOPS level II -
Cab FOPS level II -
Cab FOPS level II ISO 3449:2005 Level II
Cab ROPS -
Cab ROPS -
Cab ROPS ISO 3471:2008
Dump angle -
Dump angle -
Dump angle 48 º
Undercarriage
Ground contact area -
Ground contact area 29,005.17 cu cm
Ground contact area 28,120.26 cu cm
Ground pressure -
Ground pressure 0.26 bar
Ground pressure 0.32 bar
Track length -
Track length 1.52 m
Track length 1.81 m
Track width -
Track width 38.1 cm
Track width -
