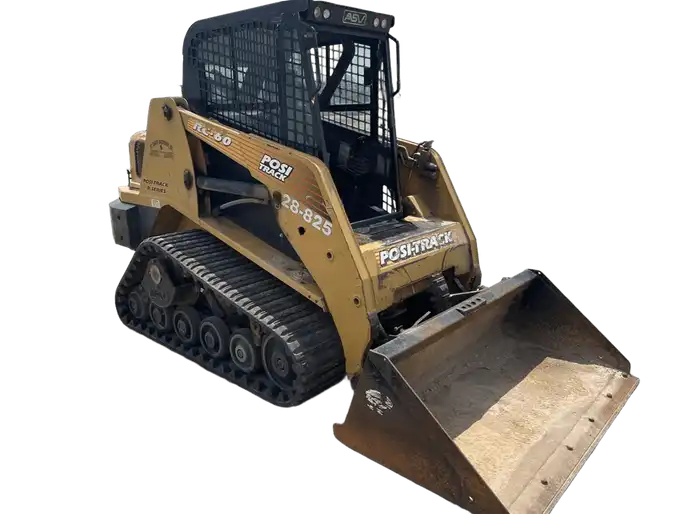

ASV RC-60 Compact track loaders tech specs

Video[1]

Interior [2]

Exterior [4]

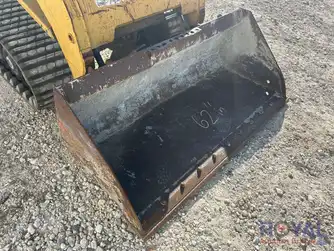

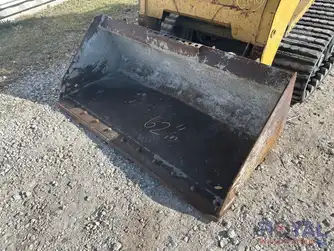

Attachments [2]

2003-2012

2,195.87 cu cm Displacement

44.74 kw Gross power

0.31 m Ground clearance

861.83 kg Lifting capacity

189.81 Nm Max torque

2,812 kg Operating weight

The ASV RC-60 is a compact track loader built to deliver more power and stronger hydraulics than the smaller RC-series machines while still maintaining low ground pressure and surface-friendly operation. With 44.74 kW of diesel power and an 861.83 kg lifting capacity, it suits landscaping, utility work, site cleanup, and light-to-medium contractor duties where flotation and traction matter. The Turf Edition variant is especially suited for grass, soft soil, and finished surfaces.

44.74 kW diesel engine power

861.83 kg rated lifting capacity

Compact 2,812 kg operating weight

0.31 m ground clearance

Good flotation on soft terrain

Turf Edition designed for sensitive surfaces

Makana rating

Owner rating

| 3

Market average

AED 90,000

Starting from

AED 53,000

ASV RC-60 technical specifications

Highlight differences

ASV RC-60

ASV RC-60 Turf Edition

Engine

Alternator supplied amperage

Alternator supplied amperage 55 Amh

Aspiration

Aspiration Turbocharged

Displacement

Displacement 2,195.87 cu cm

Gross power

Gross power 44.74 kw

Max torque

Max torque 189.81 Nm

Power measured @

Power measured @ 2,800 rpm

Years

Years 2003-2012

Market Average

Market Average AED 90,000

Price

Price AED 53,000

Service refill capacities

Cooling fluid cap

Cooling fluid cap 7.57 liter

Fuel cap

Fuel cap 56.78 liter

Fuel cap 57.15 liter

Hydraulic fluid cap

Hydraulic fluid cap 30.28 liter

Hydraulic fluid cap 30.66 liter

General

Engine model

Engine model 404C-22T

Lifting capacity

Lifting capacity 861.83 kg

Max speed forward

Max speed forward 12.87 kph

Max speed forward 13.04 kph

Operating voltage

Operating voltage 12 V

Operating weight

Operating weight 2,812 kg

Refill capacities

Engine oil cap

Engine oil cap 10.6 liter

Engine oil cap 10.98 liter

Dimensions

Ground clearance

Ground clearance 0.31 m

Height - top of cab

Height - top of cab 1.98 m

Length with bucket

Length with bucket 3.26 m

Length without Bucket

Length without Bucket 2.56 m

Width over tracks

Width over tracks 1.52 m

Undercarriage

Ground contact area

Ground contact area 28,957.64 cu cm

Ground pressure

Ground pressure 0.24 bar

Ground pressure 0.22 bar

Number of track rollers per side

Number of track rollers per side 6

Number of track rollers per side -

Track gauge

Track gauge 1.16 m

Track length

Track length 1.52 m

Track width

Track width 38.1 cm

Hydraulic system

Pump flow cap

Pump flow cap 65.86 lpm

Relief valve pressure

Relief valve pressure 206.84 bar

Operating specifications

Rack back angle

Rack back angle 38 º

Download datasheets

OEM product brochure

ASV RC-60 expert review

Reviewed by Adrien E. on March 11, 2026

Overview

The ASV RC-60 builds on the RC-series concept by adding more power while keeping the compact footprint and low ground pressure that made the lineup popular. It is aimed at contractors who need a loader capable of landscaping, light construction work, and site cleanup without damaging softer surfaces.

Pros Stronger power than smaller RC models, good flotation on soft terrain, practical for landscaping and contractor work.

Cons Still limited compared with larger production loaders, performance depends heavily on condition in older units.

Performance & Efficiency

With 44.74 kW of power and an 861.83 kg lifting capacity, the RC-60 offers enough strength for soil, mulch, palletized materials, and general support tasks. It performs best in mixed landscaping and contractor roles rather than aggressive loading cycles.

Maintenance & Ownership

The machine remains relatively simple compared with larger track loaders, which helps with ownership and transport. Buyers should still pay attention to undercarriage wear, track condition, and service records.

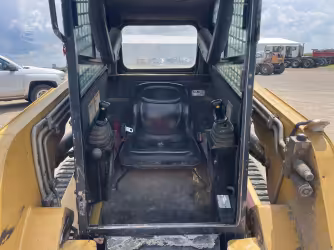

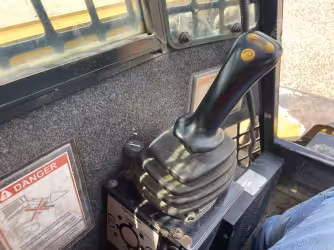

In Cabin & Interior

The cab layout is basic but functional. Controls are straightforward and visibility is generally good, though comfort and refinement are typical of early compact track loader designs.

Safety Features

Stability comes from the machine’s low center of gravity and wide track stance, helping maintain traction and control on softer ground.

In Comparison

Caterpillar 239
A widely used compact track loader for general contractor work.

JCB 260T
A heavier-duty comparison aimed at stronger loading applications.

ASV RC-60
A balanced option focused on flotation and surface-friendly performance.

Verdict

Rated 4 stars, the ASV RC-60 delivers a solid mix of power, traction, and compact size for landscaping and light construction work.

Show less

ASV RC-60 owner rating

ASV RC-60 Compact track loaders [2003-2012]

2003-2012

Overall rating

Based on 3 ratings

4.3

performance

4.3

comfort

4.3

fuel efficiency

4.0

safety

4.7

features

4.3

5 stars

33 %

4 stars

67 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros

Stronger power than the smaller RC models while still staying light and surface-friendly.

Cons

Older machines require careful inspection, especially undercarriage condition.

Submitted by on Mar 11, 2026 / ASV RC-60 Compact track loaders / Purchased on Jun, 2007

performance

5.0

comfort

4.0

fuel efficiency

4.0

safety

5.0

features

5.0

Valuation

Last 12 month

2003

ASV RC-60 similar models

Highlight differences

ASV RC-60

Cat 239D

JCB 260T

Engine

Alternator supplied amperage

Alternator supplied amperage 55 Amh

Alternator supplied amperage -

Aspiration

Aspiration Turbocharged

Aspiration -

Aspiration Turbocharged

Displacement

Displacement 2,195.87 cu cm

Displacement 2,200.79 cu cm

Displacement 4,391 cm3

Gross power

Gross power 44.74 kw

Gross power 50.04 kw

Gross power 62.64 kw

Max torque

Max torque 189.81 Nm

Max torque 46.63 Nm

Max torque 362 Nm

Power measured @

Power measured @ 2,800 rpm

Power measured @ -

Bore

Bore -

Bore 8.38 cm

Bore -

Net power

Net power -

Net power 49.07 kw

Net power -

Stroke

Stroke -

Stroke 9.91 cm

Stroke -

Years

Years 2003-2012

Years 2015-2019

Years 2013-2017

Market Average

Market Average AED 90,000

Market Average AED 191,000

Market Average AED 81,100

Price

Price AED 53,000

Price AED 144,000

Price AED 79,000

Service refill capacities

Cooling fluid cap

Cooling fluid cap 7.57 liter

Cooling fluid cap 12.11 liter

Cooling fluid cap 15.52 liters

Fuel cap

Fuel cap 56.78 liter

Fuel cap 57.15 liter

Fuel cap 103.33 liter

Hydraulic fluid cap

Hydraulic fluid cap 30.28 liter

Hydraulic fluid cap 45.04 liter

Hydraulic fluid cap 60.18 liter

Engine crankcase

Engine crankcase -

Engine crankcase 9.84 liter

Engine crankcase -

General

Engine model

Engine model 404C-22T

Engine model Cat C2.2 CRDI

Engine model Dieselmax TC-63

Lifting capacity

Lifting capacity 861.83 kg

Lifting capacity 929.87 kg

Lifting capacity 1,179 kg

Max speed forward

Max speed forward 12.87 kph

Max speed forward -

Max speed forward 9.17 kph

Operating voltage

Operating voltage 12 V

Operating voltage -

Operating voltage 12 V

Operating weight

Operating weight 2,812 kg

Operating weight -

Operating weight 4,628 kg

Max horizontal reach

Max horizontal reach -

Max horizontal reach 1.36 m

Max horizontal reach -

Tipping load

Tipping load -

Tipping load 1,859 kg

Tipping load -

Bucket width

Bucket width -

Bucket width 1,900 mm

Bucket capacity

Bucket capacity -

Bucket capacity 0.61 m3

Refill capacities

Engine oil cap

Engine oil cap 10.6 liter

Engine oil cap -

Engine oil cap 14 liter

Dimensions

Ground clearance

Ground clearance 0.31 m

Ground clearance 0.21 m

Ground clearance 0.25 m

Height - top of cab

Height - top of cab 1.98 m

Height - top of cab 2.04 m

Height - top of cab -

Length with bucket

Length with bucket 3.26 m

Length with bucket 3.23 m

Length with bucket 3.72 m

Length without Bucket

Length without Bucket 2.56 m

Length without Bucket 2.52 m

Length without Bucket -

Width over tracks

Width over tracks 1.52 m

Width over tracks -

Width over tracks 1.98 m

Max height to hinge pin

Max height to hinge pin -

Max height to hinge pin 283 cm

Max height to hinge pin -

Overall Width

Overall Width -

Overall Width 1.68 m

Overall Width -

Turning radius

Turning radius -

Turning radius 1.46 m

Turning radius -

Undercarriage

Ground contact area

Ground contact area 28,957.64 cu cm

Ground contact area 28,120.26 cu cm

Ground contact area -

Ground pressure

Ground pressure 0.24 bar

Ground pressure 0.3 bar

Ground pressure 0.32 bar

Number of track rollers per side

Number of track rollers per side 6

Number of track rollers per side -

Track gauge

Track gauge 1.16 m

Track gauge -

Track length

Track length 1.52 m

Track length 1.81 m

Track length -

Track width

Track width 38.1 cm

Track width -

Track width 450 mm

Hydraulic system

Pump flow cap

Pump flow cap 65.86 lpm

Pump flow cap 98.41 lpm

Pump flow cap 87.06 lpm

Relief valve pressure

Relief valve pressure 206.84 bar

Relief valve pressure 230.01 bar

Relief valve pressure 229.94 bar

Operating specifications

Rack back angle

Rack back angle 38 º

Rack back angle -

Rack back angle 30 º

Air conditioning

Air conditioning -

Air conditioning Contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Air conditioning -

Angle of departure

Angle of departure -

Angle of departure 34 º

Angle of departure -

Cab FOPS

Cab FOPS -

Cab FOPS ISO 3449:2005 Level I

Cab FOPS -

Cab FOPS level II

Cab FOPS level II -

Cab FOPS level II ISO 3449:2005 Level II
