ASV 4810 Compact track loaders
ASV 4810 Compact track loaders tech specs
:quality(50)/https://www.makana.com/66790/conversions/94458884-1baf-40f5-9377-653217437c65-webp.webp)
Video[1]
:quality(50)/https://www.makana.com/66781/conversions/1e2f413c-545e-4f33-b0ac-6d2bd55e061b-webp.webp)

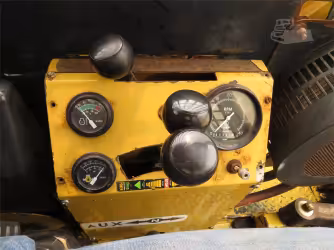

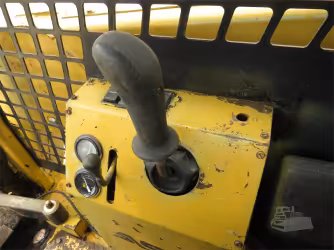

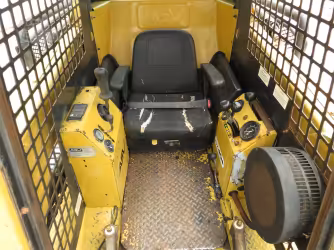

Interior [3]
:quality(50)/https://www.makana.com/66784/conversions/e209fd0e-85f9-457b-9eef-231d33012651-webp.webp)

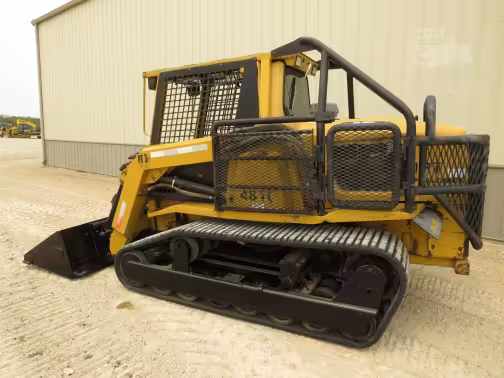

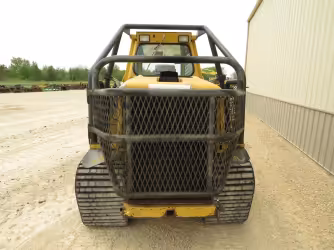

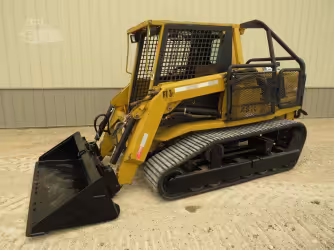

Exterior [4]
:quality(50)/https://www.makana.com/66788/conversions/7b50ef3b-a180-4ecc-baa0-e8e93a970dce-webp.webp)

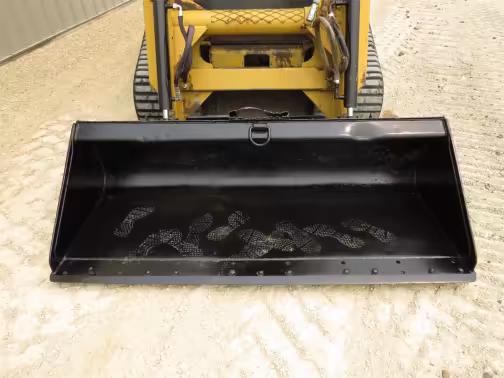

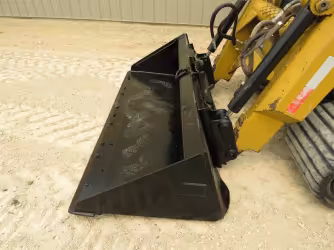

Attachments [2]
ASV 4810 Technical specifications
Engine
Alternator supplied amperage
65 Amh
Aspiration
Turbocharged
Displacement
3998.45 cu cm
Gross power
78.3 kw
Max torque
385.05 Nm
Power measured @
2,400 rpm
Loader
Breakout force
2676.2 kg
Service refill capacities
Cooling fluid cap
35.96 liter
Fuel cap
94.63 liter
Hydraulic fluid cap
105.98 liter
General
Engine model
3054T
Lifting capacity
936.67 kg
Max speed forward
9.66 kph
Operating voltage
12 V
Operating weight
3,919 kg
Refill capacities
Engine oil cap
7.95 liter
Dimensions
Ground clearance
0.41 m
Height - top of cab
2.1 m
Length without Bucket
2.93 m
Width over tracks
1.77 m
Undercarriage
Ground contact area
46309.95 cu cm
Ground pressure
0.21 bar
Number of track rollers per side
12
Track length
2.01 m
Track width
45.72 cm
Hydraulic system
Pump flow cap
71.92 lpm
Relief valve pressure
203.39 bar
Download datasheets
ASV 4810 expert review
ASV 4810 similar models
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 65 Amh
Alternator supplied amperage 70 Amh
Alternator supplied amperage -
Aspiration
Aspiration Turbocharged
Aspiration -
Aspiration -
Displacement
Displacement 3,998.45 cu cm
Displacement 3,000.48 cu cm
Displacement -
Gross power
Gross power 78.3 kw
Gross power 71.14 kw
Gross power 20.13 kw
Max torque
Max torque 385.05 Nm
Max torque 341.12 Nm
Max torque -
Power measured @
Power measured @ 2,400 rpm
Power measured @ 2,400 rpm
Power measured @ -
Engine make
Engine make -
Engine make John Deere
Engine make Kohler Command
Net power
Net power -
Net power 66.74 kw
Net power -
Number of cylinders
Number of cylinders -
Number of cylinders 5
Number of cylinders -
Torque measured @
Torque measured @ -
Torque measured @ 1,950 rpm
Torque measured @ -
Years
Years 1994-2001
Years 2009-2013
Years 2006-2025
Market Average
Market Average AED 68,000
Market Average AED 164,000
Market Average AED 154,000
Price
Price AED 22,800
Price AED 115,000
Price AED 66,000
Breakout force
Breakout force 2,676.2 kg
Breakout force 6,293.6 kg
Breakout force -
Loader dump reach
Loader dump reach -
Loader dump reach 0.82 m
Loader dump reach -
Loader dump height
Loader dump height -
Loader dump height -
Loader dump height 1.41 m
Cooling fluid cap
Cooling fluid cap 35.96 liter
Cooling fluid cap -
Cooling fluid cap -
Fuel cap
Fuel cap 94.63 liter
Fuel cap 111.28 liter
Fuel cap 37.85 liter
Hydraulic fluid cap
Hydraulic fluid cap 105.98 liter
Hydraulic fluid cap -
Hydraulic fluid cap -
Engine model
Engine model 3054T
Engine model E 5030HT
Engine model -
Lifting capacity
Lifting capacity 936.67 kg
Lifting capacity 2,145.04 kg
Lifting capacity 272.02 kg
Max speed forward
Max speed forward 9.66 kph
Max speed forward 12.71 kph
Max speed forward 5.63 kph
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage -
Operating weight
Operating weight 3,919 kg
Operating weight 5,039 kg
Operating weight 1,021 kg
Tipping load
Tipping load -
Tipping load 4,275 kg
Tipping load 816 kg
Engine oil cap
Engine oil cap 7.95 liter
Engine oil cap -
Engine oil cap -
Ground clearance
Ground clearance 0.41 m
Ground clearance 0.27 m
Ground clearance 0.18 m
Height - top of cab
Height - top of cab 2.1 m
Height - top of cab 3.2 m
Height - top of cab 1.28 m
Length without Bucket
Length without Bucket 2.93 m
Length without Bucket 3.02 m
Length without Bucket 1.8 m
Width over tracks
Width over tracks 1.77 m
Width over tracks 2.07 m
Width over tracks 1.13 m
Length with bucket
Length with bucket -
Length with bucket 3.63 m
Length with bucket 2.29 m
Turning radius
Turning radius -
Turning radius 2.19 m
Turning radius -
Max height to hinge pin
Max height to hinge pin -
Max height to hinge pin -
Max height to hinge pin 178.82 cm
Ground contact area
Ground contact area 46,309.95 cu cm
Ground contact area -
Ground contact area -
Ground pressure
Ground pressure 0.21 bar
Ground pressure 0.32 bar
Ground pressure 0.24 bar
Number of track rollers per side
Number of track rollers per side 12
Number of track rollers per side 5
Number of track rollers per side -
Track length
Track length 2.01 m
Track length -
Track length -
Track width
Track width 45.72 cm
Track width 45.21 cm
Track width -
Pump flow cap
Pump flow cap 71.92 lpm
Pump flow cap 95 lpm
Pump flow cap 47.69 lpm
Relief valve pressure
Relief valve pressure 203.39 bar
Relief valve pressure -
Relief valve pressure 206.84 bar
Dump angle
Dump angle -
Dump angle 45 º
Dump angle 34 º
Rack back angle
Rack back angle -
Rack back angle 50 º
Rack back angle -

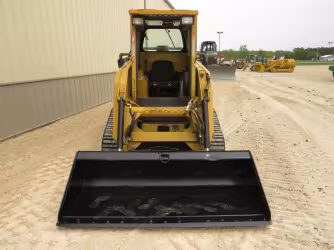

ASV 4810 gallery
