Boxer
Boxer 427 Compact track loaders
Boxer 427 Compact track loaders tech specs
:quality(50)/https://www.makana.com/66057/conversions/a935afdd-f739-47f3-81c8-804f93b86ec2-webp.webp)

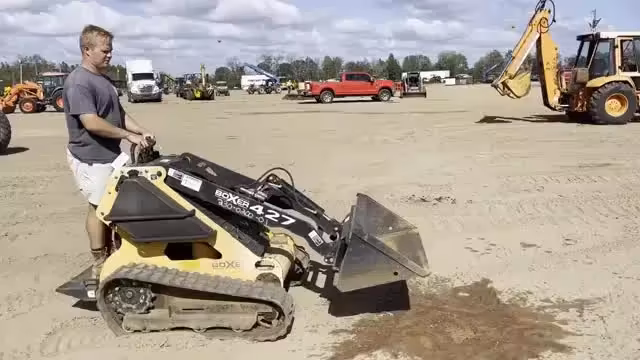

Video[1]
:quality(50)/https://www.makana.com/66051/conversions/bf015966-538b-48cc-a668-1c2764be1465-webp.webp)

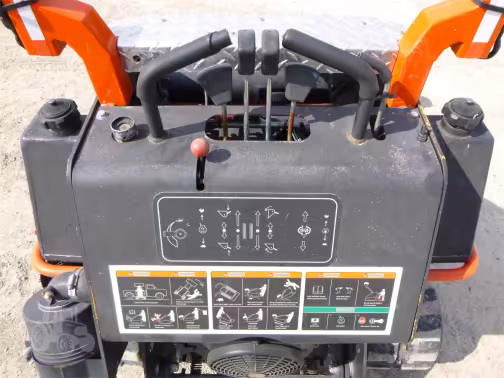

Interior [1]
:quality(50)/https://www.makana.com/66052/conversions/521b87db-8152-4b32-99d8-eaad56713ebf-webp.webp)

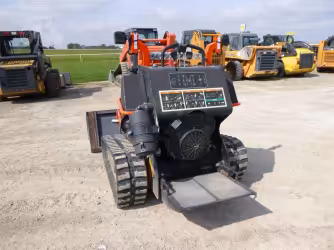

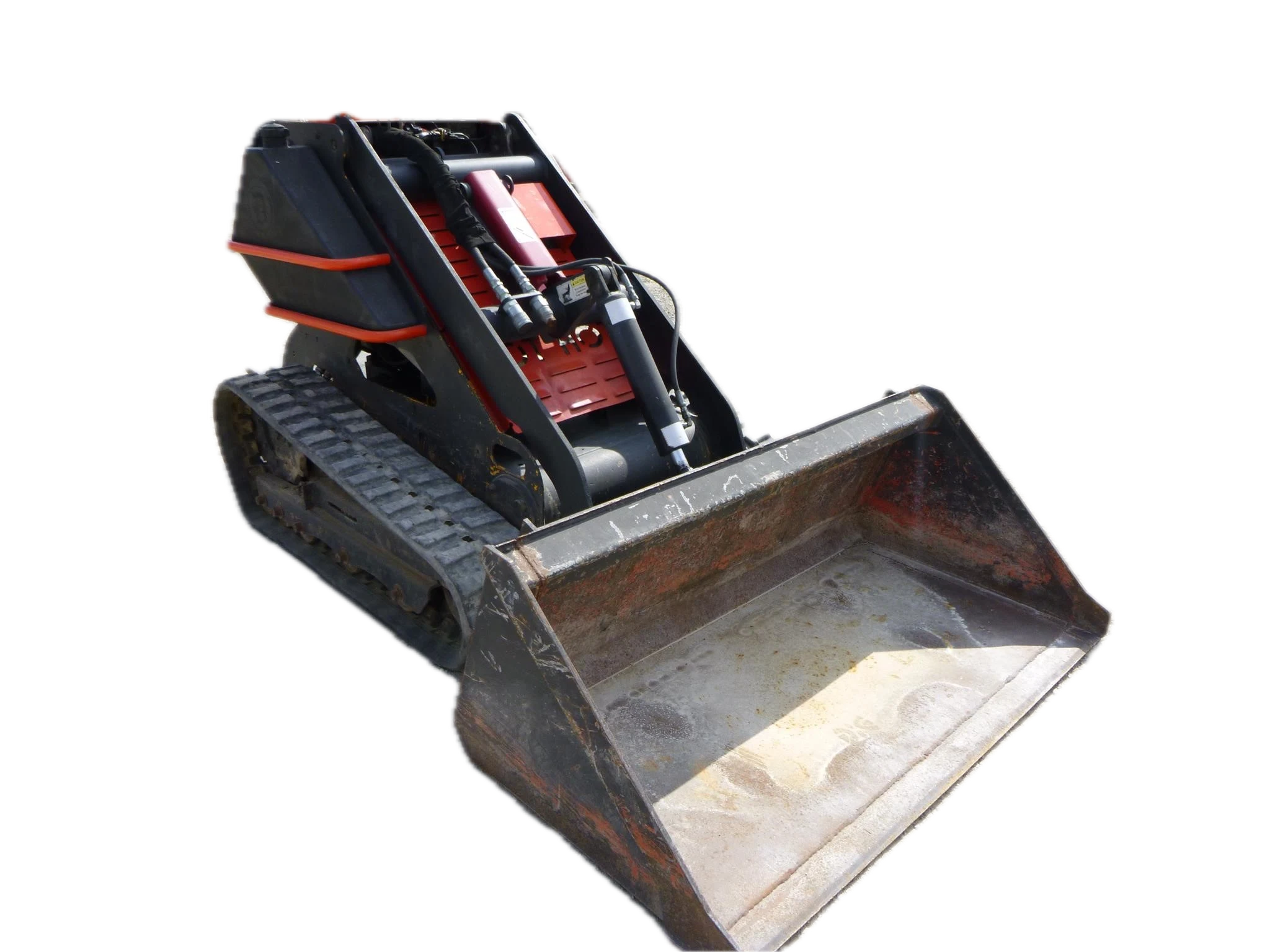

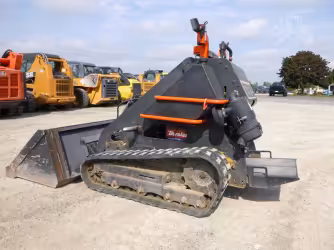

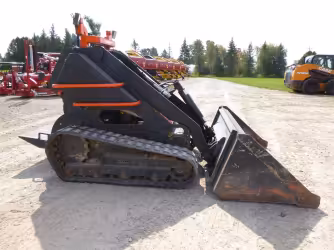

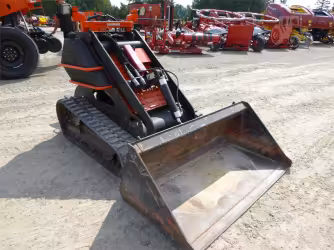

Exterior [4]
:quality(50)/https://www.makana.com/66056/conversions/99265d5d-5443-49bf-b785-4d6693271c82-webp.webp)

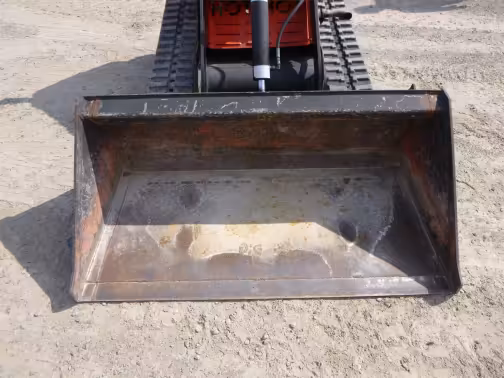

Attachments [1]
Boxer 427 Technical specifications
Operating specifications
Dump angle
34 º
Engine
Engine make
Kohler Command
Gross power
20.13 kw
Service refill capacities
Fuel cap
37.85 liter
Dimensions
Ground clearance
0.18 m
Height - top of cab
1.28 m
Length with bucket
2.29 m
Length without Bucket
1.8 m
Max height to hinge pin
178.82 cm
Width over tracks
1.13 m
Undercarriage
Ground pressure
0.24 bar
Loader
Loader dump height
1.41 m
General
Lifting capacity
272.02 kg
Max speed forward
5.63 kph
Operating weight
1,021 kg
Tipping load
816 kg
Hydraulic system
Pump flow cap
47.69 lpm
Relief valve pressure
206.84 bar
Download datasheets
Boxer 427 expert review
Boxer 427 similar models
Highlight differences
Dump angle
Dump angle 34 º
Dump angle -
Dump angle 45 º
Rack back angle
Rack back angle -
Rack back angle -
Rack back angle 50 º
Years
Years 2006-2025
Years 2005-2013
Years 2009-2013
Market Average
Market Average AED 154,000
Market Average AED 163,500
Market Average AED 164,000
Price
Price AED 66,000
Price AED 140,500
Price AED 115,000
Engine make
Engine make Kohler Command
Engine make -
Engine make John Deere
Gross power
Gross power 20.13 kw
Gross power 64.13 kw
Gross power 71.14 kw
Net power
Net power -
Net power 61.89 kw
Net power 66.74 kw
Power measured @
Power measured @ -
Power measured @ 2,500 rpm
Power measured @ 2,400 rpm
Alternator supplied amperage
Alternator supplied amperage -
Alternator supplied amperage -
Alternator supplied amperage 70 Amh
Displacement
Displacement -
Displacement -
Displacement 3,000.48 cu cm
Max torque
Max torque -
Max torque -
Max torque 341.12 Nm
Number of cylinders
Number of cylinders -
Number of cylinders -
Number of cylinders 5
Torque measured @
Torque measured @ -
Torque measured @ -
Torque measured @ 1,950 rpm
Fuel cap
Fuel cap 37.85 liter
Fuel cap 96.52 liter
Fuel cap 111.28 liter
Ground clearance
Ground clearance 0.18 m
Ground clearance 0.26 m
Ground clearance 0.27 m
Height - top of cab
Height - top of cab 1.28 m
Height - top of cab 2.16 m
Height - top of cab 3.2 m
Length with bucket
Length with bucket 2.29 m
Length with bucket 3.66 m
Length with bucket 3.63 m
Length without Bucket
Length without Bucket 1.8 m
Length without Bucket -
Length without Bucket 3.02 m
Max height to hinge pin
Max height to hinge pin 178.82 cm
Max height to hinge pin -
Max height to hinge pin -
Width over tracks
Width over tracks 1.13 m
Width over tracks 2.01 m
Width over tracks 2.07 m
Turning radius
Turning radius -
Turning radius -
Turning radius 2.19 m
Ground pressure
Ground pressure 0.24 bar
Ground pressure -
Ground pressure 0.32 bar
Number of track rollers per side
Number of track rollers per side -
Number of track rollers per side -
Number of track rollers per side 5
Track width
Track width -
Track width -
Track width 45.21 cm
Loader dump height
Loader dump height 1.41 m
Loader dump height -
Loader dump height -
Breakout force
Breakout force -
Breakout force 4,683.35 kg
Breakout force 6,293.6 kg
Loader dump reach
Loader dump reach -
Loader dump reach -
Loader dump reach 0.82 m
Lifting capacity
Lifting capacity 272.02 kg
Lifting capacity -
Lifting capacity 2,145.04 kg
Max speed forward
Max speed forward 5.63 kph
Max speed forward 9.98 kph
Max speed forward 12.71 kph
Operating weight
Operating weight 1,021 kg
Operating weight 5,216 kg
Operating weight 5,039 kg
Tipping load
Tipping load 816 kg
Tipping load -
Tipping load 4,275 kg
Engine model
Engine model -
Engine model 4TNV94CHT
Engine model E 5030HT
Operating voltage
Operating voltage -
Operating voltage -
Operating voltage 12 V
Pump flow cap
Pump flow cap 47.69 lpm
Pump flow cap 79.49 lpm
Pump flow cap 95 lpm
Relief valve pressure
Relief valve pressure 206.84 bar
Relief valve pressure 237.87 bar
Relief valve pressure -
