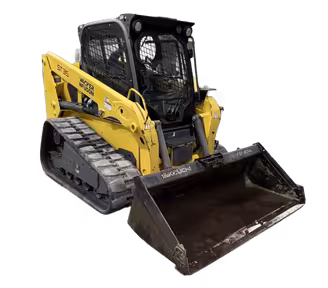

Wacker neuson ST35 Compact track loaders tech specs

makana img
video play button
Video[1]

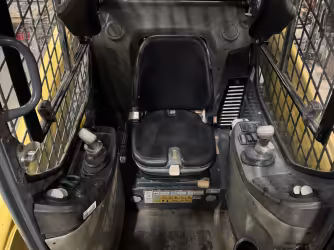

Interior [2]

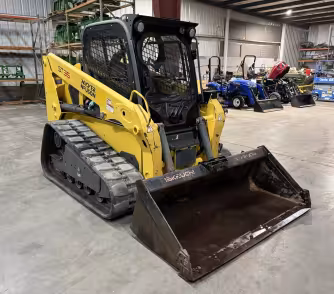

Exterior [4]
Attachments [1]
2025
55.41 kw Gross power
0.24 m Ground clearance
2.42 m Loader dump height
0.55 m Loader dump reach
1,587.58 kg Lifting capacity
4,457 kg Operating weight
Show features

Makana rating

Market average

AED 300,000

Starting from

AED 62,000

Wacker neuson ST35 Technical specifications

Operating specifications

Angle of departure

30 º

Dump angle

45 º

Rack back angle

45 º

Engine

Aspiration

Turbocharged

Emissions

Tier 4

Gross power

55.41 kw

Loader

Breakout force

2794.04 kg

Loader dump height

2.42 m

Loader dump reach

0.55 m

General

Bucket width

198 cm

Engine model

Perkins 854

Lifting capacity

1587.58 kg

Max speed forward

12.07 kph

Operating weight

4,457 kg

Service refill capacities

Fuel cap

93.49 liter

Dimensions

Ground clearance

0.24 m

Height - top of cab

2.1 m

Length with bucket

3.69 m

Length without Bucket

2.96 m

Max height to hinge pin

320.04 cm

Overall Width

1.98 m

Width over tracks

0.46 m

Hydraulic system

Pump flow cap

86.68 lpm

Relief valve pressure

230 bar

Undercarriage

Track length

1.62 m

View more
Download datasheets
OEM product brochure

Wacker neuson ST35 similar models

Highlight differences
Wacker neuson ST35
ST35
Cat 277B
277B
Cat 279C
279C
Operating specifications
Angle of departure 30 º
Angle of departure -
Angle of departure 44 º
Dump angle 45 º
Dump angle -
Dump angle 40 º
Rack back angle 45 º
Rack back angle 58 º
Rack back angle 64 º
Cab FOPS -
Cab FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II -
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Years 2025
Years 2004-2007
Years 2009-2015
Market Average AED 300,000
Market Average AED 99,200
Market Average AED 168,000
Price AED 62,000
Price AED 62,500
Price AED 114,000
Engine
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Emissions Tier 4
Emissions -
Emissions -
Gross power 55.41 kw
Gross power 61.15 kw
Gross power 62.64 kw
Alternator supplied amperage -
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Bore -
Bore 9.4 cm
Bore 8.64 cm
Displacement -
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Net power -
Net power 58.17 kw
Net power 61.15 kw
Stroke -
Stroke 11.94 cm
Stroke 11.94 cm
Number of cylinders -
Number of cylinders -
Number of cylinders 4
Power measured @ -
Power measured @ -
Power measured @ 2,500 rpm
Loader
Breakout force 2,794.04 kg
Breakout force -
Breakout force -
Loader dump height 2.42 m
Loader dump height 2.38 m
Loader dump height 2.44 m
Loader dump reach 0.55 m
Loader dump reach 0.7 m
Loader dump reach 0.61 m
Breakout force - lift cylinder -
Breakout force - lift cylinder 2,487 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 2,487.5 kg
Breakout force - tilt cylinder 3,314.86 kg
General
Bucket width 198 cm
Bucket width -
Bucket width -
Engine model Perkins 854
Engine model Cat 3044C DIT
Engine model Cat C3.4T
Lifting capacity 1,587.58 kg
Lifting capacity 1,338.01 kg
Lifting capacity 1,451.5 kg
Max speed forward 12.07 kph
Max speed forward 11.27 kph
Max speed forward 13.68 kph
Operating weight 4,457 kg
Operating weight 4,268 kg
Operating weight 4,486 kg
Max horizontal reach -
Max horizontal reach 1.46 m
Max horizontal reach 1.39 m
Operating voltage -
Operating voltage 12 V
Operating voltage 12 V
Tipping load -
Tipping load 2,676 kg
Tipping load 2,940 kg
Bucket capacity -
Bucket capacity -
Bucket capacity 0.46 cu m
Service refill capacities
Fuel cap 93.49 liter
Fuel cap 95 liter
Fuel cap 98.03 liter
Cooling fluid cap -
Cooling fluid cap 10.22 liter
Cooling fluid cap 14 liter
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
Hydraulic fluid cap -
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 57.15 liter
Dimensions
Ground clearance 0.24 m
Ground clearance 0.36 m
Ground clearance 0.23 m
Height - top of cab 2.1 m
Height - top of cab 2.1 m
Height - top of cab 2.13 m
Length with bucket 3.69 m
Length with bucket 3.69 m
Length with bucket 3.69 m
Length without Bucket 2.96 m
Length without Bucket -
Length without Bucket -
Max height to hinge pin 320.04 cm
Max height to hinge pin 25.4 cm
Max height to hinge pin 19.56 cm
Overall Width 1.98 m
Overall Width 1.91 m
Overall Width 1.98 m
Width over tracks 0.46 m
Width over tracks 1.92 m
Width over tracks 1.98 m
Turning radius -
Turning radius 1.55 m
Turning radius 1.64 m
Hydraulic system
Pump flow cap 86.68 lpm
Pump flow cap 83.27 lpm
Pump flow cap 124.91 lpm
Relief valve pressure 230 bar
Relief valve pressure 229.94 bar
Relief valve pressure 279.99 bar
Pump type -
Pump type Standard
Pump type High Flow XPS
Undercarriage
Track length 1.62 m
Track length 2.07 m
Track length 1.77 m
Ground contact area -
Ground contact area 47,489.82 cu cm
Ground contact area 41,033.3 cu cm
Ground pressure -
Ground pressure 0.22 bar
Ground pressure 0.28 bar
Refill capacities
Engine oil cap -
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
