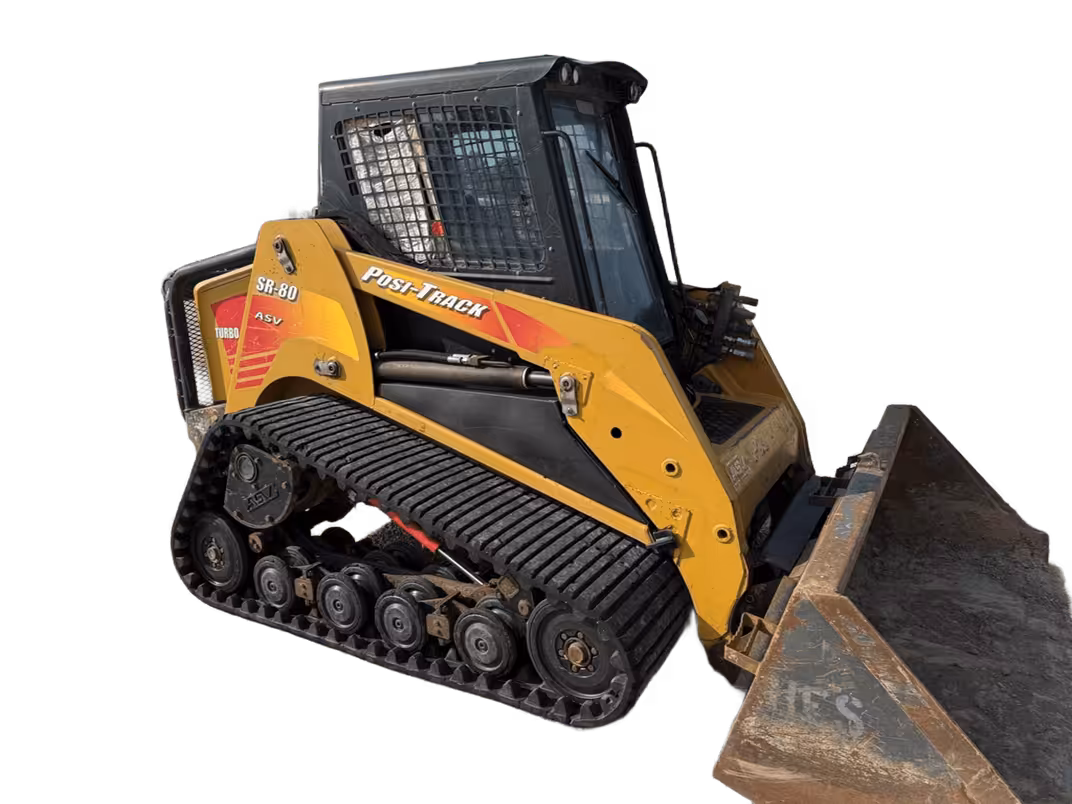

ASV SR-80 Compact track loaders tech specs

makana img
video play button
Video[1]

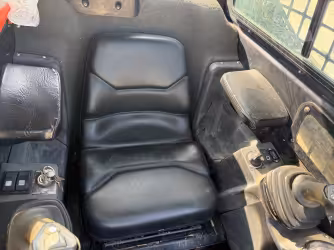

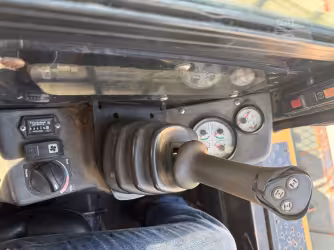

Interior [2]

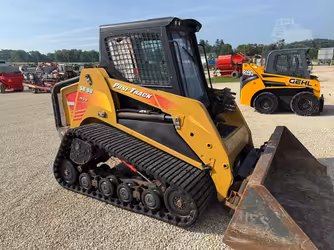

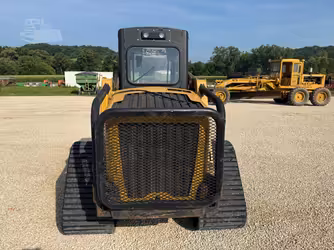

Exterior [4]

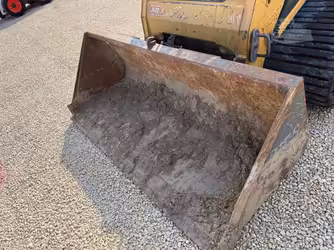

Attachments [1]
2006-2008
3,300.36 cu cm Displacement
60.03 kw Gross power
2.5 m Loader dump height
0.52 m Loader dump reach
1,406.14 kg Lifting capacity
4,069 kg Operating weight
Show features

Makana rating

Market average

AED 150,000

Starting from

AED 65,000

ASV SR-80 Technical specifications

Engine

Aspiration

Turbocharged

Displacement

3300.36 cu cm

Gross power

60.03 kw

Max torque

252.18 Nm

Net power

58.17 kw

Number of cylinders

4

Power measured @

2,600 rpm

General

Engine model

804C-33T

Lifting capacity

1406.14 kg

Max speed forward

20.12 kph

Operating weight

4,069 kg

Service refill capacities

Fuel cap

68.13 liter

Hydraulic fluid cap

79.49 liter

Dimensions

Ground clearance

0.38 m

Height - top of cab

2.19 m

Length with bucket

3.63 m

Length without Bucket

2.87 m

Width over tracks

1.86 m

Undercarriage

Ground contact area

46539.36 cu cm

Ground pressure

0.22 bar

Track length

1.83 m

Track width

50.8 cm

Loader

Loader dump height

2.5 m

Loader dump reach

0.52 m

Hydraulic system

Pump flow cap

113.55 lpm

Relief valve pressure

206.84 bar

Operating specifications

Rack back angle

62 º

View more
Download datasheets
OEM product brochure

ASV SR-80 similar models

Highlight differences
ASV SR-80
SR-80
Cat 259B3
259B3
Cat 267B
267B
Engine
Aspiration Turbocharged
Aspiration -
Aspiration -
Displacement 3,300.36 cu cm
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Gross power 60.03 kw
Gross power 55.18 kw
Gross power 54.44 kw
Max torque 252.18 Nm
Max torque -
Max torque -
Net power 58.17 kw
Net power 52.95 kw
Net power 52.2 kw
Number of cylinders 4
Number of cylinders -
Number of cylinders -
Power measured @ 2,600 rpm
Power measured @ -
Power measured @ -
Alternator supplied amperage -
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Bore -
Bore 9.4 cm
Bore 9.4 cm
Stroke -
Stroke 11.94 cm
Stroke 11.94 cm
Years 2006-2008
Years 2011-2014
Years 2004-2007
Market Average AED 150,000
Market Average AED 181,000
Market Average AED 109,000
Price AED 65,000
Price AED 113,000
Price AED 80,800
General
Engine model 804C-33T
Engine model Cat C3.4T
Engine model Cat 3044C DIT
Lifting capacity 1,406.14 kg
Lifting capacity 1,338.01 kg
Lifting capacity 1,315.01 kg
Max speed forward 20.12 kph
Max speed forward 13.68 kph
Max speed forward 11.27 kph
Operating weight 4,069 kg
Operating weight 4,052 kg
Operating weight 4,250 kg
Max horizontal reach -
Max horizontal reach 1.35 m
Max horizontal reach 1.46 m
Operating voltage -
Operating voltage 12 V
Operating voltage 12 V
Tipping load -
Tipping load 2,676 kg
Tipping load 2,630 kg
Service refill capacities
Fuel cap 68.13 liter
Fuel cap 84.03 liter
Fuel cap 95 liter
Hydraulic fluid cap 79.49 liter
Hydraulic fluid cap 55.26 liter
Hydraulic fluid cap 52.23 liter
Cooling fluid cap -
Cooling fluid cap 10.22 liter
Cooling fluid cap 10.22 liter
Engine crankcase -
Engine crankcase 9.08 liter
Engine crankcase 9.84 liter
Dimensions
Ground clearance 0.38 m
Ground clearance 0.23 m
Ground clearance 0.36 m
Height - top of cab 2.19 m
Height - top of cab 3.86 m
Height - top of cab 2.1 m
Length with bucket 3.63 m
Length with bucket 3.44 m
Length with bucket 3.69 m
Length without Bucket 2.87 m
Length without Bucket -
Length without Bucket -
Width over tracks 1.86 m
Width over tracks 1.77 m
Width over tracks 1.92 m
Max height to hinge pin -
Max height to hinge pin 20.32 cm
Max height to hinge pin 25.4 cm
Overall Width -
Overall Width 1.68 m
Overall Width 1.91 m
Turning radius -
Turning radius 1.47 m
Turning radius 2.51 m
Undercarriage
Ground contact area 46,539.36 cu cm
Ground contact area 24,498.71 cu cm
Ground contact area 47,489.82 cu cm
Ground pressure 0.22 bar
Ground pressure 0.34 bar
Ground pressure 0.22 bar
Track length 1.83 m
Track length 1.52 m
Track length 2.07 m
Track width 50.8 cm
Track width 40.13 cm
Track width -
Loader
Loader dump height 2.5 m
Loader dump height 2.26 m
Loader dump height 2.38 m
Loader dump reach 0.52 m
Loader dump reach 0.76 m
Loader dump reach 0.7 m
Breakout force - lift cylinder -
Breakout force - lift cylinder 2,045.02 kg
Breakout force - lift cylinder 2,487 kg
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 2,044.8 kg
Breakout force - tilt cylinder 2,487.5 kg
Hydraulic system
Pump flow cap 113.55 lpm
Pump flow cap 83.27 lpm
Pump flow cap 83.27 lpm
Relief valve pressure 206.84 bar
Relief valve pressure 229.94 bar
Relief valve pressure 230 bar
Pump type -
Pump type High Flow XPS
Pump type Standard
Operating specifications
Rack back angle 62 º
Rack back angle 58 º
Rack back angle -
Angle of departure -
Angle of departure 35 º
Angle of departure -
Cab FOPS -
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS SAE J/ISO 3449 APR98, ISO 3449:1992 Level I
Cab FOPS level II -
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Dump angle -
Dump angle 49 º
Dump angle 40 º
Refill capacities
Engine oil cap -
Engine oil cap 9.08 liter
Engine oil cap -
