Cat 267 Compact track loaders tech specs

makana img
video play button
Video[1]

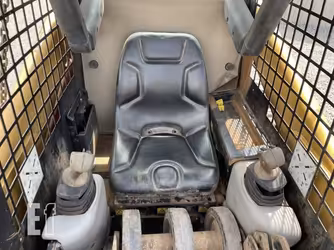

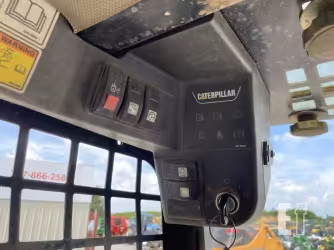

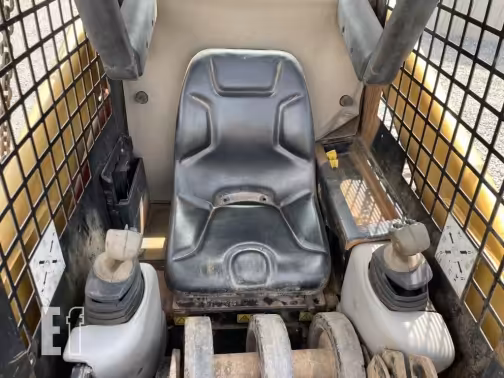

Interior [2]

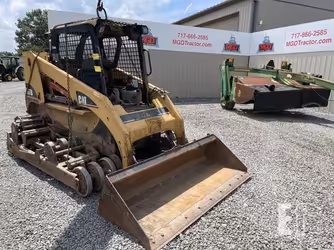

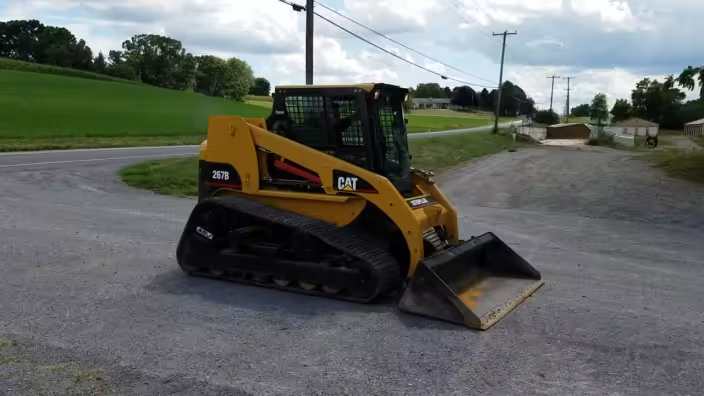

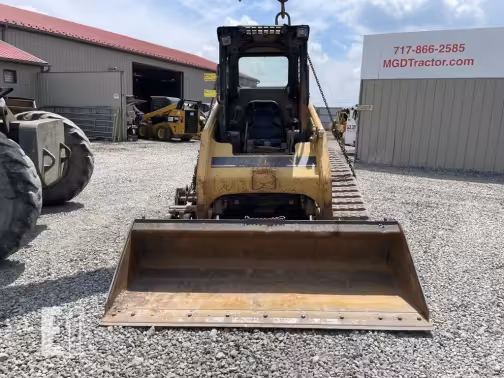

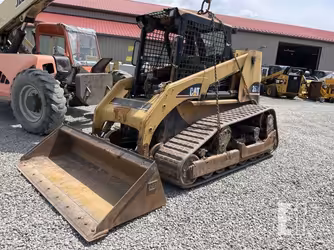

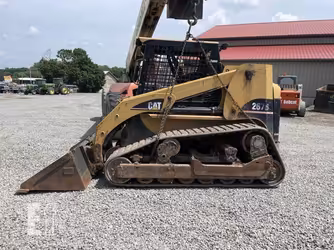

Exterior [4]

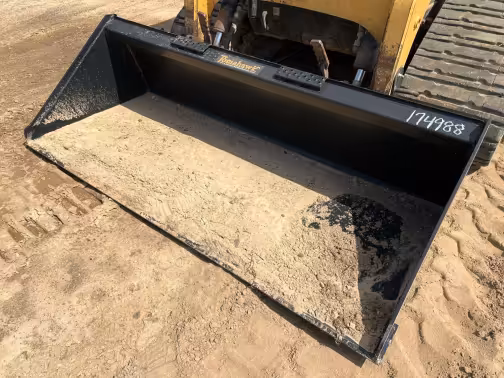

Attachments [2]
2004-2007
2,487.5 kg Breakout force - tilt cylinder
54.44 kw Gross power
2.38 m Loader dump height
1,315.01 kg Lifting capacity
4,250 kg Operating weight
2,630 kg Tipping load

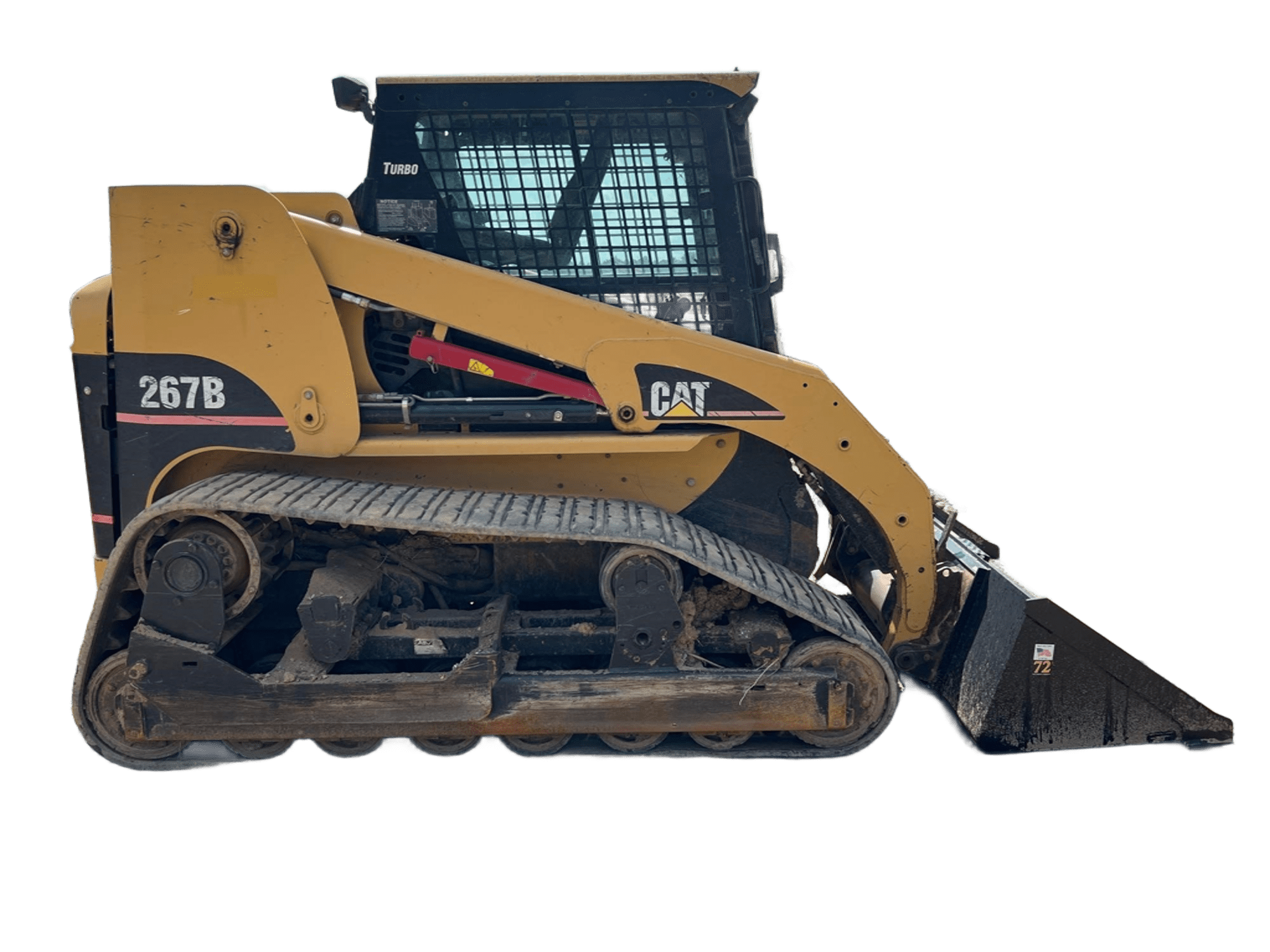

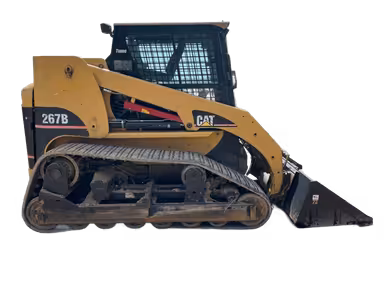

An early high-capacity compact track loader, the Cat 267B delivers serious breakout and lift for its size, targeting heavy material handling at a lower entry price. With over 1.3 tons of rated lift and a robust chassis, it’s built more for pushing and loading than fine grading.

Gross power 54.44 kW

Operating weight ~4,250 kg

Rated lifting capacity 1,315.01 kg

Tipping load 2,630 kg

Loader dump height 2.38 m

Breakout force (tilt cylinder) ~2,487.5 kg

Price range AED 80.8K–109K

Show features

Makana rating

Owner rating

 | 3

Market average

AED 109,000

Starting from

AED 80,800

Cat 267 technical specifications

Highlight differences

Cat 267

Cat 267B

Engine
Aspiration Naturally aspirated
Aspiration -
Bore 9.91 cm
Bore 9.4 cm
Displacement 2,998.84 cu cm
Displacement 3,293.81 cu cm
Gross power 46.98 kw
Gross power 54.44 kw
Net power 44 kw
Net power 52.2 kw
Number of cylinders 4
Number of cylinders -
Power measured @ 2,600 rpm
Power measured @ -
Stroke 10.16 cm
Stroke 11.94 cm
Alternator supplied amperage -
Alternator supplied amperage 90 Amh
Years 2004-2007
Years 2004-2007
Market Average AED 109,000
Market Average AED 109,000
Price AED 80,800
Price AED 80,800
Loader
Breakout force - lift cylinder 1,968.14 kg
Breakout force - lift cylinder 2,487 kg
Breakout force - tilt cylinder 2,385.45 kg
Breakout force - tilt cylinder 2,487.5 kg
Loader dump height 2.32 m
Loader dump height 2.38 m
Loader dump reach 0.7 m
Loader dump reach 0.7 m
General
Bucket capacity 0.46 cu m
Bucket capacity -
Engine model Cat 3034 naturally aspirated
Engine model Cat 3044C DIT
Lifting capacity 1,315.42 kg
Lifting capacity 1,315.01 kg
Max speed forward 9.82 kph
Max speed forward 11.27 kph
Operating weight 4,122 kg
Operating weight 4,250 kg
Tipping load 2,630 kg
Tipping load 2,630 kg
Max horizontal reach -
Max horizontal reach 1.46 m
Operating voltage -
Operating voltage 12 V
Service refill capacities
Cooling fluid cap 9.84 liter
Cooling fluid cap 10.22 liter
Engine crankcase 6.81 liter
Engine crankcase 9.84 liter
Fuel cap 82.13 liter
Fuel cap 95 liter
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 52.23 liter
Dimensions
Ground clearance 0.35 m
Ground clearance 0.36 m
Height - top of cab 2.1 m
Height - top of cab 2.1 m
Length with bucket 3.72 m
Length with bucket 3.69 m
Length without Bucket 2.93 m
Length without Bucket -
Turning radius 2.51 m
Turning radius 2.51 m
Width over tracks 1.92 m
Width over tracks 1.92 m
Max height to hinge pin -
Max height to hinge pin 25.4 cm
Overall Width -
Overall Width 1.91 m
Undercarriage
Ground contact area 47,489.82 cu cm
Ground contact area 47,489.82 cu cm
Ground pressure 0.21 bar
Ground pressure 0.22 bar
Track length 2.07 m
Track length 2.07 m
Track width 45.21 cm
Track width -
Hydraulic system
Pump flow cap 82.13 lpm
Pump flow cap 83.27 lpm
Pump type -
Pump type Standard
Relief valve pressure -
Relief valve pressure 230 bar
Operating specifications
Rack back angle 65 º
Rack back angle -
Cab FOPS -
Cab FOPS SAE J/ISO 3449 APR98, ISO 3449:1992 Level I
Cab FOPS level II -
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Dump angle -
Dump angle 40 º
Download datasheets
OEM product brochure

Cat 267 expert review

Reviewed by Adrien E. on January 27, 2026

Overview

The Cat 267B is an early high-capacity compact track loader delivering over 1,315 kg rated lift and nearly 2.5 tons of breakout. Built in the USA, it targets heavy material handling on rough sites.

Pros Very strong breakout, high rated lift, aggressive pushing power.
Cons Dated cab comfort and heavier footprint on finished surfaces.

Efficiency

The 54.44 kW engine and 2,487 kg breakout support heavy loading, with 4,250 kg operating weight adding stability.

In Cabin

Mid-2000s cab design with basic controls and limited refinement compared to newer machines.

In Comparison

Against Cat 257 and Cat 259, the 267B emphasizes raw power at a lower entry price.

Final Verdict

A 4-star compact track loader built for lifting and pushing rather than operator luxury.

Show less

Cat 267 owner rating

Cat 267 Compact track loaders [2004-2007]

2004-2007

Overall rating

Based on 3 ratings

4.7
performance

4.0

comfort

4.7

fuel efficiency

5.0

safety

5.0

features

4.3

5 stars

67 %

4 stars

33 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros
Massive breakout makes loading dense material feel effortless.
Cons
Older cab gets tiring during long shifts.
performance

4.0

comfort

5.0

fuel efficiency

5.0

safety

5.0

features

4.0

Pros
Handles heavy attachments without significant loss of stability.
Cons
Not as nimble as newer CTLs when working in tight spaces.
performance

4.0

comfort

4.0

fuel efficiency

5.0

safety

5.0

features

5.0

Read more

Cat 267 similar models

Highlight differences
Cat 267B
267B
Cat 257
257
Cat 259B3
259B3
Engine
Alternator supplied amperage 90 Amh
Alternator supplied amperage -
Alternator supplied amperage 90 Amh
Bore 9.4 cm
Bore 9.91 cm
Bore 9.4 cm
Displacement 3,293.81 cu cm
Displacement 2,998.84 cu cm
Displacement 3,293.81 cu cm
Gross power 54.44 kw
Gross power 46.98 kw
Gross power 55.18 kw
Net power 52.2 kw
Net power 44 kw
Net power 52.95 kw
Stroke 11.94 cm
Stroke 10.16 cm
Stroke 11.94 cm
Aspiration -
Aspiration Turbocharged
Aspiration -
Number of cylinders -
Number of cylinders 4
Number of cylinders -
Power measured @ -
Power measured @ 2,600 rpm
Power measured @ -
Years 2004-2007
Years 2014-2019
Years 2011-2014
Market Average AED 109,000
Market Average AED 186,000
Market Average AED 181,000
Price AED 80,800
Price AED 147,000
Price AED 113,000
Loader
Breakout force - lift cylinder 2,487 kg
Breakout force - lift cylinder 1,583.04 kg
Breakout force - lift cylinder 2,045.02 kg
Breakout force - tilt cylinder 2,487.5 kg
Breakout force - tilt cylinder 1,602.09 kg
Breakout force - tilt cylinder 2,044.8 kg
Loader dump height 2.38 m
Loader dump height 2.29 m
Loader dump height 2.26 m
Loader dump reach 0.7 m
Loader dump reach 0.82 m
Loader dump reach 0.76 m
Operating specifications
Cab FOPS SAE J/ISO 3449 APR98, ISO 3449:1992 Level I
Cab FOPS -
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II -
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Dump angle 40 º
Dump angle -
Dump angle 49 º
Rack back angle -
Rack back angle 44 º
Rack back angle 58 º
Angle of departure -
Angle of departure -
Angle of departure 35 º
Service refill capacities
Cooling fluid cap 10.22 liter
Cooling fluid cap 9.84 liter
Cooling fluid cap 10.22 liter
Engine crankcase 9.84 liter
Engine crankcase 6.81 liter
Engine crankcase 9.08 liter
Fuel cap 95 liter
Fuel cap 90.08 liter
Fuel cap 84.03 liter
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 55.26 liter
Hydraulic fluid cap 55.26 liter
General
Engine model Cat 3044C DIT
Engine model Cat 3034 naturally aspirated
Engine model Cat C3.4T
Lifting capacity 1,315.01 kg
Lifting capacity 1,065.94 kg
Lifting capacity 1,338.01 kg
Max horizontal reach 1.46 m
Max horizontal reach -
Max horizontal reach 1.35 m
Max speed forward 11.27 kph
Max speed forward 12.07 kph
Max speed forward 13.68 kph
Operating voltage 12 V
Operating voltage -
Operating voltage 12 V
Operating weight 4,250 kg
Operating weight 3,460 kg
Operating weight 4,052 kg
Tipping load 2,630 kg
Tipping load 2,091 kg
Tipping load 2,676 kg
Bucket capacity -
Bucket capacity 0.46 cu m
Bucket capacity -
Dimensions
Ground clearance 0.36 m
Ground clearance 0.26 m
Ground clearance 0.23 m
Height - top of cab 2.1 m
Height - top of cab 2.04 m
Height - top of cab 3.86 m
Length with bucket 3.69 m
Length with bucket 3.54 m
Length with bucket 3.44 m
Max height to hinge pin 25.4 cm
Max height to hinge pin -
Max height to hinge pin 20.32 cm
Overall Width 1.91 m
Overall Width -
Overall Width 1.68 m
Turning radius 2.51 m
Turning radius 2.29 m
Turning radius 1.47 m
Width over tracks 1.92 m
Width over tracks 1.68 m
Width over tracks 1.77 m
Length without Bucket -
Length without Bucket 2.71 m
Length without Bucket -
Undercarriage
Ground contact area 47,489.82 cu cm
Ground contact area 29,005.17 cu cm
Ground contact area 24,498.71 cu cm
Ground pressure 0.22 bar
Ground pressure 0.3 bar
Ground pressure 0.34 bar
Track length 2.07 m
Track length 1.52 m
Track length 1.52 m
Track width -
Track width 38.1 cm
Track width 40.13 cm
Hydraulic system
Pump flow cap 83.27 lpm
Pump flow cap 57.53 lpm
Pump flow cap 83.27 lpm
Pump type Standard
Pump type -
Pump type High Flow XPS
Relief valve pressure 230 bar
Relief valve pressure -
Relief valve pressure 229.94 bar
Refill capacities
Engine oil cap -
Engine oil cap -
Engine oil cap 9.08 liter
