Cat 257 Compact track loaders tech specs
:quality(50)/65580/conversions/1644b2d7-428e-4103-b958-80cf9b16ca28-thumb.webp)

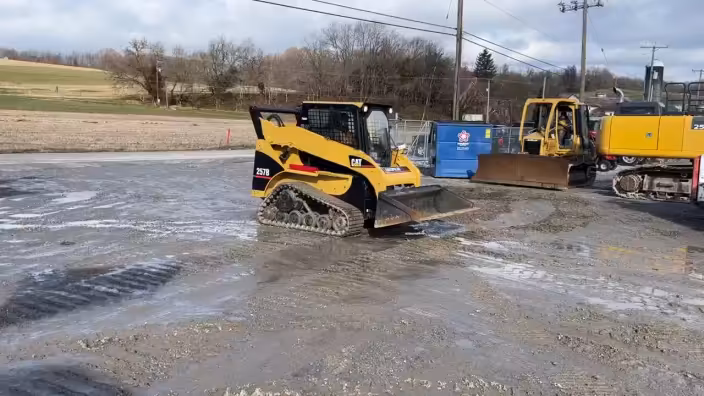

Video[1]
:quality(50)/65572/conversions/75383236-9945-4c1d-8d48-11591b313cda-thumb.webp)

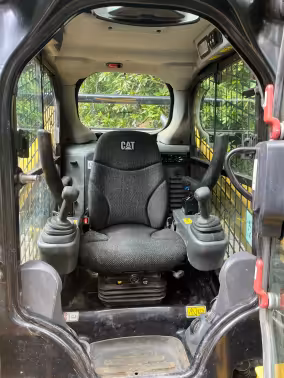

Interior [2]
:quality(50)/65574/conversions/b9a15ff6-cd25-4cba-a4f8-3b86e983db77-thumb.webp)

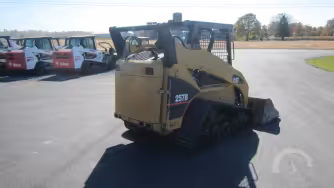

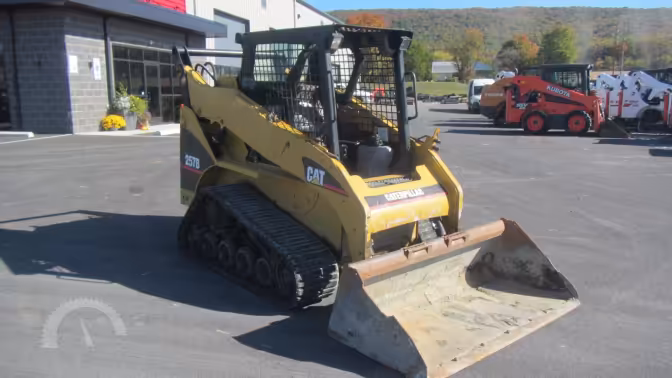

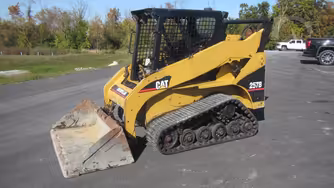

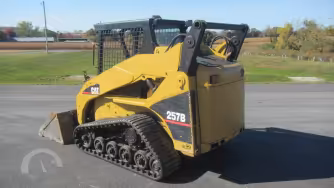

Exterior [4]
:quality(50)/65578/conversions/e150b981-fb09-40f8-aaf4-0978ff4409b5-thumb.webp)

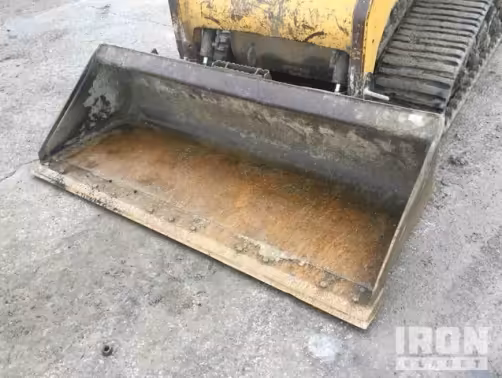

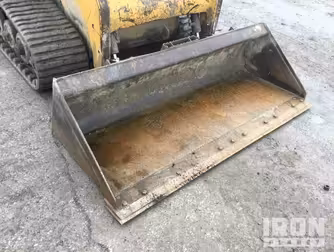

Attachments [2]
2014-2019
1,602.09 kg Breakout force - tilt cylinder
0.46 cu m Bucket capacity
46.98 kw Gross power
2.29 m Loader dump height
1,065.94 kg Lifting capacity
3,460 kg Operating weight
Makana rating
Owner rating
Market average
AED 186,000Starting from
AED 147,000Cat 257 technical specifications
Highlight differences
Cat 257
Cat 257B
Cat 257B2
Cat 257D
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration -
Aspiration -
Bore
Bore 9.91 cm
Bore -
Bore 8.38 cm
Bore 9.4 cm
Gross power
Gross power 46.98 kw
Gross power 46.01 kw
Gross power 45.49 kw
Gross power 55.41 kw
Net power
Net power 44 kw
Net power 43.03 kw
Net power -
Net power 54.59 kw
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders -
Number of cylinders -
Power measured @
Power measured @ 2,600 rpm
Power measured @ -
Power measured @ -
Power measured @ -
Stroke
Stroke 10.16 cm
Stroke -
Stroke -
Stroke 11.94 cm
Alternator supplied amperage
Alternator supplied amperage -
Alternator supplied amperage 85 Amh
Alternator supplied amperage 85 Amh
Alternator supplied amperage -
Max torque
Max torque -
Max torque -
Max torque -
Max torque 59.44 Nm
Years
Years 2014-2019
Years 2014-2019
Years 2014-2019
Years 2014-2019
Market Average
Market Average AED 186,000
Market Average AED 186,000
Market Average AED 186,000
Market Average AED 186,000
Price
Price AED 147,000
Price AED 147,000
Price AED 147,000
Price AED 147,000
Breakout force - lift cylinder
Breakout force - lift cylinder 1,583.04 kg
Breakout force - lift cylinder 1,693.04 kg
Breakout force - lift cylinder 1,793.51 kg
Breakout force - lift cylinder -
Breakout force - tilt cylinder
Breakout force - tilt cylinder 1,602.09 kg
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 1,793.51 kg
Breakout force - tilt cylinder 2,283.84 kg
Loader dump height
Loader dump height 2.29 m
Loader dump height 2.29 m
Loader dump height 2.29 m
Loader dump height 2.3 m
Loader dump reach
Loader dump reach 0.82 m
Loader dump reach 0.79 m
Loader dump reach 0.76 m
Loader dump reach 0.64 m
Bucket capacity
Bucket capacity 0.46 cu m
Bucket capacity -
Bucket capacity -
Bucket capacity -
Displacement
Displacement 2,998.84 cu cm
Displacement 2,200.79 cu cm
Displacement 2,195.87 cu cm
Displacement 3,326.58 cu cm
Engine model
Engine model Cat 3034 naturally aspirated
Engine model 3024C T
Engine model -
Engine model Cat C3.3B DIT (turbo)
Lifting capacity
Lifting capacity 1,065.94 kg
Lifting capacity 1,047.03 kg
Lifting capacity 1,133.98 kg
Lifting capacity 889.04 kg
Max speed forward
Max speed forward 12.07 kph
Max speed forward 11.43 kph
Max speed forward 11.27 kph
Max speed forward -
Operating weight
Operating weight 3,460 kg
Operating weight 3,428 kg
Operating weight 3,655 kg
Operating weight -
Tipping load
Tipping load 2,091 kg
Tipping load -
Tipping load 2,426 kg
Tipping load 2,540 kg
Operating voltage
Operating voltage -
Operating voltage 12 V
Operating voltage 12 V
Operating voltage -
Max horizontal reach
Max horizontal reach -
Max horizontal reach -
Max horizontal reach 1.35 m
Max horizontal reach 1.33 m
Cooling fluid cap
Cooling fluid cap 9.84 liter
Cooling fluid cap 10.22 liter
Cooling fluid cap 10.22 liter
Cooling fluid cap 14 liter
Engine crankcase
Engine crankcase 6.81 liter
Engine crankcase -
Engine crankcase 9.08 liter
Engine crankcase 11.36 liter
Fuel cap
Fuel cap 90.08 liter
Fuel cap 77.21 liter
Fuel cap 84.03 liter
Fuel cap 104.84 liter
Hydraulic fluid cap
Hydraulic fluid cap 55.26 liter
Hydraulic fluid cap 55.26 liter
Hydraulic fluid cap 55.26 liter
Hydraulic fluid cap 49.96 liter
Ground clearance
Ground clearance 0.26 m
Ground clearance 0.26 m
Ground clearance -
Ground clearance 0.24 m
Height - top of cab
Height - top of cab 2.04 m
Height - top of cab 2.04 m
Height - top of cab 2.04 m
Height - top of cab 2.13 m
Length with bucket
Length with bucket 3.54 m
Length with bucket 3.51 m
Length with bucket 3.44 m
Length with bucket 3.49 m
Length without Bucket
Length without Bucket 2.71 m
Length without Bucket 2.71 m
Length without Bucket -
Length without Bucket 2.77 m
Turning radius
Turning radius 2.29 m
Turning radius 2.26 m
Turning radius 2.19 m
Turning radius 1.55 m
Width over tracks
Width over tracks 1.68 m
Width over tracks 1.68 m
Width over tracks 1.68 m
Width over tracks -
Max height to hinge pin
Max height to hinge pin -
Max height to hinge pin -
Max height to hinge pin 20.32 cm
Max height to hinge pin 21.59 cm
Overall Width
Overall Width -
Overall Width -
Overall Width 1.68 m
Overall Width 1.68 m
Ground contact area
Ground contact area 29,005.17 cu cm
Ground contact area 28,957.64 cu cm
Ground contact area 29,005.17 cu cm
Ground contact area 29,005.17 cu cm
Ground pressure
Ground pressure 0.3 bar
Ground pressure 0.3 bar
Ground pressure 0.31 bar
Ground pressure 0.31 bar
Track length
Track length 1.52 m
Track length 1.52 m
Track length 1.52 m
Track length 1.9 m
Track width
Track width 38.1 cm
Track width -
Track width -
Track width -
Pump flow cap
Pump flow cap 57.53 lpm
Pump flow cap 60.18 lpm
Pump flow cap 98.41 lpm
Pump flow cap 75.7 lpm
Relief valve pressure
Relief valve pressure -
Relief valve pressure 230 bar
Relief valve pressure 229.94 bar
Relief valve pressure 229.94 bar
Pump type
Pump type -
Pump type -
Pump type Standard
Pump type -
Rack back angle
Rack back angle 44 º
Rack back angle 46 º
Rack back angle 86 º
Rack back angle 87 º
Angle of departure
Angle of departure -
Angle of departure -
Angle of departure 37 º
Angle of departure 35 º
Cab FOPS
Cab FOPS -
Cab FOPS -
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS ISO 3449:2005 Level I
Cab FOPS level II
Cab FOPS level II -
Cab FOPS level II -
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab FOPS level II ISO 3449:2005 Level II
Cab ROPS
Cab ROPS -
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS ISO 3471:2008
Dump angle
Dump angle -
Dump angle -
Dump angle 50 º
Dump angle 52 º
Air conditioning
Air conditioning -
Air conditioning -
Air conditioning -
Air conditioning Contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Engine oil cap
Engine oil cap -
Engine oil cap 8.33 liter
Engine oil cap 10.22 liter
Engine oil cap -
Download datasheets
Cat 257 expert review
:quality(50)/60954/da9b802d-b520-43dc-bd53-3e63229572e1.webp)
Overview
The Cat 257 bridges the gap between mid-size and higher-capacity CTLs, delivering over 1,065 kg rated lift in a heavier, more stable frame. Built in the USA, it targets material handling and general construction support.
Pros
Higher lift than Cat 247, stable operating weight, practical bucket capacity.
Cons
Less refined cab on B-series and higher fuel use than smaller CTLs.
Efficiency
The 46.98 kW engine and 1,065.94 kg rated lift support steady material handling, with 3,460 kg operating weight adding stability.
In Cabin
Functional cab with good visibility. D variants improve noise control, while B-series feel dated.
In Comparison
Compared with Cat 247 and Cat 249D, the 257 emphasizes lift capacity at a more accessible price.
Final Verdict
A 4-star compact track loader offering strong lift and solid stability without stepping into premium pricing.
Cat 257 owner rating
Cat 257 Compact track loaders [2014-2019]
2014-2019
Overall rating
Based on 3 ratings
4.3
performance
4.7
comfort
4.7
fuel efficiency
4.7
safety
5.0
features
5.0
5 stars
33 %
4 stars
67 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Cat 257 similar models
Highlight differences
Cat 257
Cat 247
Cat 249D
Aspiration
Aspiration Turbocharged
Aspiration -
Aspiration -
Bore
Bore 9.91 cm
Bore 9.91 cm
Bore 8.38 cm
Gross power
Gross power 46.98 kw
Gross power 43.25 kw
Gross power 50.04 kw
Net power
Net power 44 kw
Net power 40.27 kw
Net power 49.07 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders -
Power measured @
Power measured @ 2,600 rpm
Power measured @ 2,600 rpm
Power measured @ -
Stroke
Stroke 10.16 cm
Stroke 10.16 cm
Stroke 9.91 cm
Max torque
Max torque -
Max torque -
Max torque 46.63 Nm
Years
Years 2014-2019
Years 2004-2008
Years 2016-2019
Market Average
Market Average AED 186,000
Market Average AED 145,000
Market Average AED 228,000
Price
Price AED 147,000
Price AED 130,000
Price AED 191,000
Breakout force - lift cylinder
Breakout force - lift cylinder 1,583.04 kg
Breakout force - lift cylinder 1,365.77 kg
Breakout force - lift cylinder -
Breakout force - tilt cylinder
Breakout force - tilt cylinder 1,602.09 kg
Breakout force - tilt cylinder 1,603.9 kg
Breakout force - tilt cylinder 1,797.59 kg
Loader dump height
Loader dump height 2.29 m
Loader dump height 2.1 m
Loader dump height 2.25 m
Loader dump reach
Loader dump reach 0.82 m
Loader dump reach 0.64 m
Loader dump reach 0.73 m
Bucket capacity
Bucket capacity 0.46 cu m
Bucket capacity 0.38 cu m
Bucket capacity -
Displacement
Displacement 2,998.84 cu cm
Displacement 2,998.84 cu cm
Displacement 2,200.79 cu cm
Engine model
Engine model Cat 3034 naturally aspirated
Engine model Cat 3034 naturally aspirated
Engine model Cat C2.2 CRDI
Lifting capacity
Lifting capacity 1,065.94 kg
Lifting capacity 952.55 kg
Lifting capacity 1,043.26 kg
Max speed forward
Max speed forward 12.07 kph
Max speed forward 12.07 kph
Max speed forward -
Operating weight
Operating weight 3,460 kg
Operating weight 3,023 kg
Operating weight -
Tipping load
Tipping load 2,091 kg
Tipping load 1,753 kg
Tipping load 2,086 kg
Max horizontal reach
Max horizontal reach -
Max horizontal reach -
Max horizontal reach 1.32 m
Cooling fluid cap
Cooling fluid cap 9.84 liter
Cooling fluid cap 9.84 liter
Cooling fluid cap 12.11 liter
Engine crankcase
Engine crankcase 6.81 liter
Engine crankcase 6.81 liter
Engine crankcase 9.84 liter
Fuel cap
Fuel cap 90.08 liter
Fuel cap 64.35 liter
Fuel cap 57.15 liter
Hydraulic fluid cap
Hydraulic fluid cap 55.26 liter
Hydraulic fluid cap 55.26 liter
Hydraulic fluid cap 45.04 liter
Ground clearance
Ground clearance 0.26 m
Ground clearance 0.27 m
Ground clearance 0.21 m
Height - top of cab
Height - top of cab 2.04 m
Height - top of cab 2.01 m
Height - top of cab 2.04 m
Length with bucket
Length with bucket 3.54 m
Length with bucket 3.32 m
Length with bucket 3.23 m
Length without Bucket
Length without Bucket 2.71 m
Length without Bucket 2.53 m
Length without Bucket 2.52 m
Turning radius
Turning radius 2.29 m
Turning radius 2.16 m
Turning radius 1.46 m
Width over tracks
Width over tracks 1.68 m
Width over tracks 1.68 m
Width over tracks -
Max height to hinge pin
Max height to hinge pin -
Max height to hinge pin -
Max height to hinge pin 21.84 cm
Overall Width
Overall Width -
Overall Width -
Overall Width 1.68 m
Ground contact area
Ground contact area 29,005.17 cu cm
Ground contact area 29,005.17 cu cm
Ground contact area 28,120.26 cu cm
Ground pressure
Ground pressure 0.3 bar
Ground pressure 0.26 bar
Ground pressure 0.32 bar
Track length
Track length 1.52 m
Track length 1.52 m
Track length 1.81 m
Track width
Track width 38.1 cm
Track width 38.1 cm
Track width -
Pump flow cap
Pump flow cap 57.53 lpm
Pump flow cap 54.5 lpm
Pump flow cap 98.41 lpm
Relief valve pressure
Relief valve pressure -
Relief valve pressure -
Relief valve pressure 230.01 bar
Rack back angle
Rack back angle 44 º
Rack back angle 37 º
Rack back angle 87 º
Air conditioning
Air conditioning -
Air conditioning -
Air conditioning Contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Angle of departure
Angle of departure -
Angle of departure -
Angle of departure 34 º
Cab FOPS
Cab FOPS -
Cab FOPS -
Cab FOPS ISO 3449:2005 Level I
Cab FOPS level II
Cab FOPS level II -
Cab FOPS level II -
Cab FOPS level II ISO 3449:2005 Level II
Cab ROPS
Cab ROPS -
Cab ROPS -
Cab ROPS ISO 3471:2008
Dump angle
Dump angle -
Dump angle -
Dump angle 48 º

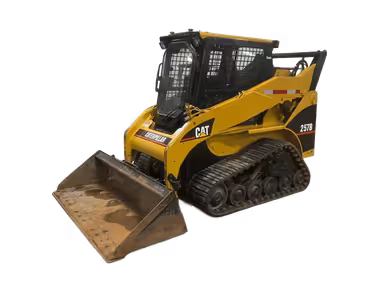

Cat 257 gallery
:quality(50)/65580/conversions/1644b2d7-428e-4103-b958-80cf9b16ca28-thumb.webp)
Similar machines. Other reviews.
:quality(80)/60952/a25e1d76-5098-4ef7-a6f5-fe8bc1dffd1a.jpeg)
Cat D8 Crawler dozers specs Cat D9 Crawler dozers specs Cat D6 Crawler dozers specs Cat 725 Articulated dump trucks specs Cat 730 Articulated dump trucks specs Cat 740 Articulated dump trucks specs Cat 745 Articulated dump trucks specs Cat 307 Mini excavators specs Cat 320 Medium excavators specs Cat 336 Medium excavators specs
AGT LRT23 Compact track loaders specs JCB 260T Compact track loaders specs JCB 270T Compact track loaders specs Bobcat T450 Compact track loaders specs Cat 239 Compact track loaders specs Cat 247 Compact track loaders specs Cat 249 Compact track loaders specs Cat 257 Compact track loaders specs Cat 259 Compact track loaders specs Cat 267 Compact track loaders specs
John Deere 310 Backhoe loaders specs JCB 3DX Backhoe loaders specs John Deere 524 Wheel loaders specs John Deere 544 Wheel loaders specs John Deere 624 Wheel loaders specs John Deere 644 Wheel loaders specs Case 770 Backhoe loaders specs Case 851 Backhoe loaders specs Cat 906 Wheel loaders specs Cat 938 Wheel loaders specs
Get the latest from Makana
Subscribe to receive auction dates, exclusive deals, and news in your inbox.
