ASV SR-70 Compact track loaders tech specs

makana img
video play button
Video[1]

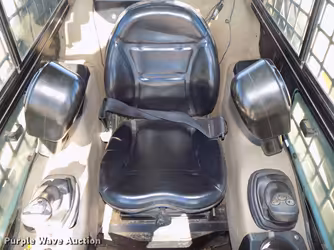

Interior [2]

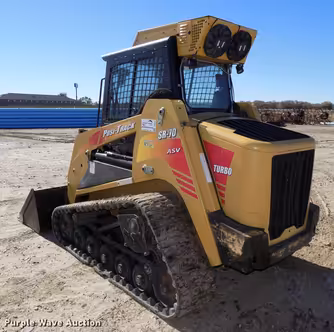

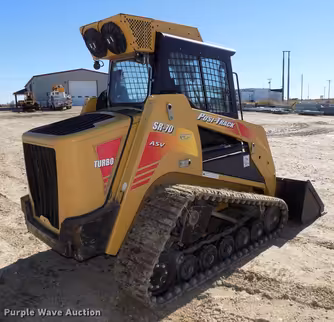

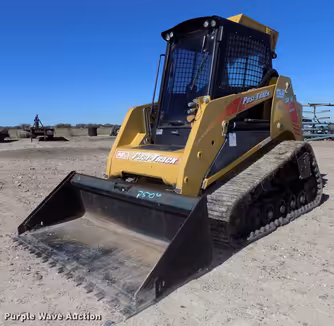

Exterior [4]

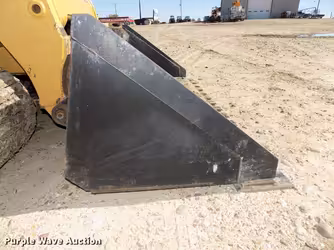

Attachments [2]
2006-2008
3,300.36 cu cm Displacement
52.95 kw Gross power
2.5 m Loader dump height
0.52 m Loader dump reach
1,247.38 kg Lifting capacity
3,578 kg Operating weight
Show features

Makana rating

Market average

AED 105,000

Starting from

AED 67,000

ASV SR-70 Technical specifications

Engine

Aspiration

Turbocharged

Displacement

3300.36 cu cm

Gross power

52.95 kw

Max torque

234.55 Nm

Net power

50.71 kw

Number of cylinders

4

Power measured @

2,600 rpm

General

Engine model

804C-33T

Lifting capacity

1247.38 kg

Operating weight

3,578 kg

Service refill capacities

Fuel cap

68.13 liter

Hydraulic fluid cap

79.49 liter

Dimensions

Ground clearance

0.38 m

Height - top of cab

2.19 m

Length with bucket

3.6 m

Length without Bucket

2.87 m

Width over tracks

1.68 m

Undercarriage

Ground contact area

34799.65 cu cm

Ground pressure

0.26 bar

Track gauge

1.31 m

Track length

1.83 m

Track width

38.1 cm

Loader

Loader dump height

2.5 m

Loader dump reach

0.52 m

Hydraulic system

Pump flow cap

113.55 lpm

Relief valve pressure

206.84 bar

Operating specifications

Rack back angle

55 º

View more
Download datasheets
OEM product brochure

ASV SR-70 similar models

Highlight differences
ASV SR-70
SR-70
Cat 247
247
Cat 249D
249D
Engine
Aspiration Turbocharged
Aspiration -
Aspiration -
Displacement 3,300.36 cu cm
Displacement 2,998.84 cu cm
Displacement 2,200.79 cu cm
Gross power 52.95 kw
Gross power 43.25 kw
Gross power 50.04 kw
Max torque 234.55 Nm
Max torque -
Max torque 46.63 Nm
Net power 50.71 kw
Net power 40.27 kw
Net power 49.07 kw
Number of cylinders 4
Number of cylinders 4
Number of cylinders -
Power measured @ 2,600 rpm
Power measured @ 2,600 rpm
Power measured @ -
Bore -
Bore 9.91 cm
Bore 8.38 cm
Stroke -
Stroke 10.16 cm
Stroke 9.91 cm
Years 2006-2008
Years 2004-2008
Years 2016-2019
Market Average AED 105,000
Market Average AED 145,000
Market Average AED 228,000
Price AED 67,000
Price AED 130,000
Price AED 191,000
General
Engine model 804C-33T
Engine model Cat 3034 naturally aspirated
Engine model Cat C2.2 CRDI
Lifting capacity 1,247.38 kg
Lifting capacity 952.55 kg
Lifting capacity 1,043.26 kg
Operating weight 3,578 kg
Operating weight 3,023 kg
Operating weight -
Bucket capacity -
Bucket capacity 0.38 cu m
Bucket capacity -
Max speed forward -
Max speed forward 12.07 kph
Max speed forward -
Tipping load -
Tipping load 1,753 kg
Tipping load 2,086 kg
Max horizontal reach -
Max horizontal reach -
Max horizontal reach 1.32 m
Service refill capacities
Fuel cap 68.13 liter
Fuel cap 64.35 liter
Fuel cap 57.15 liter
Hydraulic fluid cap 79.49 liter
Hydraulic fluid cap 55.26 liter
Hydraulic fluid cap 45.04 liter
Cooling fluid cap -
Cooling fluid cap 9.84 liter
Cooling fluid cap 12.11 liter
Engine crankcase -
Engine crankcase 6.81 liter
Engine crankcase 9.84 liter
Dimensions
Ground clearance 0.38 m
Ground clearance 0.27 m
Ground clearance 0.21 m
Height - top of cab 2.19 m
Height - top of cab 2.01 m
Height - top of cab 2.04 m
Length with bucket 3.6 m
Length with bucket 3.32 m
Length with bucket 3.23 m
Length without Bucket 2.87 m
Length without Bucket 2.53 m
Length without Bucket 2.52 m
Width over tracks 1.68 m
Width over tracks 1.68 m
Width over tracks -
Turning radius -
Turning radius 2.16 m
Turning radius 1.46 m
Max height to hinge pin -
Max height to hinge pin -
Max height to hinge pin 21.84 cm
Overall Width -
Overall Width -
Overall Width 1.68 m
Undercarriage
Ground contact area 34,799.65 cu cm
Ground contact area 29,005.17 cu cm
Ground contact area 28,120.26 cu cm
Ground pressure 0.26 bar
Ground pressure 0.26 bar
Ground pressure 0.32 bar
Track gauge 1.31 m
Track gauge -
Track gauge -
Track length 1.83 m
Track length 1.52 m
Track length 1.81 m
Track width 38.1 cm
Track width 38.1 cm
Track width -
Loader
Loader dump height 2.5 m
Loader dump height 2.1 m
Loader dump height 2.25 m
Loader dump reach 0.52 m
Loader dump reach 0.64 m
Loader dump reach 0.73 m
Breakout force - lift cylinder -
Breakout force - lift cylinder 1,365.77 kg
Breakout force - lift cylinder -
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 1,603.9 kg
Breakout force - tilt cylinder 1,797.59 kg
Hydraulic system
Pump flow cap 113.55 lpm
Pump flow cap 54.5 lpm
Pump flow cap 98.41 lpm
Relief valve pressure 206.84 bar
Relief valve pressure -
Relief valve pressure 230.01 bar
Operating specifications
Rack back angle 55 º
Rack back angle 37 º
Rack back angle 87 º
Air conditioning -
Air conditioning -
Air conditioning Contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Angle of departure -
Angle of departure -
Angle of departure 34 º
Cab FOPS -
Cab FOPS -
Cab FOPS ISO 3449:2005 Level I
Cab FOPS level II -
Cab FOPS level II -
Cab FOPS level II ISO 3449:2005 Level II
Cab ROPS -
Cab ROPS -
Cab ROPS ISO 3471:2008
Dump angle -
Dump angle -
Dump angle 48 º
