John deere 333 Compact track loaders tech specs
:quality(50)/65902/conversions/f28cc0b7-b601-4e31-adc4-b88a2d620233-webp.webp)

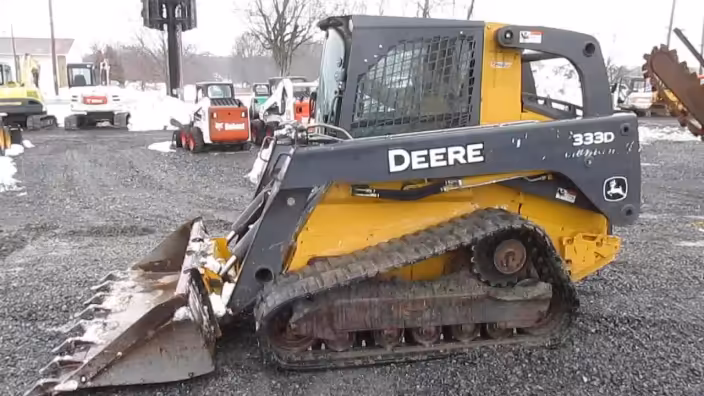

Video[1]
:quality(50)/65894/conversions/a3133873-89af-4795-b146-8cd574b77141-webp.webp)

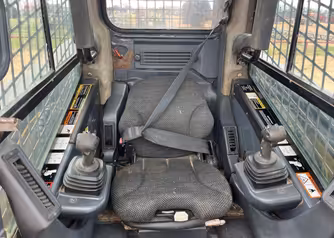

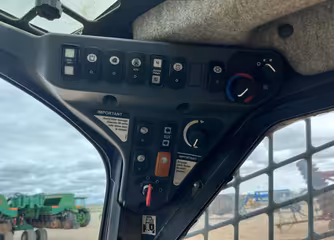

Interior [2]
:quality(50)/65896/conversions/126242a7-5999-4531-bb80-c2db0f775b87-webp.webp)

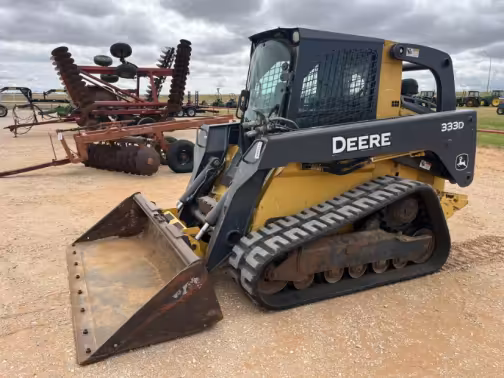

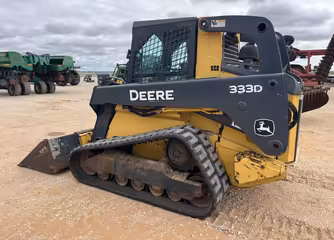

Exterior [4]
:quality(50)/65900/conversions/87cfaa23-8dbc-468b-86ae-34863aa76bd0-webp.webp)

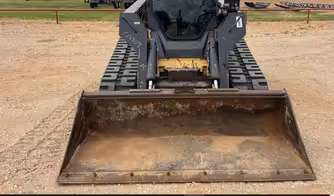

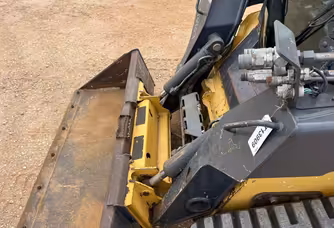

Attachments [2]
2009-2013
6,293.6 kg Breakout force
71.14 kw Gross power
0.82 m Loader dump reach
2,145.04 kg Lifting capacity
5,039 kg Operating weight
4,275 kg Tipping load
A high-output compact track loader, the John Deere 333 pushes past the 329 with more power and lift for demanding material handling. With over 71 kW on tap and more than 2.1 tons rated lift, it targets contractors running heavier pallets and attachments on mid-size jobsites.
Gross power 71.14 kW
Operating weight ~5,039 kg
Breakout force ~6,293.6 kg
Rated lifting capacity 2,145 kg
Loader dump reach 0.82 m
Tipping load 4,275 kg
Tipping load 4,275 kg
Makana rating
Owner rating
Market average
AED 164,000Starting from
AED 115,000John deere 333 technical specifications
Highlight differences
John deere 333D
John deere 333E
Alternator supplied amperage
Alternator supplied amperage 70 Amh
Alternator supplied amperage 70 Amh
Displacement
Displacement 3,000.48 cu cm
Displacement 3,100.44 cu cm
Engine make
Engine make John Deere
Engine make Yanmar
Gross power
Gross power 71.14 kw
Gross power 74.65 kw
Max torque
Max torque 341.12 Nm
Max torque 395.08 Nm
Net power
Net power 66.74 kw
Net power 72.04 kw
Number of cylinders
Number of cylinders 5
Number of cylinders 4
Power measured @
Power measured @ 2,400 rpm
Power measured @ 2,500 rpm
Torque measured @
Torque measured @ 1,950 rpm
Torque measured @ 1,700 rpm
Aspiration
Aspiration -
Aspiration Turbocharged
Years
Years 2009-2013
Years 2009-2013
Market Average
Market Average AED 164,000
Market Average AED 164,000
Price
Price AED 115,000
Price AED 115,000
Breakout force
Breakout force 6,293.6 kg
Breakout force 6,299.05 kg
Loader dump reach
Loader dump reach 0.82 m
Loader dump reach 1 m
Loader dump height
Loader dump height -
Loader dump height 2.59 m
Dump angle
Dump angle 45 º
Dump angle 45 º
Rack back angle
Rack back angle 50 º
Rack back angle -
Engine model
Engine model E 5030HT
Engine model 4TNV94CHT
Lifting capacity
Lifting capacity 2,145.04 kg
Lifting capacity 1,498.04 kg
Max speed forward
Max speed forward 12.71 kph
Max speed forward 12.71 kph
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 5,039 kg
Operating weight 5,357 kg
Tipping load
Tipping load 4,275 kg
Tipping load 4,279 kg
Fuel cap
Fuel cap 111.28 liter
Fuel cap 96.52 liter
Ground clearance
Ground clearance 0.27 m
Ground clearance 0.26 m
Height - top of cab
Height - top of cab 3.2 m
Height - top of cab 2.15 m
Length with bucket
Length with bucket 3.63 m
Length with bucket 3.69 m
Length without Bucket
Length without Bucket 3.02 m
Length without Bucket 3.08 m
Turning radius
Turning radius 2.19 m
Turning radius 2.19 m
Width over tracks
Width over tracks 2.07 m
Width over tracks 0.46 m
Max height to hinge pin
Max height to hinge pin -
Max height to hinge pin 320.04 cm
Ground pressure
Ground pressure 0.32 bar
Ground pressure 0.32 bar
Number of track rollers per side
Number of track rollers per side 5
Number of track rollers per side 5
Track width
Track width 45.21 cm
Track width -
Pump flow cap
Pump flow cap 95 lpm
Pump flow cap 95 lpm
Relief valve pressure
Relief valve pressure -
Relief valve pressure 237.87 bar
Download datasheets
John deere 333 expert review
:quality(50)/60954/da9b802d-b520-43dc-bd53-3e63229572e1.webp)
Overview
The John Deere 333 CTL delivers 71.14 kW of power with over 2,145 kg rated lift and massive breakout, targeting heavy pallet and bulk material handling.
Pros
High lift capacity, very strong breakout, capable with heavy attachments.
Cons
Heavier footprint affects sensitive surfaces and size limits tight-access jobs.
Efficiency
The 71.14 kW engine and 6,293 kg breakout support aggressive loading and dense material handling.
In Cabin
Practical controls and good visibility, with comfort trailing newer CTL generations.
In Comparison
Compared with John Deere 329 and 323D, the 333 leads in lift and breakout.
Final Verdict
A 4-star compact track loader built for high-demand material handling.
John deere 333 owner rating
John deere 333 Compact track loaders [2009-2013]
2009-2013
Overall rating
Based on 3 ratings
4.3
performance
4.7
comfort
5.0
fuel efficiency
4.3
safety
4.7
features
4.0
5 stars
33 %
4 stars
67 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Pros
Plenty of lift for stacking pallets and loading taller trucks.
Cons
Weight leaves noticeable marks on soft ground.
performance
4.0
comfort
5.0
fuel efficiency
5.0
safety
5.0
features
4.0
Pros
Confident performance with heavy attachments like pallet forks and hydraulic breakers.
Cons
Service intervals can be frequent if used hard.
performance
5.0
comfort
5.0
fuel efficiency
4.0
safety
5.0
features
4.0
John deere 333 similar models
Highlight differences
John deere 333D
333D
John deere 329E
329E
John deere 323D
323D
Alternator supplied amperage
Alternator supplied amperage 70 Amh
Alternator supplied amperage 70 Amh
Alternator supplied amperage -
Displacement
Displacement 3,000.48 cu cm
Displacement 7,013.68 cu cm
Displacement 2,400.71 cu cm
Engine make
Engine make John Deere
Engine make Yanmar
Engine make -
Gross power
Gross power 71.14 kw
Gross power 179.72 kw
Gross power -
Max torque
Max torque 341.12 Nm
Max torque 360.1 Nm
Max torque -
Net power
Net power 66.74 kw
Net power 62.04 kw
Net power 51.45 kw
Number of cylinders
Number of cylinders 5
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,400 rpm
Power measured @ 2,500 rpm
Power measured @ 2,300 rpm
Torque measured @
Torque measured @ 1,950 rpm
Torque measured @ 1,700 rpm
Torque measured @ -
Aspiration
Aspiration -
Aspiration Turbocharged
Aspiration Turbocharged
Bore
Bore -
Bore 10.67 cm
Bore -
Stroke
Stroke -
Stroke 13.72 cm
Stroke -
Years
Years 2009-2013
Years 2005-2013
Years 2010-2013
Market Average
Market Average AED 164,000
Market Average AED 163,500
Market Average AED 178,000
Price
Price AED 115,000
Price AED 140,500
Price AED 106,000
Breakout force
Breakout force 6,293.6 kg
Breakout force 4,688.02 kg
Breakout force 2,542.03 kg
Loader dump reach
Loader dump reach 0.82 m
Loader dump reach 1 m
Loader dump reach -
Loader dump height
Loader dump height -
Loader dump height 2.59 m
Loader dump height -
Dump angle
Dump angle 45 º
Dump angle 45 º
Dump angle -
Rack back angle
Rack back angle 50 º
Rack back angle -
Rack back angle 71 º
Engine model
Engine model E 5030HT
Engine model Cat C7.1 ACERT
Engine model PowerTech E 4024HT
Lifting capacity
Lifting capacity 2,145.04 kg
Lifting capacity 1,317.01 kg
Lifting capacity -
Max speed forward
Max speed forward 12.71 kph
Max speed forward 12.71 kph
Max speed forward -
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 5,039 kg
Operating weight 5,221 kg
Operating weight 1,042 kg
Tipping load
Tipping load 4,275 kg
Tipping load 3,768 kg
Tipping load -
Fuel cap
Fuel cap 111.28 liter
Fuel cap 96.52 liter
Fuel cap 70.02 liter
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap 44.28 liter
Cooling fluid cap -
Hydraulic fluid cap
Hydraulic fluid cap -
Hydraulic fluid cap 155.19 liter
Hydraulic fluid cap -
Ground clearance
Ground clearance 0.27 m
Ground clearance 0.26 m
Ground clearance 0.25 m
Height - top of cab
Height - top of cab 3.2 m
Height - top of cab 2.15 m
Height - top of cab 2.01 m
Length with bucket
Length with bucket 3.63 m
Length with bucket 3.69 m
Length with bucket 3.38 m
Length without Bucket
Length without Bucket 3.02 m
Length without Bucket 3.08 m
Length without Bucket 2.74 m
Turning radius
Turning radius 2.19 m
Turning radius 2.19 m
Turning radius 2.01 m
Width over tracks
Width over tracks 2.07 m
Width over tracks 0.43 m
Width over tracks 1.83 m
Max height to hinge pin
Max height to hinge pin -
Max height to hinge pin 320.04 cm
Max height to hinge pin -
Ground pressure
Ground pressure 0.32 bar
Ground pressure 0.34 bar
Ground pressure -
Number of track rollers per side
Number of track rollers per side 5
Number of track rollers per side 5
Number of track rollers per side 4
Track width
Track width 45.21 cm
Track width -
Track width -
Track length
Track length -
Track length -
Track length 0.34 m
Pump flow cap
Pump flow cap 95 lpm
Pump flow cap 80.24 lpm
Pump flow cap -
Relief valve pressure
Relief valve pressure -
Relief valve pressure 237.87 bar
Relief valve pressure -
Pump type
Pump type -
Pump type -
Pump type Axial-piston hydrostatic
