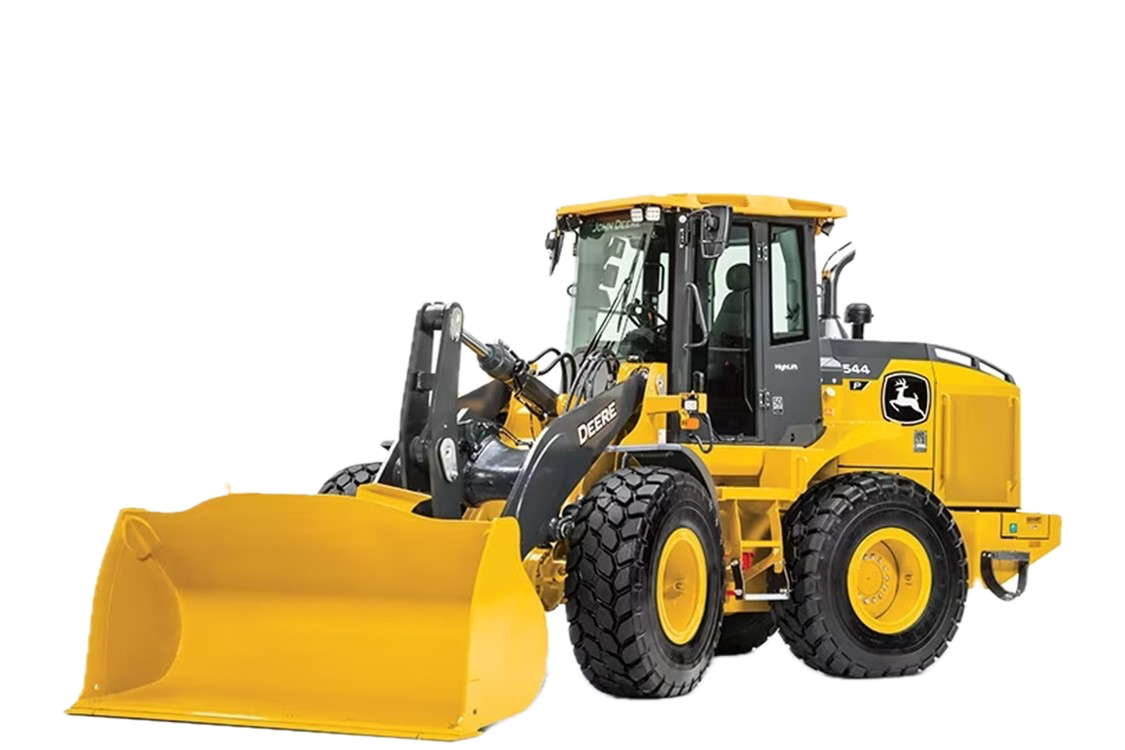

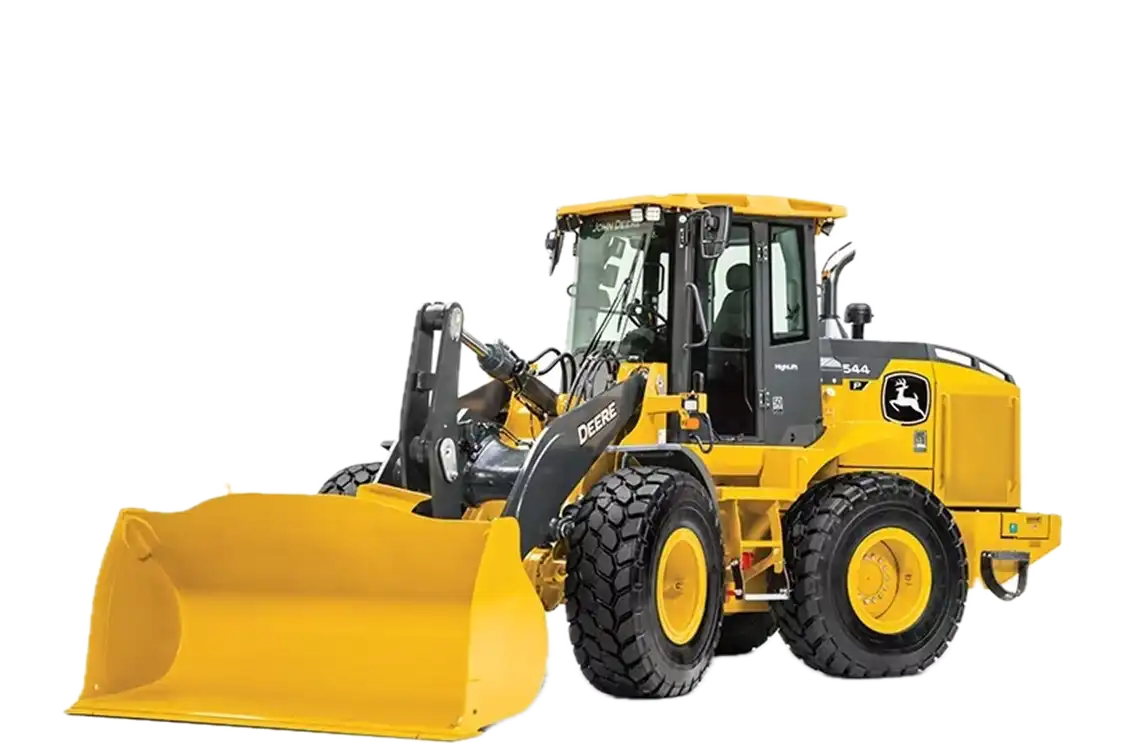

John Deere 544 Wheel loaders tech specs

makana img
video play button
Video[1]

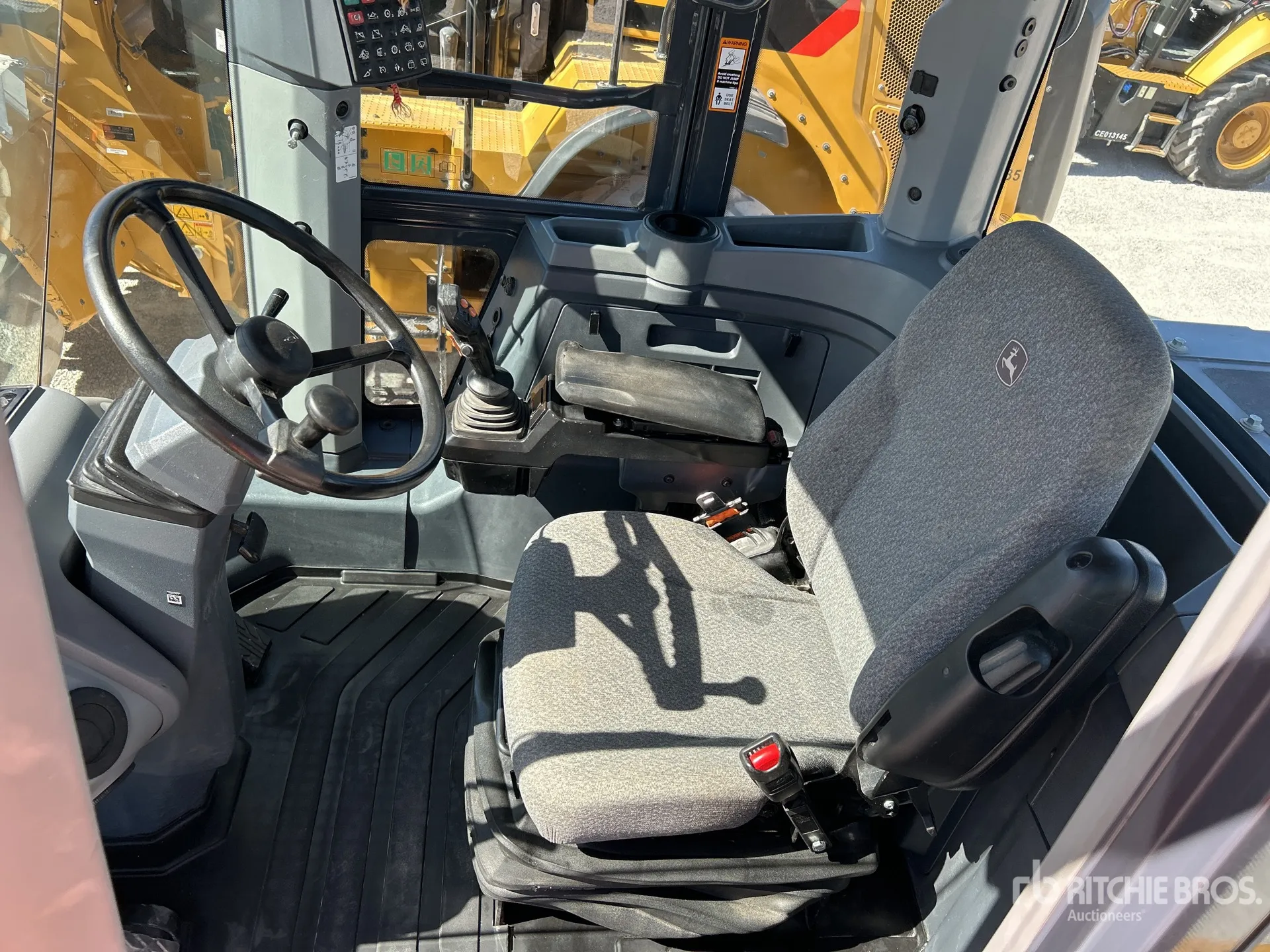

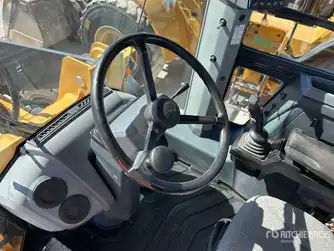

Interior [2]

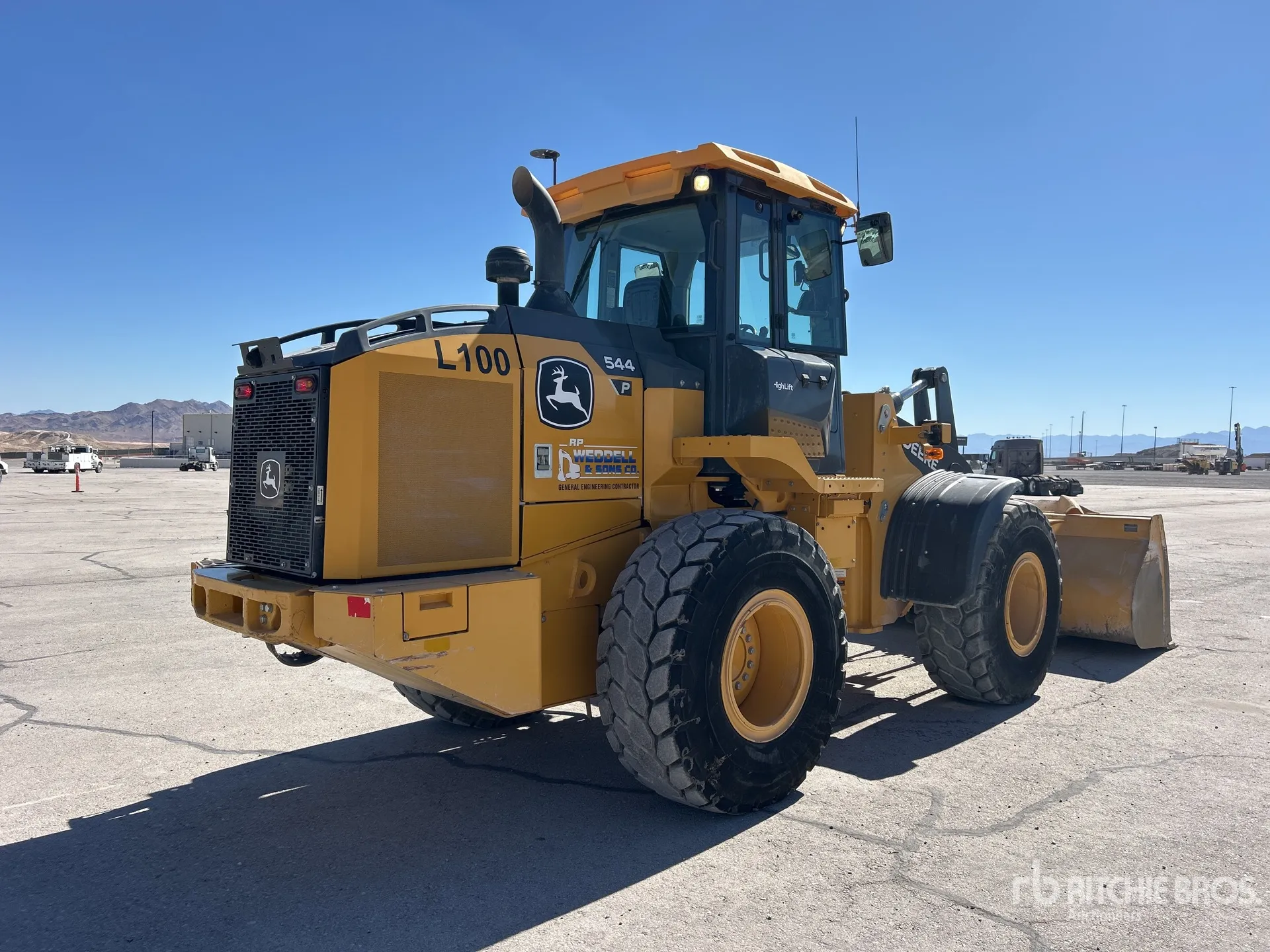

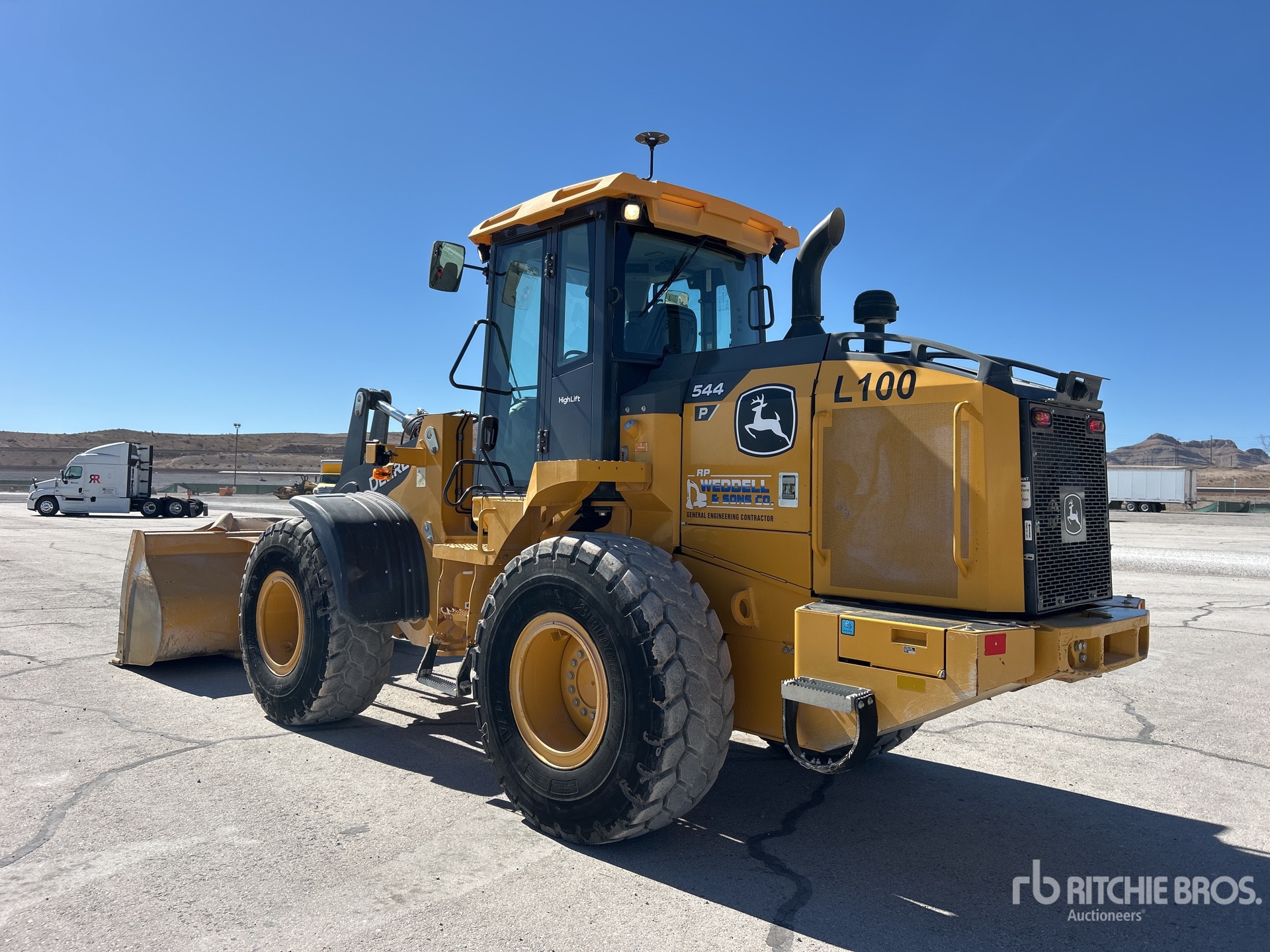

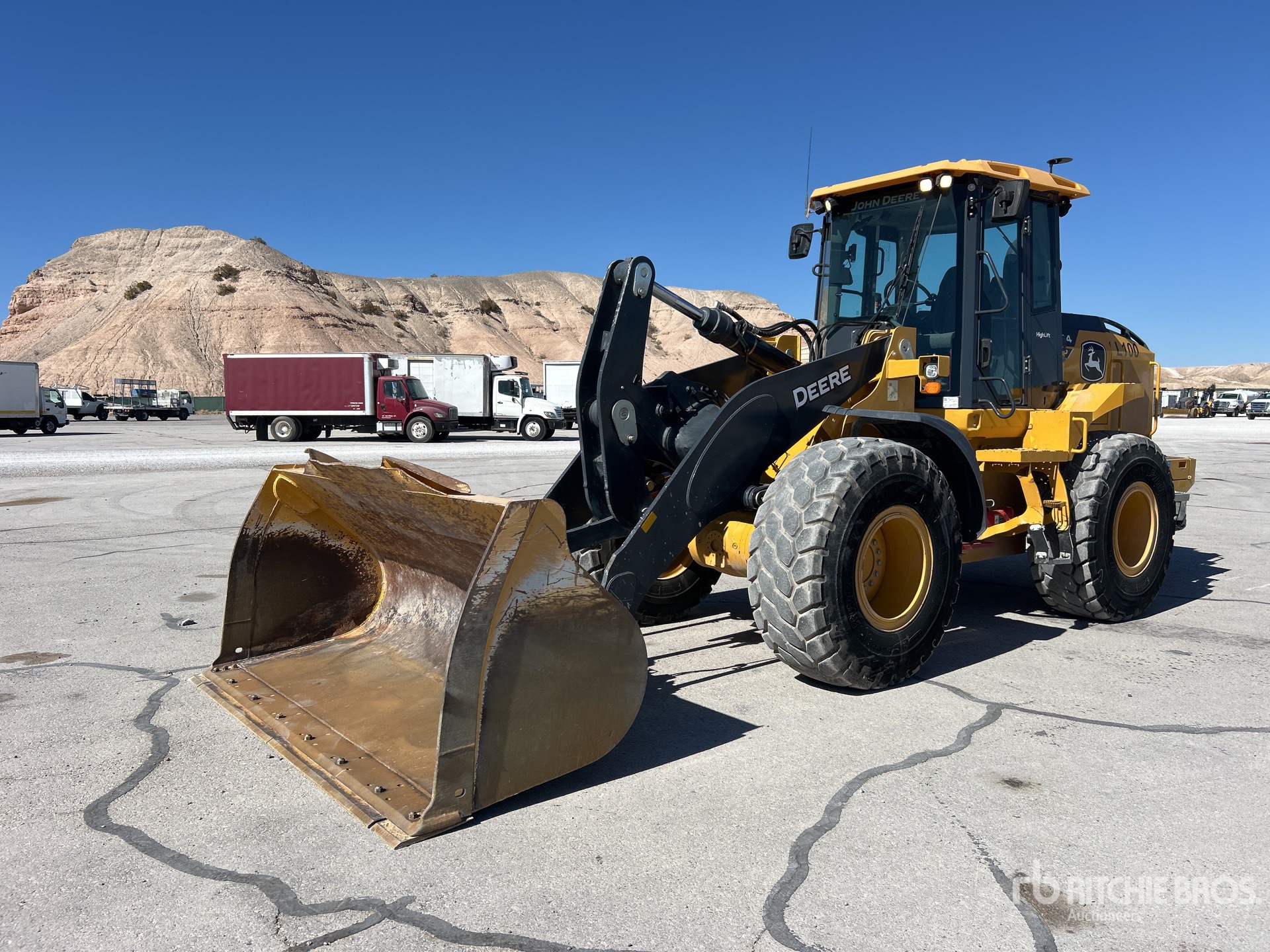

Exterior [4]

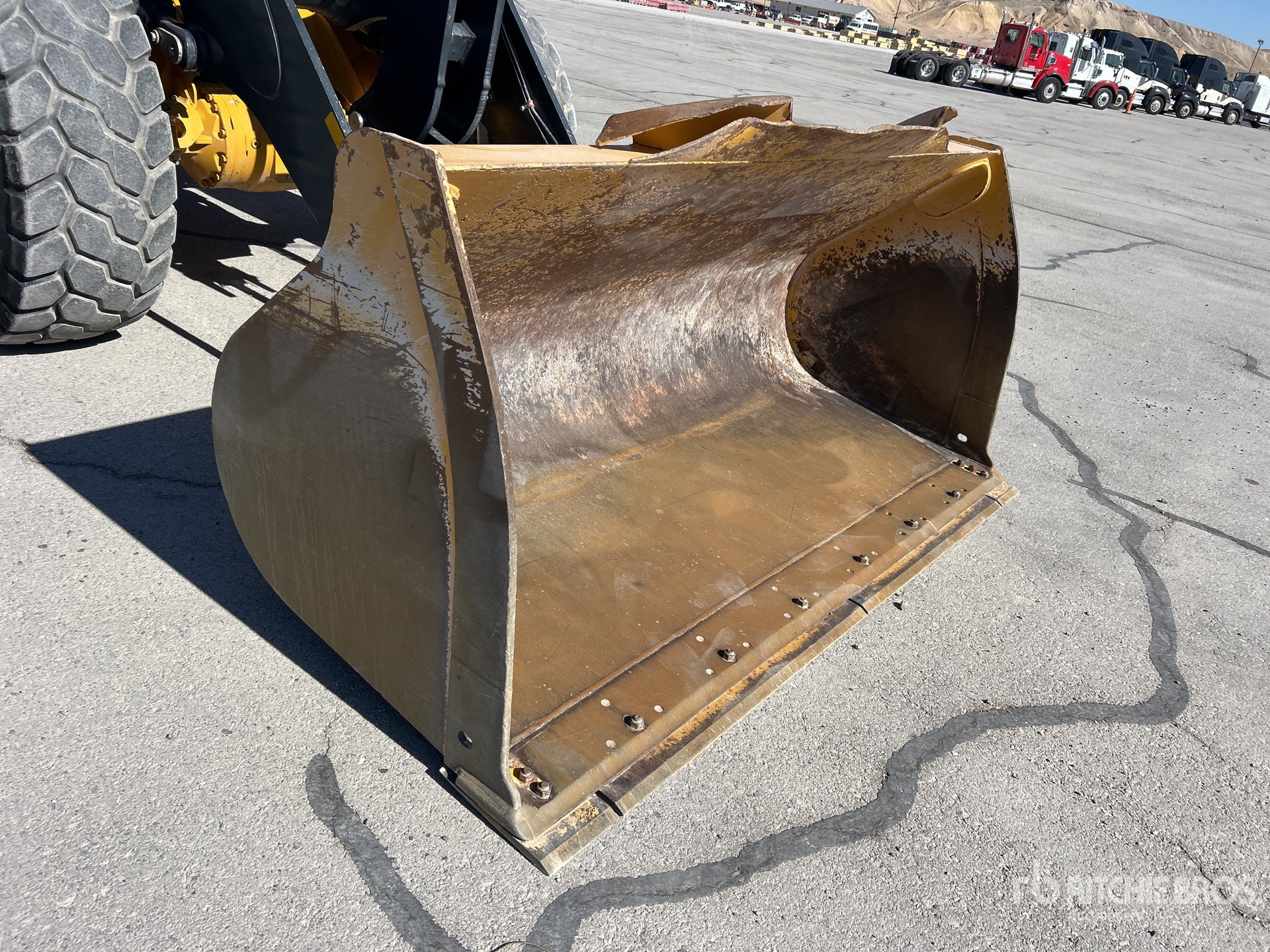

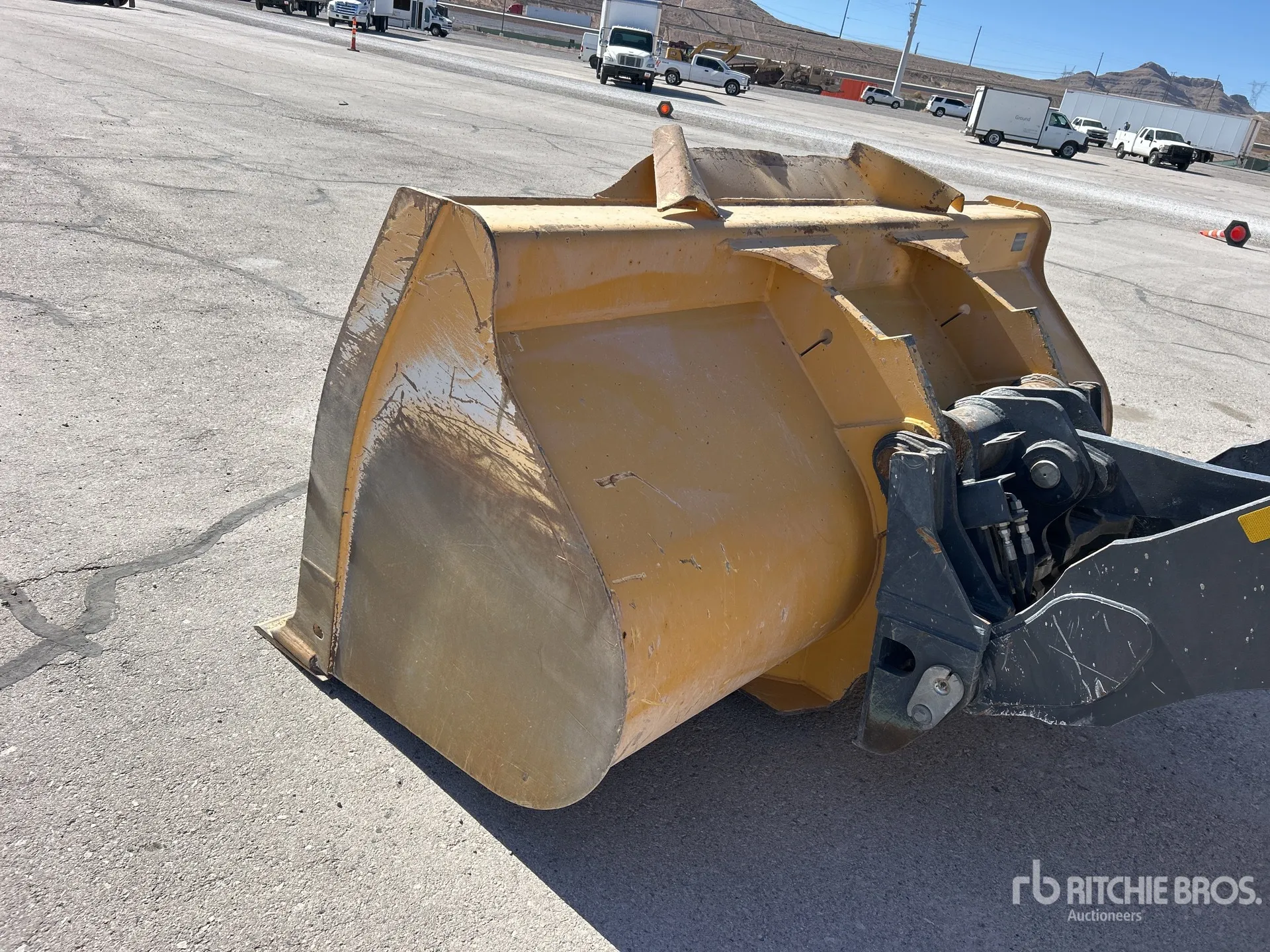

Attachments [2]
2004-2008
2.29 cu m Bucket capacity
3,170 mm Max dump height
1,005.84 mm Max dump reach
6068H Engine model
111.11 kw Gross power
12,942 kg Operating weight

The John Deere 544 (2004–2008) in J and K trims sits in the mid-size loader class. Operating weights range 15.2–15.6 t, buckets span 2.3–3.1 m³, and net power sits around 121–127 kW (162–170 hp) from Deere’s 6068H PowerTech diesel. The J series is simple and field-friendly, while the K adds Tier 3 emissions compliance, improved cab comfort, and refined hydraulics for smoother control.

Engine: John Deere 6068H PowerTech, ~121–127 kW (162–170 hp)

Operating Weight: ~15,200–15,600 kg

Bucket Capacity: ~2.3–3.1 m³

Breakout Force: ~120–135 kN

Tipping Load (Straight): ~10,900–11,300 kg

Travel Speed: ~37 km/h

Hydraulics: Closed-center, load-sensing; faster cycle times on K

Fuel Tank: ~246 L

Makana rating

Owner rating

 | 3

Market average

AED 292,000

Starting from

AED 210,000

John deere 544 technical specifications

Highlight differences

John deere 544J

John deere 544K

Loader
Breakout force 93.14 kN
Breakout force -
Years 2004-2008
Years 2004-2008
Market Average AED 292,000
Market Average AED 292,000
Price AED 210,000
Price AED 210,000
General
Bucket capacity 2.29 cu m
Bucket capacity 3.06 cu m
Bucket width 2,712 mm
Bucket width -
Max dump height 3,170 mm
Max dump height -
Engine model 6068H
Engine model E6068H
Operating weight 12,942 kg
Operating weight 15,879 kg
Tipping load 9,987 kg
Tipping load -
Tire size 20.5 R25
Tire size -
Max speed forward 38.3 kph
Max speed forward -
Transmission type Automatic powershift
Transmission type Deere PowerTech
Dimensions
Height - top of cab 3.26 m
Height - top of cab -
Transport length 7 m
Transport length -
Wheelbase 2.96 m
Wheelbase -
Turning radius 4.97 m
Turning radius -
Operating specifications
Max dump reach 1,005.84 mm
Max dump reach -
Engine
Aspiration Turbochargeed charge air cooled
Aspiration -
Displacement 6,784.26 cu cm
Displacement -
Gross power 111.11 kw
Gross power 124.53 kw
Torque rise 38 %
Torque rise -
Alternator supplied amperage 80 Amh
Alternator supplied amperage -
Hydraulic system
Pump flow cap 189.25 lpm
Pump flow cap -
Pump type Variable axial piston
Pump type -
Relief valve pressure 251.65 bar
Relief valve pressure -
Service refill capacities
Cooling fluid cap 22.33 liter
Cooling fluid cap -
Front axle fluid capacity 17.03 liter
Front axle fluid capacity -
Fuel cap 321.73 liter
Fuel cap -
Hydraulic fluid cap 95.95 liter
Hydraulic fluid cap -
Rear axle fluid capacity 17.03 liter
Rear axle fluid capacity -
Transmission fluid cap 18.55 liter
Transmission fluid cap -
Refill capacities
Engine oil cap 21.2 liter
Engine oil cap -
Transmission
Number of forward gears 4
Number of forward gears -
Number of reverse gears 3
Number of reverse gears -
Download datasheets
OEM product brochure

John deere 544 expert review

Reviewed by Zafer R. on September 4, 2025

Overview

Mid-size loader with proven versatility. J trim is rugged and easy to service; K trim focuses on comfort, Tier 3 emissions, and refined hydraulics.

Pros Balanced size and breakout force.
J’s mechanical simplicity eases maintenance.
Cons K’s electronics require precise servicing.
Fuel economy behind modern equivalents.

Performance & Efficiency

Strong breakout and stable handling across trims. K gains faster hydraulics and ride control for better load retention.

In Comparison

Comparable to Cat 924G but stronger; Komatsu WA200-5 burns less fuel but has less torque.

Verdict

J for rugged simplicity, K for comfort and Tier 3 compliance.

Show less

John deere 544 owner rating

John Deere 544 Wheel loaders [2004-2008]

2004-2008

Overall rating

Based on 3 ratings

4.3
performance

4.7

comfort

4.3

fuel efficiency

4.3

safety

4.7

features

4.7

5 stars

33 %

4 stars

67 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros
Balanced mid-size loader with strong breakout force and dependable performance across both rugged and comfort-focused trims.
Cons
Older fuel efficiency and added electronics on higher trims can increase servicing needs compared to newer machines.
performance

4.0

comfort

5.0

fuel efficiency

4.0

safety

5.0

features

4.0

Valuation

Last 12 month
2004

John deere 544 similar models

Highlight differences
John deere 544J
John deere 644K
Cat 938K
Loader
Breakout force 93.14 kN
Breakout force 150.81 kN
Breakout force 130 kN
Years 2004-2008
Years 2015-2019
Years 2013-2025
Market Average AED 292,000
Market Average AED 850,000
Market Average AED 590,000
Price AED 210,000
Price AED 690,000
Price AED 280,000
General
Bucket capacity 2.29 cu m
Bucket capacity 3.06 cu m
Bucket capacity 3.5 cu m
Bucket width 2,712 mm
Bucket width -
Bucket width 3,000 mm
Max dump height 3,170 mm
Max dump height 2,896 mm
Max dump height 3,200 mm
Engine model 6068H
Engine model John Deere PowerTech PSS 6090
Engine model Cat C7.1
Operating weight 12,942 kg
Operating weight 18,682 kg
Operating weight 17,500 kg
Tipping load 9,987 kg
Tipping load -
Tipping load 13,000 kg
Tire size 20.5 R25
Tire size 23.5 R25
Tire size -
Max speed forward 38.3 kph
Max speed forward -
Max speed forward 38 kph
Transmission type Automatic powershift
Transmission type Powershift
Transmission type -
Lifting capacity -
Lifting capacity -
Lifting capacity 6,500 kg
Dimensions
Height - top of cab 3.26 m
Height - top of cab 3.44 m
Height - top of cab 3.35 m
Transport length 7 m
Transport length 8 m
Transport length -
Wheelbase 2.96 m
Wheelbase 3.26 m
Wheelbase 3 m
Turning radius 4.97 m
Turning radius 13.29 m
Turning radius -
Transport width -
Transport width 2 m
Transport width -
Operating specifications
Max dump reach 1,005.84 mm
Max dump reach 1,615.44 mm
Max dump reach 1,150 mm
Brake system -
Brake system Wet Multi Disc - Transmission
Brake system -
Rack back angle -
Rack back angle -
Rack back angle 45 º
Engine
Aspiration Turbochargeed charge air cooled
Aspiration -
Aspiration -
Displacement 6,784.26 cu cm
Displacement 9,001.43 cu cm
Displacement 7,100 cu cm
Gross power 111.11 kw
Gross power 173.01 kw
Gross power 150.63 kw
Torque rise 38 %
Torque rise 56 %
Torque rise -
Alternator supplied amperage 80 Amh
Alternator supplied amperage 130 Amh
Alternator supplied amperage -
Emissions -
Emissions Tier 4
Emissions -
Max torque -
Max torque 1,062 Nm
Max torque 950 Nm
Hydraulic system
Pump flow cap 189.25 lpm
Pump flow cap 297.12 lpm
Pump flow cap 220 lpm
Pump type Variable axial piston
Pump type Piston
Pump type Piston pump
Relief valve pressure 251.65 bar
Relief valve pressure 250.97 bar
Relief valve pressure 234.42 bar
Service refill capacities
Cooling fluid cap 22.33 liter
Cooling fluid cap -
Cooling fluid cap -
Front axle fluid capacity 17.03 liter
Front axle fluid capacity 22.33 liter
Front axle fluid capacity -
Fuel cap 321.73 liter
Fuel cap 397.05 liter
Fuel cap 325 liter
Hydraulic fluid cap 95.95 liter
Hydraulic fluid cap 105.22 liter
Hydraulic fluid cap 135 liter
Rear axle fluid capacity 17.03 liter
Rear axle fluid capacity 22.33 liter
Rear axle fluid capacity -
Transmission fluid cap 18.55 liter
Transmission fluid cap 23.09 liter
Transmission fluid cap -
Refill capacities
Engine oil cap 21.2 liter
Engine oil cap -
Engine oil cap -
Transmission
Number of forward gears 4
Number of forward gears -
Number of forward gears -
Number of reverse gears 3
Number of reverse gears -
Number of reverse gears -
