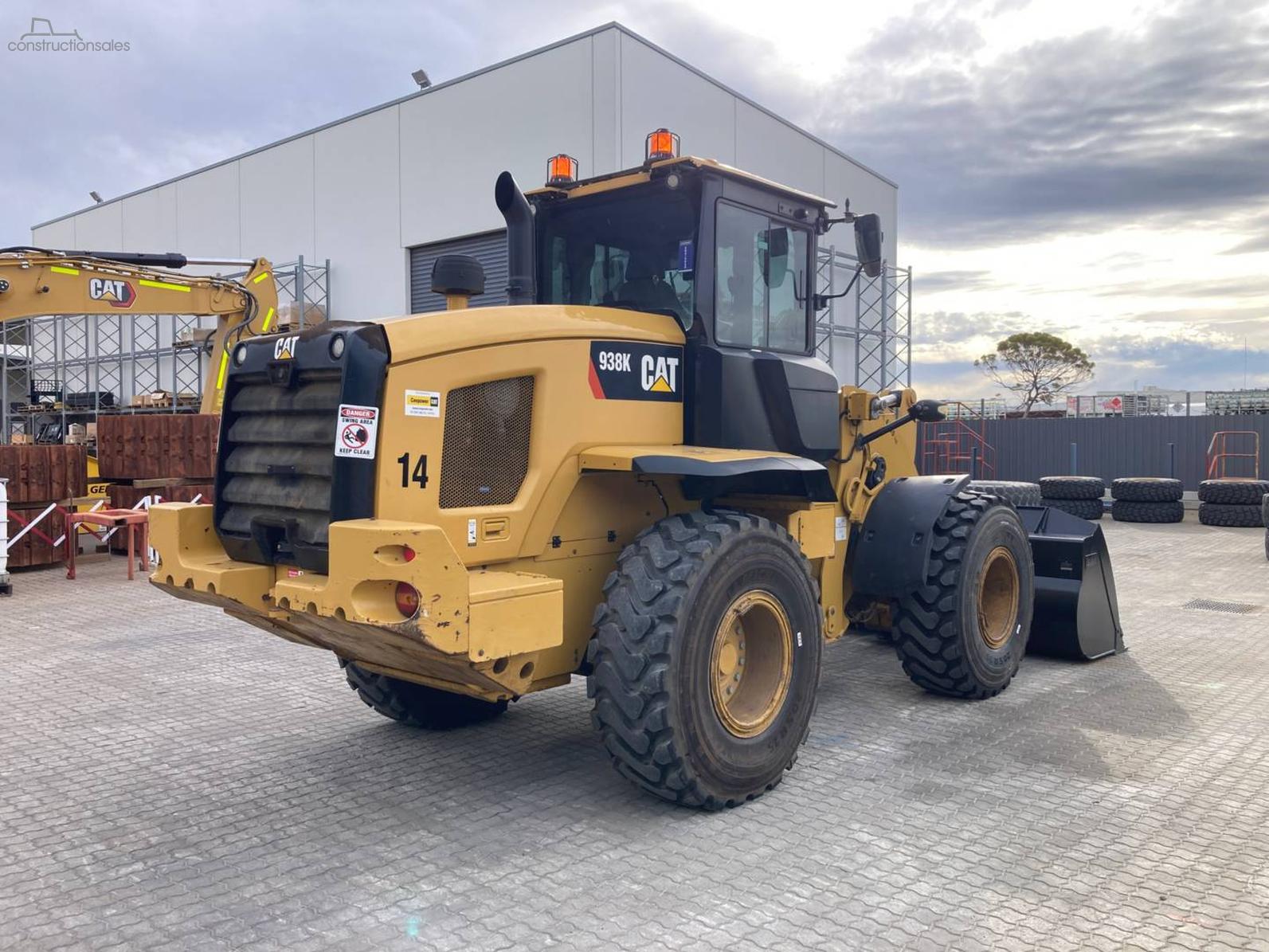

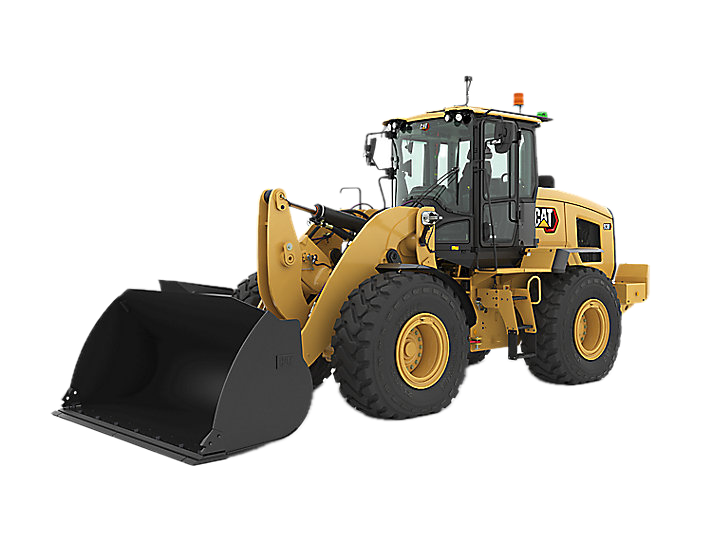

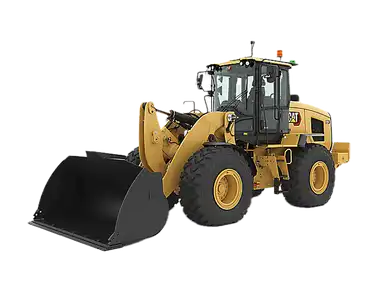

Cat 938 Wheel loaders tech specs

makana img
video play button
Video[1]

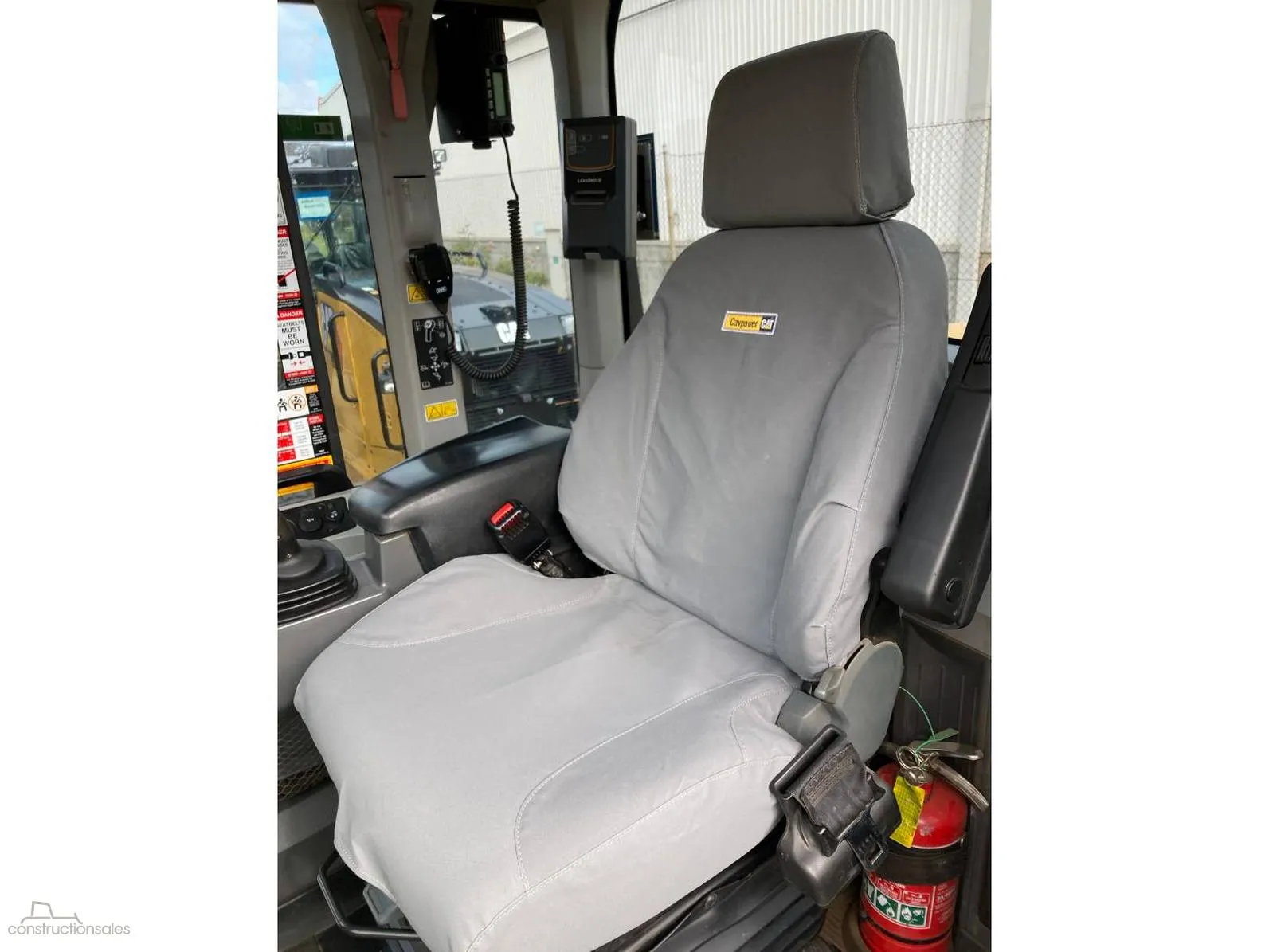

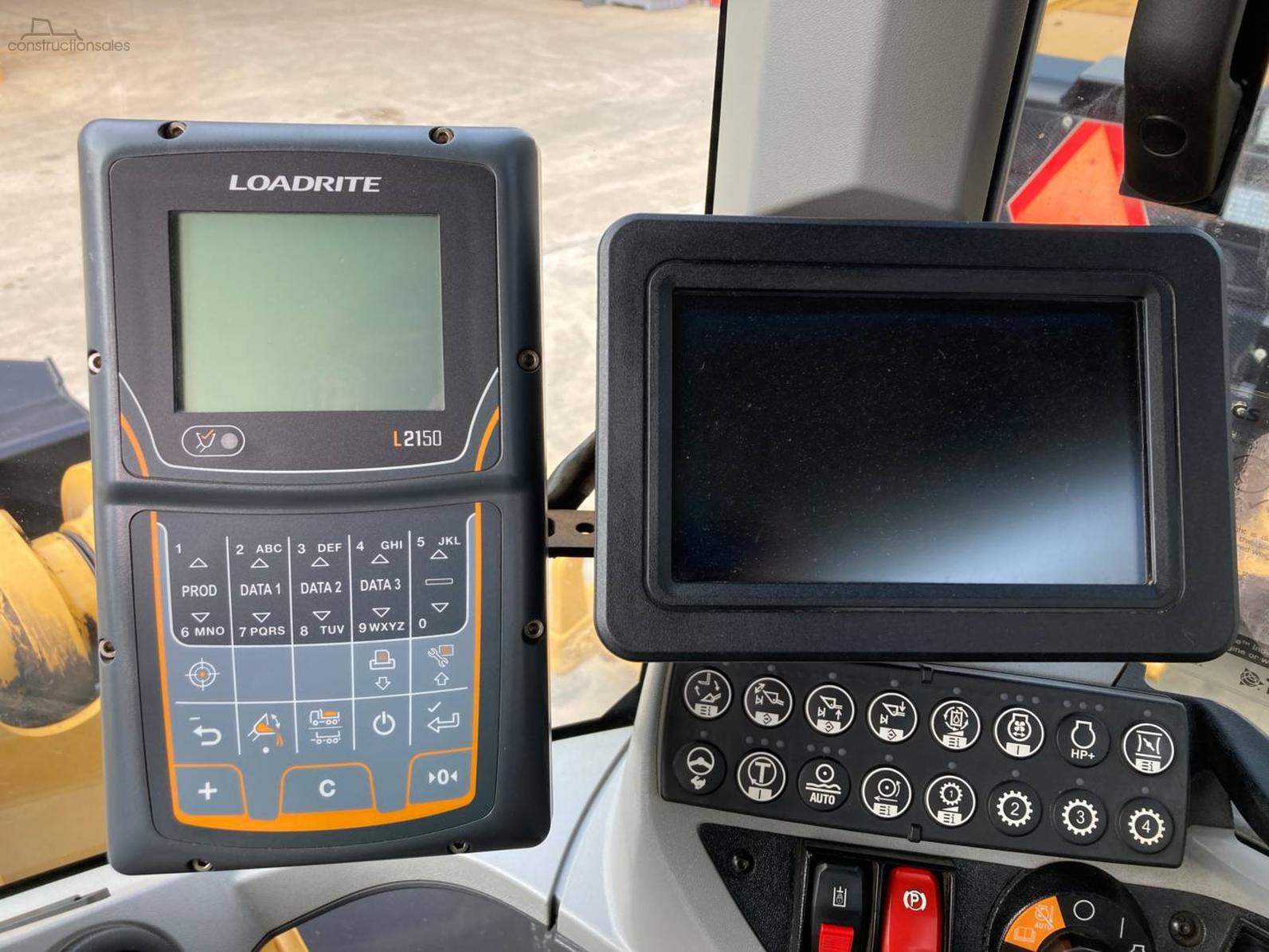

Interior [2]

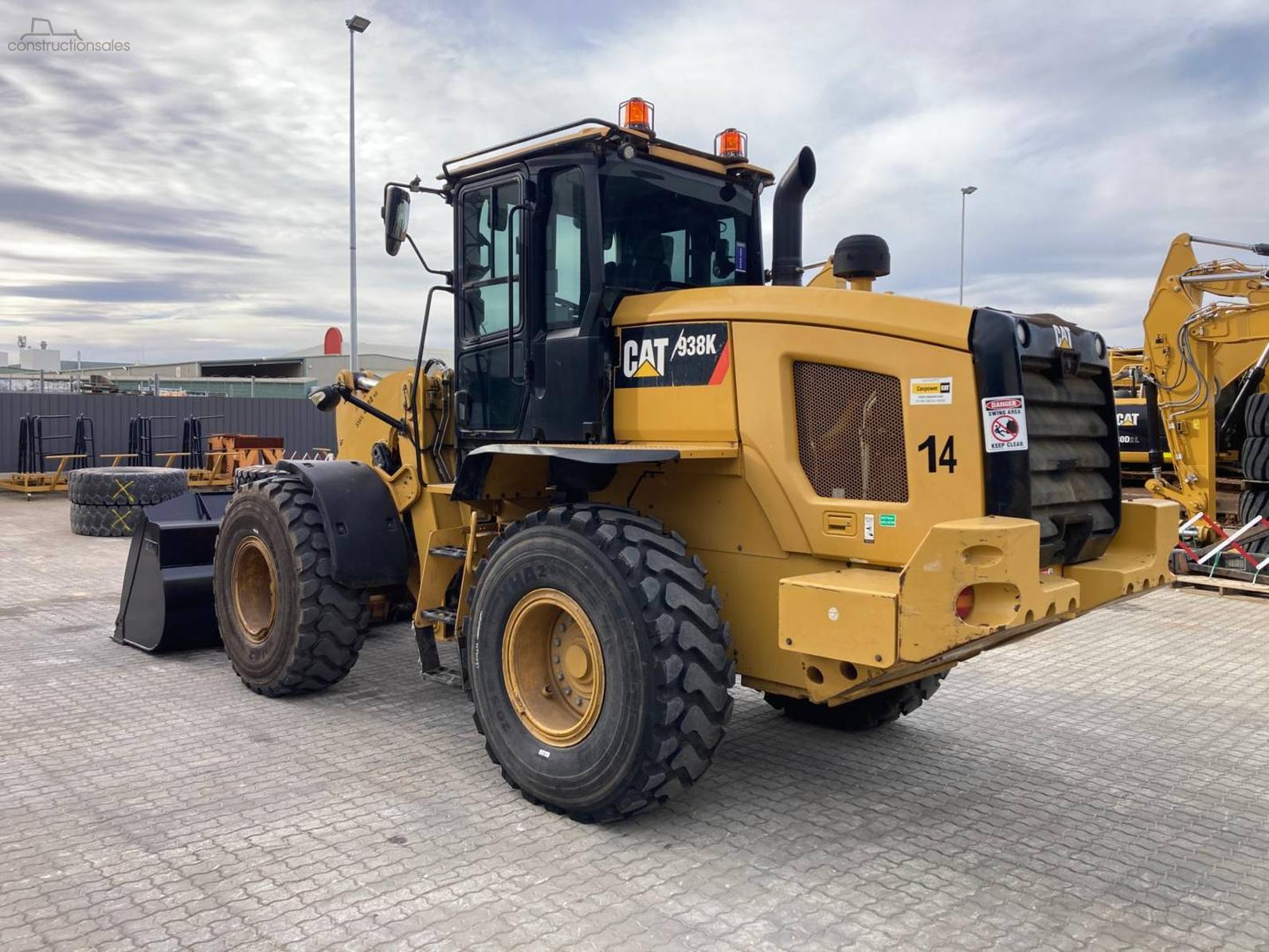

Exterior [4]

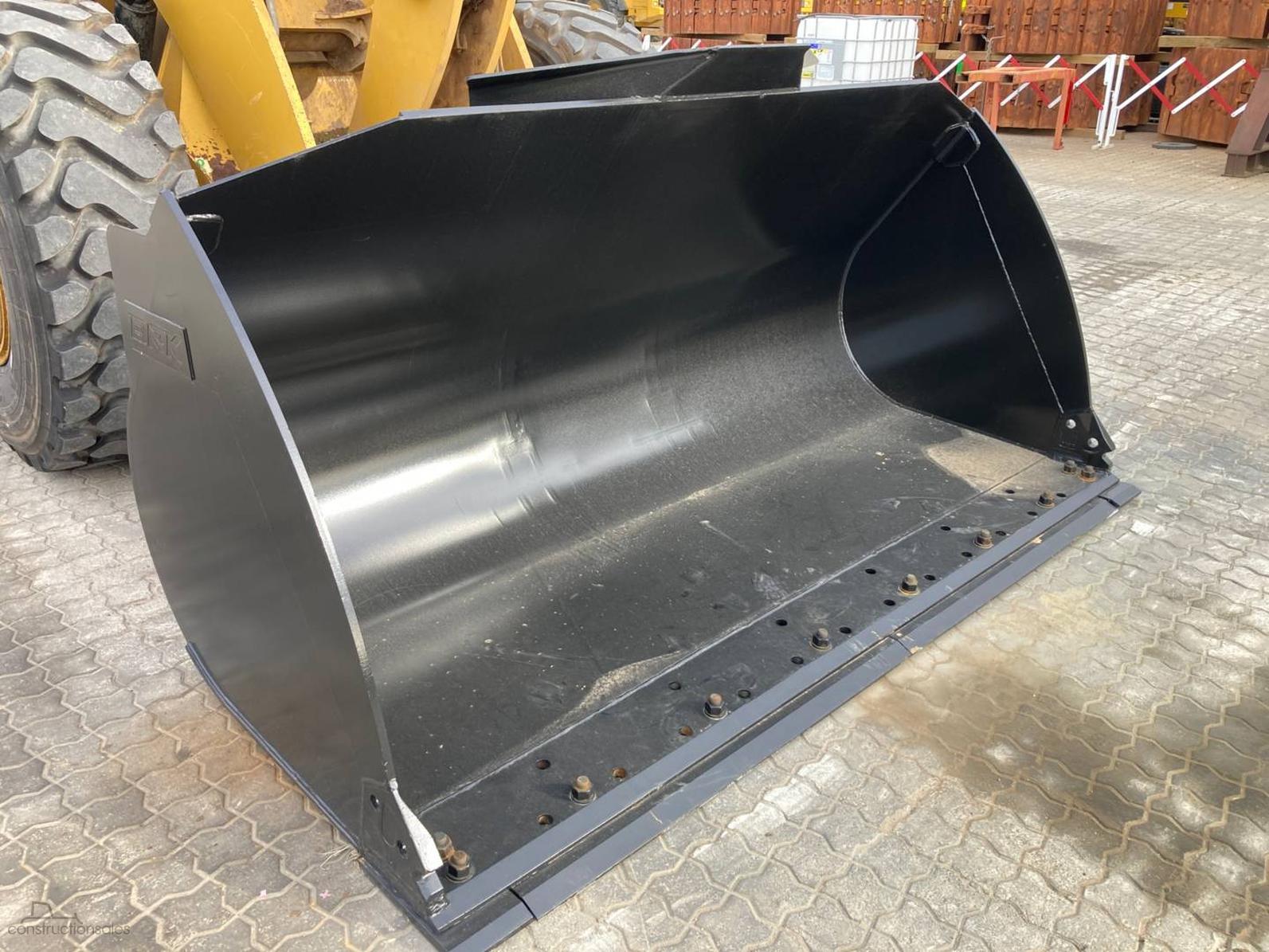

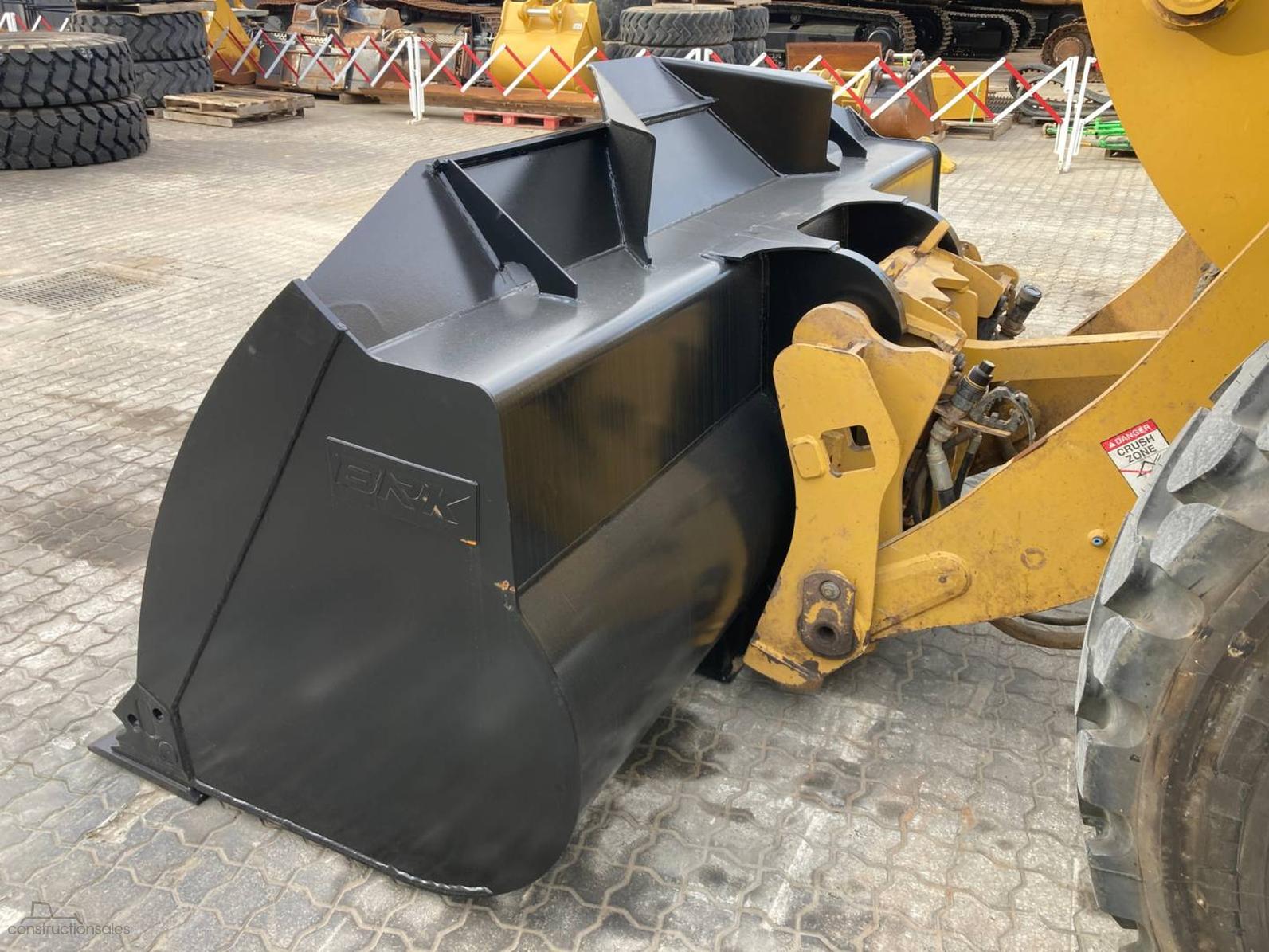

Attachments [2]
2013-2025
150.63 kw Gross power
17,500 kg Operating weight
3.5 cu m Bucket capacity
6,500 kg Lifting capacity
3,200 mm Max dump height
1,150 mm Max dump reach

The Cat 938 (2013–2025) bridges compact and mid-size loader duties, offered in K and M variants. Operating weights run 14.3–15.0 t, buckets hold 2.5–2.7 m³, and net power is around 129–140 kW (173–188 hp) from the Cat C7.1 ACERT diesel. The K is Tier 4 Interim with proven Z-bar linkage, while the M is Tier 4 Final with more advanced hydraulics, integrated Payload weighing, and improved fuel efficiency.

Engine: Cat C7.1 ACERT, ~129–140 kW (173–188 hp)

Operating Weight: ~14,300–15,000 kg

Bucket Capacity: ~2.5–2.7 m³

Breakout Force: ~105–115 kN

Tipping Load (Straight): ~9,800–10,300 kg

Travel Speed: ~37–40 km/h

Hydraulics: Load-sensing, variable-displacement; M gets Smart Mode and EH controls

Fuel Tank: ~250 L

Makana rating

Owner rating

 | 3

Market average

AED 590,000

Starting from

AED 280,000

Cat 938 technical specifications

Highlight differences

Cat 938K

Cat 938M

General
Engine model Cat C7.1
Engine model Cat C7.1
Operating weight 17,500 kg
Operating weight 18,200 kg
Bucket width 3,000 mm
Bucket width 3,000 mm
Bucket capacity 3.5 cu m
Bucket capacity 3.6 cu m
Lifting capacity 6,500 kg
Lifting capacity 6,800 kg
Max speed forward 38 kph
Max speed forward 40 kph
Displacement 7,100 cu cm
Displacement 7,100 cu cm
Max torque 950 Nm
Max torque 1,000 Nm
Wheelbase 3 m
Wheelbase 3 m
Max dump height 3,200 mm
Max dump height 3,220 mm
Max dump reach 1,150 mm
Max dump reach 1,160 mm
Tipping load 13,000 kg
Tipping load 13,600 kg
Years 2013-2025
Years 2013-2025
Market Average AED 590,000
Market Average AED 590,000
Price AED 280,000
Price AED 280,000
Engine
Gross power 150.63 kw
Gross power 158.09 kw
Service refill capacities
Fuel cap 325 liter
Fuel cap 325 liter
Hydraulic fluid cap 135 liter
Hydraulic fluid cap 140 liter
Hydraulic system
Pump type Piston pump
Pump type Piston pump
Pump flow cap 220 lpm
Pump flow cap 230 lpm
Relief valve pressure 234.42 bar
Relief valve pressure 234.42 bar
Dimensions
Height - top of cab 3.35 m
Height - top of cab 3.35 m
Loader
Breakout force 130 kN
Breakout force 135 kN
Operating specifications
Rack back angle 45 º
Rack back angle 45 º
Download datasheets
OEM product brochure

Cat 938 expert review

Reviewed by Rizwan R. on September 4, 2025

Overview

Mid-size loader ideal for bulk handling, snow removal, and plant work. K trim is simple and proven; M trim adds tech features for faster cycles and fuel savings.

Pros Strong breakout for size class.
M adds tech and better fuel efficiency.
Cons K lacks Payload and refined parallel lift.
M electronics require precise servicing.

Performance & Efficiency

Both variants are quick and stable. M's Smart Mode adapts RPM to load for lower fuel use. K stays consistent and simple across job types.

In Comparison

Volvo L70H matches size but is heavier; Deere 644K offers more lift but adds weight.

Verdict

K for reliable simplicity, M for advanced features and efficiency gains.

Show less

Cat 938 owner rating

Cat 938 Wheel loaders [2013-2025]

2013-2025

Overall rating

Based on 3 ratings

4.3
performance

4.5

comfort

4.5

fuel efficiency

4.5

safety

4.5

features

4.5

5 stars

33 %

4 stars

67 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros
Strong breakout force and stable handling make it a dependable mid-size loader for bulk material and plant work.
Cons
Base K trim lacks modern tech features, while M trim electronics add servicing complexity.
performance

4.0

comfort

5.0

fuel efficiency

4.0

safety

5.0

features

4.0

Valuation

Last 12 month
2013

Cat 938 similar models

Highlight differences
Cat 938K

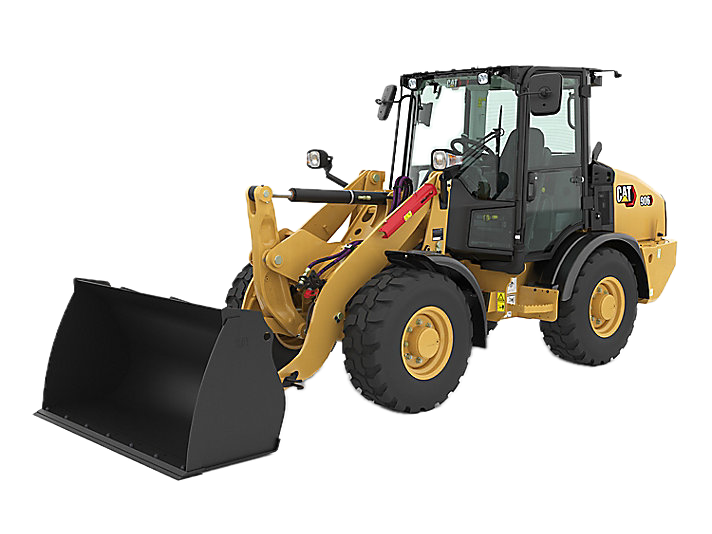

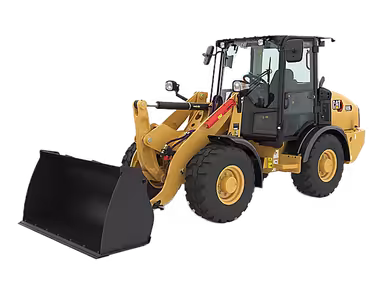

Cat 906M

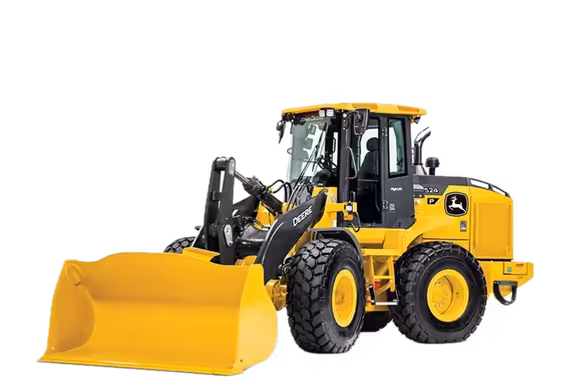

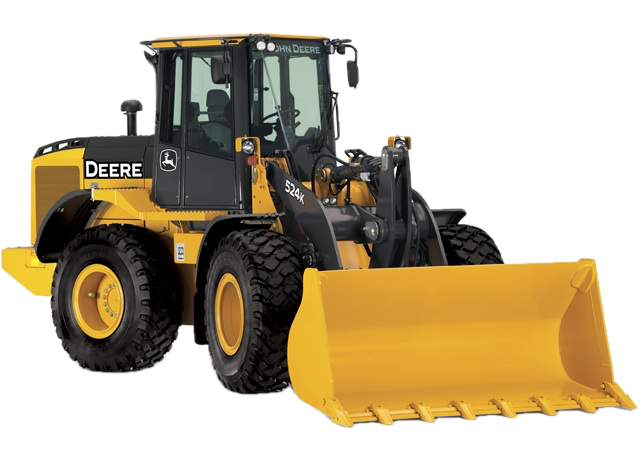

John deere 524K
General
Engine model Cat C7.1
Engine model Cat C3.3B
Engine model E6068H
Operating weight 17,500 kg
Operating weight 5,600 kg
Operating weight 15,370 kg
Bucket width 3,000 mm
Bucket width 1,800 mm
Bucket width -
Bucket capacity 3.5 cu m
Bucket capacity 1 cu m
Bucket capacity 1.91 cu m
Lifting capacity 6,500 kg
Lifting capacity 1,800 kg
Lifting capacity -
Max speed forward 38 kph
Max speed forward 32 kph
Max speed forward -
Displacement 7,100 cu cm
Displacement 3,300 cu cm
Displacement -
Max torque 950 Nm
Max torque 360 Nm
Max torque -
Wheelbase 3 m
Wheelbase 1.9 m
Wheelbase -
Max dump height 3,200 mm
Max dump height 2,300 mm
Max dump height -
Max dump reach 1,150 mm
Max dump reach 760 mm
Max dump reach -
Tipping load 13,000 kg
Tipping load 3,600 kg
Tipping load -
Transmission type -
Transmission type -
Transmission type Deere PowerTech
Years 2013-2025
Years 2015-2022
Years 2015-2019
Market Average AED 590,000
Market Average AED 300,000
Market Average AED 385,000
Price AED 280,000
Price AED 200,000
Price AED 320,000
Engine
Gross power 150.63 kw
Gross power 55.18 kw
Gross power 108.87 kw
Service refill capacities
Fuel cap 325 liter
Fuel cap 110 liter
Fuel cap -
Hydraulic fluid cap 135 liter
Hydraulic fluid cap 40 liter
Hydraulic fluid cap -
Hydraulic system
Pump type Piston pump
Pump type Gear pump
Pump type -
Pump flow cap 220 lpm
Pump flow cap 75 lpm
Pump flow cap -
Relief valve pressure 234.42 bar
Relief valve pressure 199.94 bar
Relief valve pressure -
Dimensions
Height - top of cab 3.35 m
Height - top of cab 2.55 m
Height - top of cab -
Loader
Breakout force 130 kN
Breakout force 38 kN
Breakout force -
Operating specifications
Rack back angle 45 º
Rack back angle 40 º
Rack back angle -
