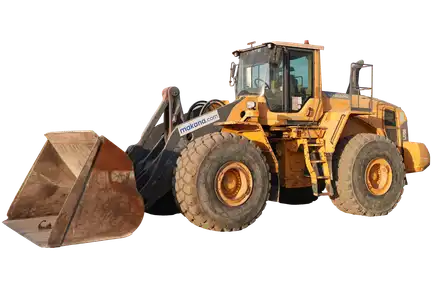

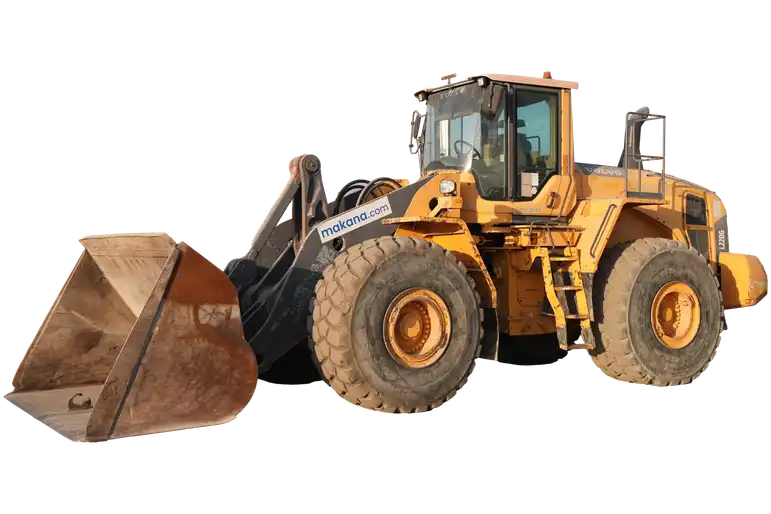

Volvo L220 Wheel loaders tech specs

Overview

The Volvo L220 (2011–2014) is a large wheel loader aimed at high-volume production in quarries, aggregate yards, and heavy construction. With 274 kW from the D13H-E engine, a 5.9 cu m bucket, and 32,810 kg operating weight, it prioritizes fast loading, strong breakout, and smooth material flow between pile and truck.

Key Features Highlight

• 32.8-ton class for bulk handling
• 5.9 cu m bucket with 3,430 mm width
• 25,299 kg lifting capacity, 255 kN breakout force
• 253 LPM hydraulic flow for responsive loader cycles
• 40 kph travel speed for quick yard movement
• Volvo HTL 306 transmission for controlled power delivery
• Large onboard fluids: 335 L fuel, 226 L hydraulic oil

Pros Strong lifting capacity, smooth hydraulics, fast travel for yard work.

Cons Fuel use climbs in stop-start work, large footprint for tight sites.

Efficiency

The L220 is tuned for steady production. Its variable-displacement axial piston pumps keep loader movements smooth under load, while 40 kph travel speed cuts dead time between stockpiles and trucks.

In Cabin

Operator comfort is solid for its generation, with clear sightlines to the bucket and pile, logical control layout, and a cab designed for long loading shifts.

In Comparison

• Cat 966: lighter class, easier on fuel, lower bucket volumes.

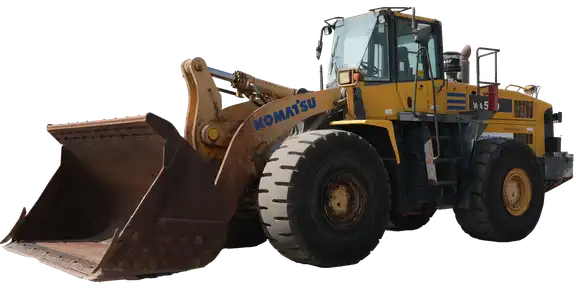

• Komatsu WA500: similar size, often heavier feel in hydraulics.
• Volvo L220: higher lift figures, smooth loader response, quick yard travel.

Final Verdict

Rated 5 stars, the Volvo L220 fits quarry and heavy material handling in the AED 250,000–551,000 range.
