Komatsu WE2350 Wheel loaders tech specs

Overview

The Komatsu WE2350 (2022–2026) is an ultra-heavy wheel loader built for mines, large quarries, and bulk material operations where every loading cycle involves very large volumes. Its 266.622-ton operating weight, 72,574 kg lifting capacity, and 40.52 m³ bucket put it firmly in high-production territory. The Cummins QSK60 engine delivers 1,715 kilowatts and 9,053 Nm of torque, while the hydraulic system provides the flow and pressure needed to move the machine's large lift arms and bucket under heavy loads.

Expert rating: 5 stars

Performance & Efficiency

The Cummins QSK60 produces 1,715 kilowatts and 9,053 Nm of maximum torque, giving the WE2350 the power needed to work a 40.52 m³ bucket under demanding loading conditions. Breakout force reaches 1,173 kN, while the hydraulic system supplies up to 1,870 l/min through piston pumps at a 276 bar relief pressure. A maximum dump height of 9.53 m and dump reach of 3.18 m give the machine the clearance needed for loading large haul trucks, while its 19.31 km/h maximum forward speed is appropriate for short loading and stockpile cycles.

In Comparison

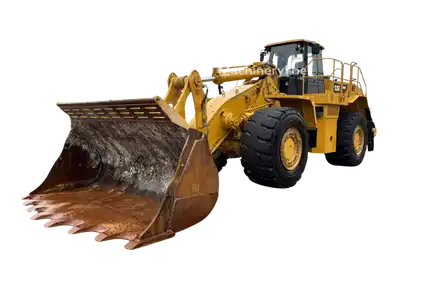

Cat 988H: A more conventional heavy wheel loader for quarrying, aggregate handling, and large loading work where the extreme capacity of the WE2350 is unnecessary.

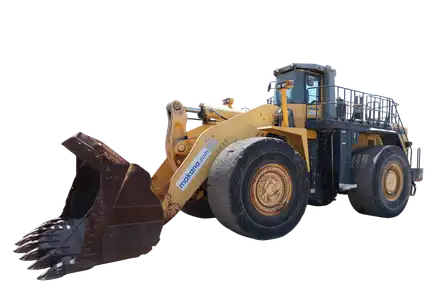

Komatsu WA900: A large production loader within the Komatsu range, but better suited to operations requiring a smaller overall machine than the WE2350.
Komatsu WE2350: The highest-capacity option of the three based on the provided specifications, with a 40.52 m³ bucket, 72,574 kg lifting capacity, and 266.622-ton operating weight aimed at ultra-heavy mining applications.

Final Verdict

Rated 5 stars, the Komatsu WE2350 is built for operations where loader productivity is measured in very large tonnes per cycle. Its 40.52 m³ bucket, 1,173 kN breakout force, high hydraulic flow, and 72,574 kg lifting capacity make it a specialized production machine for large mines and bulk material sites rather than a general-purpose wheel loader.
