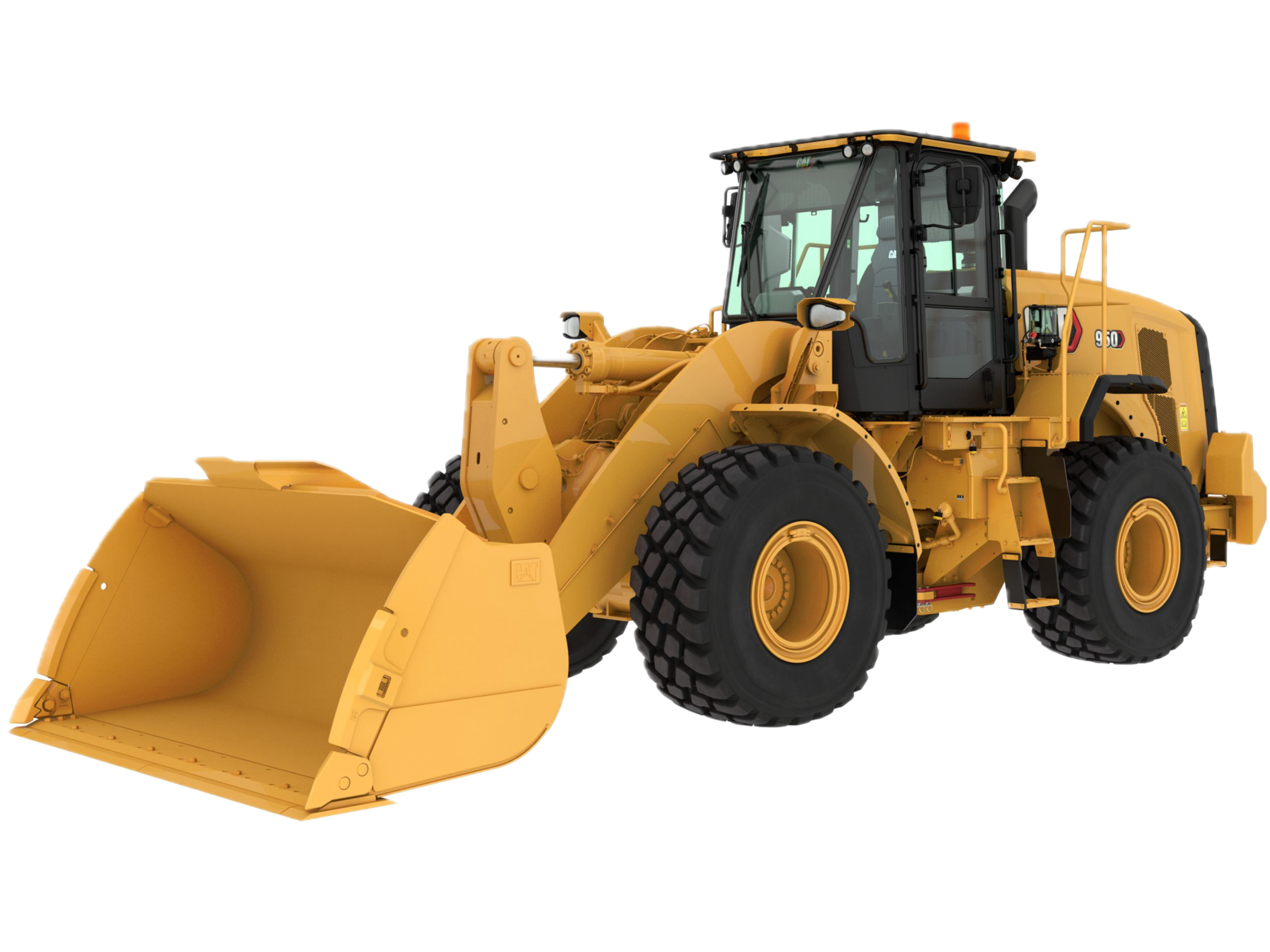

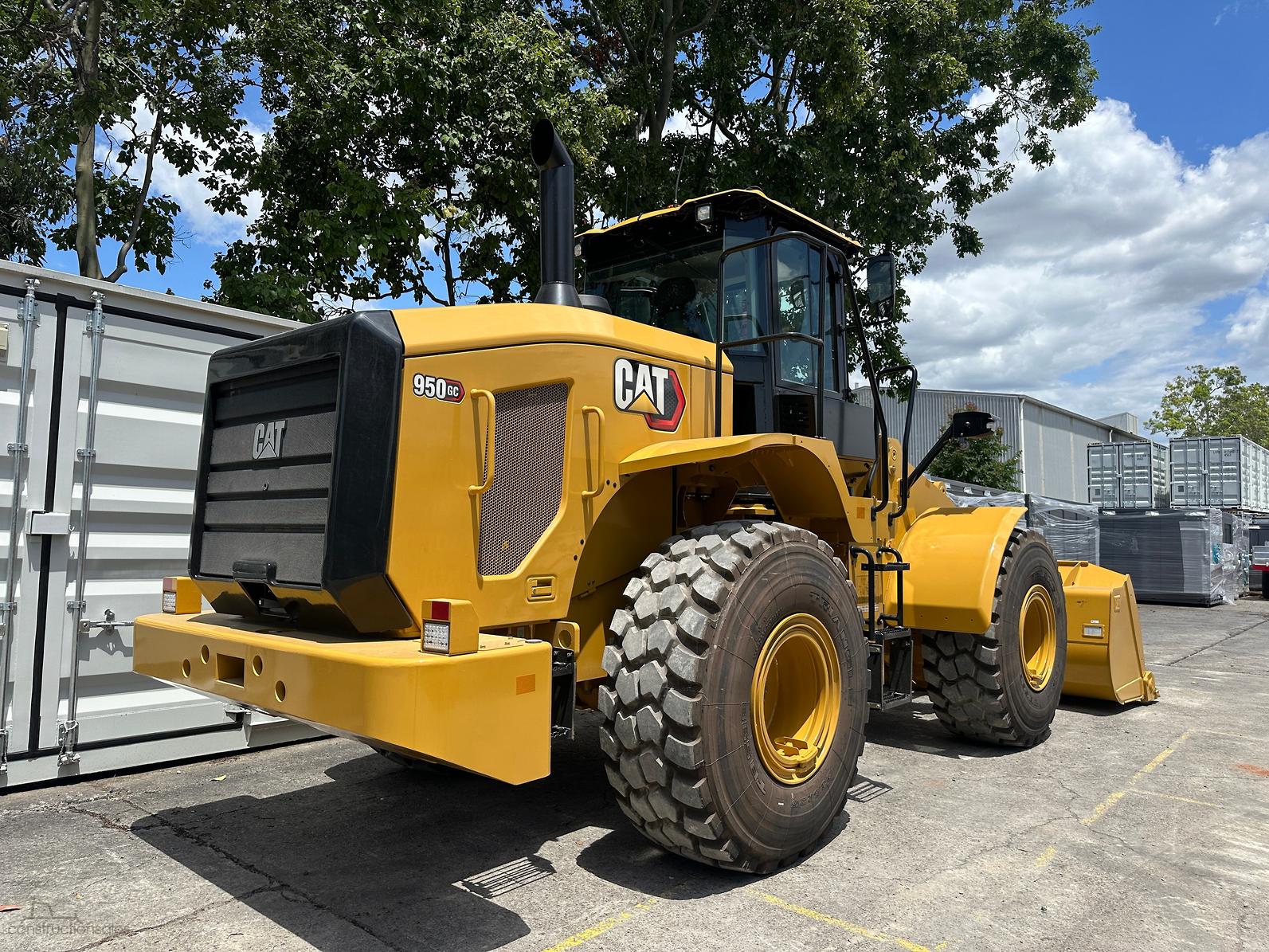

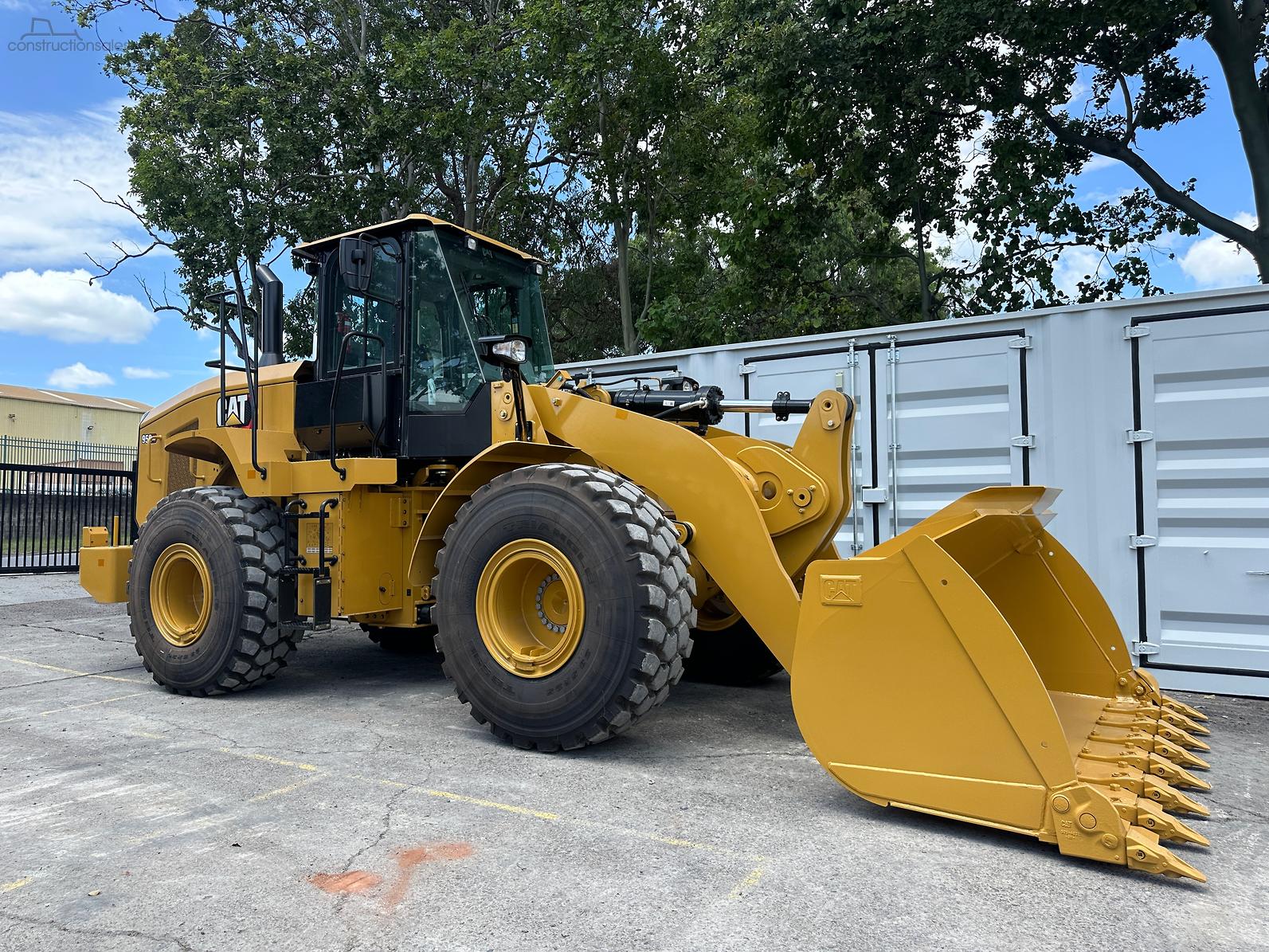

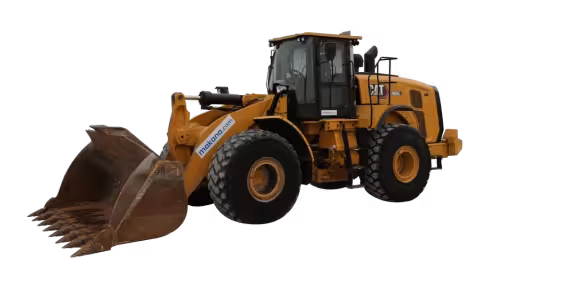

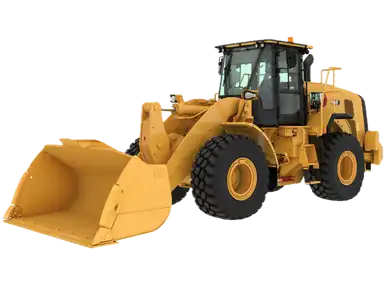

Cat 950 Wheel loaders tech specs

makana img
video play button
Video[1]

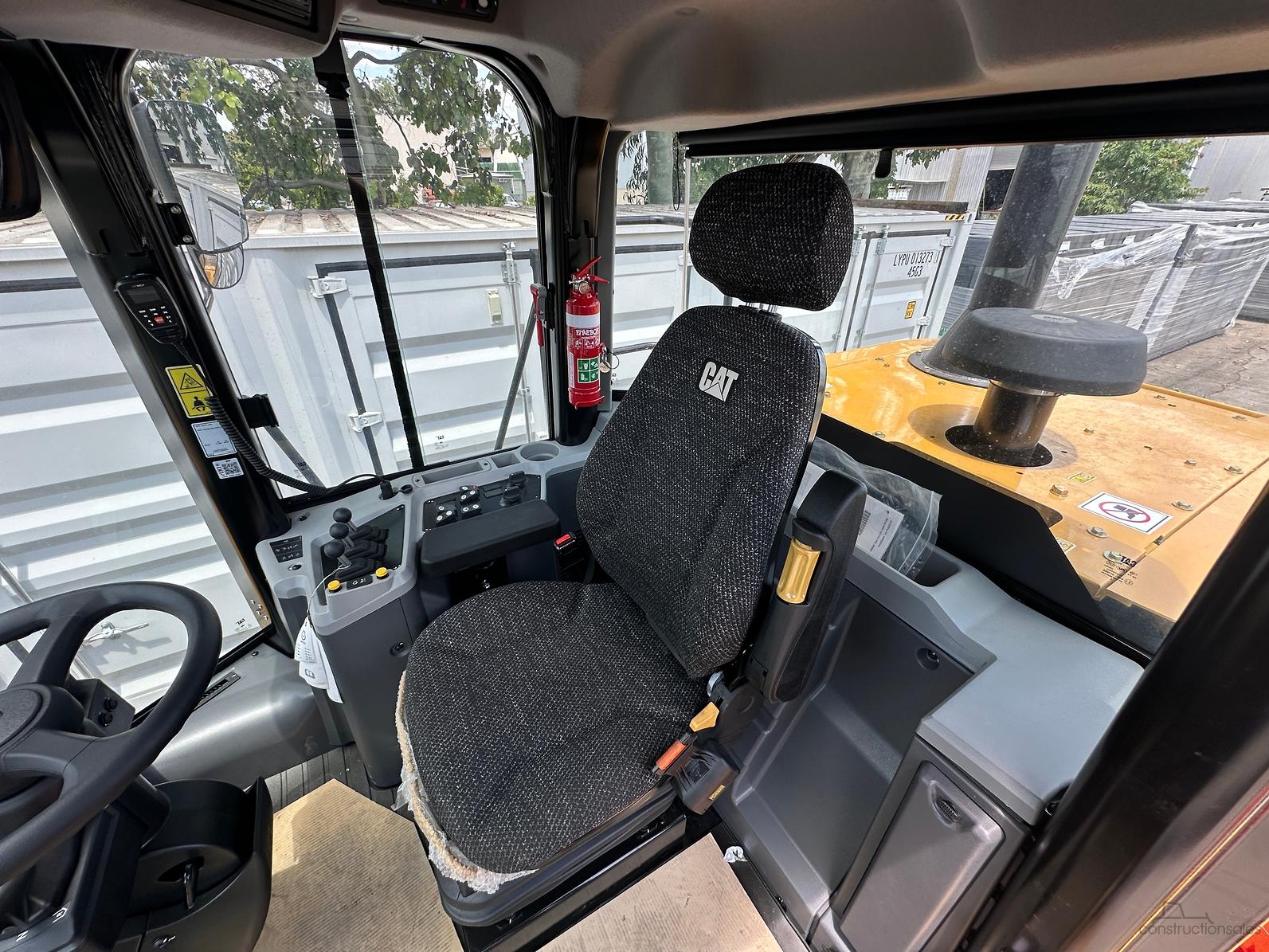

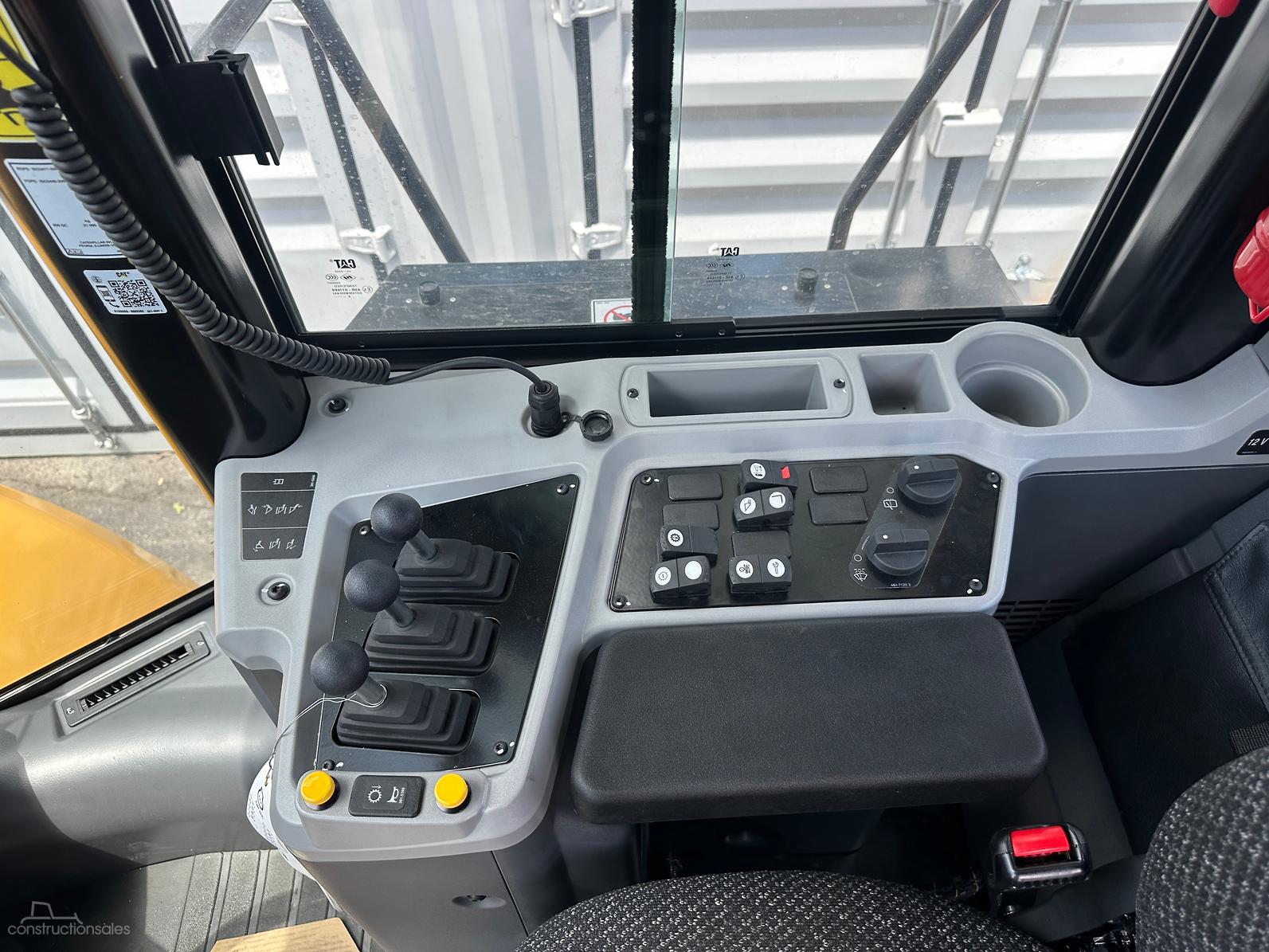

Interior [2]

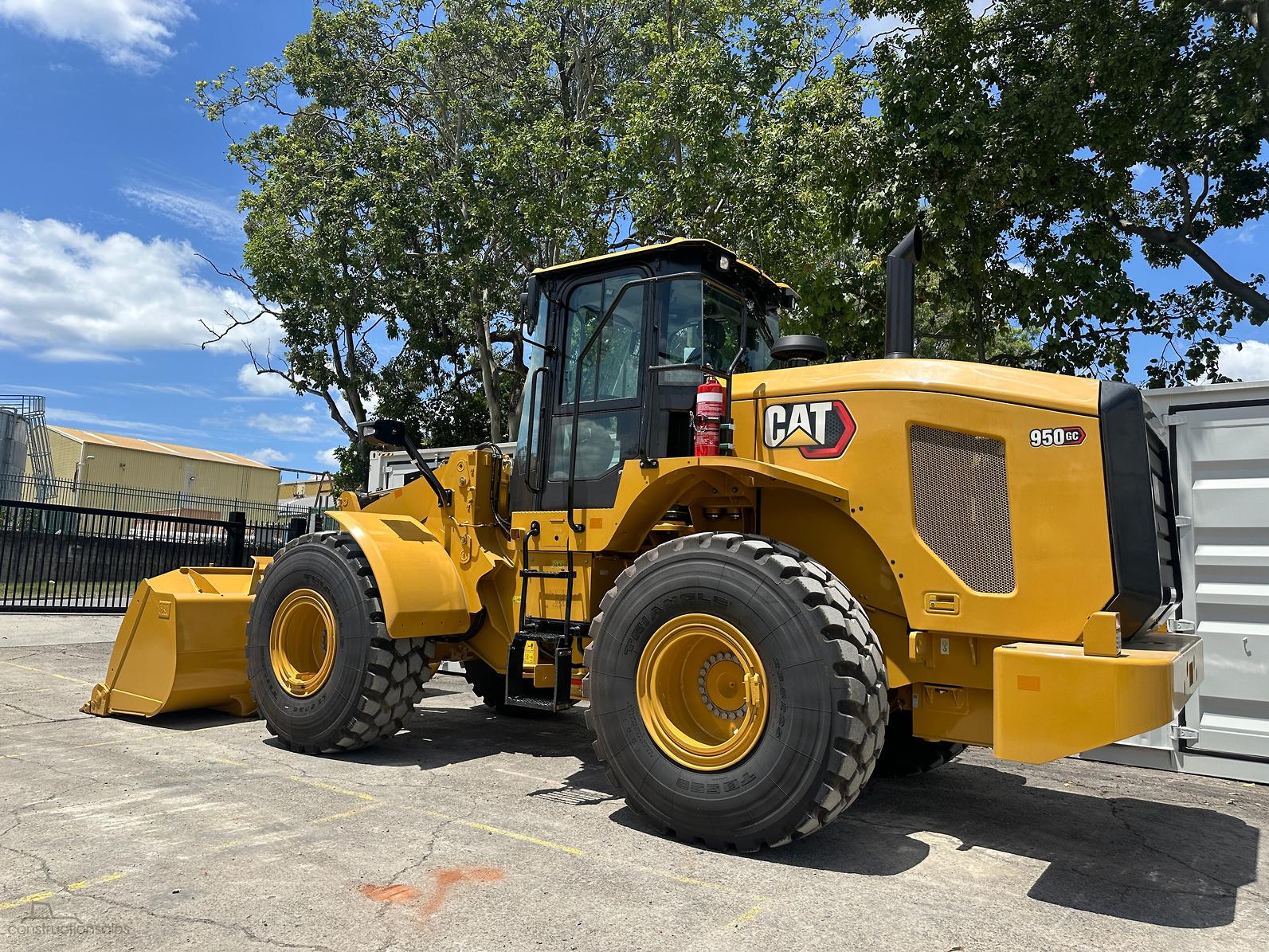

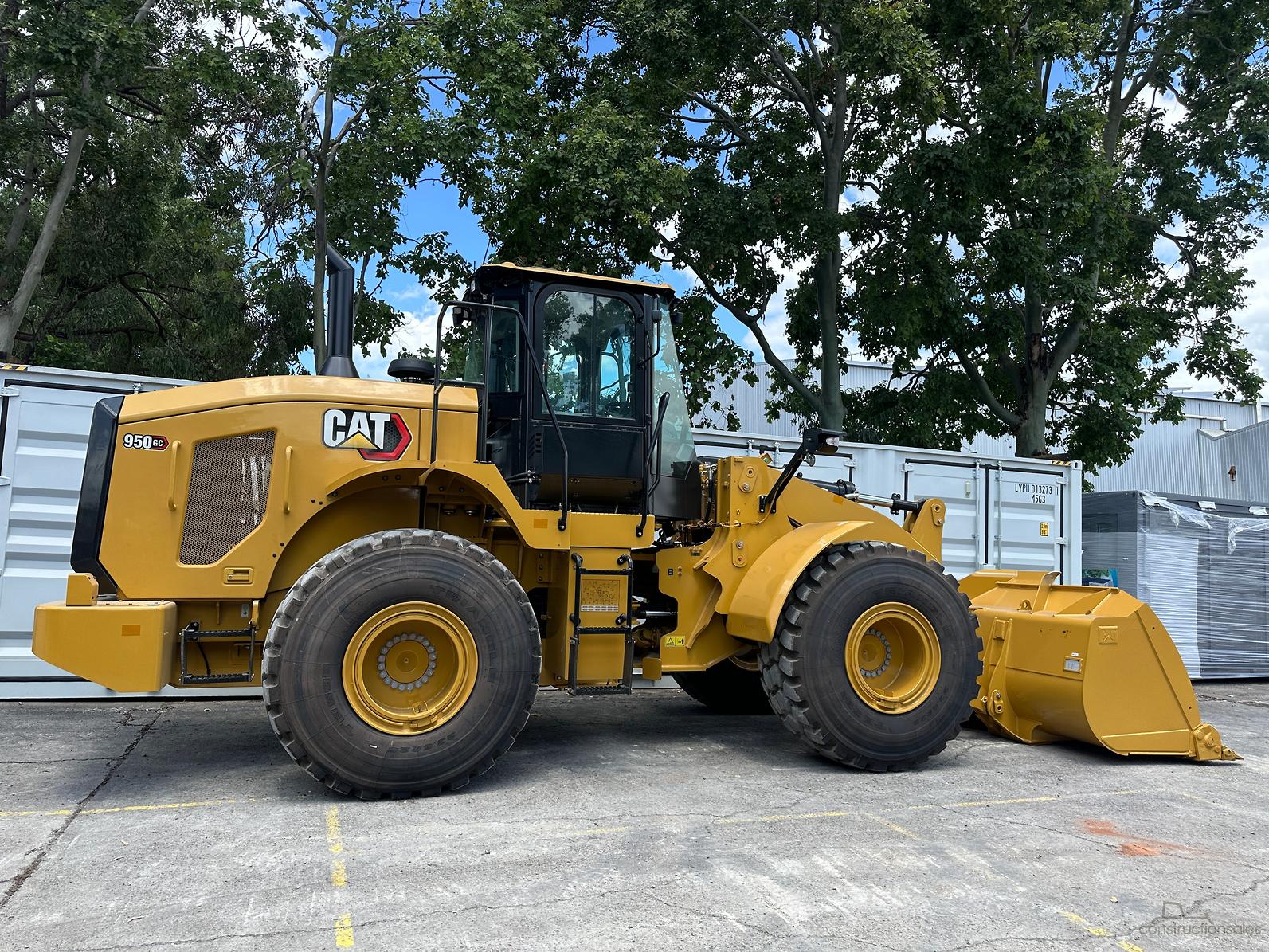

Exterior [4]

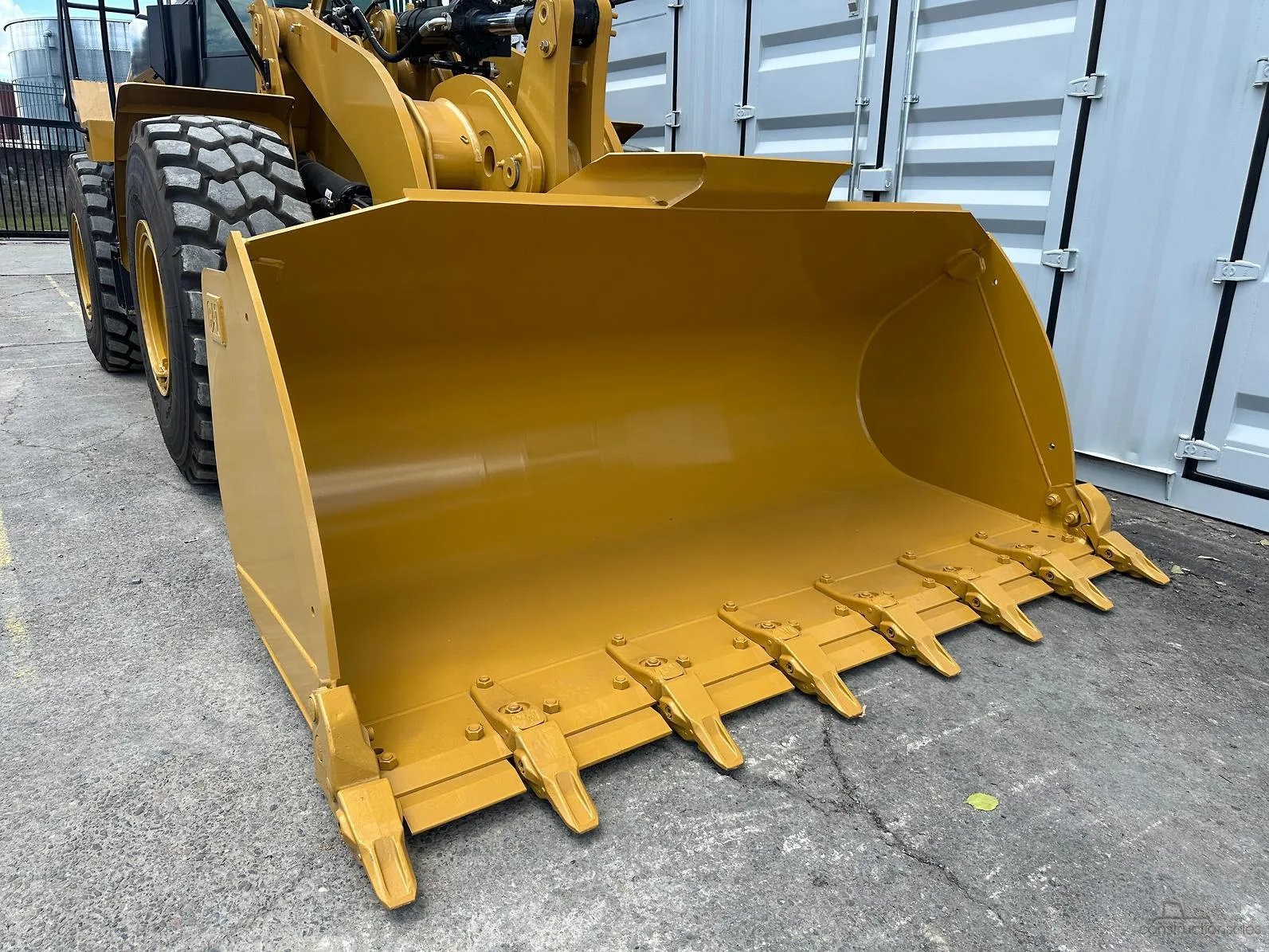

Attachments [1]
2006-2025
130.5 kw Gross power
16,500 kg Operating weight
3 cu m Bucket capacity
5,800 kg Lifting capacity
3,100 mm Max dump height
1,080 mm Max dump reach

The Cat 950 series (2006–2025) covers four distinct trims — G, GC, H, and M — aimed at different fleet priorities. Operating weights range from 18.1–20.1 t, bucket sizes from 2.7–4.4 m³, and net power sits around 168–186 kW (225–249 hp). The G and H focus on heavy-duty production, the GC trims costs for lighter applications, and the M brings modern tech with payload weighing, enhanced hydraulics, and better fuel burn rates.

C7.1 ACERT / C9 ACERT ~168 / 186 kW (225 / 249 hp)

Operating Weight: ~18,100–20,100 kg

Bucket Capacity: ~2.7–4.4 m³

Breakout Force: ~145–170 kN

Tipping Load (Straight): ~12,500–14,200 kg

Travel Speed: ~37–40 km/h

Hydraulics: Load-sensing with variable-displacement pumps on later H and M series

Fuel Tank: ~259–300 L

Makana rating

Owner rating

 | 3

Market average

AED 300,000

Starting from

AED 150,000

Cat 950 technical specifications

Highlight differences

Cat 950G

Cat 950GC

Cat 950H

Cat 950M

General
Engine model Cat 3054C
Engine model Cat C7.1
Engine model Cat C7 ACERT
Engine model Cat C7.1
Operating weight 16,500 kg
Operating weight 17,000 kg
Operating weight 17,200 kg
Operating weight 17,800 kg
Bucket width 2,800 mm
Bucket width 2,900 mm
Bucket width 2,900 mm
Bucket width 2,900 mm
Bucket capacity 3 cu m
Bucket capacity 3.2 cu m
Bucket capacity 3.3 cu m
Bucket capacity 3.4 cu m
Lifting capacity 5,800 kg
Lifting capacity 6,000 kg
Lifting capacity 6,200 kg
Lifting capacity 6,500 kg
Max speed forward 37 kph
Max speed forward 38 kph
Max speed forward 38 kph
Max speed forward 40 kph
Max dump height 3,100 mm
Max dump height 3,150 mm
Max dump height 3,150 mm
Max dump height 3,180 mm
Tipping load 11,600 kg
Tipping load 12,000 kg
Tipping load 12,400 kg
Tipping load 13,000 kg
Years 2006-2025
Years 2006-2025
Years 2006-2025
Years 2006-2025
Market Average AED 300,000
Market Average AED 300,000
Market Average AED 300,000
Market Average AED 300,000
Price AED 150,000
Price AED 150,000
Price AED 150,000
Price AED 150,000
Engine
Gross power 130.5 kw
Gross power 145.41 kw
Gross power 150.63 kw
Gross power 158.09 kw
Displacement 4,400 cu cm
Displacement 7,100 cu cm
Displacement 7,200 cu cm
Displacement 7,100 cu cm
Max torque 780 Nm
Max torque 900 Nm
Max torque 950 Nm
Max torque 1,000 Nm
Service refill capacities
Fuel cap 300 liter
Fuel cap 325 liter
Fuel cap 325 liter
Fuel cap 325 liter
Hydraulic fluid cap 115 liter
Hydraulic fluid cap 125 liter
Hydraulic fluid cap 130 liter
Hydraulic fluid cap 135 liter
Hydraulic system
Pump type Gear pump
Pump type Piston pump
Pump type Piston pump
Pump type Piston pump
Pump flow cap 190 lpm
Pump flow cap 210 lpm
Pump flow cap 220 lpm
Pump flow cap 230 lpm
Relief valve pressure 220.63 bar
Relief valve pressure 227.52 bar
Relief valve pressure 234.42 bar
Relief valve pressure 234.42 bar
Dimensions
Height - top of cab 3.25 m
Height - top of cab 3.3 m
Height - top of cab 3.3 m
Height - top of cab 3.3 m
Wheelbase 2.8 m
Wheelbase 2.9 m
Wheelbase 2.9 m
Wheelbase 2.9 m
Loader
Breakout force 120 kN
Breakout force 125 kN
Breakout force 128 kN
Breakout force 132 kN
Operating specifications
Max dump reach 1,080 mm
Max dump reach 1,100 mm
Max dump reach 1,120 mm
Max dump reach 1,150 mm
Rack back angle 45 º
Rack back angle 45 º
Rack back angle 45 º
Rack back angle 45 º
Download datasheets
OEM product brochure

Cat 950 expert review

Reviewed by Adrien E. on September 4, 2025

Overview

Mid-size loader balancing capacity and maneuverability. GC suits low-cost utility, G/H bring proven durability, M focuses on efficiency and integrated tech.

Pros Wide trim range from utility to heavy production.
Strong breakout and stability, good resale value.
Cons GC lacks advanced hydraulics and tech.
G and H less fuel efficient than M.

Performance & Efficiency

High breakout across variants. M benefits from adaptive hydraulics, auto-dig, and payload weighing for fewer passes and lower fuel burn. G/H are simpler and tolerant of mixed fuel quality.

In Comparison

Volvo L120H offers smoother hydrostatic feel; Komatsu WA470 matches breakout but carries more weight. Cat’s service network remains a buying advantage.

Verdict

GC for lowest entry cost, G/H for durability, M for efficiency and tech integration.

Show less

Cat 950 owner rating

Cat 950 Wheel loaders [2006-2025]

2006-2025

Overall rating

Based on 3 ratings

4.7
performance

5.0

comfort

4.0

fuel efficiency

5.0

safety

4.0

features

5.0

5 stars

67 %

4 stars

33 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros
Strong breakout force with multiple trim options lets operators choose between simplicity, durability, or advanced efficiency.
Cons
Base GC trim lacks modern tech, while higher-spec variants add complexity and can increase fuel or service demands.
performance

5.0

comfort

4.0

fuel efficiency

5.0

safety

4.0

features

5.0

Valuation

Last 12 month
2006

Cat 950 similar models

Highlight differences
Cat 950G

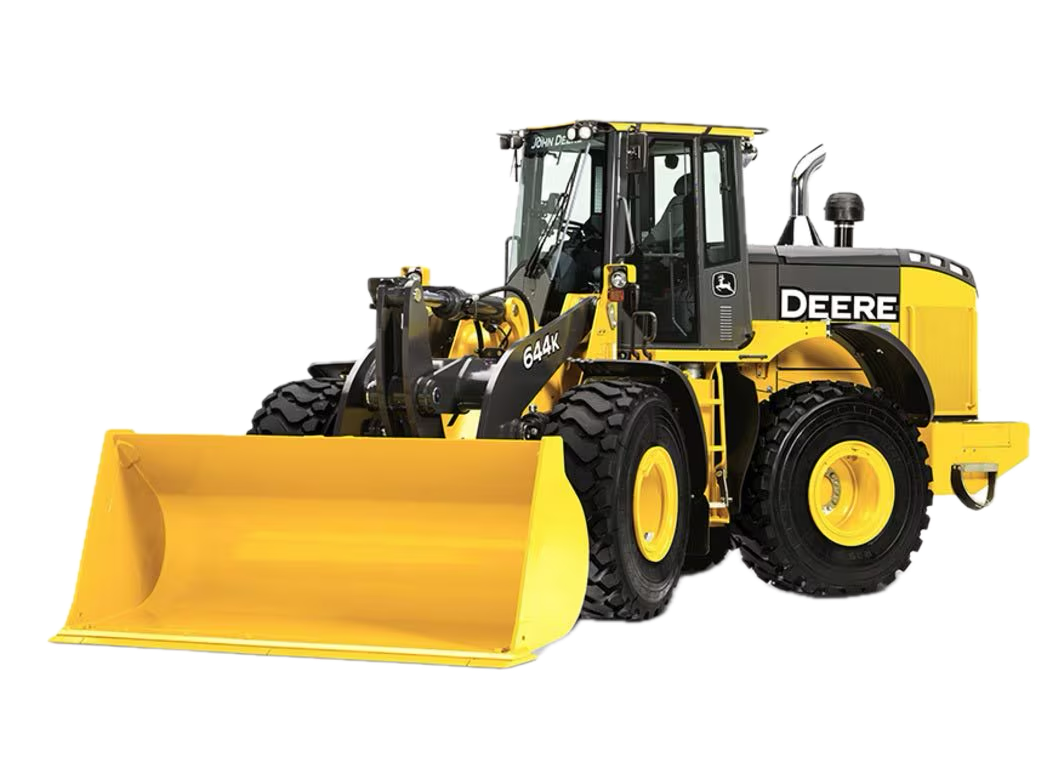

John deere 644K
Cat 966H
General
Engine model Cat 3054C
Engine model John Deere PowerTech PSS 6090
Engine model Cat C13 ACERT
Operating weight 16,500 kg
Operating weight 18,682 kg
Operating weight 25,500 kg
Bucket width 2,800 mm
Bucket width -
Bucket width 3,700 mm
Bucket capacity 3 cu m
Bucket capacity 3.06 cu m
Bucket capacity 5.6 m3
Lifting capacity 5,800 kg
Lifting capacity -
Lifting capacity 10,500 kg
Max speed forward 37 kph
Max speed forward -
Max speed forward 40 kph
Max dump height 3,100 mm
Max dump height 2,896 mm
Max dump height 34.5 m
Tipping load 11,600 kg
Tipping load -
Tipping load 21,000 kg
Tire size -
Tire size 23.5 R25
Tire size -
Transmission type -
Transmission type Powershift
Transmission type -
Years 2006-2025
Years 2015-2019
Years 2014-2025
Market Average AED 300,000
Market Average AED 850,000
Market Average AED 550,000
Price AED 150,000
Price AED 690,000
Price AED 275,000
Engine
Gross power 130.5 kw
Gross power 173.01 kw
Gross power 224.46 kw
Displacement 4,400 cu cm
Displacement 9,001.43 cu cm
Displacement 12,500 cu cm
Max torque 780 Nm
Max torque 1,062 Nm
Max torque 1,650 Nm
Alternator supplied amperage -
Alternator supplied amperage 130 Amh
Alternator supplied amperage -
Emissions -
Emissions Tier 4
Emissions -
Torque rise -
Torque rise 56 %
Torque rise -
Service refill capacities
Fuel cap 300 liter
Fuel cap 397.05 liter
Fuel cap 530 liter
Hydraulic fluid cap 115 liter
Hydraulic fluid cap 105.22 liter
Hydraulic fluid cap 195 liter
Transmission fluid cap -
Transmission fluid cap 23.09 liter
Transmission fluid cap -
Front axle fluid capacity -
Front axle fluid capacity 22.33 liter
Front axle fluid capacity -
Rear axle fluid capacity -
Rear axle fluid capacity 22.33 liter
Rear axle fluid capacity -
Hydraulic system
Pump type Gear pump
Pump type Piston
Pump type Piston pump
Pump flow cap 190 lpm
Pump flow cap 297.12 lpm
Pump flow cap 320 lpm
Relief valve pressure 220.63 bar
Relief valve pressure 250.97 bar
Relief valve pressure 248.21 bar
Dimensions
Height - top of cab 3.25 m
Height - top of cab 3.44 m
Height - top of cab 3.65 m
Wheelbase 2.8 m
Wheelbase 3.26 m
Wheelbase 3,400 mm
Transport length -
Transport length 8 m
Transport length -
Turning radius -
Turning radius 13.29 m
Turning radius -
Transport width -
Transport width 2 m
Transport width -
Loader
Breakout force 120 kN
Breakout force 150.81 kN
Breakout force 195 kN
Operating specifications
Max dump reach 1,080 mm
Max dump reach 1,615.44 mm
Max dump reach 1,280 mm
Rack back angle 45 º
Rack back angle -
Rack back angle 45 º
Brake system -
Brake system Wet Multi Disc - Transmission
Brake system -
