Kubota SVL75 Compact track loaders tech specs

makana img
video play button
Video[1]

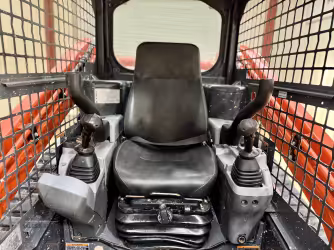

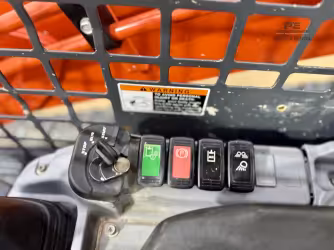

Interior [2]
Exterior [4]

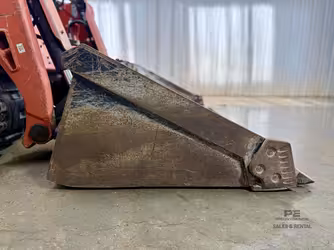

Attachments [2]
2021-2025
Kubota Engine make
93.11 liter Fuel cap
0.39 bar Ground pressure
Vertical Lift arm path
4,245 kg Operating weight
65 º Rack back angle
Show features

Makana rating

Market average

AED 320,000

Starting from

AED 137,000

Kubota SVL75 technical specifications

Highlight differences

Kubota SVL75-2HFWC

Kubota SVL75-2HWC

Kubota SVL75-2W

Engine
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Engine make Kubota
Engine make Kubota
Engine make Kubota
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Years 2021-2025
Years 2021-2025
Years 2021-2025
Market Average AED 320,000
Market Average AED 320,000
Market Average AED 320,000
Price AED 137,000
Price AED 137,000
Price AED 137,000
Loader
Breakout force - lift cylinder 2,162.01 kg
Breakout force - lift cylinder 2,162.01 kg
Breakout force - lift cylinder 2,162.01 kg
Breakout force - tilt cylinder 2,814.09 kg
Breakout force - tilt cylinder 2,814.05 kg
Breakout force - tilt cylinder 2,814.09 kg
General
Engine model V3800CR-TIE F4
Engine model V3800CR-TIE F4
Engine model V3800CR-TIE F4
Max speed forward 11.43 kph
Max speed forward 11.43 kph
Max speed forward 11.43 kph
Operating weight 4,245 kg
Operating weight 4,245 kg
Operating weight 4,245 kg
Service refill capacities
Fuel cap 93.11 liter
Fuel cap 93.11 liter
Fuel cap 93.11 liter
Hydraulic fluid cap 60.18 liter
Hydraulic fluid cap 60.18 liter
Hydraulic fluid cap 60.18 liter
Undercarriage
Ground pressure 0.39 bar
Ground pressure 0.39 bar
Ground pressure 0.39 bar
Number of track rollers per side 4
Number of track rollers per side 4
Number of track rollers per side 4
Track length 1.46 m
Track length 1.46 m
Track length 1.46 m
Track width 32 cm
Track width 32 cm
Track width -
Operating specifications
Lift arm path Vertical
Lift arm path Vertical
Lift arm path Vertical
Rack back angle 65 º
Rack back angle 65 º
Rack back angle 65 º
Hydraulic system
Pump flow cap -
Pump flow cap 65.86 lpm
Pump flow cap 65.86 lpm
Download datasheets
OEM product brochure

Kubota SVL75 similar models

Highlight differences
Kubota SVL75-2HFWC
SVL75-2HFWC
Cat 277B
277B
Cat 279C
279C
Engine
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Engine make Kubota
Engine make -
Engine make -
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Alternator supplied amperage -
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Bore -
Bore 9.4 cm
Bore 8.64 cm
Displacement -
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Gross power -
Gross power 61.15 kw
Gross power 62.64 kw
Net power -
Net power 58.17 kw
Net power 61.15 kw
Stroke -
Stroke 11.94 cm
Stroke 11.94 cm
Power measured @ -
Power measured @ -
Power measured @ 2,500 rpm
Years 2021-2025
Years 2004-2007
Years 2009-2015
Market Average AED 320,000
Market Average AED 99,200
Market Average AED 168,000
Price AED 137,000
Price AED 62,500
Price AED 114,000
Loader
Breakout force - lift cylinder 2,162.01 kg
Breakout force - lift cylinder 2,487 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - tilt cylinder 2,814.09 kg
Breakout force - tilt cylinder 2,487.5 kg
Breakout force - tilt cylinder 3,314.86 kg
Loader dump height -
Loader dump height 2.38 m
Loader dump height 2.44 m
Loader dump reach -
Loader dump reach 0.7 m
Loader dump reach 0.61 m
General
Engine model V3800CR-TIE F4
Engine model Cat 3044C DIT
Engine model Cat C3.4T
Max speed forward 11.43 kph
Max speed forward 11.27 kph
Max speed forward 13.68 kph
Operating weight 4,245 kg
Operating weight 4,268 kg
Operating weight 4,486 kg
Lifting capacity -
Lifting capacity 1,338.01 kg
Lifting capacity 1,451.5 kg
Max horizontal reach -
Max horizontal reach 1.46 m
Max horizontal reach 1.39 m
Operating voltage -
Operating voltage 12 V
Operating voltage 12 V
Tipping load -
Tipping load 2,676 kg
Tipping load 2,940 kg
Bucket capacity -
Bucket capacity -
Bucket capacity 0.46 cu m
Service refill capacities
Fuel cap 93.11 liter
Fuel cap 95 liter
Fuel cap 98.03 liter
Hydraulic fluid cap 60.18 liter
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 57.15 liter
Cooling fluid cap -
Cooling fluid cap 10.22 liter
Cooling fluid cap 14 liter
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
Undercarriage
Ground pressure 0.39 bar
Ground pressure 0.22 bar
Ground pressure 0.28 bar
Number of track rollers per side 4
Number of track rollers per side -
Number of track rollers per side -
Track length 1.46 m
Track length 2.07 m
Track length 1.77 m
Track width 32 cm
Track width -
Track width -
Ground contact area -
Ground contact area 47,489.82 cu cm
Ground contact area 41,033.3 cu cm
Operating specifications
Lift arm path Vertical
Lift arm path -
Lift arm path -
Rack back angle 65 º
Rack back angle 58 º
Rack back angle 64 º
Cab FOPS -
Cab FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II -
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Angle of departure -
Angle of departure -
Angle of departure 44 º
Dump angle -
Dump angle -
Dump angle 40 º
Refill capacities
Engine oil cap -
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
Dimensions
Ground clearance -
Ground clearance 0.36 m
Ground clearance 0.23 m
Height - top of cab -
Height - top of cab 2.1 m
Height - top of cab 2.13 m
Length with bucket -
Length with bucket 3.69 m
Length with bucket 3.69 m
Max height to hinge pin -
Max height to hinge pin 25.4 cm
Max height to hinge pin 19.56 cm
Overall Width -
Overall Width 1.91 m
Overall Width 1.98 m
Turning radius -
Turning radius 1.55 m
Turning radius 1.64 m
Width over tracks -
Width over tracks 1.92 m
Width over tracks 1.98 m
Hydraulic system
Pump flow cap -
Pump flow cap 83.27 lpm
Pump flow cap 124.91 lpm
Pump type -
Pump type Standard
Pump type High Flow XPS
Relief valve pressure -
Relief valve pressure 229.94 bar
Relief valve pressure 279.99 bar
