Kubota

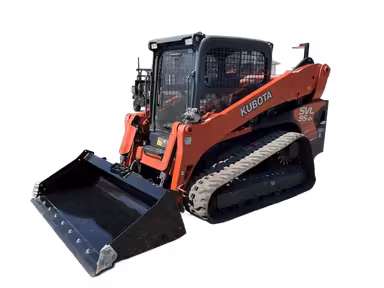

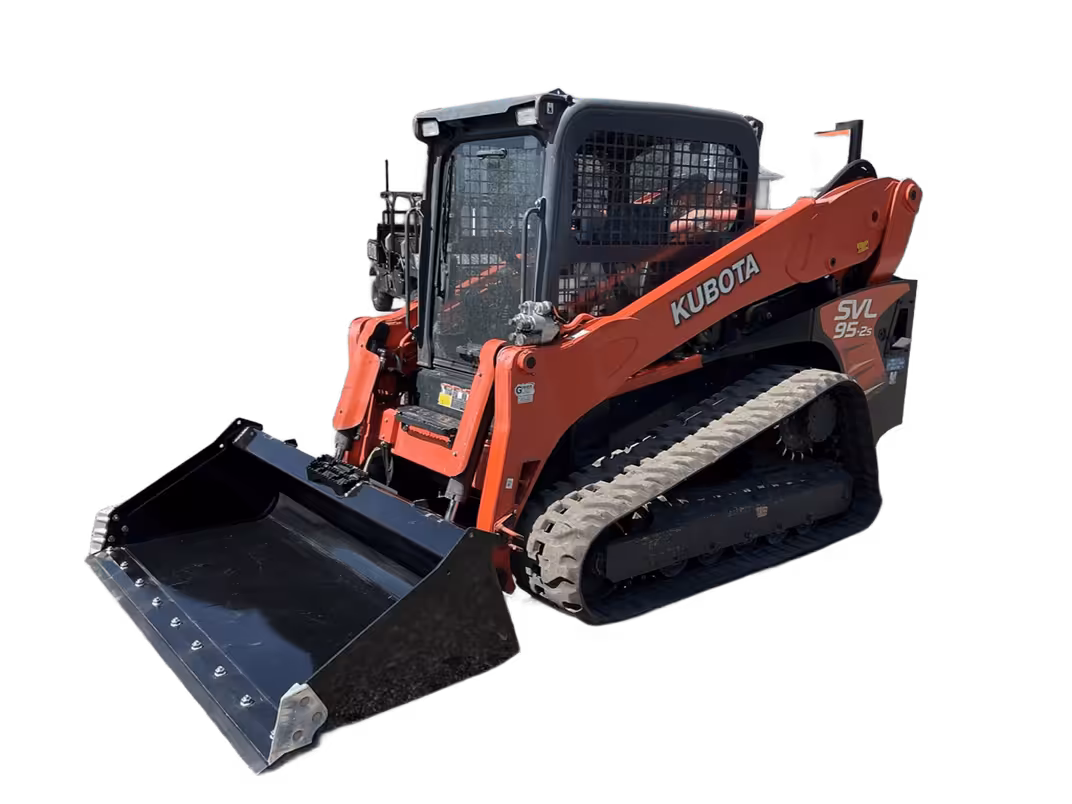

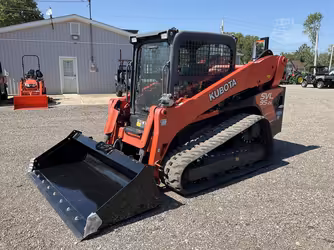

Kubota SVL95 Compact track loaders tech specs
:quality(50)/75320/conversions/0ec24c77-781b-4af7-af87-545f4f6caa7f-thumb.webp)
Video[1]
:quality(50)/75312/conversions/b228a10d-921f-4c14-a8c9-165b2d4c2ef8-thumb.webp)

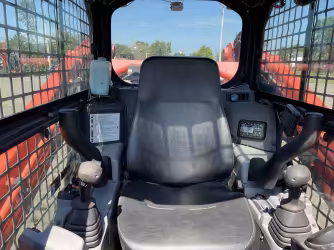

Interior [2]
:quality(50)/75314/conversions/6234d51b-2fec-42a2-a723-f0aea91f7e3a-thumb.webp)

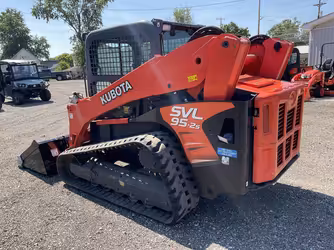

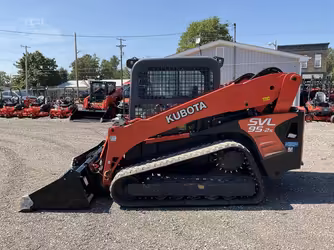

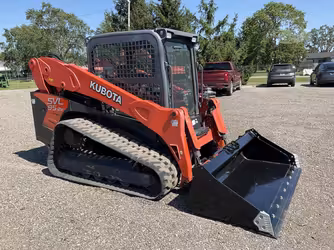

Exterior [4]
:quality(50)/75318/conversions/1c0251b3-2f75-4394-a748-fe221a787aad-thumb.webp)

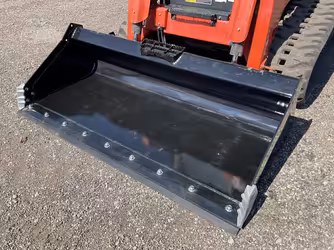

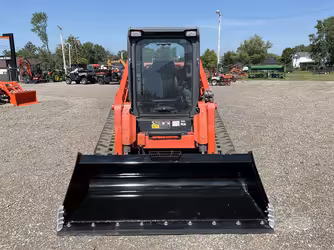

Attachments [2]
2021-2025
3,611.05 kg Breakout force
3,769.03 cu cm Displacement
71.89 kw Gross power
0.29 m Ground clearance
5,249 kg Operating weight
12.19 cm Stroke
Makana rating
Market average
AED 310,000Starting from
AED 105,000Kubota SVL95 Technical specifications
Operating specifications
Angle of departure
31 º
Lift arm path
Vertical
Rack back angle
32 º
Engine
Aspiration
Turbocharged
Bore
10.16 cm
Displacement
3769.03 cu cm
Engine make
Kubota
Gross power
71.89 kw
Number of cylinders
4
Power measured @
2,400 rpm
Stroke
12.19 cm
Loader
Breakout force
3611.05 kg
General
Engine model
V3800CR-TIE F4
Max speed forward
11.75 kph
Operating weight
5,249 kg
Service refill capacities
Fuel cap
109.01 liter
Hydraulic fluid cap
38.23 liter
Dimensions
Ground clearance
0.29 m
Height - top of cab
2.13 m
Width over tracks
1.98 m
Hydraulic system
Pump flow cap
151.4 lpm
Undercarriage
Track length
1.68 m
Download datasheets
Kubota SVL95 similar models
Highlight differences
Kubota SVL95-2SHFC
SVL95-2SHFC
JCB 300T
300T
JCB 320T
320T
Angle of departure
Angle of departure 31 º
Angle of departure 29 º
Angle of departure 29 º
Lift arm path
Lift arm path Vertical
Lift arm path -
Lift arm path -
Rack back angle
Rack back angle 32 º
Rack back angle 86 º
Rack back angle 91 º
Dump angle
Dump angle -
Dump angle 42 º
Dump angle 42 º
Years
Years 2021-2025
Years 2012-2025
Years 2011-2017
Market Average
Market Average AED 310,000
Market Average AED 298,000
Market Average AED 232,000
Price
Price AED 105,000
Price AED 245,000
Price AED 197,000
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Bore
Bore 10.16 cm
Bore -
Bore -
Displacement
Displacement 3,769.03 cu cm
Displacement 4,399.94 cu cm
Displacement 4,399.94 cu cm
Engine make
Engine make Kubota
Engine make -
Engine make -
Gross power
Gross power 71.89 kw
Gross power 55.03 kw
Gross power 55.18 kw
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders -
Power measured @
Power measured @ 2,400 rpm
Power measured @ 2,400 rpm
Power measured @ 2,400 rpm
Stroke
Stroke 12.19 cm
Stroke -
Stroke -
Alternator supplied amperage
Alternator supplied amperage -
Alternator supplied amperage 95 Amh
Alternator supplied amperage 95 Amh
Emissions
Emissions -
Emissions EPA-T4F (EU St3B)
Emissions EPA-T4F (EU St3B)
Engine cooling system
Engine cooling system -
Engine cooling system Liquid
Engine cooling system Liquid
Max torque
Max torque -
Max torque 400.1 Nm
Max torque 400.1 Nm
Torque measured @
Torque measured @ -
Torque measured @ 1,200 rpm
Torque measured @ 1,200 rpm
Breakout force
Breakout force 3,611.05 kg
Breakout force -
Breakout force 2,968.04 kg
Loader digging depth
Loader digging depth -
Loader digging depth 1,000 cm
Loader digging depth 1,000 cm
Loader dump height
Loader dump height -
Loader dump height 2.41 m
Loader dump height 2.41 m
Loader dump reach
Loader dump reach -
Loader dump reach 1.31 m
Loader dump reach 1.31 m
Engine model
Engine model V3800CR-TIE F4
Engine model EcoMAX TCAE-55
Engine model EcoMAX TCAE-55
Max speed forward
Max speed forward 11.75 kph
Max speed forward 9.17 kph
Max speed forward 9.17 kph
Operating weight
Operating weight 5,249 kg
Operating weight 5,089 kg
Operating weight 5,248 kg
Operating voltage
Operating voltage -
Operating voltage 12 V
Operating voltage 12 V
Bucket capacity
Bucket capacity -
Bucket capacity 0.46 cu m
Bucket capacity 0.46 cu m
Bucket width
Bucket width -
Bucket width 190 cm
Bucket width 190 cm
Lifting capacity
Lifting capacity -
Lifting capacity 5,089.04 kg
Lifting capacity 5,248.02 kg
Fuel cap
Fuel cap 109.01 liter
Fuel cap 103.33 liter
Fuel cap 103.33 liter
Hydraulic fluid cap
Hydraulic fluid cap 38.23 liter
Hydraulic fluid cap 55.26 liter
Hydraulic fluid cap 55.26 liter
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap 15.52 liter
Cooling fluid cap 22.33 liter
Ground clearance
Ground clearance 0.29 m
Ground clearance 0.23 m
Ground clearance 0.23 m
Height - top of cab
Height - top of cab 2.13 m
Height - top of cab 2.1 m
Height - top of cab 2.1 m
Width over tracks
Width over tracks 1.98 m
Width over tracks 1.92 m
Width over tracks 1.92 m
Length with bucket
Length with bucket -
Length with bucket 3.81 m
Length with bucket 3.81 m
Pump flow cap
Pump flow cap 151.4 lpm
Pump flow cap 87.06 lpm
Pump flow cap 87.06 lpm
Relief valve pressure
Relief valve pressure -
Relief valve pressure 229.94 bar
Relief valve pressure 229.94 bar
Track length
Track length 1.68 m
Track length -
Track length -
Ground pressure
Ground pressure -
Ground pressure 0.33 bar
Ground pressure 0.34 bar
Track width
Track width -
Track width 44.96 cm
Track width 44.96 cm
Engine oil cap
Engine oil cap -
Engine oil cap 15.14 liter
Engine oil cap 15.14 liter
