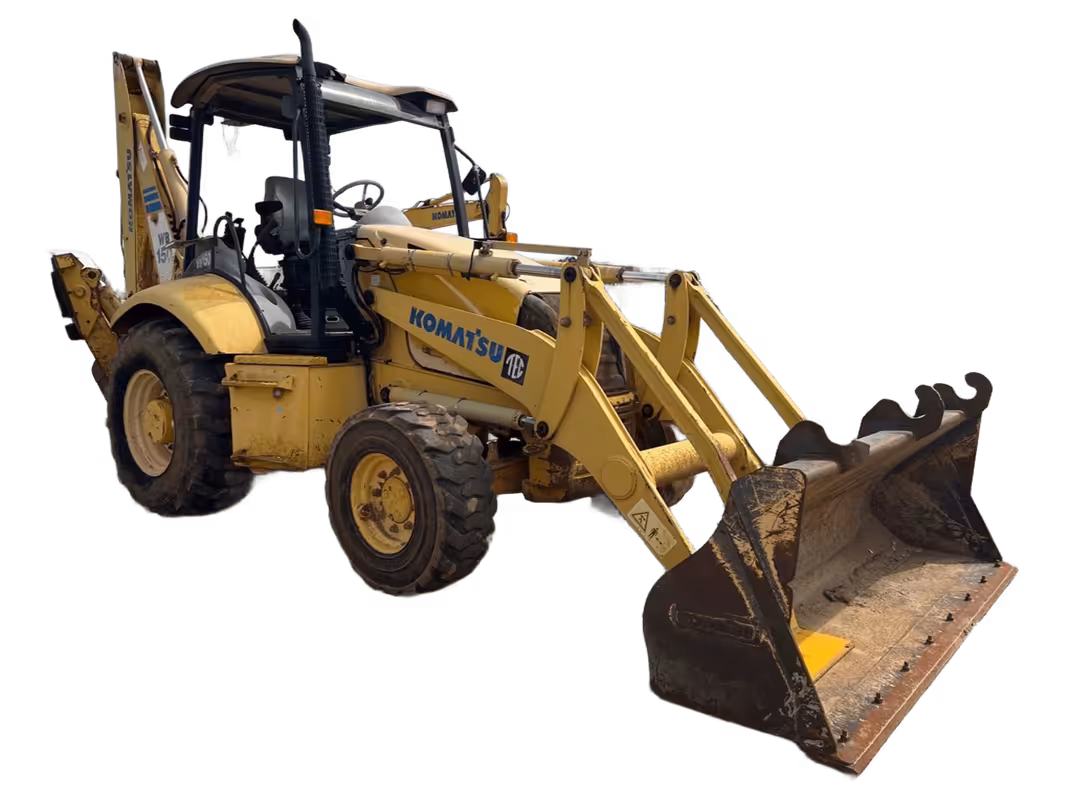

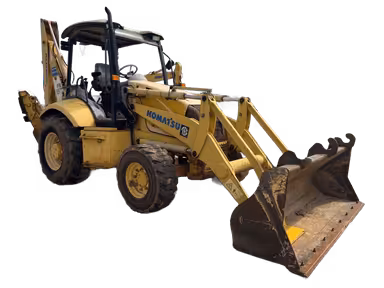

Komatsu WB150 Backhoe loaders tech specs
:quality(50)/75998/conversions/de20aab9-e600-4a87-a51f-e5162beb6f02-thumb.webp)
Video[1]
:quality(50)/75990/conversions/71f6d012-ea5c-4e83-b1c7-29a0cf9bb114-thumb.webp)
Interior [2]
:quality(50)/75992/conversions/12c293f5-d951-4a35-8fb6-75169276f6f2-thumb.webp)
Exterior [4]
:quality(50)/75996/conversions/8c655c81-79a0-46d9-97ba-95e740baa11f-thumb.webp)
Attachments [2]
1999-2006
4.75 m Backhoe digging depth
348.03 Nm Max torque
70.1 kw Net power
8,949 kg Operating weight
7.32 m Overall Length
2.38 m Overall Width
Makana rating
Owner rating
Market average
AED 290,000Starting from
AED 190,000Komatsu WB150 technical specifications
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 80 Amh
Alternator supplied amperage 80 Amh
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Bore
Bore 10.67 cm
Bore 10.67 cm
Engine make
Engine make Komatsu
Engine make Komatsu
Gross power
Gross power 74.57 kw
Gross power 74.57 kw
Net power
Net power 70.1 kw
Net power 70.1 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Stroke
Stroke 12.7 cm
Stroke 12.7 cm
Torque measured @
Torque measured @ 1,400 rpm
Torque measured @ 1,400 rpm
Years
Years 1999-2006
Years 1999-2006
Market Average
Market Average AED 290,000
Market Average AED 290,000
Price
Price AED 190,000
Price AED 190,000
Backhoe digging depth
Backhoe digging depth 4.75 m
Backhoe digging depth 4.57 m
Backhoe dump height
Backhoe dump height 2.87 m
Backhoe dump height 2.87 m
Bucket capacity
Bucket capacity 0.99 cu m
Bucket capacity 0.99 cu m
Bucket digging force
Bucket digging force 4,241.09 kg
Bucket digging force 4,241.09 kg
Bucket width
Bucket width 235 cm
Bucket width 235 cm
Displacement
Displacement 4,401.58 cu cm
Displacement 4,401.58 cu cm
Engine model
Engine model S4D106-2SFA
Engine model S4D106-2SFA
Loader dump height
Loader dump height 2.74 m
Loader dump height 2.74 m
Loader dump reach
Loader dump reach 2.87 m
Loader dump reach 2.87 m
Max speed forward
Max speed forward 37.82 kph
Max speed forward 40.07 kph
Max torque
Max torque 348.03 Nm
Max torque 348.03 Nm
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 8,949 kg
Operating weight 8,949 kg
Turning radius
Turning radius 4.33 m
Turning radius 4.33 m
Wheelbase
Wheelbase 2.19 m
Wheelbase 2.19 m
Transmission type
Transmission type -
Transmission type Powershift
Breakout force
Breakout force 6,270.92 kg
Breakout force 6,270.92 kg
Loader digging depth
Loader digging depth 9.14 cm
Loader digging depth 10.16 cm
Cooling fluid cap
Cooling fluid cap 14 liter
Cooling fluid cap 14 liter
Front axle fluid capacity
Front axle fluid capacity 8.71 liter
Front axle fluid capacity 8.71 liter
Hydraulic fluid cap
Hydraulic fluid cap 92.35 liter
Hydraulic fluid cap 92.35 liter
Rear axle fluid capacity
Rear axle fluid capacity 17.79 liter
Rear axle fluid capacity 17.79 liter
Dump angle
Dump angle 45 º
Dump angle 45 º
Extended backhoe digging depth
Extended backhoe digging depth 5.61 m
Extended backhoe digging depth 5.61 m
Extended backhoe dump reach
Extended backhoe dump reach 3.81 m
Extended backhoe dump reach 3.81 m
Engine oil cap
Engine oil cap 7.95 liter
Engine oil cap 7.95 liter
Front tread range
Front tread range 189.23 cm
Front tread range 195.07 cm
Ground clearance
Ground clearance 0.34 m
Ground clearance 0.46 m
Height - top of cab
Height - top of cab 2.77 m
Height - top of cab 2.9 m
Rear tread range
Rear tread range 180.09 cm
Rear tread range 195.07 cm
Overall Length
Overall Length 7.32 m
Overall Length 7.28 m
Overall Width
Overall Width 2.38 m
Overall Width 2.47 m
Max speed reverse
Max speed reverse 37.82 kph
Max speed reverse -
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 3
Pump flow cap
Pump flow cap 165.03 lpm
Pump flow cap 165.03 lpm
Pump type
Pump type Closed center, load sensing
Pump type Closed center, load sensing
Relief valve pressure
Relief valve pressure 220.63 bar
Relief valve pressure 220.63 bar
Download datasheets
Komatsu WB150 expert review
:quality(50)/60958/415fade2-9a12-4cde-97ea-28c91dec6948.jpeg)
Overview
The Komatsu WB150 (1999–2006) is a mid-size backhoe loader designed for excavation, trenching, loading, and general construction support. It delivers 70.1 kilowatt net power, 348.03 Nm torque, and a 4.75 m digging depth, giving it practical strength for contractors who need more capability than a compact backhoe.
Expert rating: 4 stars
Pros Strong 4.75 m digging depth and useful 8,949 kg operating weight for demanding site work.
Cons Less compact and more costly to run than smaller backhoe loader models.
Performance & Efficiency
The 70.1 kilowatt engine produces 348.03 Nm of torque, giving the WB150 reliable digging and loading performance for construction and utility work. Its 4.75 m backhoe digging depth helps with trenching and deeper excavation, while the 8,949 kg operating weight adds stability during heavier work cycles.
In Comparison
Komatsu WB142: Smaller option for lighter backhoe loader work.
Komatsu WB146: Comparable Komatsu backhoe with similar site support appeal.
Komatsu WB150: Better suited for buyers who need more depth, size, and digging force.
Final Verdict
Rated 4 stars, the Komatsu WB150 is a capable mid-size backhoe loader within the AED 190,000–290,000 range, offering strong digging depth and practical construction-site performance.
Komatsu WB150 owner rating
Komatsu WB150 Backhoe loaders [1999-2006]
1999-2006
Overall rating
Based on 3 ratings
4.3
performance
4.0
comfort
4.3
fuel efficiency
4.3
safety
4.3
features
4.0
5 stars
33 %
4 stars
67 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Komatsu WB150 similar models
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 80 Amh
Alternator supplied amperage 95 Amh
Alternator supplied amperage 95 Amh
Aspiration
Aspiration Turbocharged
Aspiration Naturally aspirated
Aspiration Turbocharged
Bore
Bore 10.67 cm
Bore -
Bore -
Engine make
Engine make Komatsu
Engine make -
Engine make -
Gross power
Gross power 74.57 kw
Gross power 60.03 kw
Gross power 69.05 kw
Net power
Net power 70.1 kw
Net power 57.05 kw
Net power 66.07 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Stroke
Stroke 12.7 cm
Stroke -
Stroke -
Torque measured @
Torque measured @ 1,400 rpm
Torque measured @ 1,300 rpm
Torque measured @ 1,500 rpm
Years
Years 1999-2006
Years 2007-2014
Years 2006-2013
Market Average
Market Average AED 290,000
Market Average AED 260,000
Market Average AED 270,000
Price
Price AED 190,000
Price AED 170,000
Price AED 180,000
Backhoe digging depth
Backhoe digging depth 4.75 m
Backhoe digging depth 4.33 m
Backhoe digging depth 4.45 m
Backhoe dump height
Backhoe dump height 2.87 m
Backhoe dump height 3.63 m
Backhoe dump height 3.69 m
Bucket capacity
Bucket capacity 0.99 cu m
Bucket capacity 0.84 cu m
Bucket capacity 0.99 cu m
Bucket digging force
Bucket digging force 4,241.09 kg
Bucket digging force -
Bucket digging force -
Bucket width
Bucket width 235 cm
Bucket width 218 cm
Bucket width 235 cm
Displacement
Displacement 4,401.58 cu cm
Displacement 4,506.45 cu cm
Displacement 4,506.45 cu cm
Engine model
Engine model S4D106-2SFA
Engine model 4D102LE-2
Engine model S4D102LE-2
Loader dump height
Loader dump height 2.74 m
Loader dump height 2.62 m
Loader dump height 2.65 m
Loader dump reach
Loader dump reach 2.87 m
Loader dump reach 0.91 m
Loader dump reach 0.76 m
Max speed forward
Max speed forward 37.82 kph
Max speed forward 37.01 kph
Max speed forward 37.82 kph
Max torque
Max torque 348.03 Nm
Max torque 299.63 Nm
Max torque 406.74 Nm
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 8,949 kg
Operating weight 6,585 kg
Operating weight 7,300 kg
Turning radius
Turning radius 4.33 m
Turning radius 3.63 m
Turning radius 3.41 m
Wheelbase
Wheelbase 2.19 m
Wheelbase 2.19 m
Wheelbase 2.19 m
Transmission type
Transmission type -
Transmission type synchronized gearbox, powershift shuttle
Transmission type synchronized gearbox, powershift shuttle
Breakout force
Breakout force 6,270.92 kg
Breakout force 5,148.73 kg
Breakout force 5,998.31 kg
Loader digging depth
Loader digging depth 9.14 cm
Loader digging depth 10.16 cm
Loader digging depth 13.97 cm
Cooling fluid cap
Cooling fluid cap 14 liter
Cooling fluid cap 14 liter
Cooling fluid cap 14 liter
Front axle fluid capacity
Front axle fluid capacity 8.71 liter
Front axle fluid capacity 7.19 liter
Front axle fluid capacity 7.19 liter
Hydraulic fluid cap
Hydraulic fluid cap 92.35 liter
Hydraulic fluid cap 97.27 liter
Hydraulic fluid cap 97.27 liter
Rear axle fluid capacity
Rear axle fluid capacity 17.79 liter
Rear axle fluid capacity 14.76 liter
Rear axle fluid capacity 14.76 liter
Fuel cap
Fuel cap -
Fuel cap 120.36 liter
Fuel cap 150.26 liter
Transmission fluid cap
Transmission fluid cap -
Transmission fluid cap 18.17 liter
Transmission fluid cap 20.44 liter
Dump angle
Dump angle 45 º
Dump angle -
Dump angle -
Extended backhoe digging depth
Extended backhoe digging depth 5.61 m
Extended backhoe digging depth -
Extended backhoe digging depth 5.55 m
Extended backhoe dump reach
Extended backhoe dump reach 3.81 m
Extended backhoe dump reach -
Extended backhoe dump reach -
Extended backhoe dump height
Extended backhoe dump height -
Extended backhoe dump height -
Extended backhoe dump height 4.39 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel -
Extended backhoe reach from swivel -
Extended backhoe reach from swivel 6.77 m
Engine oil cap
Engine oil cap 7.95 liter
Engine oil cap 9.08 liter
Engine oil cap 9.08 liter
Front tread range
Front tread range 189.23 cm
Front tread range -
Front tread range -
Ground clearance
Ground clearance 0.34 m
Ground clearance 0.4 m
Ground clearance 0.46 m
Height - top of cab
Height - top of cab 2.77 m
Height - top of cab 2.83 m
Height - top of cab 2.96 m
Rear tread range
Rear tread range 180.09 cm
Rear tread range -
Rear tread range -
Overall Length
Overall Length 7.32 m
Overall Length 7.07 m
Overall Length 7.44 m
Overall Width
Overall Width 2.38 m
Overall Width 2.19 m
Overall Width 2.38 m
Max speed reverse
Max speed reverse 37.82 kph
Max speed reverse 37.01 kph
Max speed reverse 37.82 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Pump flow cap
Pump flow cap 165.03 lpm
Pump flow cap 140.05 lpm
Pump flow cap 165.03 lpm
Pump type
Pump type Closed center, load sensing
Pump type Tandem fixed displacement pumps
Pump type Variable flow, axial piston
Relief valve pressure
Relief valve pressure 220.63 bar
Relief valve pressure 206.98 bar
Relief valve pressure 244.97 bar
Backhoe reach from swivel
Backhoe reach from swivel -
Backhoe reach from swivel 5.61 m
Backhoe reach from swivel 5.76 m
Front tires size (2WD)
Front tires size (2WD) -
Front tires size (2WD) -
Front tires size (2WD) 14 x 17.5 10ply R4
Rear tires size
Rear tires size -
Rear tires size -
Rear tires size 19.5 x 24 10ply R4
Komatsu WB150 gallery
:quality(50)/75998/conversions/de20aab9-e600-4a87-a51f-e5162beb6f02-thumb.webp)
:quality(75)/products/10078/cover/bfc7a870-fb30-437c-ae3d-44e8986bdcc8.png)
:quality(75)/products/10123/cover/7165614f-efc7-470a-b384-728ed38734ca.png)
:quality(75)/products/10077/cover/5fba6453-0d30-45ce-ba6c-10e3fe54a08d.png)
Similar machines. Other reviews.
:quality(80)/60952/a25e1d76-5098-4ef7-a6f5-fe8bc1dffd1a.jpeg)
Komatsu SK1020 Compact track loaders specs Komatsu WB140 Backhoe loaders specs Komatsu WB142 Backhoe loaders specs Komatsu WB146 Backhoe loaders specs Komatsu WB150 Backhoe loaders specs Komatsu WB156 Backhoe loaders specs Komatsu WB70 Backhoe loaders specs Komatsu WB91 Backhoe loaders specs Komatsu WB93 Backhoe loaders specs Komatsu WB97 Backhoe loaders specs
Mecalac TLB8 Backhoe loaders specs Mecalac TLB9 Backhoe loaders specs Terex TLBT Backhoe loaders specs Terex TX75 Backhoe loaders specs Terex TX76 Backhoe loaders specs Terex TX86 Backhoe loaders specs Terex TX87 Backhoe loaders specs Terex TX97 Backhoe loaders specs Venieri VF1 Backhoe loaders specs Venieri VF10 Backhoe loaders specs
ASV RC-60 Compact track loaders specs ASV RC-85 Compact track loaders specs Gehl RT175 Compact track loaders specs Gehl RT210 Compact track loaders specs Komatsu SK1020 Compact track loaders specs ASV SR-70 Compact track loaders specs ASV SR-80 Compact track loaders specs Wacker neuson ST28 Compact track loaders specs Wacker neuson ST31 Compact track loaders specs Wacker neuson ST35 Compact track loaders specs
New holland B110 VS Komatsu WB150AWS-2N Cat 416F VS Komatsu WB150AWS-2N Cat 420D IT VS Komatsu WB150-2N Bobcat B300 VS Komatsu WB150-2N John deere 310J VS Komatsu WB150-2N Cat 428C VS Komatsu WB150-2N Cat 450E VS Komatsu WB150AWS-2N Case 695 SR VS Komatsu WB150-2N JCB 4CX-15 VS Komatsu WB150-2N Cat 416C VS Komatsu WB150-2N Cat 422E VS Komatsu WB150AWS-2N JCB 4CX-17 VS Komatsu WB150AWS-2N Kubota B26TLB VS Komatsu WB150AWS-2N Bobcat B300 VS Komatsu WB150AWS-2N JCB 3DX Plus VS Komatsu WB150-2N Cat 416 II VS Komatsu WB150-2N Cat 416F VS Komatsu WB150-2N Cat 420E VS Komatsu WB150AWS-2N JCB 3CX-4S VS Komatsu WB150-2N Bobcat B250 VS Komatsu WB150AWS-2N Mecalac TLB870 VS Komatsu WB150-2N Mecalac TLB990 VS Komatsu WB150-2N Terex TX760B VS Komatsu WB150AWS-2N John deere 110 VS Komatsu WB150AWS-2N Cat 420E VS Komatsu WB150-2N Case 590 SL VS Komatsu WB150-2N JCB 1CX VS Komatsu WB150-2N Case 851FX VS Komatsu WB150-2N Massey ferguson 50HX VS Komatsu WB150-2N John deere 310A VS Komatsu WB150-2N Cat 416E VS Komatsu WB150AWS-2N JCB 3CX-15 VS Komatsu WB150AWS-2N Volvo BM 616B VS Komatsu WB150AWS-2N Cat 420E IT VS Komatsu WB150AWS-2N John deere 510C VS Komatsu WB150AWS-2N Case 695 VS Komatsu WB150-2N Terex 880 Elite VS Komatsu WB150AWS-2N JCB 4CX Super VS Komatsu WB150-2N Case 770EX VS Komatsu WB150AWS-2N Cat 428 VS Komatsu WB150-2N John deere 300B VS Komatsu WB150-2N Cat 416E VS Komatsu WB150-2N John deere 510D VS Komatsu WB150-2N Case 580 Super M+ III VS Komatsu WB150-2N JCB 3CX Super VS Komatsu WB150AWS-2N JCB 3CX-15 VS Komatsu WB150-2N Volvo BM 6300 VS Komatsu WB150-2N Cat 426F2 VS Komatsu WB150-2N
Get the latest from Makana
Subscribe to receive auction dates, exclusive deals, and news in your inbox.
:quality(50)/35112/27094105-1188-4d7f-b8cd-5ed4b9c99391.svg)
:quality(50)/35115/93df1526-7a54-4e3c-9c3b-06102e561c2b.svg)
