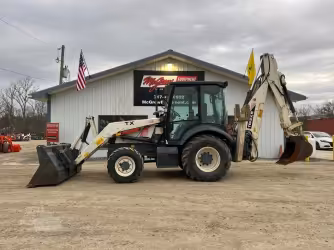

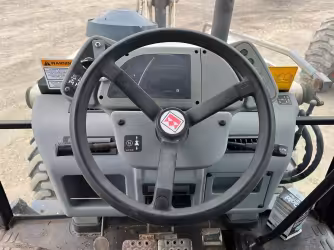

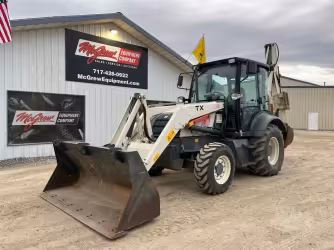

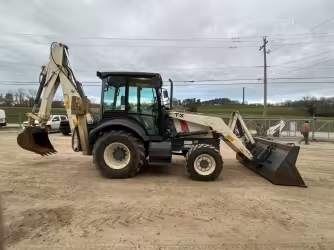

Terex TX76 Backhoe loaders tech specs

Alternator supplied amperage

75 Amh

Aspiration

Turbocharged

Displacement

4408.13 cu cm

Gross power

68.61 kw

Max torque

372.85 Nm

Net power

64.13 kw

Power measured @

2,200 rpm

Torque measured @

1,400 rpm

Backhoe digging depth

4.48 m

Backhoe reach from swivel

5.88 m

Breakout force

4755.92 kg

Loader digging depth

18.8 cm

Loader dump height

2.56 m

Loader dump reach

0.67 m

Bucket capacity

1.07 cu m

Bucket width

231 cm

Engine model

1004C-44TL

Max speed forward

37.5 kph

Operating voltage

12 V

Operating weight

6,872 kg

Transmission type

Carraro Powershuttle

Cooling fluid cap

16.28 liter

Front axle fluid capacity

12.87 liter

Fuel cap

130.2 liter

Hydraulic fluid cap

143.07 liter

Rear axle fluid capacity

17.79 liter

Transmission fluid cap

15.14 liter

Engine oil cap

8.71 liter

Extended backhoe digging depth

5.88 m

Extended backhoe dump height

4.48 m

Extended backhoe dump reach

2.8 m

Extended backhoe reach from swivel

7.16 m

Front tires size (2WD)

12.5/80x18

Rear tires size

19.5Lx24

Ground clearance

0.4 m

Height - top of cab

2.71 m

Overall Length

7.22 m

Overall Width

2.32 m

Turning radius

3.87 m

Wheelbase

2.1 m

Max speed reverse

37.5 kph

Number of forward gears

4

Number of reverse gears

4

Pump flow cap

142.32 lpm

Pump type

Load sensing twin gear

Relief valve pressure

224.08 bar
