Terex
Terex TX86 Backhoe loaders tech specs
:quality(50)/75835/conversions/bf7b997c-32a6-459b-b71e-a755ce26d64a-thumb.webp)
Video[1]
:quality(50)/75827/conversions/d104abbe-0da0-4280-bb38-adf8248123c3-thumb.webp)

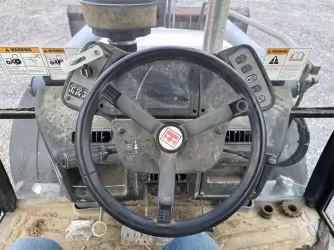

Interior [2]
:quality(50)/75829/conversions/54d9dc28-8e67-4ea2-9650-2e65069691fd-thumb.webp)

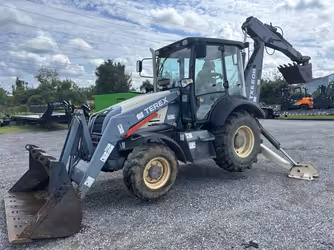

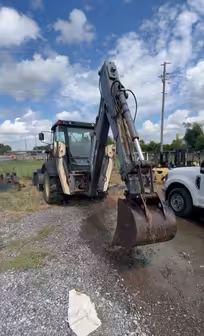

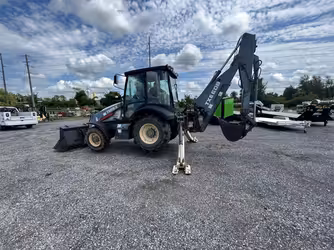

Exterior [4]
:quality(50)/75833/conversions/b7e02aa7-0f37-4a1a-950a-1dc5df19272d-thumb.webp)

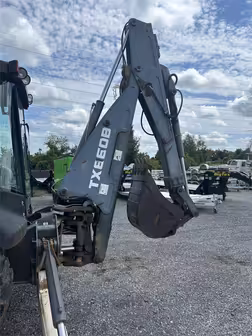

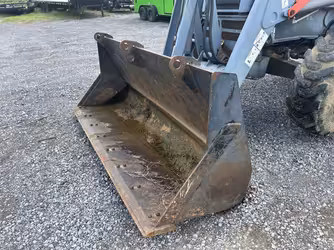

Attachments [2]
1998-2003
130.2 liter Fuel cap
393.18 Nm Max torque
70.1 kw Net power
7,241 kg Operating weight
7.22 m Overall Length
2.32 m Overall Width
Makana rating
Market average
AED 230,000Starting from
AED 150,000Terex TX86 Technical specifications
Engine
Alternator supplied amperage
75 Amh
Aspiration
Turbocharged
Displacement
4408.13 cu cm
Gross power
74.57 kw
Max torque
393.18 Nm
Net power
70.1 kw
Power measured @
2,200 rpm
Torque measured @
1,400 rpm
Backhoe
Backhoe digging depth
4.48 m
Backhoe reach from swivel
5.88 m
Loader
Breakout force
5575.11 kg
Loader digging depth
18.8 cm
Loader dump height
2.62 m
Loader dump reach
0.67 m
General
Bucket capacity
1.07 cu m
Bucket width
231 cm
Engine model
1104C-44TH
Max speed forward
37.5 kph
Operating voltage
12 V
Operating weight
7,241 kg
Transmission type
Carraro transmission, fully synchronized power shuttle
Service refill capacities
Cooling fluid cap
16.28 liter
Front axle fluid capacity
12.87 liter
Fuel cap
130.2 liter
Hydraulic fluid cap
143.07 liter
Rear axle fluid capacity
17.79 liter
Transmission fluid cap
15.14 liter
Refill capacities
Engine oil cap
8.71 liter
Operating specifications
Extended backhoe digging depth
5.88 m
Extended backhoe dump reach
2.8 m
Extended backhoe reach from swivel
7.16 m
Tires
Front tires size (2WD)
12.5/80x18
Rear tires size
19.5x24
Dimensions
Ground clearance
0.4 m
Height - top of cab
2.71 m
Overall Length
7.22 m
Overall Width
2.32 m
Turning radius
3.87 m
Wheelbase
2.1 m
Transmission
Max speed reverse
37.5 kph
Number of forward gears
4
Number of reverse gears
4
Hydraulic system
Pump flow cap
160.11 lpm
Pump type
Load sensing twin gear
Relief valve pressure
224.08 bar
Download datasheets
Terex TX86 similar models
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 75 Amh
Alternator supplied amperage 70 Amh
Alternator supplied amperage 75 Amh
Aspiration
Aspiration Turbocharged
Aspiration -
Aspiration Turbocharged
Displacement
Displacement 4,408.13 cu cm
Displacement 4,200.01 cu cm
Displacement 4,408.13 cu cm
Gross power
Gross power 74.57 kw
Gross power 55.93 kw
Gross power 68.61 kw
Max torque
Max torque 393.18 Nm
Max torque 287.43 Nm
Max torque 372.85 Nm
Net power
Net power 70.1 kw
Net power 51.45 kw
Net power 64.13 kw
Power measured @
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Torque measured @
Torque measured @ 1,400 rpm
Torque measured @ 1,400 rpm
Torque measured @ 1,400 rpm
Engine make
Engine make -
Engine make Perkins
Engine make -
Years
Years 1998-2003
Years 1998-2003
Years 1998-2003
Market Average
Market Average AED 230,000
Market Average AED 200,000
Market Average AED 210,000
Price
Price AED 150,000
Price AED 120,000
Price AED 130,000
Backhoe digging depth
Backhoe digging depth 4.48 m
Backhoe digging depth 4.48 m
Backhoe digging depth 4.48 m
Backhoe reach from swivel
Backhoe reach from swivel 5.88 m
Backhoe reach from swivel 5.88 m
Backhoe reach from swivel 5.88 m
Breakout force
Breakout force 5,575.11 kg
Breakout force 4,755.92 kg
Breakout force 4,755.92 kg
Loader digging depth
Loader digging depth 18.8 cm
Loader digging depth 18.8 cm
Loader digging depth 18.8 cm
Loader dump height
Loader dump height 2.62 m
Loader dump height 2.68 m
Loader dump height 2.56 m
Loader dump reach
Loader dump reach 0.67 m
Loader dump reach 0.67 m
Loader dump reach 0.67 m
Bucket capacity
Bucket capacity 1.07 cu m
Bucket capacity 1.07 cu m
Bucket capacity 1.07 cu m
Bucket width
Bucket width 231 cm
Bucket width 231 cm
Bucket width 231 cm
Engine model
Engine model 1104C-44TH
Engine model 1004-40 T
Engine model 1004C-44TL
Max speed forward
Max speed forward 37.5 kph
Max speed forward 39.43 kph
Max speed forward 37.5 kph
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 7,241 kg
Operating weight 7,175 kg
Operating weight 6,872 kg
Transmission type
Transmission type Carraro transmission, fully synchronized power shuttle
Transmission type -
Transmission type Carraro Powershuttle
Cooling fluid cap
Cooling fluid cap 16.28 liter
Cooling fluid cap 16.28 liter
Cooling fluid cap 16.28 liter
Front axle fluid capacity
Front axle fluid capacity 12.87 liter
Front axle fluid capacity 17.79 liter
Front axle fluid capacity 12.87 liter
Fuel cap
Fuel cap 130.2 liter
Fuel cap 120.36 liter
Fuel cap 130.2 liter
Hydraulic fluid cap
Hydraulic fluid cap 143.07 liter
Hydraulic fluid cap 90.08 liter
Hydraulic fluid cap 143.07 liter
Rear axle fluid capacity
Rear axle fluid capacity 17.79 liter
Rear axle fluid capacity 12.87 liter
Rear axle fluid capacity 17.79 liter
Transmission fluid cap
Transmission fluid cap 15.14 liter
Transmission fluid cap 15.14 liter
Transmission fluid cap 15.14 liter
Engine oil cap
Engine oil cap 8.71 liter
Engine oil cap 10.98 liter
Engine oil cap 8.71 liter
Extended backhoe digging depth
Extended backhoe digging depth 5.88 m
Extended backhoe digging depth 5.88 m
Extended backhoe digging depth 5.88 m
Extended backhoe dump reach
Extended backhoe dump reach 2.8 m
Extended backhoe dump reach 2.8 m
Extended backhoe dump reach 2.8 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel 7.16 m
Extended backhoe reach from swivel 7.16 m
Extended backhoe reach from swivel 7.16 m
Extended backhoe dump height
Extended backhoe dump height -
Extended backhoe dump height 4.75 m
Extended backhoe dump height 4.48 m
Front tires size (2WD)
Front tires size (2WD) 12.5/80x18
Front tires size (2WD) 11Lx16
Front tires size (2WD) 12.5/80x18
Rear tires size
Rear tires size 19.5x24
Rear tires size 16.9x28
Rear tires size 19.5Lx24
Ground clearance
Ground clearance 0.4 m
Ground clearance 0.4 m
Ground clearance 0.4 m
Height - top of cab
Height - top of cab 2.71 m
Height - top of cab 2.74 m
Height - top of cab 2.71 m
Overall Length
Overall Length 7.22 m
Overall Length 7.25 m
Overall Length 7.22 m
Overall Width
Overall Width 2.32 m
Overall Width 2.35 m
Overall Width 2.32 m
Turning radius
Turning radius 3.87 m
Turning radius -
Turning radius 3.87 m
Wheelbase
Wheelbase 2.1 m
Wheelbase 2.1 m
Wheelbase 2.1 m
Max speed reverse
Max speed reverse 37.5 kph
Max speed reverse 39.43 kph
Max speed reverse 37.5 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Pump flow cap
Pump flow cap 160.11 lpm
Pump flow cap 79.49 lpm
Pump flow cap 142.32 lpm
Pump type
Pump type Load sensing twin gear
Pump type -
Pump type Load sensing twin gear
Relief valve pressure
Relief valve pressure 224.08 bar
Relief valve pressure 224.08 bar
Relief valve pressure 224.08 bar
Bucket digging force
Bucket digging force -
Bucket digging force 4,573.12 kg
Bucket digging force -
