Terex TX75 Backhoe loaders tech specs

makana img
video play button
Video[1]

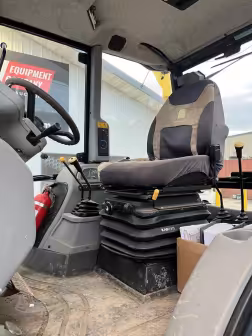

Interior [2]

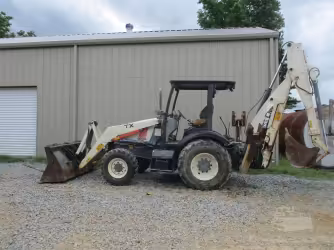

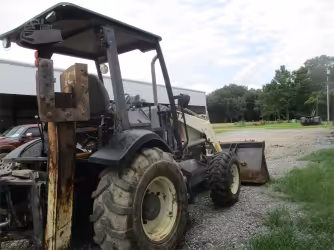

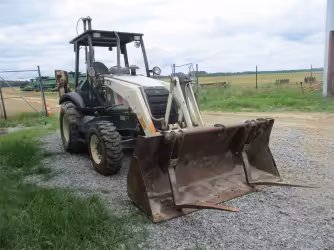

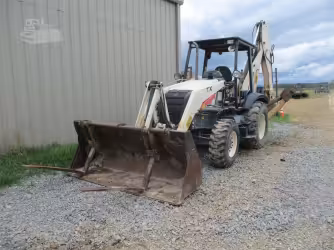

Exterior [4]

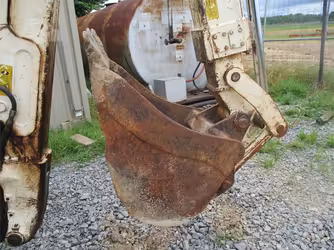

Attachments [2]
1998-2003
120.36 liter Fuel cap
287.43 Nm Max torque
51.45 kw Net power
12 V Operating voltage
7.25 m Overall Length
2.35 m Overall Width
Show features

Makana rating

Market average

AED 200,000

Starting from

AED 120,000

Terex TX75 Technical specifications

Engine

Alternator supplied amperage

70 Amh

Displacement

4200.01 cu cm

Engine make

Perkins

Gross power

55.93 kw

Max torque

287.43 Nm

Net power

51.45 kw

Power measured @

2,200 rpm

Torque measured @

1,400 rpm

Backhoe

Backhoe digging depth

4.48 m

Backhoe reach from swivel

5.88 m

Loader

Breakout force

4755.92 kg

Loader digging depth

18.8 cm

Loader dump height

2.68 m

Loader dump reach

0.67 m

General

Bucket capacity

1.07 cu m

Bucket width

231 cm

Engine model

1004-40 T

Max speed forward

39.43 kph

Operating voltage

12 V

Operating weight

7,175 kg

Attachments

Bucket digging force

4573.12 kg

Service refill capacities

Cooling fluid cap

16.28 liter

Front axle fluid capacity

17.79 liter

Fuel cap

120.36 liter

Hydraulic fluid cap

90.08 liter

Rear axle fluid capacity

12.87 liter

Transmission fluid cap

15.14 liter

Refill capacities

Engine oil cap

10.98 liter

Operating specifications

Extended backhoe digging depth

5.88 m

Extended backhoe dump height

4.75 m

Extended backhoe dump reach

2.8 m

Extended backhoe reach from swivel

7.16 m

Tires

Front tires size (2WD)

11Lx16

Rear tires size

16.9x28

Dimensions

Ground clearance

0.4 m

Height - top of cab

2.74 m

Overall Length

7.25 m

Overall Width

2.35 m

Wheelbase

2.1 m

Transmission

Max speed reverse

39.43 kph

Number of forward gears

4

Number of reverse gears

4

Hydraulic system

Pump flow cap

79.49 lpm

Relief valve pressure

224.08 bar

View more
Download datasheets
OEM product brochure

Terex TX75 similar models

Highlight differences
Terex TX750
TX750
Mecalac TLB990
TLB990
Terex TLB 840
TLB 840
Engine
Alternator supplied amperage 70 Amh
Alternator supplied amperage -
Alternator supplied amperage 120 Amh
Displacement 4,200.01 cu cm
Displacement -
Displacement 4,401.58 cu cm
Engine make Perkins
Engine make -
Engine make Deutz
Gross power 55.93 kw
Gross power 70.02 kw
Gross power 69.95 kw
Max torque 287.43 Nm
Max torque 400.1 Nm
Max torque 399.96 Nm
Net power 51.45 kw
Net power 65.77 kw
Net power 65.7 kw
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Torque measured @ 1,400 rpm
Torque measured @ 1,400 rpm
Torque measured @ 1,400 rpm
Number of cylinders -
Number of cylinders 4
Number of cylinders 4
Torque rise -
Torque rise -
Torque rise 0.32 %
Years 1998-2003
Years 2017-2025
Years 2017-2025
Market Average AED 200,000
Market Average AED 260,000
Market Average AED 180,000
Price AED 120,000
Price AED 170,000
Price AED 110,000
Backhoe
Backhoe digging depth 4.48 m
Backhoe digging depth 4.39 m
Backhoe digging depth -
Backhoe reach from swivel 5.88 m
Backhoe reach from swivel 5.73 m
Backhoe reach from swivel 5.73 m
Backhoe dump height -
Backhoe dump height 3.38 m
Backhoe dump height -
Loader
Breakout force 4,755.92 kg
Breakout force -
Breakout force 4,755.92 kg
Loader digging depth 18.8 cm
Loader digging depth -
Loader digging depth 15.75 cm
Loader dump height 2.68 m
Loader dump height -
Loader dump height 2.87 m
Loader dump reach 0.67 m
Loader dump reach -
Loader dump reach 0.73 m
General
Bucket capacity 1.07 cu m
Bucket capacity 1.07 cu m
Bucket capacity 0.15 cu m
Bucket width 231 cm
Bucket width -
Bucket width 30 cm
Engine model 1004-40 T
Engine model E44TA
Engine model -
Max speed forward 39.43 kph
Max speed forward -
Max speed forward 41.2 kph
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight 7,175 kg
Operating weight 8,230 kg
Operating weight 8,212 kg
Attachments
Bucket digging force 4,573.12 kg
Bucket digging force -
Bucket digging force -
Service refill capacities
Cooling fluid cap 16.28 liter
Cooling fluid cap 16.28 liter
Cooling fluid cap 16.28 liter
Front axle fluid capacity 17.79 liter
Front axle fluid capacity 9.84 liter
Front axle fluid capacity 9.84 liter
Fuel cap 120.36 liter
Fuel cap 140.05 liter
Fuel cap 116.58 liter
Hydraulic fluid cap 90.08 liter
Hydraulic fluid cap 92.35 liter
Hydraulic fluid cap 92.35 liter
Rear axle fluid capacity 12.87 liter
Rear axle fluid capacity 15.52 liter
Rear axle fluid capacity 15.52 liter
Transmission fluid cap 15.14 liter
Transmission fluid cap -
Transmission fluid cap 15.14 liter
Refill capacities
Engine oil cap 10.98 liter
Engine oil cap -
Engine oil cap 8.71 liter
Operating specifications
Extended backhoe digging depth 5.88 m
Extended backhoe digging depth -
Extended backhoe digging depth 5.39 m
Extended backhoe dump height 4.75 m
Extended backhoe dump height -
Extended backhoe dump height -
Extended backhoe dump reach 2.8 m
Extended backhoe dump reach -
Extended backhoe dump reach 3.14 m
Extended backhoe reach from swivel 7.16 m
Extended backhoe reach from swivel -
Extended backhoe reach from swivel 6.68 m
Dump angle -
Dump angle 45 º
Dump angle -
Tires
Front tires size (2WD) 11Lx16
Front tires size (2WD) -
Front tires size (2WD) 12.5 x 18
Rear tires size 16.9x28
Rear tires size -
Rear tires size 19.5 x 24
Dimensions
Ground clearance 0.4 m
Ground clearance -
Ground clearance 0.43 m
Height - top of cab 2.74 m
Height - top of cab -
Height - top of cab 2.74 m
Overall Length 7.25 m
Overall Length -
Overall Length 6 m
Overall Width 2.35 m
Overall Width -
Overall Width 2.32 m
Wheelbase 2.1 m
Wheelbase -
Wheelbase 2.13 m
Transmission
Max speed reverse 39.43 kph
Max speed reverse -
Max speed reverse 40.39 kph
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of reverse gears 4
Number of reverse gears 3
Number of reverse gears 4
Hydraulic system
Pump flow cap 79.49 lpm
Pump flow cap 80.24 lpm
Pump flow cap 79.49 lpm
Relief valve pressure 224.08 bar
Relief valve pressure 250.41 bar
Relief valve pressure 249.93 bar
