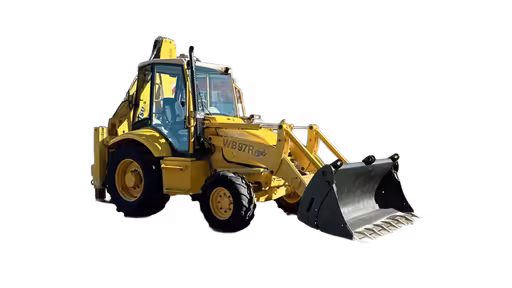

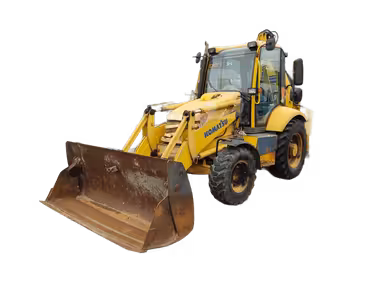

Komatsu WB97 Backhoe loaders tech specs
:quality(50)/76062/conversions/5650fc81-5182-4800-9931-98f99cf55a3c-thumb.webp)
Video[1]
:quality(50)/76054/conversions/5b2a5dbe-5ea7-447d-ba66-d2c2232c6a2f-thumb.webp)

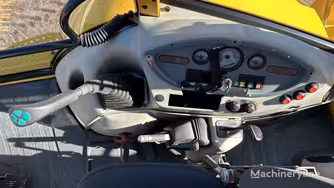

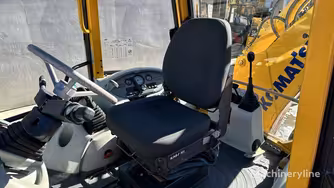

Interior [2]
:quality(50)/76056/conversions/5994f769-e334-4da0-aece-88b3b8bb0aa8-thumb.webp)

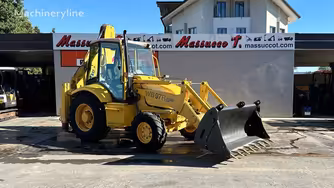

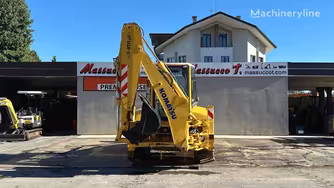

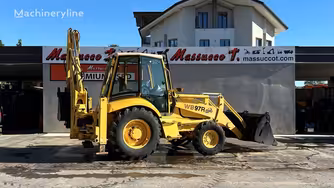

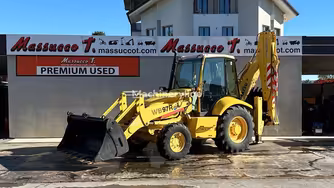

Exterior [4]
:quality(50)/76060/conversions/f6484d39-0b50-4e6e-b1b3-a0309f205a00-thumb.webp)

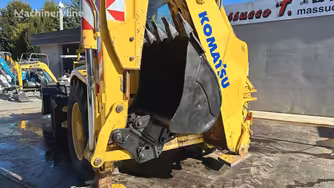

Attachments [2]
1999-2005
130.2 liter Fuel cap
375.01 Nm Max torque
73.01 kw Net power
8,580 kg Operating weight
5.91 m Overall Length
2.35 m Overall Width
Makana rating
Market average
AED 260,000Starting from
AED 165,000Komatsu WB97 technical specifications
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 60 Amh
Alternator supplied amperage 80 Amh
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Gross power
Gross power 84.27 kw
Gross power 84.27 kw
Net power
Net power 73.01 kw
Net power 73.01 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Torque measured @
Torque measured @ 1,500 rpm
Torque measured @ 1,500 rpm
Years
Years 1999-2005
Years 1999-2005
Market Average
Market Average AED 260,000
Market Average AED 260,000
Price
Price AED 165,000
Price AED 165,000
Backhoe digging depth
Backhoe digging depth 4.51 m
Backhoe digging depth 4.51 m
Backhoe reach from swivel
Backhoe reach from swivel 5.58 m
Backhoe reach from swivel 5.58 m
Breakout force
Breakout force 6,508.88 kg
Breakout force 6,508.88 kg
Loader digging depth
Loader digging depth 11.18 cm
Loader digging depth 11.18 cm
Loader dump height
Loader dump height 2.77 m
Loader dump height 2.77 m
Loader dump reach
Loader dump reach 0.76 m
Loader dump reach 0.76 m
Bucket capacity
Bucket capacity 1.07 cu m
Bucket capacity 1.15 cu m
Bucket width
Bucket width 232 cm
Bucket width 242 cm
Displacement
Displacement 4,413.05 cu cm
Displacement 4,413.05 cu cm
Engine model
Engine model SD106-1FA
Engine model S4D106-1FA
Max speed forward
Max speed forward 40.07 kph
Max speed forward 40.07 kph
Max torque
Max torque 375.01 Nm
Max torque 375.01 Nm
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 8,580 kg
Operating weight 8,900 kg
Transmission type
Transmission type full powershift, 4WD
Transmission type full powershift, 4WD
Wheelbase
Wheelbase 2.19 m
Wheelbase 2.19 m
Bucket digging force
Bucket digging force 3,850.01 kg
Bucket digging force 3,850.01 kg
Cooling fluid cap
Cooling fluid cap 18.17 liter
Cooling fluid cap 18.17 liter
Front axle fluid capacity
Front axle fluid capacity 8.33 liter
Front axle fluid capacity 8.33 liter
Fuel cap
Fuel cap 130.2 liter
Fuel cap 130.2 liter
Hydraulic fluid cap
Hydraulic fluid cap 92.35 liter
Hydraulic fluid cap 92.35 liter
Rear axle fluid capacity
Rear axle fluid capacity 18.55 liter
Rear axle fluid capacity 18.55 liter
Transmission fluid cap
Transmission fluid cap 16.28 liter
Transmission fluid cap 16.28 liter
Engine oil cap
Engine oil cap 8.71 liter
Engine oil cap 8.71 liter
Extended backhoe digging depth
Extended backhoe digging depth 5.67 m
Extended backhoe digging depth 5.67 m
Extended backhoe dump height
Extended backhoe dump height 4.85 m
Extended backhoe dump height 4.85 m
Extended backhoe dump reach
Extended backhoe dump reach 3.51 m
Extended backhoe dump reach 3.51 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel 6.55 m
Extended backhoe reach from swivel 6.55 m
Front tires size (2WD)
Front tires size (2WD) 12.5 / 80 R18 - 10 PR
Front tires size (2WD) 16.9 x 24 - 12 PR
Rear tires size
Rear tires size 16.9 x 28 - 10 PR
Rear tires size 16.9 x 24 - 12 PR
Ground clearance
Ground clearance 0.46 m
Ground clearance 0.46 m
Height - top of cab
Height - top of cab 2.77 m
Height - top of cab 2.77 m
Overall Length
Overall Length 5.91 m
Overall Length -
Overall Width
Overall Width 2.35 m
Overall Width 2.44 m
Turning radius
Turning radius 5.46 m
Turning radius 4.72 m
Max speed reverse
Max speed reverse 23.01 kph
Max speed reverse 23.01 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Pump flow cap
Pump flow cap 165.03 lpm
Pump flow cap 165.03 lpm
Pump type
Pump type Variable flow, axial piston
Pump type Variable flow, axial piston
Relief valve pressure
Relief valve pressure 200 bar
Relief valve pressure 200 bar
Download datasheets
Komatsu WB97 similar models
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 60 Amh
Alternator supplied amperage 60 Amh
Alternator supplied amperage 80 Amh
Aspiration
Aspiration Turbocharged
Aspiration Naturally aspirated
Aspiration Naturally aspirated
Gross power
Gross power 84.27 kw
Gross power 67.71 kw
Gross power 74.57 kw
Net power
Net power 73.01 kw
Net power 61.52 kw
Net power 72.93 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Torque measured @
Torque measured @ 1,500 rpm
Torque measured @ 1,500 rpm
Torque measured @ 1,600 rpm
Years
Years 1999-2005
Years 1999-2006
Years 1999-2005
Market Average
Market Average AED 260,000
Market Average AED 220,000
Market Average AED 240,000
Price
Price AED 165,000
Price AED 140,000
Price AED 150,000
Backhoe digging depth
Backhoe digging depth 4.51 m
Backhoe digging depth 4.51 m
Backhoe digging depth 4.97 m
Backhoe reach from swivel
Backhoe reach from swivel 5.58 m
Backhoe reach from swivel 5.58 m
Backhoe reach from swivel 5.58 m
Breakout force
Breakout force 6,508.88 kg
Breakout force 6,080.59 kg
Breakout force 6,508.88 kg
Loader digging depth
Loader digging depth 11.18 cm
Loader digging depth 11.18 cm
Loader digging depth 11.18 cm
Loader dump height
Loader dump height 2.77 m
Loader dump height 2.77 m
Loader dump height 2.77 m
Loader dump reach
Loader dump reach 0.76 m
Loader dump reach 0.76 m
Loader dump reach 0.76 m
Bucket capacity
Bucket capacity 1.07 cu m
Bucket capacity 1.07 cu m
Bucket capacity 1.07 cu m
Bucket width
Bucket width 232 cm
Bucket width 232 cm
Bucket width 232 cm
Displacement
Displacement 4,413.05 cu cm
Displacement 4,413.05 cu cm
Displacement 4,413.05 cu cm
Engine model
Engine model SD106-1FA
Engine model 4D106-1FA
Engine model S4D106-2SFA
Max speed forward
Max speed forward 40.07 kph
Max speed forward 40.07 kph
Max speed forward 40.07 kph
Max torque
Max torque 375.01 Nm
Max torque 310.07 Nm
Max torque 378 Nm
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 8,580 kg
Operating weight 8,580 kg
Operating weight 8,580 kg
Transmission type
Transmission type full powershift, 4WD
Transmission type full powershift, Electronic Gear Management
Transmission type full powershift 4WD
Wheelbase
Wheelbase 2.19 m
Wheelbase 2.19 m
Wheelbase 2.19 m
Bucket digging force
Bucket digging force 3,850.01 kg
Bucket digging force 3,570.05 kg
Bucket digging force 3,850.01 kg
Cooling fluid cap
Cooling fluid cap 18.17 liter
Cooling fluid cap 18.17 liter
Cooling fluid cap 18.17 liter
Front axle fluid capacity
Front axle fluid capacity 8.33 liter
Front axle fluid capacity 8.33 liter
Front axle fluid capacity 8.33 liter
Fuel cap
Fuel cap 130.2 liter
Fuel cap 130.2 liter
Fuel cap 130.2 liter
Hydraulic fluid cap
Hydraulic fluid cap 92.35 liter
Hydraulic fluid cap 92.35 liter
Hydraulic fluid cap 92.35 liter
Rear axle fluid capacity
Rear axle fluid capacity 18.55 liter
Rear axle fluid capacity 18.55 liter
Rear axle fluid capacity 18.55 liter
Transmission fluid cap
Transmission fluid cap 16.28 liter
Transmission fluid cap 16.28 liter
Transmission fluid cap 16.28 liter
Engine oil cap
Engine oil cap 8.71 liter
Engine oil cap 8.71 liter
Engine oil cap 8.71 liter
Extended backhoe digging depth
Extended backhoe digging depth 5.67 m
Extended backhoe digging depth 5.67 m
Extended backhoe digging depth 6.13 m
Extended backhoe dump height
Extended backhoe dump height 4.85 m
Extended backhoe dump height 3.51 m
Extended backhoe dump height 4.85 m
Extended backhoe dump reach
Extended backhoe dump reach 3.51 m
Extended backhoe dump reach 6.55 m
Extended backhoe dump reach 3.51 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel 6.55 m
Extended backhoe reach from swivel 6.55 m
Extended backhoe reach from swivel 6.55 m
Front tires size (2WD)
Front tires size (2WD) 12.5 / 80 R18 - 10 PR
Front tires size (2WD) 12.5/80 R18- 10 PR
Front tires size (2WD) 12.5/80 R18 - 10 PR
Rear tires size
Rear tires size 16.9 x 28 - 10 PR
Rear tires size 16.9 x 28 - 10 PR
Rear tires size 16.9 x 28 - 10 PR
Ground clearance
Ground clearance 0.46 m
Ground clearance 0.46 m
Ground clearance 0.46 m
Height - top of cab
Height - top of cab 2.77 m
Height - top of cab 2.77 m
Height - top of cab 2.77 m
Overall Length
Overall Length 5.91 m
Overall Length 5.91 m
Overall Length 5.91 m
Overall Width
Overall Width 2.35 m
Overall Width 2.35 m
Overall Width 2.35 m
Turning radius
Turning radius 5.46 m
Turning radius 5.46 m
Turning radius 5.46 m
Max speed reverse
Max speed reverse 23.01 kph
Max speed reverse 40.07 kph
Max speed reverse 40.07 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Pump flow cap
Pump flow cap 165.03 lpm
Pump flow cap 165.03 lpm
Pump flow cap 165.03 lpm
Pump type
Pump type Variable flow, axial piston
Pump type Variable flow, axial piston
Pump type Variable flow, axial piston
Relief valve pressure
Relief valve pressure 200 bar
Relief valve pressure 185 bar
Relief valve pressure 200 bar
