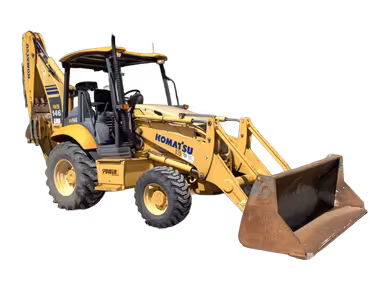

Komatsu WB146 Backhoe loaders tech specs
:quality(50)/75983/conversions/2d4bf6e0-1556-46ae-a878-1bebe640f461-thumb.webp)
Video[1]
:quality(50)/75975/conversions/46a9c8fb-2c97-47a8-8fcf-248be4000105-thumb.webp)
Interior [2]
:quality(50)/75977/conversions/988dbfa3-2eab-4f71-8dec-3e02c94daaa1-thumb.webp)
Exterior [4]
:quality(50)/75981/conversions/71ad3c60-8ea4-476a-9c2e-dd9bf1386d71-thumb.webp)
Attachments [2]
2006-2013
150.26 liter Fuel cap
406.74 Nm Max torque
66.07 kw Net power
7,300 kg Operating weight
7.44 m Overall Length
2.38 m Overall Width
Makana rating
Owner rating
Market average
AED 270,000Starting from
AED 180,000Komatsu WB146 technical specifications
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 95 Amh
Alternator supplied amperage 95 Amh
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Gross power
Gross power 69.05 kw
Gross power 69.05 kw
Net power
Net power 66.07 kw
Net power 66.07 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Torque measured @
Torque measured @ 1,500 rpm
Torque measured @ 1,500 rpm
Years
Years 2006-2013
Years 2006-2013
Market Average
Market Average AED 270,000
Market Average AED 270,000
Price
Price AED 180,000
Price AED 180,000
Backhoe digging depth
Backhoe digging depth 4.45 m
Backhoe digging depth 4.45 m
Backhoe dump height
Backhoe dump height 3.69 m
Backhoe dump height 3.69 m
Bucket capacity
Bucket capacity 0.99 cu m
Bucket capacity 0.99 cu m
Bucket width
Bucket width 235 cm
Bucket width 235 cm
Displacement
Displacement 4,506.45 cu cm
Displacement 4,506.45 cu cm
Engine model
Engine model S4D102LE-2
Engine model S4D102LE-2
Loader dump height
Loader dump height 2.65 m
Loader dump height 2.65 m
Loader dump reach
Loader dump reach 0.76 m
Loader dump reach 0.76 m
Max speed forward
Max speed forward 37.82 kph
Max speed forward 40.07 kph
Max torque
Max torque 406.74 Nm
Max torque 406.74 Nm
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 7,300 kg
Operating weight 7,300 kg
Transmission type
Transmission type synchronized gearbox, powershift shuttle
Transmission type full powershift, gears
Wheelbase
Wheelbase 2.19 m
Wheelbase 2.19 m
Backhoe reach from swivel
Backhoe reach from swivel 5.76 m
Backhoe reach from swivel 5.76 m
Breakout force
Breakout force 5,998.31 kg
Breakout force 5,998.31 kg
Loader digging depth
Loader digging depth 13.97 cm
Loader digging depth 13.97 cm
Cooling fluid cap
Cooling fluid cap 14 liter
Cooling fluid cap 14 liter
Front axle fluid capacity
Front axle fluid capacity 7.19 liter
Front axle fluid capacity 7.19 liter
Fuel cap
Fuel cap 150.26 liter
Fuel cap 150.26 liter
Hydraulic fluid cap
Hydraulic fluid cap 97.27 liter
Hydraulic fluid cap 97.27 liter
Rear axle fluid capacity
Rear axle fluid capacity 14.76 liter
Rear axle fluid capacity 14.76 liter
Transmission fluid cap
Transmission fluid cap 20.44 liter
Transmission fluid cap 28.01 liter
Engine oil cap
Engine oil cap 9.08 liter
Engine oil cap 9.08 liter
Extended backhoe digging depth
Extended backhoe digging depth 5.55 m
Extended backhoe digging depth 5.55 m
Extended backhoe dump height
Extended backhoe dump height 4.39 m
Extended backhoe dump height 4.39 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel 6.77 m
Extended backhoe reach from swivel 6.77 m
Front tires size (2WD)
Front tires size (2WD) 14 x 17.5 10ply R4
Front tires size (2WD) 14 x 17.5 10ply R4
Rear tires size
Rear tires size 19.5 x 24 10ply R4
Rear tires size 19.5 x 24 10ply R4
Ground clearance
Ground clearance 0.46 m
Ground clearance 0.46 m
Height - top of cab
Height - top of cab 2.96 m
Height - top of cab 2.96 m
Overall Length
Overall Length 7.44 m
Overall Length 7.44 m
Overall Width
Overall Width 2.38 m
Overall Width 2.38 m
Turning radius
Turning radius 3.41 m
Turning radius 3.41 m
Max speed reverse
Max speed reverse 37.82 kph
Max speed reverse 23.01 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 3
Pump flow cap
Pump flow cap 165.03 lpm
Pump flow cap 165.03 lpm
Pump type
Pump type Variable flow, axial piston
Pump type Variable flow, axial piston
Relief valve pressure
Relief valve pressure 244.97 bar
Relief valve pressure 244.97 bar
Download datasheets
Komatsu WB146 expert review
:quality(50)/60955/11289297-4fd3-4db8-aa77-83a15321cf02.jpeg)
Overview
The Komatsu WB146 (2006–2013) is a practical backhoe loader designed for excavation support, loading, trenching, backfilling, and general construction work. It delivers 66.07 kilowatt net power, 406.74 Nm torque, a 7,300 kg operating weight, and a 150.26 liter fuel tank, giving it a balanced setup for daily contractor use.
Expert rating: 5 stars
Pros Strong torque, practical operating weight, and good fuel capacity for daily site work.
Cons Larger dimensions need more care in tight access areas.
Performance & Efficiency
The WB146 produces 66.07 kilowatt net power and 406.74 Nm of torque, giving it useful strength for loading, trenching support, backfilling, and daily site work. Its 7,300 kg operating weight gives it good working stability, while the 150.26 liter fuel tank supports longer operating periods between refueling stops.
In Comparison
Komatsu WB140: Heavier backhoe loader with a larger footprint and stronger weight on the ground.
Komatsu WB142: Lighter option with easier handling, but lower power and torque.
Komatsu WB146: Balanced choice for buyers who want stronger torque than the WB142 without stepping into the heavier WB140 profile.
Final Verdict
Rated 5 stars, the Komatsu WB146 offers dependable power, useful torque, and balanced backhoe loader performance within the AED 180,000–270,000 range.
Komatsu WB146 owner rating
Komatsu WB146 Backhoe loaders [2006-2013]
2006-2013
Overall rating
Based on 3 ratings
4.7
performance
4.7
comfort
4.7
fuel efficiency
4.7
safety
4.7
features
4.3
5 stars
67 %
4 stars
33 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Komatsu WB146 similar models
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 95 Amh
Alternator supplied amperage 80 Amh
Alternator supplied amperage 95 Amh
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Naturally aspirated
Gross power
Gross power 69.05 kw
Gross power 69.35 kw
Gross power 60.03 kw
Net power
Net power 66.07 kw
Net power 64.88 kw
Net power 57.05 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Torque measured @
Torque measured @ 1,500 rpm
Torque measured @ 1,400 rpm
Torque measured @ 1,300 rpm
Bore
Bore -
Bore 10.67 cm
Bore -
Engine make
Engine make -
Engine make Komatsu
Engine make -
Stroke
Stroke -
Stroke 12.7 cm
Stroke -
Years
Years 2006-2013
Years 1999-2006
Years 2007-2014
Market Average
Market Average AED 270,000
Market Average AED 250,000
Market Average AED 260,000
Price
Price AED 180,000
Price AED 160,000
Price AED 170,000
Backhoe digging depth
Backhoe digging depth 4.45 m
Backhoe digging depth 4.45 m
Backhoe digging depth 4.33 m
Backhoe dump height
Backhoe dump height 3.69 m
Backhoe dump height 2.87 m
Backhoe dump height 3.63 m
Bucket capacity
Bucket capacity 0.99 cu m
Bucket capacity 0.99 cu m
Bucket capacity 0.84 cu m
Bucket width
Bucket width 235 cm
Bucket width 235 cm
Bucket width 218 cm
Displacement
Displacement 4,506.45 cu cm
Displacement 4,401.58 cu cm
Displacement 4,506.45 cu cm
Engine model
Engine model S4D102LE-2
Engine model S4D106-2XFH
Engine model 4D102LE-2
Loader dump height
Loader dump height 2.65 m
Loader dump height 2.74 m
Loader dump height 2.62 m
Loader dump reach
Loader dump reach 0.76 m
Loader dump reach 2.87 m
Loader dump reach 0.91 m
Max speed forward
Max speed forward 37.82 kph
Max speed forward 37.82 kph
Max speed forward 37.01 kph
Max torque
Max torque 406.74 Nm
Max torque 348.03 Nm
Max torque 299.63 Nm
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 7,300 kg
Operating weight 8,949 kg
Operating weight 6,585 kg
Transmission type
Transmission type synchronized gearbox, powershift shuttle
Transmission type -
Transmission type synchronized gearbox, powershift shuttle
Wheelbase
Wheelbase 2.19 m
Wheelbase 2.19 m
Wheelbase 2.19 m
Bucket digging force
Bucket digging force -
Bucket digging force 4,002.96 kg
Bucket digging force -
Backhoe reach from swivel
Backhoe reach from swivel 5.76 m
Backhoe reach from swivel -
Backhoe reach from swivel 5.61 m
Breakout force
Breakout force 5,998.31 kg
Breakout force 5,801.45 kg
Breakout force 5,148.73 kg
Loader digging depth
Loader digging depth 13.97 cm
Loader digging depth 9.14 cm
Loader digging depth 10.16 cm
Cooling fluid cap
Cooling fluid cap 14 liter
Cooling fluid cap 14 liter
Cooling fluid cap 14 liter
Front axle fluid capacity
Front axle fluid capacity 7.19 liter
Front axle fluid capacity 8.71 liter
Front axle fluid capacity 7.19 liter
Fuel cap
Fuel cap 150.26 liter
Fuel cap -
Fuel cap 120.36 liter
Hydraulic fluid cap
Hydraulic fluid cap 97.27 liter
Hydraulic fluid cap 92.35 liter
Hydraulic fluid cap 97.27 liter
Rear axle fluid capacity
Rear axle fluid capacity 14.76 liter
Rear axle fluid capacity 17.79 liter
Rear axle fluid capacity 14.76 liter
Transmission fluid cap
Transmission fluid cap 20.44 liter
Transmission fluid cap -
Transmission fluid cap 18.17 liter
Engine oil cap
Engine oil cap 9.08 liter
Engine oil cap 7.95 liter
Engine oil cap 9.08 liter
Extended backhoe digging depth
Extended backhoe digging depth 5.55 m
Extended backhoe digging depth 5.61 m
Extended backhoe digging depth -
Extended backhoe dump height
Extended backhoe dump height 4.39 m
Extended backhoe dump height -
Extended backhoe dump height -
Extended backhoe reach from swivel
Extended backhoe reach from swivel 6.77 m
Extended backhoe reach from swivel -
Extended backhoe reach from swivel -
Dump angle
Dump angle -
Dump angle 45 º
Dump angle -
Extended backhoe dump reach
Extended backhoe dump reach -
Extended backhoe dump reach 3.81 m
Extended backhoe dump reach -
Front tires size (2WD)
Front tires size (2WD) 14 x 17.5 10ply R4
Front tires size (2WD) -
Front tires size (2WD) -
Rear tires size
Rear tires size 19.5 x 24 10ply R4
Rear tires size -
Rear tires size -
Ground clearance
Ground clearance 0.46 m
Ground clearance 0.34 m
Ground clearance 0.4 m
Height - top of cab
Height - top of cab 2.96 m
Height - top of cab 2.77 m
Height - top of cab 2.83 m
Overall Length
Overall Length 7.44 m
Overall Length 7.32 m
Overall Length 7.07 m
Overall Width
Overall Width 2.38 m
Overall Width 2.38 m
Overall Width 2.19 m
Turning radius
Turning radius 3.41 m
Turning radius 4.33 m
Turning radius 3.63 m
Front tread range
Front tread range -
Front tread range 189.23 cm
Front tread range -
Rear tread range
Rear tread range -
Rear tread range 180.09 cm
Rear tread range -
Max speed reverse
Max speed reverse 37.82 kph
Max speed reverse 37.82 kph
Max speed reverse 37.01 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Pump flow cap
Pump flow cap 165.03 lpm
Pump flow cap 165.03 lpm
Pump flow cap 140.05 lpm
Pump type
Pump type Variable flow, axial piston
Pump type Closed center, load sensing
Pump type Tandem fixed displacement pumps
Relief valve pressure
Relief valve pressure 244.97 bar
Relief valve pressure 206.84 bar
Relief valve pressure 206.98 bar
Komatsu WB146 gallery
:quality(50)/75983/conversions/2d4bf6e0-1556-46ae-a878-1bebe640f461-thumb.webp)
:quality(75)/products/10077/cover/5fba6453-0d30-45ce-ba6c-10e3fe54a08d.png)
:quality(75)/products/10123/cover/7165614f-efc7-470a-b384-728ed38734ca.png)
:quality(75)/products/10078/cover/bfc7a870-fb30-437c-ae3d-44e8986bdcc8.png)
Similar machines. Other reviews.
:quality(80)/60952/a25e1d76-5098-4ef7-a6f5-fe8bc1dffd1a.jpeg)
Komatsu D275A Crawler dozers specs Komatsu D155A Crawler dozers specs Komatsu HD325 Off-highway trucks specs Komatsu HD405 Off-highway trucks specs Komatsu HD465 Off-highway trucks specs Komatsu PC300 Medium excavators specs Komatsu PC400 Large excavators specs Komatsu PC450 Large excavators specs Komatsu WA470 Wheel loaders specs Komatsu WA500 wheel loaders specs
John Deere 310 Backhoe loaders specs JCB 3DX Backhoe loaders specs Case 770 Backhoe loaders specs Case 851 Backhoe loaders specs Cat 426 Backhoe loaders specs Cat 428 Backhoe loaders specs Massey ferguson 50 Backhoe loaders specs Massey ferguson 60 Backhoe loaders specs Cukurova 88 Backhoe loaders specs John deere 110 Backhoe loaders specs
John Deere 310 Backhoe loaders specs JCB 3DX Backhoe loaders specs John Deere 524 Wheel loaders specs John Deere 544 Wheel loaders specs John Deere 624 Wheel loaders specs John Deere 644 Wheel loaders specs Case 770 Backhoe loaders specs Case 851 Backhoe loaders specs Cat 906 Wheel loaders specs Cat 938 Wheel loaders specs
Get the latest from Makana
Subscribe to receive auction dates, exclusive deals, and news in your inbox.
