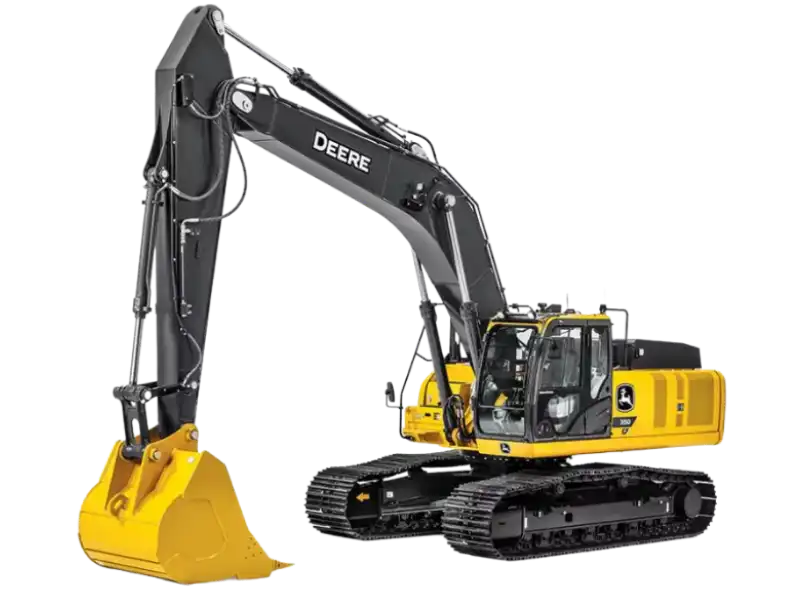

John deere 350 Medium excavators tech specs
The John Deere 350 delivers full Tier 4 Final performance in a mid-size 36.7 t (80,985 lb) package, packing 202 kW (271 hp) and 8.18 m (26 ft 10 in) digging depth. It’s smooth, smart, and built for big jobs.
202 kW (271 hp) power in a 36.7 t frame
8.18 m digging depth and robust hydraulic flow
Optional SmartGrade and Grade Guidance ready
Powerwise hydromechanics and auto-idle cut fuel use
John deere 350 Technical specifications
General
Engine model
John Deere 4045HF485
Operating weight
10,500 kg
Max dump height
5890 mm
Boom length
4.4 m
Gradeability
58 º
Bucket width
700 mm
Bucket capacity
0.28 m3
Max speed forward
5 kph
Max digging depth
4320 m
Max digging reach
7620 mm
Engine
Displacement
4500 cm3
Gross power
78.3 kw
Operational specifications
Swing speed
9.5 rpm
Arm crowding force
42 kN
Undercarriage
Drawbar Pull
68 kN
Track width
4.5 mm
Track length
2.9 m
Attachments
Bucket digging force
54 kN
Dimensions
Height - top of cab
2.72 m
Hydraulic system
Pump flow cap
160 lpm
Relief valve pressure
250 bar
Refill capacities
Engine oil cap
10 liter
Service refill capacities
Fuel cap
205 liter
Hydraulic fluid cap
95 liter
John deere 350 expert review
Overview
The 350 P-Tier is a mid-size excavator weighing ~36 734 kg (80,985 lb), delivering 202 kW (271 hp), and capable of digging up to 8.18 m deep. It offers enhanced visibility options and integrated technologies.
Technology-ready with SmartGrade and camera lighting improve accuracy and safety.
Tech features require operator training to unlock full benefits.
Performance & Efficiency
Powerwise engine-hydraulic control and auto-idle improve fuel economy. Optional cameras and lighting cut operator fatigue and boost safety.
In Comparison
Oversized compared to smaller mid-excavators for more reach and control; more agile and efficient than full-sized models.
Verdict
Great for high-production mid-size work with modern controls. Avoid if your work is ultra-compact or simplicity is the mission.
