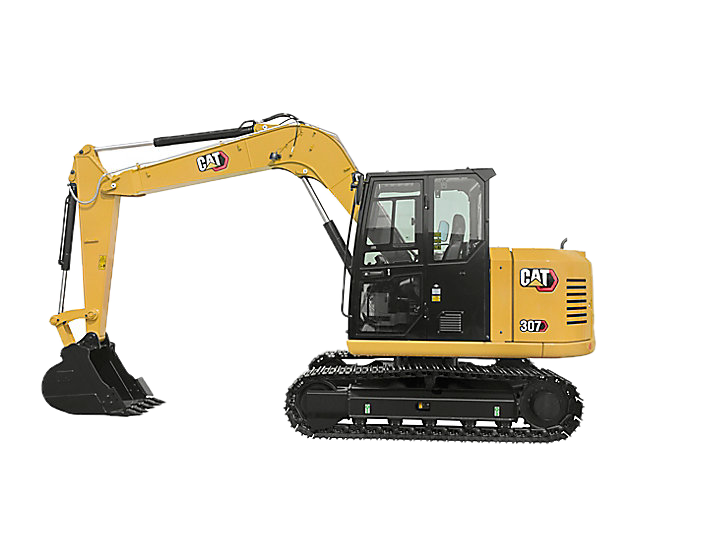

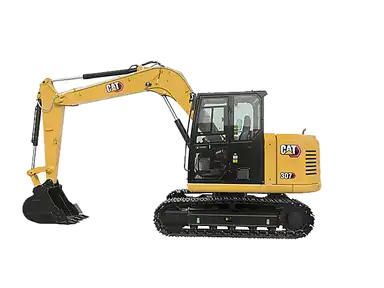

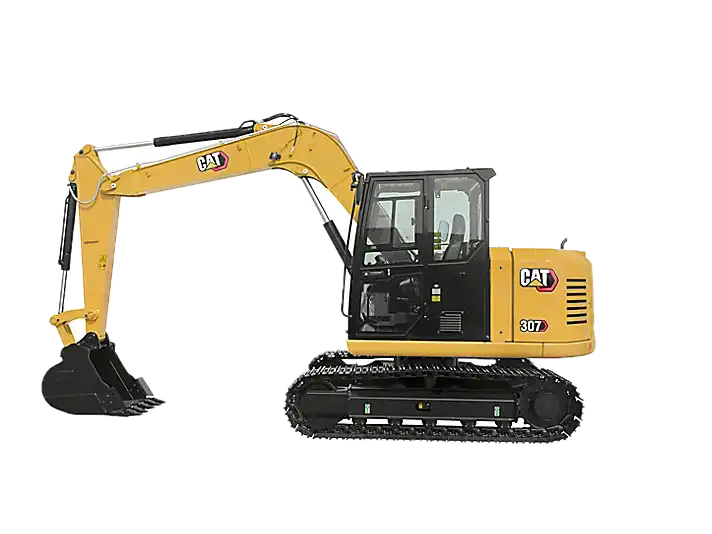

Cat 307 Mini excavators
Cat 307 Mini excavators tech specs

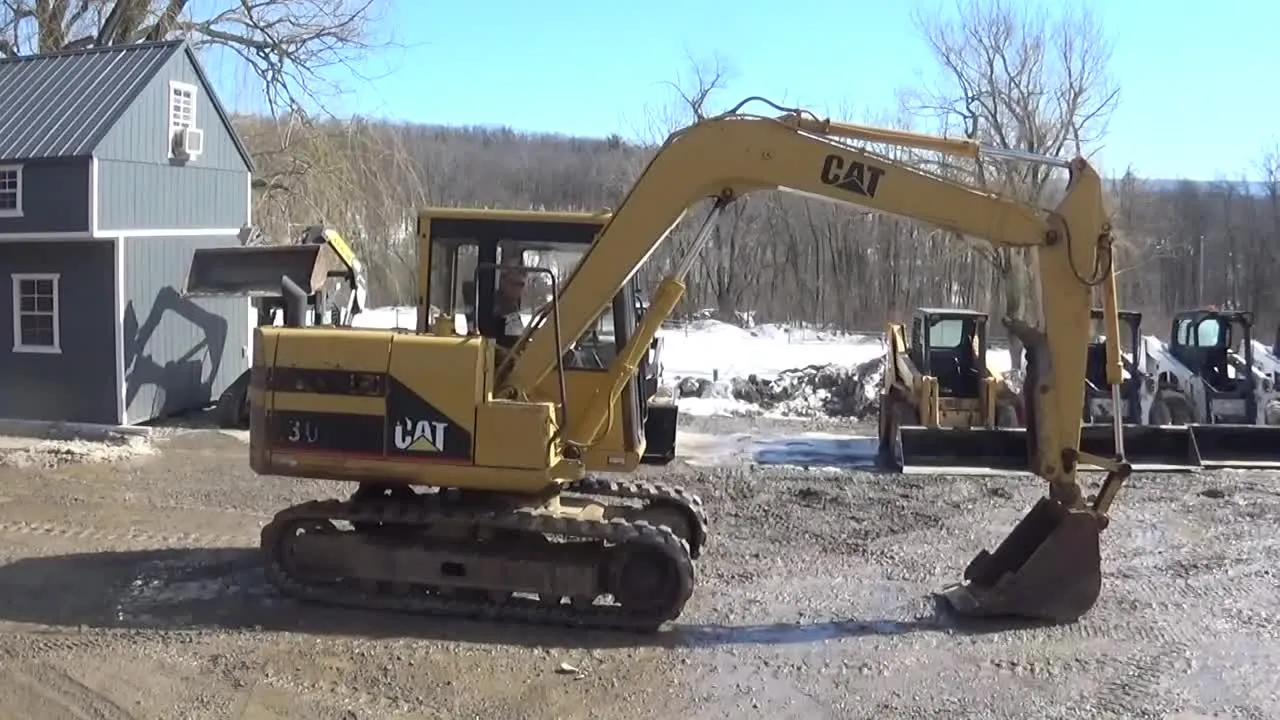

Video[1]

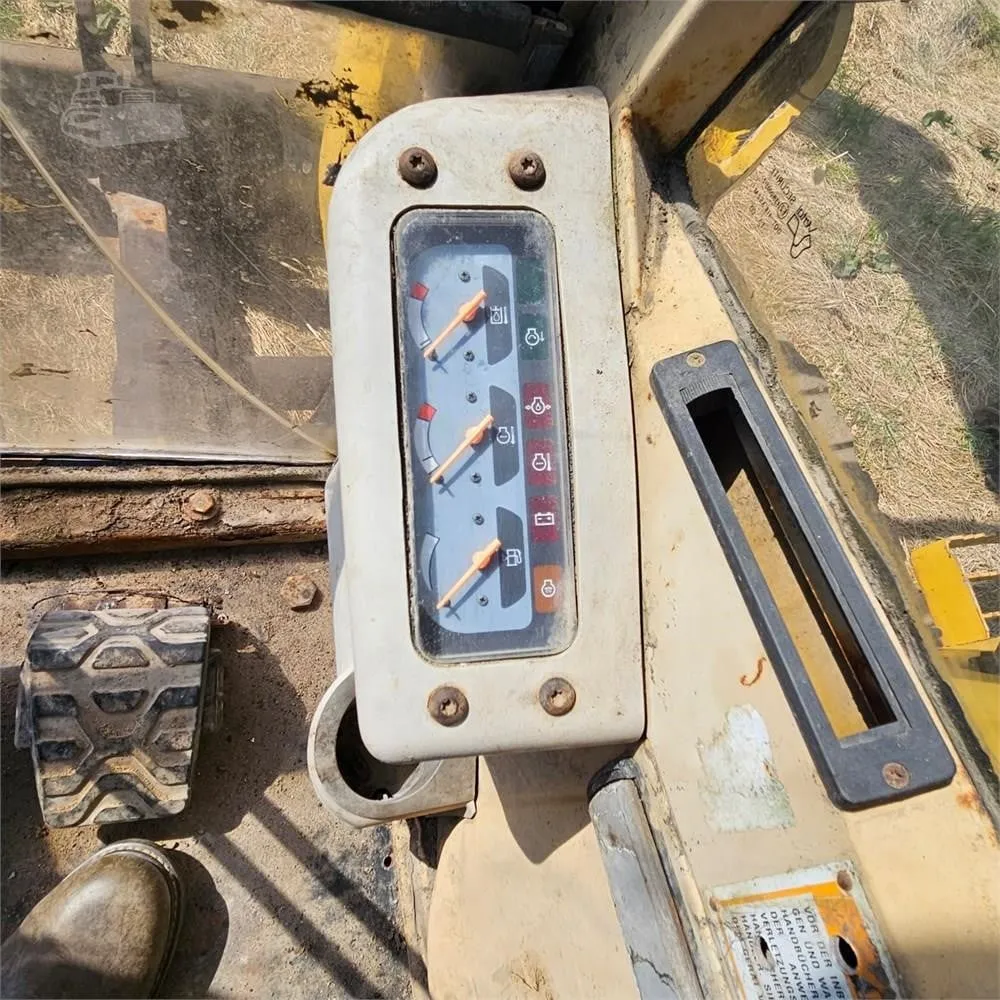

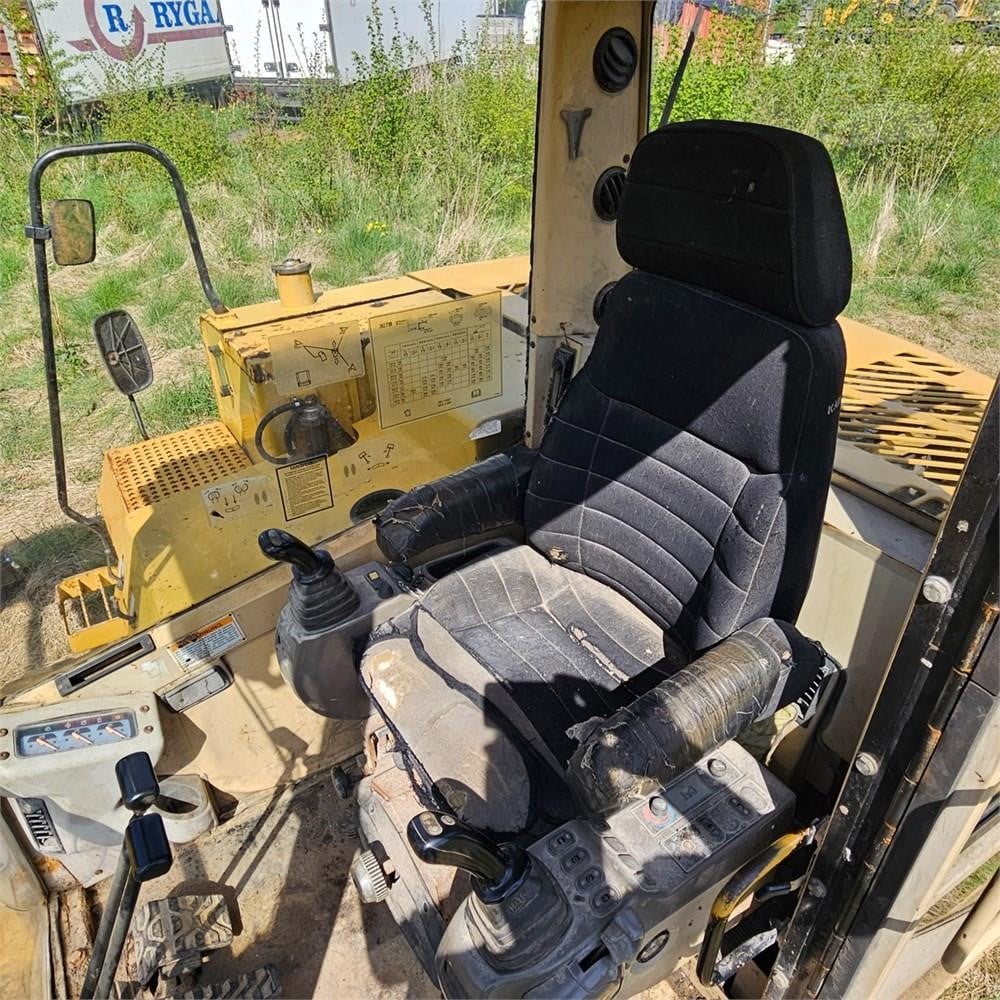

Interior [2]

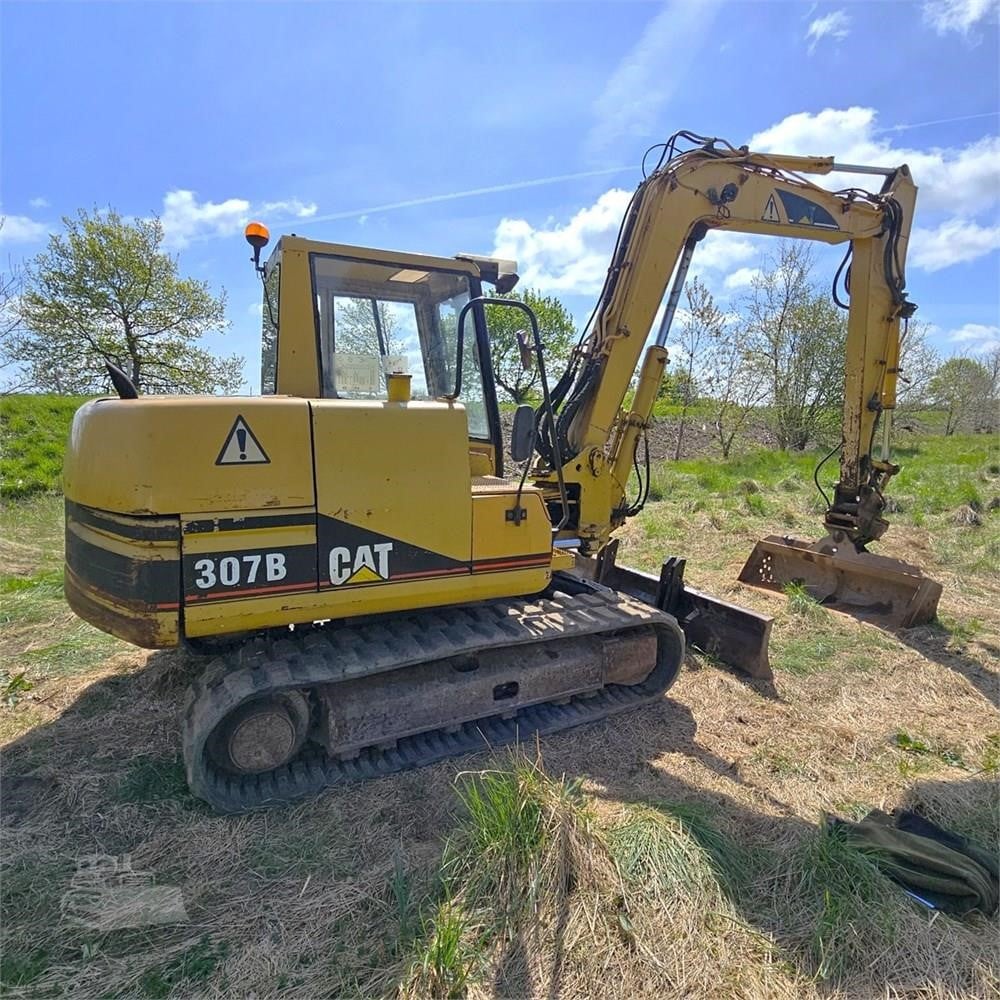

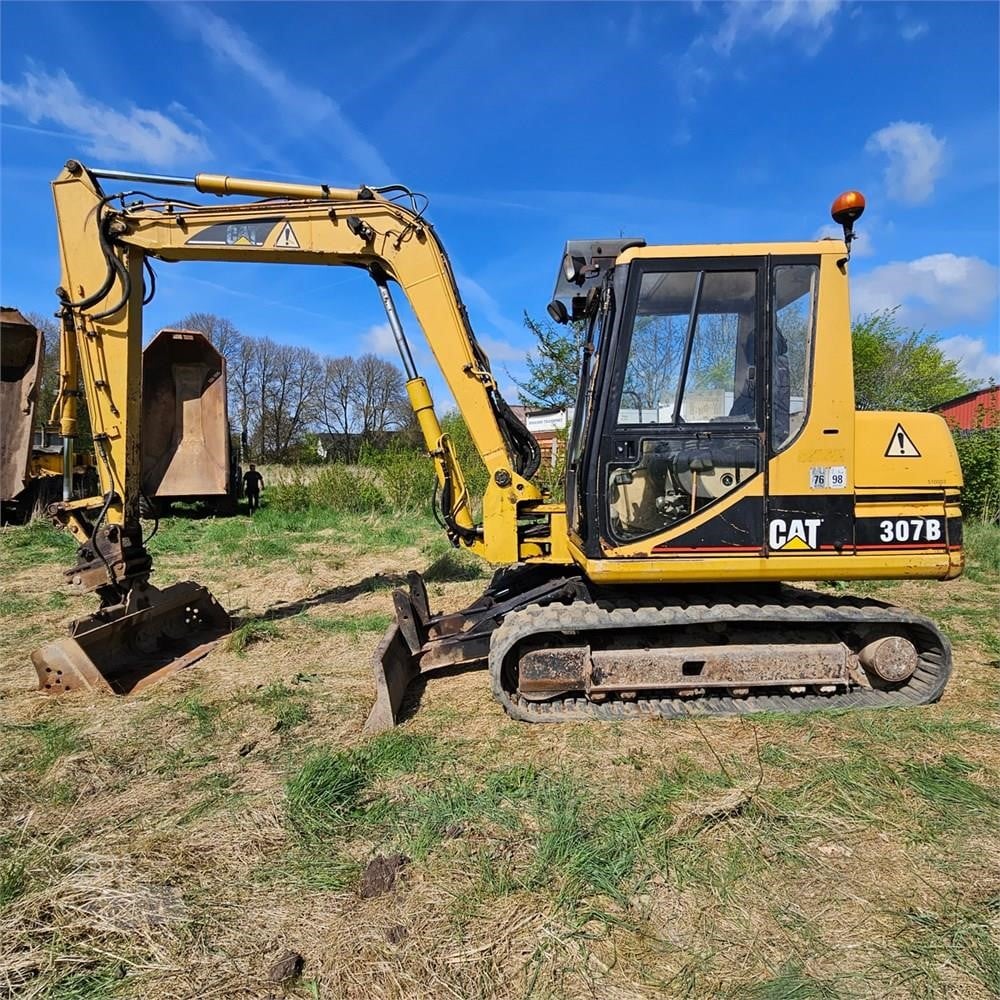

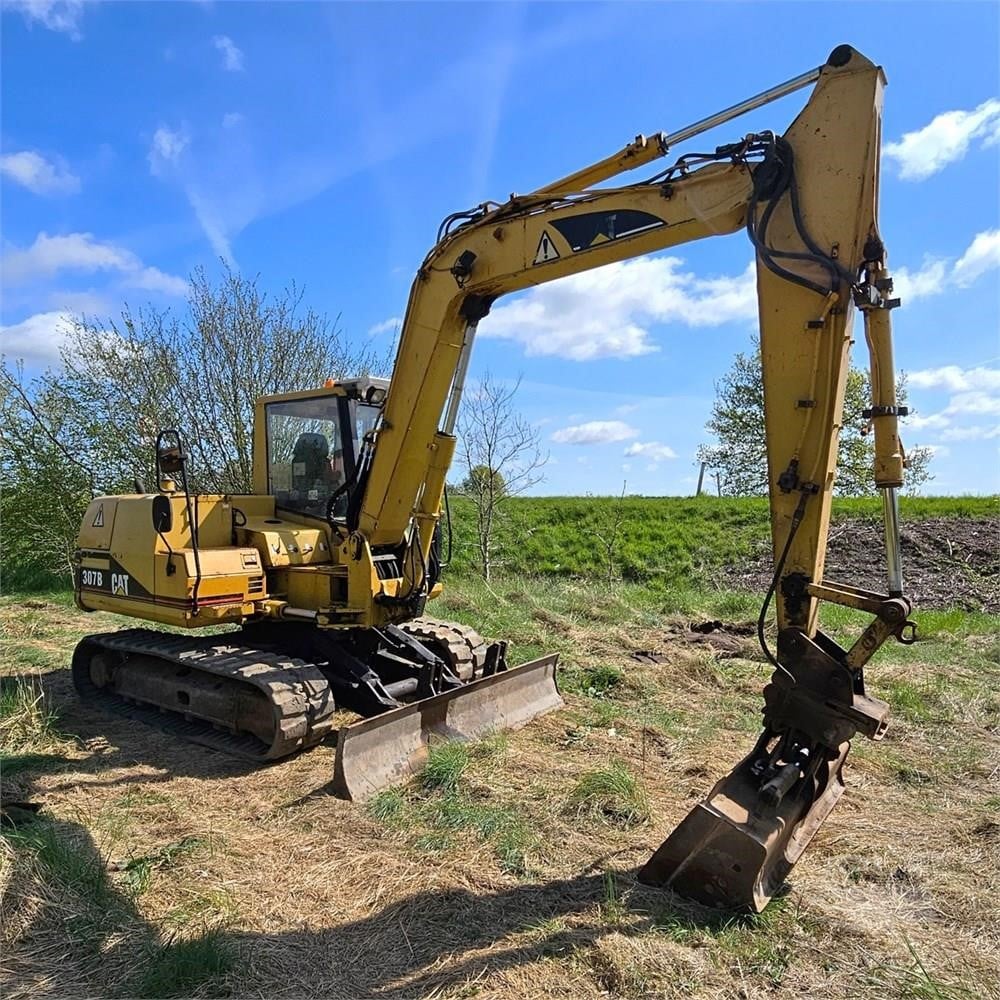

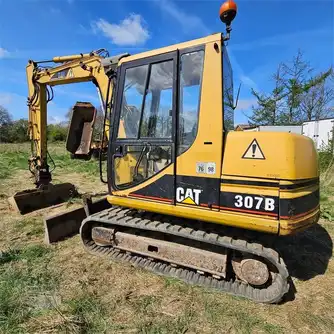

Exterior [4]

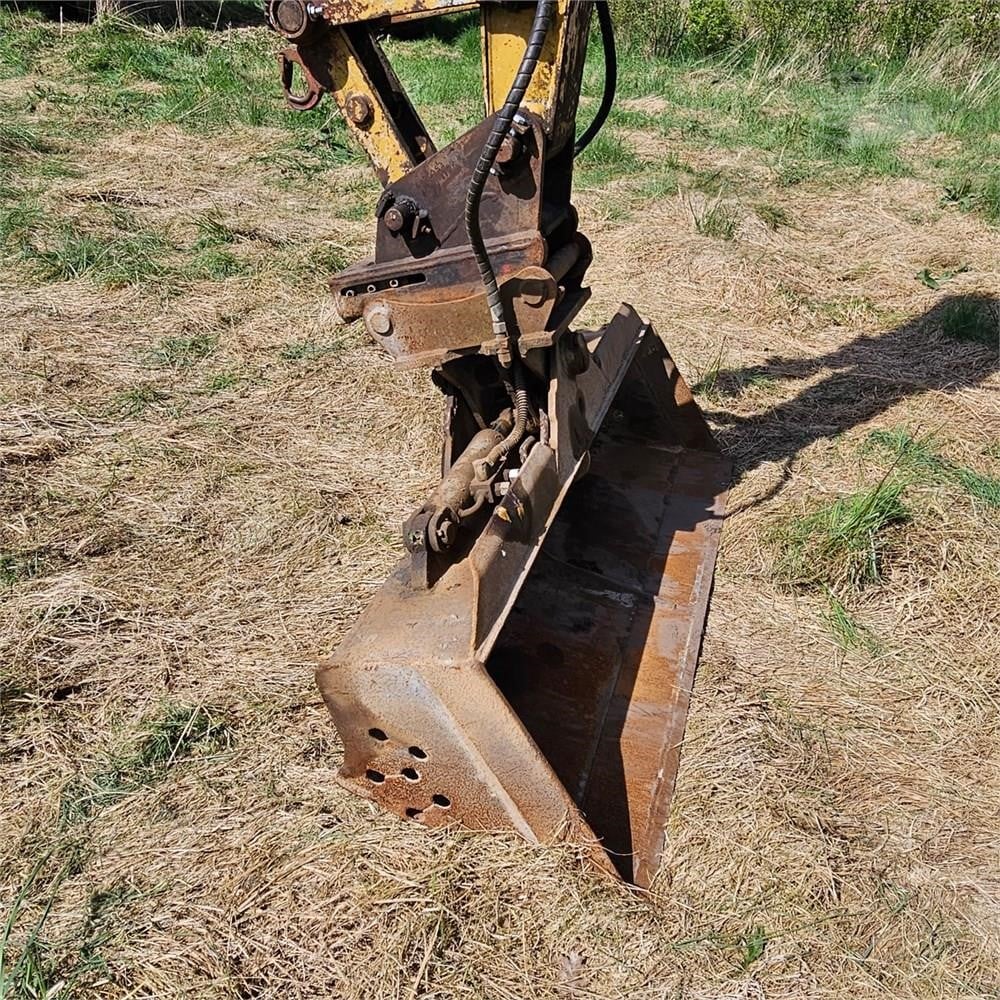

Attachments [1]
2018-2021
7,757 mm Max dump height
6,805 mm Max digging reach
2 m Boom length
4,107 mm Max digging depth
42 kw Gross power
8,233 kg Operating weight
The Cat 307 (2018–2021) wraps solid Tier 4 Final power and load-sensing hydraulics into a compact excavator built for comfort and control on tight jobs.
Front counterweight with transport width ~2.2 m
Cat C2.4 Turbo engine (~50.6 hp / 37.7 kW), Tier 4 Final
Load-sensing hydraulics with auto‑idle, stick-steer, comfortable cab
Easy ground-level maintenance and durable structure
Cat 307 technical specifications
Highlight differences
Blade height
Blade height 43.18 cm
Blade height 44.45 cm
Blade height -
Blade height -
Overall Length
Overall Length 6.26 m
Overall Length 5.05 m
Overall Length -
Overall Length -
Height - top of cab
Height - top of cab 2.5 m
Height - top of cab 2.5 m
Height - top of cab 2.65 m
Height - top of cab 2.65 m
Ground clearance
Ground clearance -
Ground clearance -
Ground clearance 39.62 cm
Ground clearance 39.62 cm
Turning radius
Turning radius -
Turning radius -
Turning radius 1.77 m
Turning radius 1.77 m
Width over tracks
Width over tracks -
Width over tracks -
Width over tracks 2.23 m
Width over tracks 2.23 m
Years
Years 2018-2021
Years 2018-2021
Years 2018-2021
Years 2018-2021
Market Average
Market Average AED 158,000
Market Average AED 158,000
Market Average AED 158,000
Market Average AED 158,000
Price
Price AED 128,000
Price AED 128,000
Price AED 128,000
Price AED 128,000
Blade width
Blade width 228 cm
Blade width 276 cm
Blade width -
Blade width -
Arm crowding force
Arm crowding force 37.8 kN
Arm crowding force 37.07 kN
Arm crowding force -
Arm crowding force -
Max dump height
Max dump height 7,757.16 mm
Max dump height 6,045.2 mm
Max dump height 5,151.12 mm
Max dump height 4,175.76 mm
Max digging reach
Max digging reach 6,804.66 mm
Max digging reach 6,187.44 mm
Max digging reach 6,736.08 mm
Max digging reach 6,918.96 mm
Boom length
Boom length 1.68 m
Boom length 1.4 m
Boom length -
Boom length -
Max digging depth
Max digging depth 4,107.18 mm
Max digging depth 4,053.84 mm
Max digging depth 4,114.8 mm
Max digging depth 4,175.76 mm
Max speed forward
Max speed forward 4.99 kph
Max speed forward 5.15 kph
Max speed forward 5.15 kph
Max speed forward 5.15 kph
Operating weight
Operating weight 8,233 kg
Operating weight 7,391 kg
Operating weight 7,817 kg
Operating weight 7,400 kg
Track width
Track width 22 cm
Track width 18.29 cm
Track width 45.21 cm
Track width 45.21 cm
Track length
Track length 2.88 m
Track length 2.29 m
Track length -
Track length -
Drawbar Pull
Drawbar Pull 26.03 kN
Drawbar Pull 33.78 kN
Drawbar Pull 53.92 kN
Drawbar Pull 53.92 kN
Track gauge
Track gauge -
Track gauge -
Track gauge 1.77 m
Track gauge 1.77 m
Bore
Bore 8.64 cm
Bore 8.64 cm
Bore 9.4 cm
Bore 9.4 cm
Displacement
Displacement 2,425.29 cu cm
Displacement 2,400.71 cu cm
Displacement 2,834.97 cu cm
Displacement 2,834.97 cu cm
Gross power
Gross power 41.69 kw
Gross power 37.73 kw
Gross power 41.01 kw
Gross power 30.57 kw
Stroke
Stroke 10.16 cm
Stroke 10.16 cm
Stroke 10.16 cm
Stroke 10.16 cm
Bucket digging force
Bucket digging force 54.55 kN
Bucket digging force 50.56 kN
Bucket digging force -
Bucket digging force -
Pump flow cap
Pump flow cap 166.54 lpm
Pump flow cap 154.81 lpm
Pump flow cap 18.55 lpm
Pump flow cap 128.31 lpm
Cooling fluid cap
Cooling fluid cap 9.84 liter
Cooling fluid cap 14 liter
Cooling fluid cap 15.14 liter
Cooling fluid cap 15.14 liter
Fuel cap
Fuel cap 143.83 liter
Fuel cap 135.12 liter
Fuel cap 135.12 liter
Fuel cap 135.12 liter
Hydraulic fluid cap
Hydraulic fluid cap 102.2 liter
Hydraulic fluid cap 77.97 liter
Hydraulic fluid cap 56.78 liter
Hydraulic fluid cap 56.78 liter
Engine oil cap
Engine oil cap 9.46 liter
Engine oil cap 10.98 liter
Engine oil cap 7.19 liter
Engine oil cap 7.19 liter
Download datasheets
Cat 307 expert review
Overview
The Cat 307 is a compact radiator excavator weighing between ~7.27 t and ~7.6 t, powered by a 37.7 kW (50.6 hp) C2.4 Turbo Tier 4 Final engine. It digs up to ~4.12 m, reaches ~6.67 m, and has a transport width of ~2.2 m.
Pros Compact width (~2.2 m) fits tight job zones.
Smart hydraulics and service layout reduce cost and downtime.
Smart hydraulics and service layout reduce cost and downtime.
Cons Weight (~7.6 t) requires ground prep and trailer planning.
Mid-level power may limit performance in tough digging conditions.
Mid-level power may limit performance in tough digging conditions.
Performance & Efficiency
Variable displacement hydraulics, auto-idle, and auto-shutdown deliver efficient performance. Stick-steer travel and AC cab improve operator comfort.
In Comparison
Compared to smaller 305 or 306 models, you get more reach and comfort with only minimal size increase. More agile and cost-effective than full-size excavators.
Verdict
Well-balanced for compact excavation and multi-use jobs. Ideal for rental and urban applications. Not the one for heavy-duty rock work or maximum hydraulic output.
