Cat 30700 vs. Cat 323D3 Medium excavators Comparison

Compare available technical data for Excavators. Find the right details to make your decision easier.

Comparison

Highlight differences

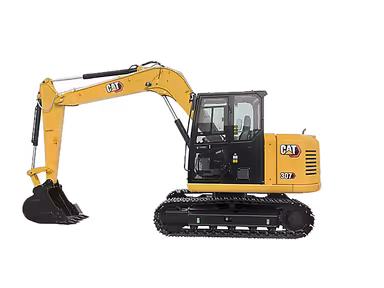

Cat 307 Mini excavators

30700

Cat 323 Medium excavators

323D3

General

Max digging depth

Max digging depth 4,053.84 mm

Max digging depth 6,300 mm

Max digging reach

Max digging reach 6,187.44 mm

Max digging reach 9,470 mm

Operating weight

Operating weight 7,391 kg

Operating weight 22,600 kg

Boom length

Boom length 1.4 m

Boom length 5.7 m

Max dump height

Max dump height 6,045.2 mm

Max dump height 6.29 m

Max speed forward

Max speed forward 5.15 kph

Max speed forward 5.8 kph

Engine model

Engine model -

Engine model C7.1

Gradeability

Gradeability -

Gradeability 35 %

Bucket width

Bucket width -

Bucket width 1,450 mm

Bucket capacity

Bucket capacity -

Bucket capacity 1.2 m3

Years

Years 2018-2021

Years 2019-2025

Market Average

Market Average AED 158,000

Market Average AED 315,000

Price

Price AED 128,000

Price AED 287,000

Engine

Gross power

Gross power 37.73 kw

Gross power 107 kw

Bore

Bore 8.64 cm

Bore -

Displacement

Displacement 2,400.71 cu cm

Displacement 7,010 cm3

Stroke

Stroke 10.16 cm

Stroke -

Dimensions

Blade height

Blade height 44.45 cm

Blade height -

Overall Length

Overall Length 5.05 m

Overall Length -

Height - top of cab

Height - top of cab 2.5 m

Height - top of cab 3.05 m

Operational specifications

Blade width

Blade width 276 cm

Blade width -

Arm crowding force

Arm crowding force 37.07 kN

Arm crowding force 111 kN

Swing speed

Swing speed -

Swing speed 11.88 rpm

Undercarriage

Track width

Track width 18.29 cm

Track width 600 mm

Track length

Track length 2.29 m

Track length -

Drawbar Pull

Drawbar Pull 33.78 kN

Drawbar Pull 210 kN

Attachments

Bucket digging force

Bucket digging force 50.56 kN

Bucket digging force 147 kN

Hydraulic system

Pump flow cap

Pump flow cap 154.81 lpm

Pump flow cap 429 lpm

Relief valve pressure

Relief valve pressure -

Relief valve pressure 349.9 bar

Service refill capacities

Cooling fluid cap

Cooling fluid cap 14 liter

Cooling fluid cap -

Fuel cap

Fuel cap 135.12 liter

Fuel cap 390 liter

Hydraulic fluid cap

Hydraulic fluid cap 77.97 liter

Hydraulic fluid cap 218 liter

Refill capacities

Engine oil cap

Engine oil cap 10.98 liter

Engine oil cap 18 liter

Performance

Looking at performance technical specs and key features the Cat 30700 Medium excavators excels in terms of engine power at and operating weight compared to other models like the Cat 323D3 Medium excavators.

User rating

Owners operators and fleet managers recommend the Cat 30700 Medium excavators for its high reliability and endurance in diverse applications. The same can be said about the Cat 323D3 Medium excavators.
