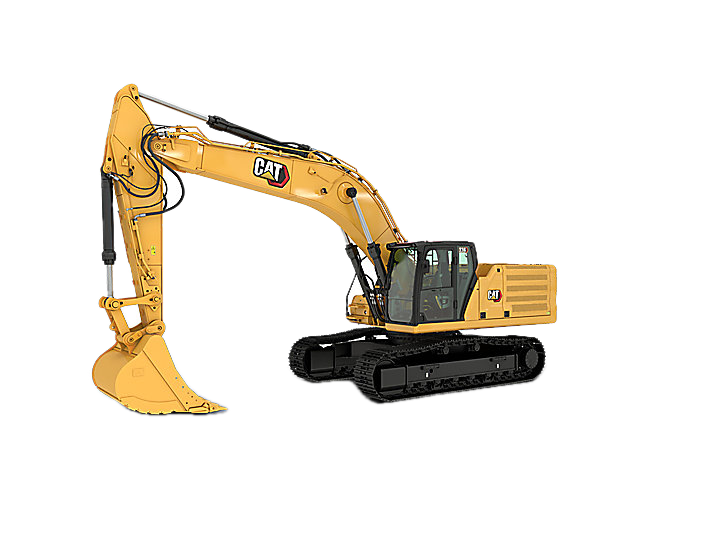

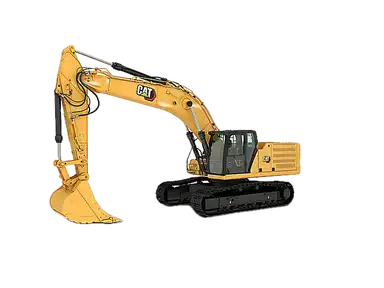

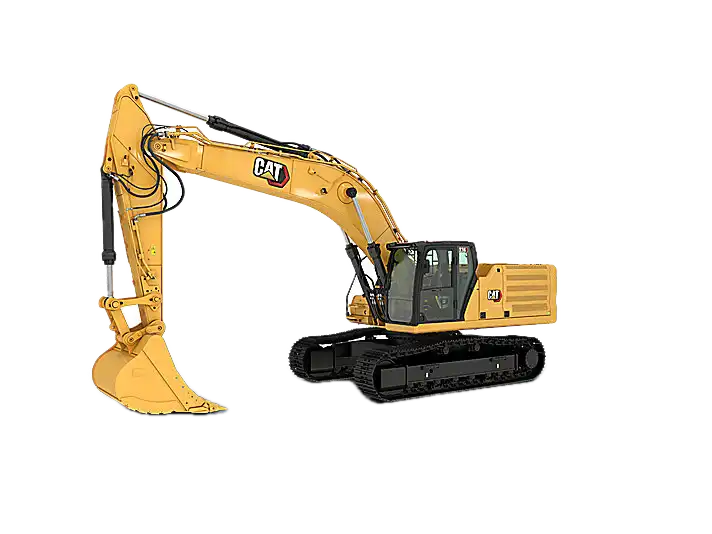

Cat 336 Medium excavators
Cat 336 Medium excavators tech specs

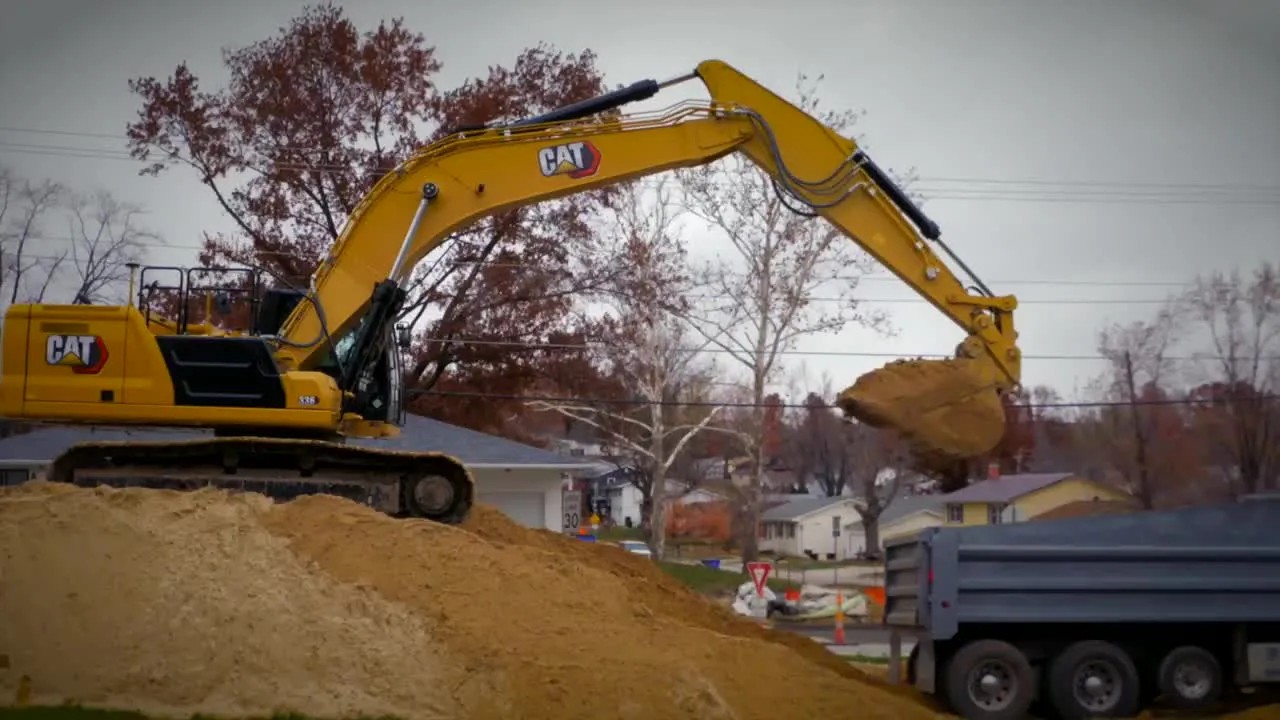

Video[1]

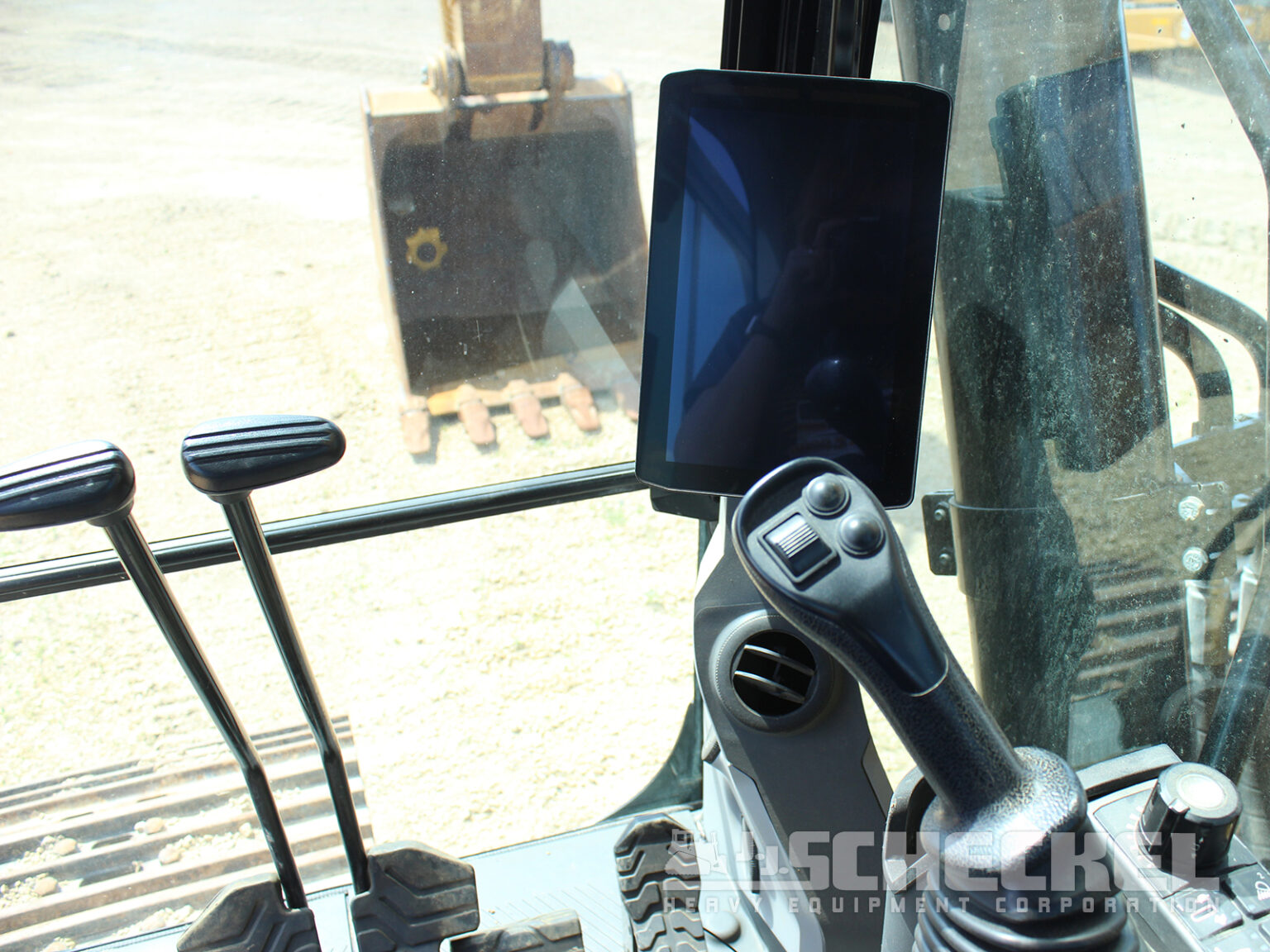

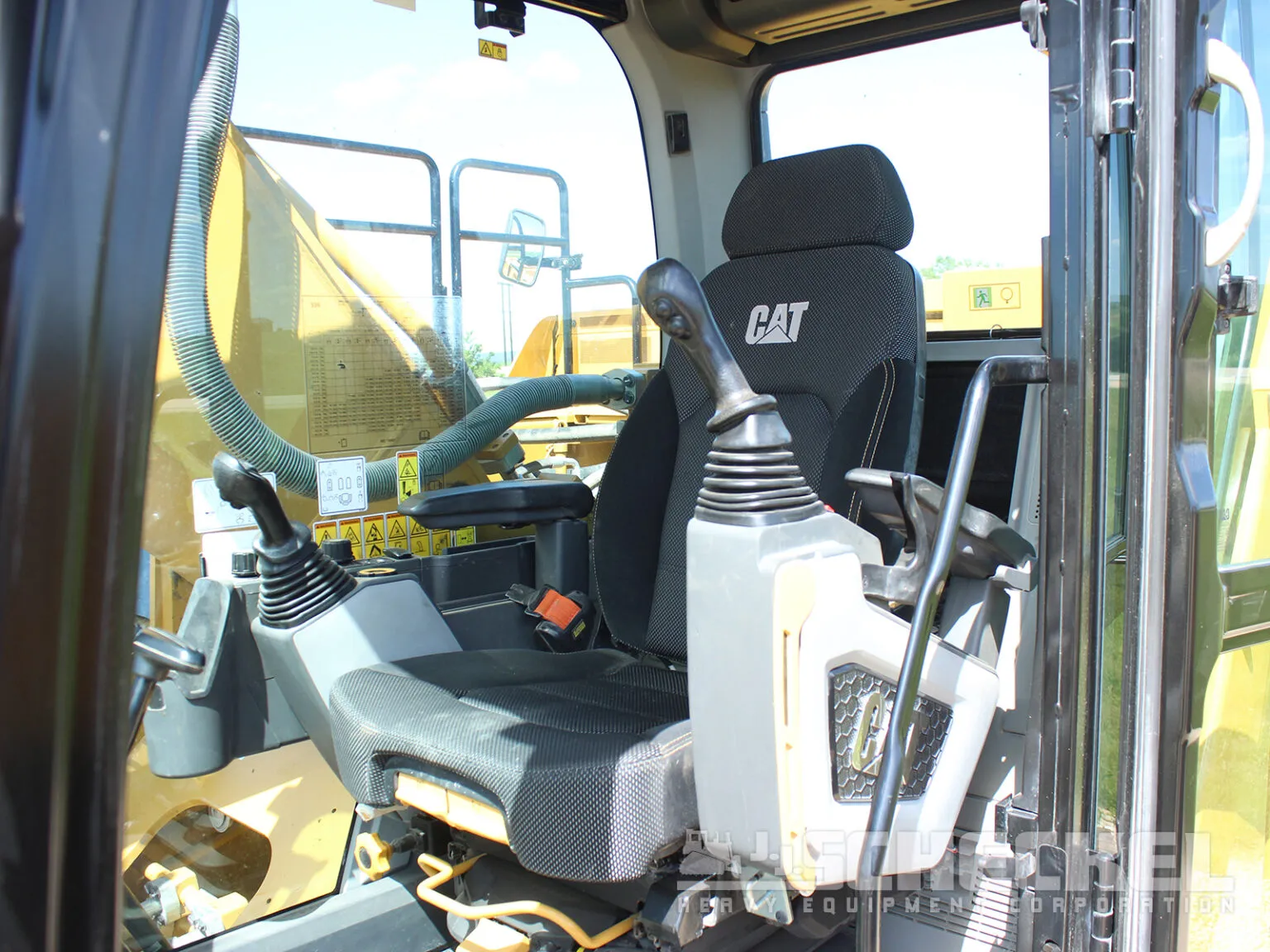

Interior [2]

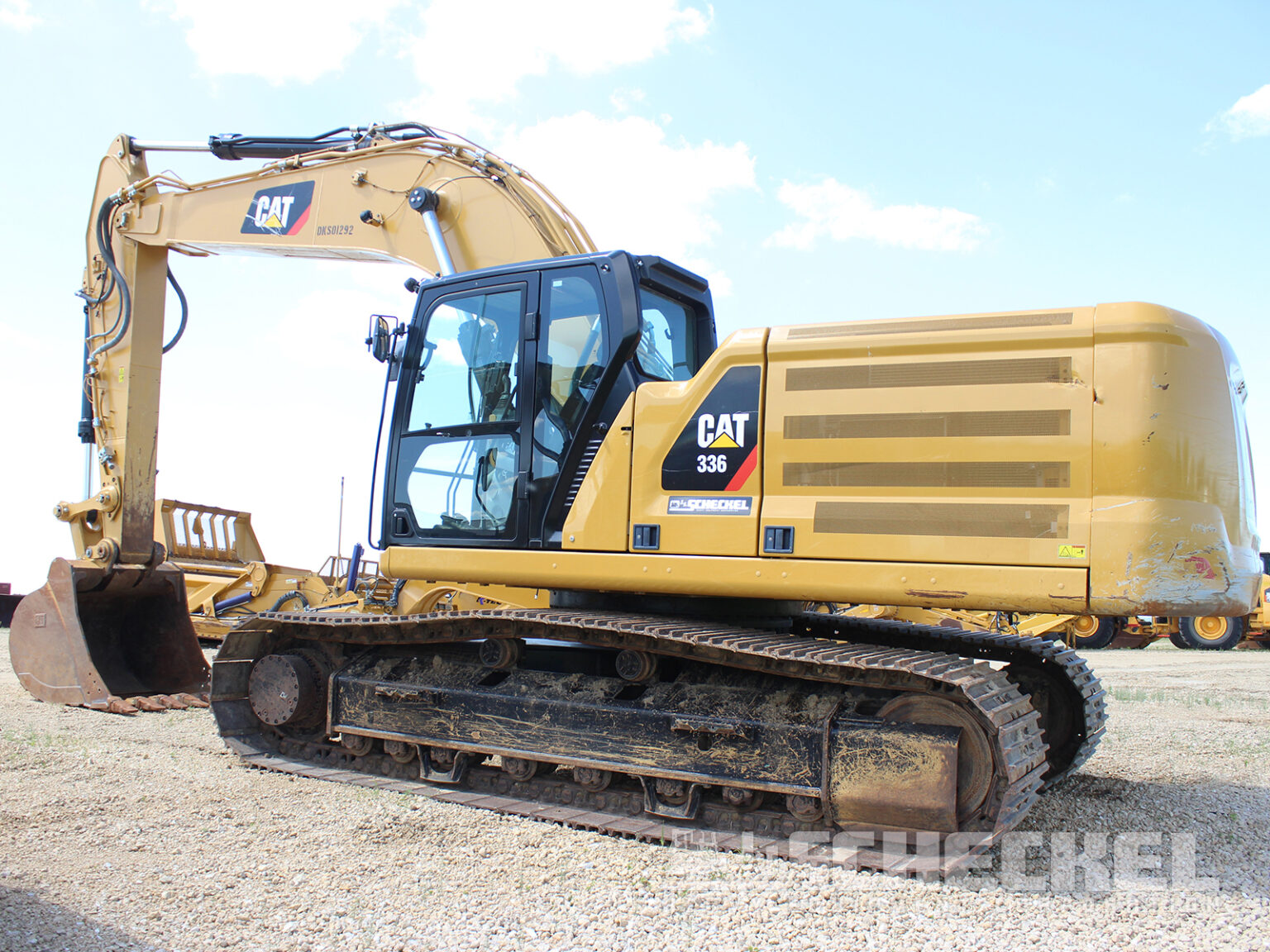

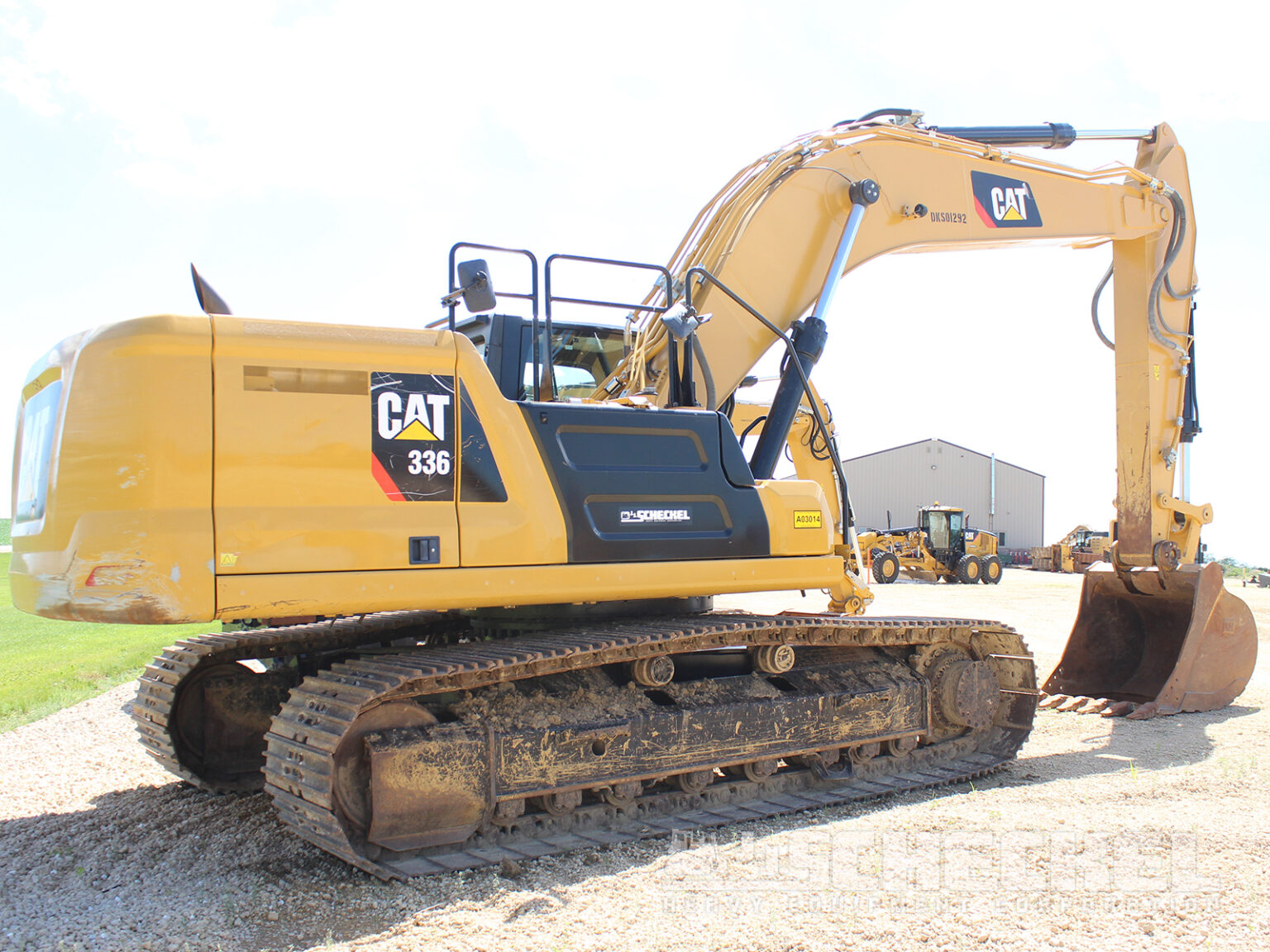

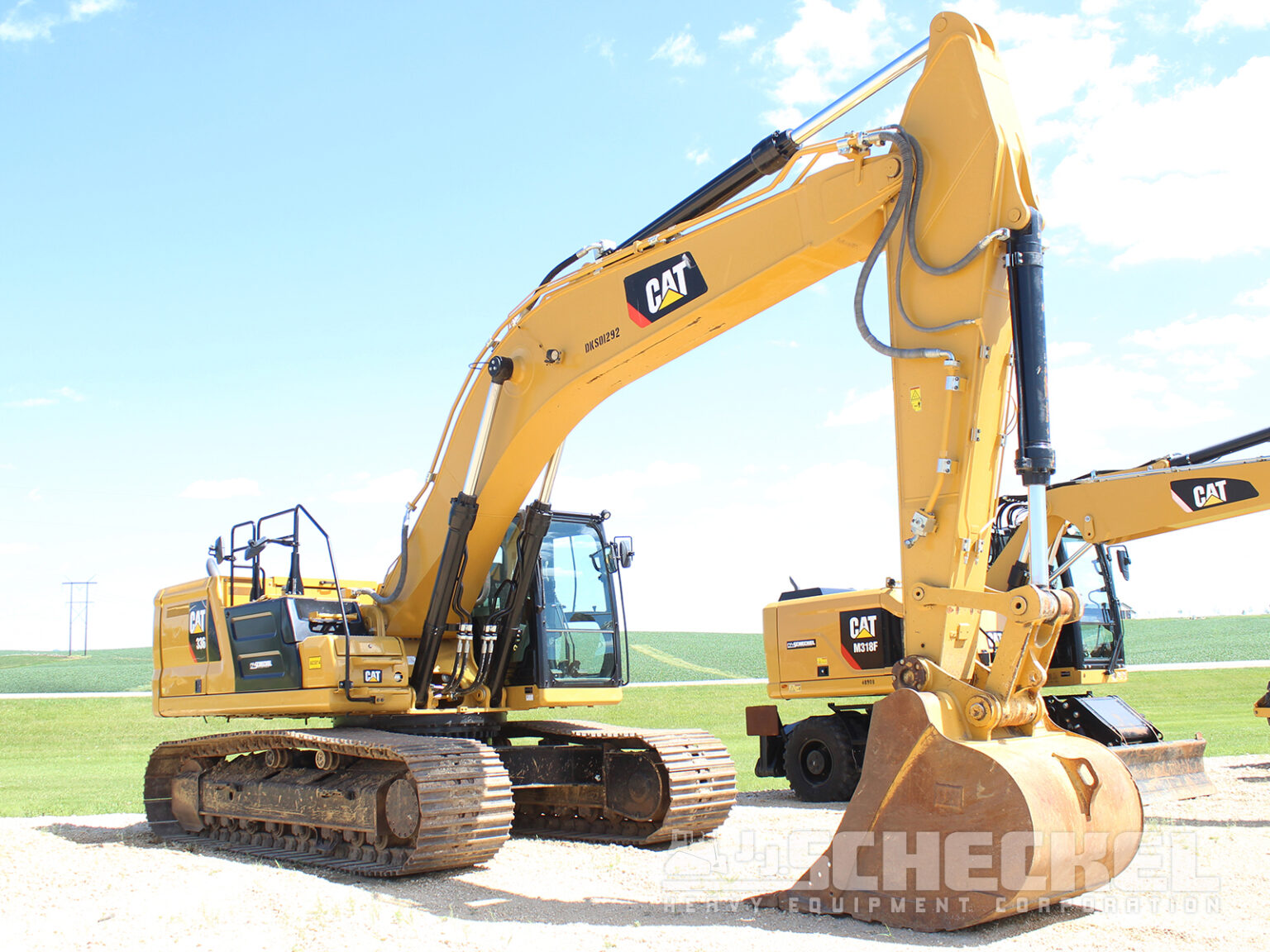

Exterior [4]

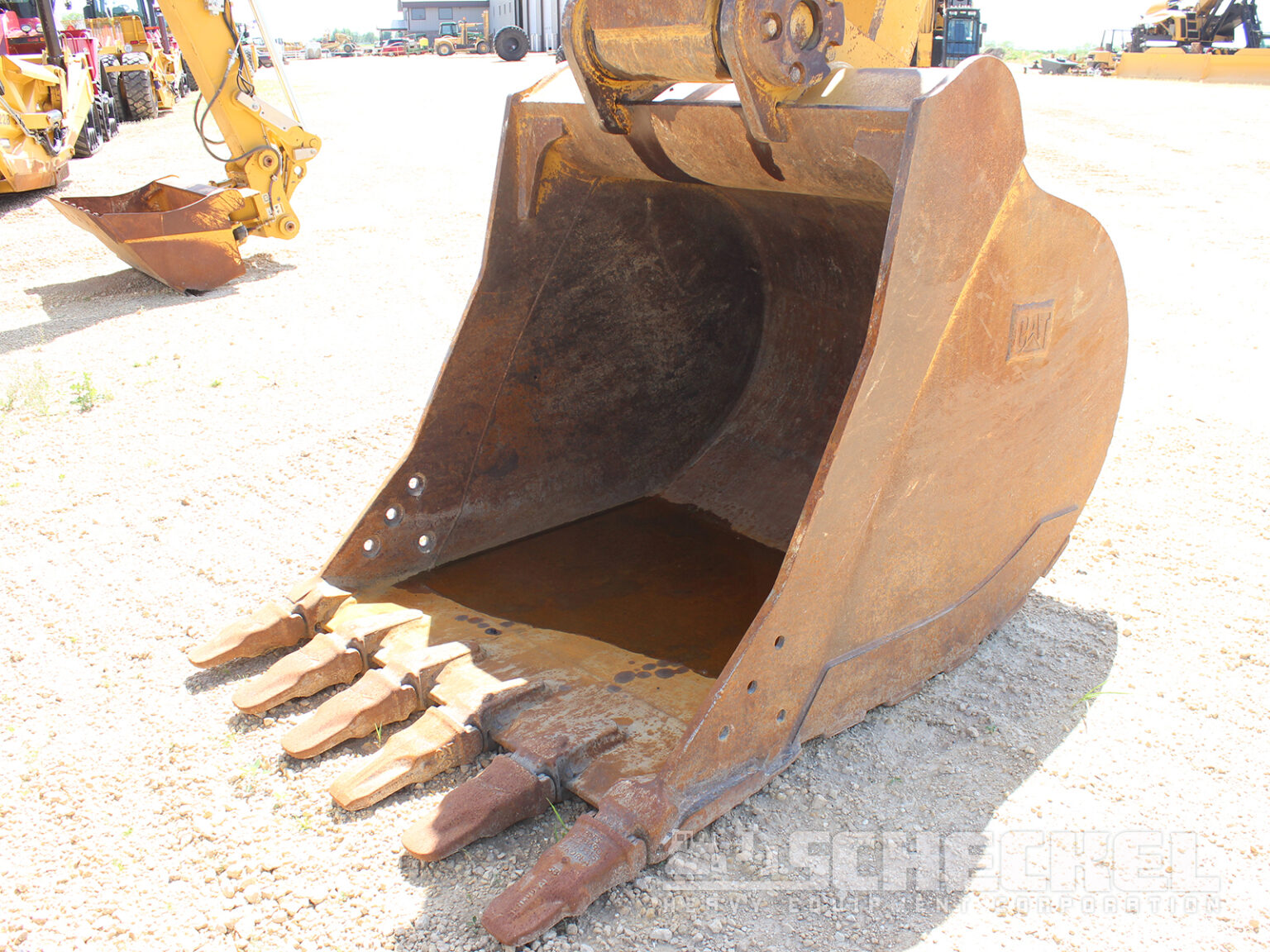

Attachments [2]
2018-2025
224 kw Gross power
36,500 kg Operating weight
7,430 mm Max digging depth
10,210 mm Max dump height
13,240 mm Max digging reach
2 cu m Bucket capacity
The Cat 336 delivers big power in a 36.6 t (80,600 lb) frame, with a roomy 2.27 m³ bucket and factory automation that cuts rework and boosts productivity.
223 kW (300 hp) C7.1 engine in a 36.6 t frame
2.27 m³ bucket swallows more per cycle
Cat Grade with Assist, Payload, and VisionLink included
Grouped service points and long intervals reduce downtime
Cat 336 technical specifications
Highlight differences
Engine model
Engine model Cat C9.3B
Engine model Cat C9.3B
Operating weight
Operating weight 36,500 kg
Operating weight 36,500 kg
Max digging depth
Max digging depth 7,430 mm
Max digging depth 7,430 mm
Max dump height
Max dump height 10,210 mm
Max dump height 10,210 mm
Max digging reach
Max digging reach 13,240 mm
Max digging reach 13,240 mm
Boom length
Boom length 6.7 m
Boom length 6.7 m
Bucket width
Bucket width 1,500 mm
Bucket width 1,500 mm
Bucket capacity
Bucket capacity 1.9 cu m
Bucket capacity 1.9 cu m
Max speed forward
Max speed forward 5.5 kph
Max speed forward 5.5 kph
Gradeability
Gradeability -
Gradeability 70 º
Years
Years 2018-2025
Years 2018-2025
Market Average
Market Average AED 1,250,000
Market Average AED 1,250,000
Price
Price AED 700,000
Price AED 700,000
Gross power
Gross power 223.71 kw
Gross power 223.71 kw
Displacement
Displacement 9,300 cu cm
Displacement 9,300 cu cm
Fuel cap
Fuel cap 640 liter
Fuel cap 640 liter
Hydraulic fluid cap
Hydraulic fluid cap 260 liter
Hydraulic fluid cap 260 liter
Swing speed
Swing speed 5.5 rpm
Swing speed 5.5 rpm
Arm crowding force
Arm crowding force 228 kN
Arm crowding force 228 kN
Bucket digging force
Bucket digging force 259 kN
Bucket digging force 259 kN
Drawbar Pull
Drawbar Pull 355 kN
Drawbar Pull 355 kN
Track width
Track width 6 cm
Track width 6 cm
Track length
Track length 4.5 m
Track length 4.5 m
Height - top of cab
Height - top of cab 3.15 m
Height - top of cab 3.15 m
Pump flow cap
Pump flow cap 424 lpm
Pump flow cap 424 lpm
Relief valve pressure
Relief valve pressure 379.96 bar
Relief valve pressure 379.96 bar
Engine oil cap
Engine oil cap 28 liter
Engine oil cap 28 liter
Download datasheets
Cat 336 expert review
Overview
The Cat 336 is a 36.6 t (80,600 lb) Tier 4 Final excavator powered by a 223 kW (300 hp) Cat C7.1 TTA engine. It features a 2.27 m³ bucket, 8.2 m (26.9 ft) digging depth, and up to 11.73 m (38.5 ft) reach.
Pros Heavy bucket capacity boosts material moved per pass.
Factory tech (Grade Assist, Payload, VisionLink) cuts grade time and error.
Factory tech (Grade Assist, Payload, VisionLink) cuts grade time and error.
Cons At 36.6 t, needs stable ground and haul planning.
Packed with tech, so operator training matters.
Packed with tech, so operator training matters.
Performance & Efficiency
With 560 L/min hydraulic flow and high dig force (~210 kN), it balances power with precision. Fuel consumption drops up to 15%, maintenance costs fall due to extended service intervals.
In Comparison
Compared to the 336 GC, you get more hydraulic power and tech at a modest weight bump. Against the 340, it's easier to transport and still accurate.
Verdict
The Cat 336 delivers utility, accuracy, and productivity in one package. Ideal for large excavation and grading tasks. Skip it for ultra-tight access sites or if you need stripped-down simplicity.
Cat 336 owner rating
Cat 336 Medium excavators [2018-2025]
2018-2025
Overall rating
Based on 0 ratings
5.0
5 stars
100 %
4 stars
0 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Cat 336 similar models
Highlight differences
Engine model
Engine model Cat C9.3B
Engine model Cat C3.3B
Engine model Cat C4.4 ACERT
Operating weight
Operating weight 36,500 kg
Operating weight 8,400 kg
Operating weight 21,300 kg
Max digging depth
Max digging depth 7,430 mm
Max digging depth 4,190 mm
Max digging depth 6,210 mm
Max dump height
Max dump height 10,210 mm
Max dump height 5,380 mm
Max dump height 7,340 mm
Max digging reach
Max digging reach 13,240 mm
Max digging reach 7,250 mm
Max digging reach 9,650 mm
Boom length
Boom length 6.7 m
Boom length 4.4 m
Boom length 5.8 m
Bucket width
Bucket width 1,500 mm
Bucket width 700 mm
Bucket width 900 mm
Bucket capacity
Bucket capacity 1.9 cu m
Bucket capacity 0.84 cu m
Bucket capacity 1.1 cu m
Max speed forward
Max speed forward 5.5 kph
Max speed forward 5.63 kph
Max speed forward 5.5 kph
Gradeability
Gradeability -
Gradeability -
Gradeability 70 º
Years
Years 2018-2025
Years 2017-2025
Years 2017-2025
Market Average
Market Average AED 1,250,000
Market Average AED 346,000
Market Average AED 950,000
Price
Price AED 700,000
Price AED 310,000
Price AED 450,000
Gross power
Gross power 223.71 kw
Gross power 49.66 kw
Gross power 103.65 kw
Displacement
Displacement 9,300 cu cm
Displacement 3,329.86 cu cm
Displacement 4,400 cu cm
Bore
Bore -
Bore 9.4 cm
Bore -
Stroke
Stroke -
Stroke 11.94 cm
Stroke -
Fuel cap
Fuel cap 640 liter
Fuel cap 140 liter
Fuel cap 400 liter
Hydraulic fluid cap
Hydraulic fluid cap 260 liter
Hydraulic fluid cap 82.13 liter
Hydraulic fluid cap 170 liter
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap 14 liter
Cooling fluid cap -
Swing speed
Swing speed 5.5 rpm
Swing speed 9.8 rpm
Swing speed 10.9 rpm
Arm crowding force
Arm crowding force 228 kN
Arm crowding force 38 kN
Arm crowding force 106 kN
Bucket digging force
Bucket digging force 259 kN
Bucket digging force 51 kN
Bucket digging force 133 kN
Drawbar Pull
Drawbar Pull 355 kN
Drawbar Pull 62 kN
Drawbar Pull 178 kN
Track width
Track width 6 cm
Track width 4.5 cm
Track width 6 cm
Track length
Track length 4.5 m
Track length 2.85 m
Track length 3.9 m
Track gauge
Track gauge -
Track gauge 2.01 m
Track gauge -
Height - top of cab
Height - top of cab 3.15 m
Height - top of cab 2.68 m
Height - top of cab 2.89 m
Pump flow cap
Pump flow cap 424 lpm
Pump flow cap 160 lpm
Pump flow cap 259 lpm
Relief valve pressure
Relief valve pressure 379.96 bar
Relief valve pressure 241.31 bar
Relief valve pressure 329.98 bar
Engine oil cap
Engine oil cap 28 liter
Engine oil cap 11.36 liter
Engine oil cap 15 liter
Cat 336 gallery
:quality(50)/products/10094/view_360/b0895b6f-071e-437e-84e6-22b3a39ccb9f.png "Cat 320D medium excavator")
MDX-SP-001
Cat 320D medium excavator
:quality(50)/products/10033/view_360/MDX-001_Thumbnail_00000.webp "Cat 323D3 medium excavator")
MDX-001
Cat 323D3 medium excavator
:quality(50)/products/10034/view_360/MDX-002_Thumbnail_00000.webp "Cat 323D3 medium excavator")
MDX-002
Cat 323D3 medium excavator

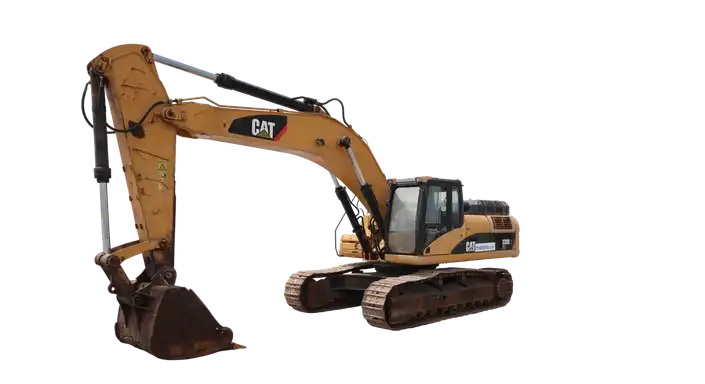

:quality(50)/products/10095/view_360/1a8644c7-269c-495a-a7d2-1cbdb661ad5d.png "Cat 336DL medium excavator")
