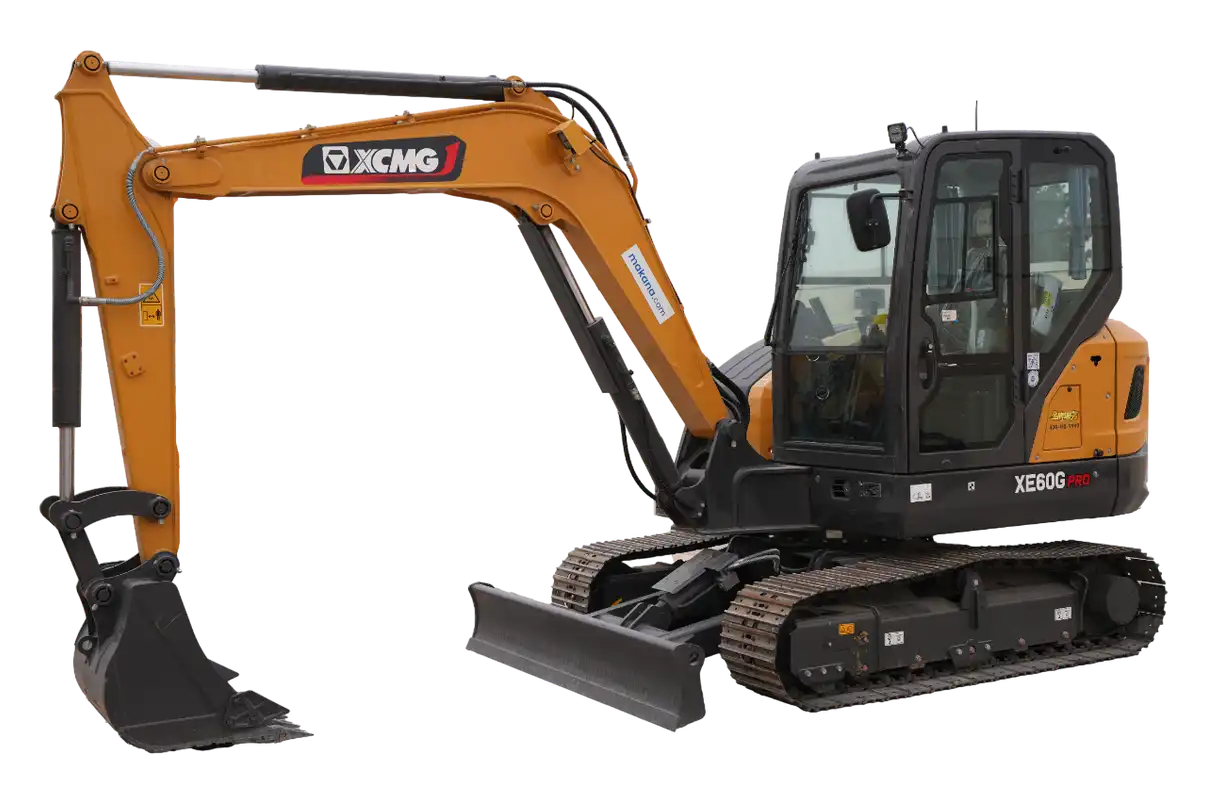

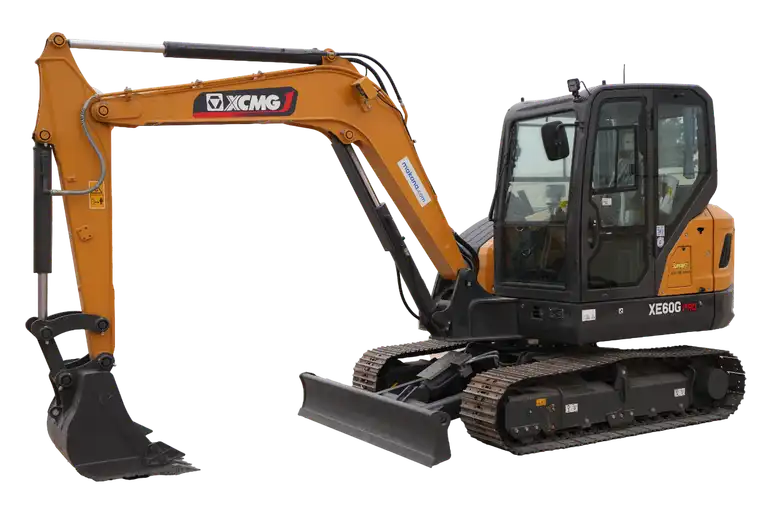

XCMG XE60 Mini excavators tech specs

makana img
video play button
Video[1]
Exterior [4]

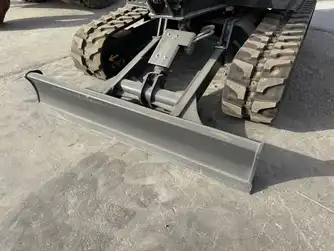

Attachments [2]

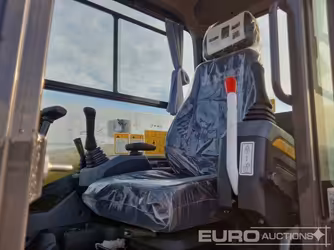

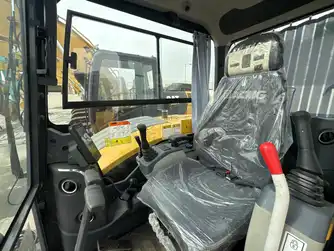

Interior [2]
2017-2026
3,830 mm Max digging depth
6,130 mm Max digging reach
3,885 mm Max dump height
6,000 kg Operating weight
35 kw Net power
48.3 kN Bucket digging force

A compact 6-ton mini excavator built for urban construction, utilities, and tight job sites, the XCMG XE60 combines a reliable 35 kW Kubota V2607 engine with a responsive hydraulic system delivering 144 L/min flow. With a 0.24 cu m bucket, 3.83 m digging depth, and strong breakout forces, it handles trenching, light excavation, and material handling while maintaining excellent maneuverability in confined spaces.

Operating weight 6,000 kg

Engine Kubota V2607

Net power 35 kilowatt

Bucket capacity 0.24 cu m

Max digging depth 3.83 m

Hydraulic flow 144 L/min

Swing speed 11 rpm

Fuel tank capacity 130 liters

Makana rating

Owner rating

 | 3

Market average

AED 182,500

Starting from

AED 153,560

XCMG XE60 Technical specifications

General

Boom length

3 m

Bucket width

800 mm

Gradeability

35 º

Engine model

Kubota V2607

Bucket capacity

0.24 cu m

Max digging depth

3830 mm

Max digging reach

6,130 mm

Max dump height

3885 mm

Operating weight

6,000 kg

Max speed forward

3.9 kph

Undercarriage

Track length

2.535 m

Drawbar Pull

70 kN

Track width

40 cm

Engine

Displacement

2615 cu cm

Net power

35 kw

Hydraulic system

Pump flow cap

144 lpm

Relief valve pressure

260 bar

Operational specifications

Arm crowding force

32.5 kN

Swing speed

11 rpm

Attachments

Bucket digging force

48.3 kN

Service refill capacities

Fuel cap

130 liter

Hydraulic fluid cap

65 liter

View more
Download datasheets
OEM product brochure

XCMG XE60 expert review

Reviewed by Marcis V. on March 24, 2026

Overview

The XCMG XE60 (2017–2026) is a compact 6-ton mini excavator designed for urban construction and utility work. It delivers 35 kilowatt engine power, a 0.24 cu m bucket, and a 3.83 m digging depth, making it suitable for trenching and light excavation tasks.

Expert rating: 5 stars

Pros Strong hydraulics and compact size for efficient work in tight job sites.
Cons Limited digging capacity compared with larger excavators.

Performance & Efficiency

The 35 kilowatt engine and 144 L/min hydraulic system provide smooth operation and reliable digging performance for urban construction work.

In Comparison

Cat 305: Premium compact excavator with strong resale value.
Komatsu PC78: Slightly larger machine with higher capacity.
XCMG XE60: Cost-effective excavator with strong hydraulic performance.

Final Verdict

Rated 5 stars, the XCMG XE60 delivers efficient performance within the AED 77,000–110,000 range.

Show less

XCMG XE60 owner rating

XCMG XE60 Mini excavators [2017-2026]

2017-2026

Overall rating

Based on 3 ratings

4.3
performance

4.3

comfort

4.3

fuel efficiency

4.7

safety

4.7

features

4.3

5 stars

33 %

4 stars

67 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros
Strong hydraulic performance for trenching and utility work.
Cons
Limited size restricts heavy excavation tasks.
performance

4.0

comfort

5.0

fuel efficiency

4.0

safety

5.0

features

4.0

Pros
Compact size makes it easy to work in tight urban environments.
Cons
Travel speed is low for larger site movement.
performance

4.0

comfort

4.0

fuel efficiency

5.0

safety

5.0

features

4.0

XCMG XE60 similar models

Highlight differences

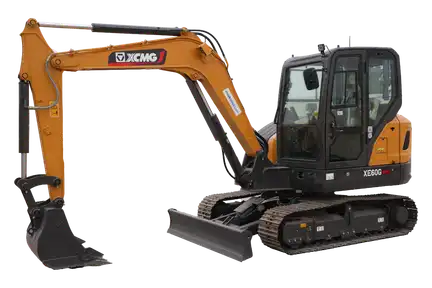

XCMG XE60G Pro
Cat 30550
Komatsu PC78UU-6
General
Boom length 3 m
Boom length 3.2 m
Boom length 3.27 m
Bucket width 800 mm
Bucket width 766 mm
Bucket width 630 mm
Gradeability 35 º
Gradeability 30 º
Gradeability 35 º
Engine model Kubota V2607
Engine model C2.4 DI
Engine model S4D95LE-3
Bucket capacity 0.24 cu m
Bucket capacity 0.22 m3
Bucket capacity 0.28 cu m
Max digging depth 3,830 mm
Max digging depth 3,720 mm
Max digging depth 4,230 mm
Max digging reach 6,130 mm
Max digging reach 5,800 mm
Max digging reach 6,400 mm
Max dump height 3,885 mm
Max dump height 3,800 m
Max dump height 5,290 mm
Operating weight 6,000 kg
Operating weight 5,400 kg
Operating weight 7,700 kg
Max speed forward 3.9 kph
Max speed forward 4.5 kph
Max speed forward 4.5 kph
Max digging reach -
Max digging reach 5,800 mm
Max digging reach -
Years 2017-2026
Years 2021
Years 2000-2014
Market Average AED 182,500
Market Average AED 125,000
Market Average AED 100,000
Price AED 153,560
Price AED 112,500
Price AED 20,000
Undercarriage
Track length 2.535 m
Track length -
Track length 2.9 m
Drawbar Pull 70 kN
Drawbar Pull 47.8 kN
Drawbar Pull 65.1 kN
Track width 40 cm
Track width 40 mm
Track width 45 cm
Engine
Displacement 2,615 cu cm
Displacement 2,000 cu cm
Displacement 3,261 cu cm
Net power 35 kw
Net power 34.08 kw
Net power 40.2 kw
Gross power -
Gross power 34.08 kw
Gross power -
Hydraulic system
Pump flow cap 144 lpm
Pump flow cap 150 lpm
Pump flow cap 160 lpm
Relief valve pressure 260 bar
Relief valve pressure 229.9 bar
Relief valve pressure 270 bar
Operational specifications
Arm crowding force 32.5 kN
Arm crowding force 28.9 kN
Arm crowding force 40.4 kN
Swing speed 11 rpm
Swing speed 10.5 rpm
Swing speed 10 rpm
Attachments
Bucket digging force 48.3 kN
Bucket digging force 50.9 kN
Bucket digging force 61.3 kN
Service refill capacities
Fuel cap 130 liter
Fuel cap 78 liter
Fuel cap 125 liter
Hydraulic fluid cap 65 liter
Hydraulic fluid cap 78 liter
Hydraulic fluid cap 120 liter
