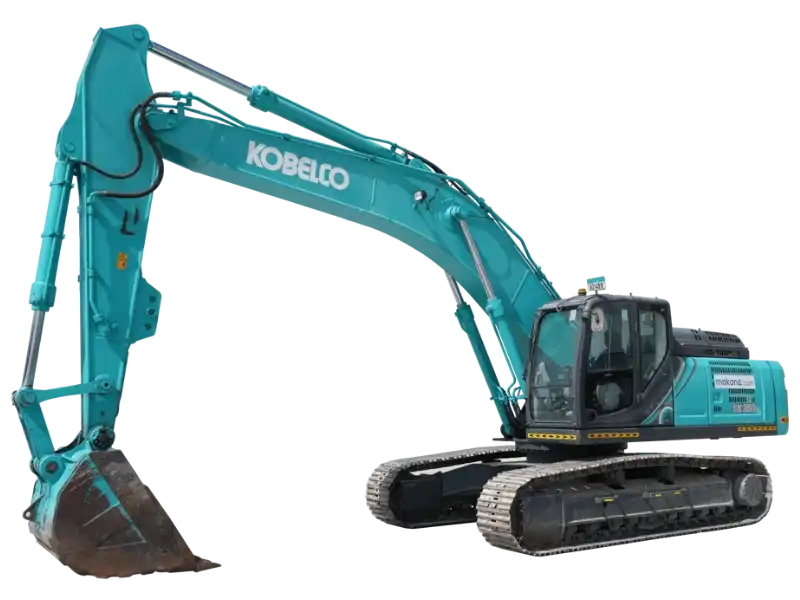

Kobelco SK350 Medium excavators

100K+ machines in details.

Kobelco SK350 Medium excavators tech specs

Video[1]

Interior [2]

Exterior [4]

Attachments [2]

2019-2022

6.5 m Boom length

209 kw Gross power

7,650 mm Max digging depth

11,200 mm Max digging reach

7,370 mm Max dump height

35,200 kg Operating weight

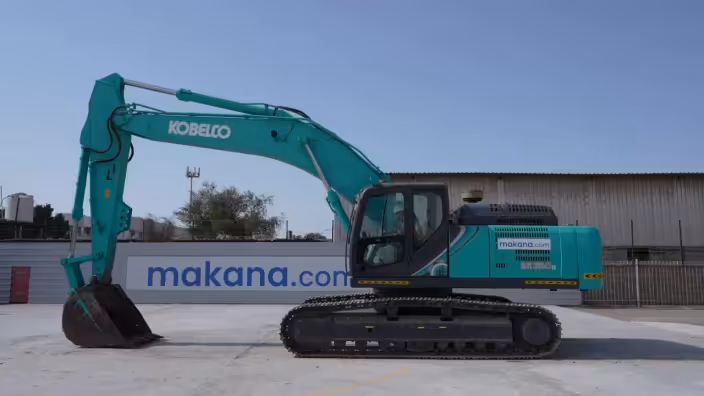

A Japan-built, 5-star, 35-ton class excavator, the Kobelco SK350LC-10 pairs a Hino J08E engine with high-flow twin pumps for serious digging and truck-loading productivity. Strong breakout, long reach, and low-vibe hydraulics make it a contractor favorite in this price band.

Hino J08EUN, 209 kW gross power

Operating weight ~35,200 kg

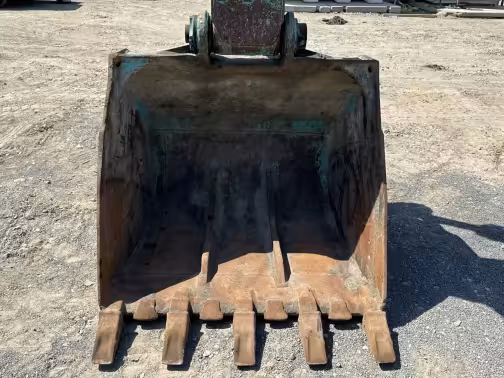

Bucket 1.4 m³, width 1,600 mm

Bucket force 244 kN, arm force 180 kN

Twin pumps 2 × 294 L/min, relief 378 bar

Swing 10 rpm, drawbar pull 333 kN, travel 5.8 kph

Fuel tank 503 L

Price range: AED 469K–615K

Show features

Makana rating

Owner rating

| 3

Market average

AED 638,000

Starting from

AED 469,000

Kobelco SK350 Technical specifications

Operational specifications

Arm crowding force

180 kN

Swing speed

10 rpm

General

Boom length

6.5 m

Bucket capacity

1.4 cu m

Bucket width

1,600 mm

Engine model

Hino J08EUN

Gradeability

70 º

Max digging depth

7650 mm

Max digging reach

11,200 mm

Max dump height

7370 mm

Max speed forward

5.8 kph

Operating weight

35,200 kg

Attachments

Bucket digging force

244 kN

Engine

Displacement

7684 cu cm

Gross power

209 kw

Undercarriage

Drawbar Pull

333 kN

Track length

4.9 m

Track width

60 cm

Refill capacities

Engine oil cap

28.5 liter

Service refill capacities

Fuel cap

503 liter

Hydraulic fluid cap

245 liter

Dimensions

Height - top of cab

3.15 m

Hydraulic system

Pump flow cap

294 lpm

Relief valve pressure

378 bar

Download datasheets

OEM product brochure

Kobelco SK350 expert review

Reviewed by on

Overview

The SK350LC-10 is a Japan-built 35-ton class excavator aimed at production digging and truck loading. A Hino J08E (up to 209 kW) drives twin pumps for fast cycles, with 10 rpm swing and confident tracking for bench work.

Pros Strong breakout and smooth hydraulics with twin high-flow pumps. Stable swing and drawbar pull for confident truck loading.

Cons Heavier transport footprint than 30-ton peers; fuel use rises under continuous heavy digging.

Efficiency

Twin variable-displacement pumps (2 × 294 L/min) plus a gear pump keep attachments and digging fast without jumpy controls. The 10 rpm swing and long undercarriage support steady, predictable loading cycles.

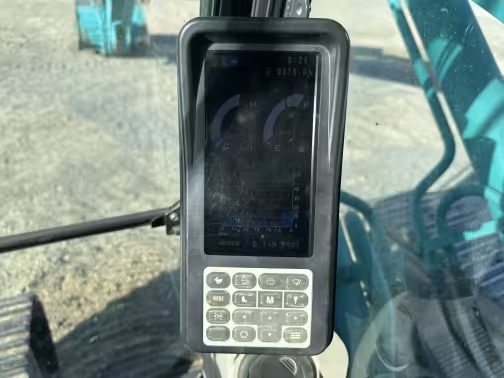

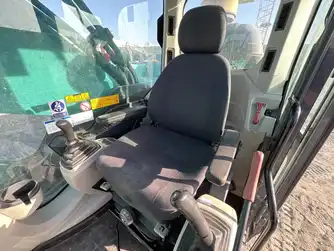

In Cabin

Clear sight lines, effective climate control, and straightforward daily checks. Heavy Lift / Power Boost modes support tough cuts without overcomplication.

In Comparison

Cat 320: ~22 t, ~129 kN bucket force — smaller class. Cat 323: ~25 t, ~140 kN bucket force — still below SK350 output. Cat 330: ~31 t with 11.5 rpm swing — closer peer; Kobelco emphasizes smooth hydraulics and stability.

Final Verdict

A 5-star, Japan-built 35-tonner with serious digging power and smooth cycles. Expect a clear step up from 20–25 t units and competitive productivity versus a Cat 330.
