Cat 306 CR vs. Cat 307.5 Mini excavators Comparison

Compare available technical data for Excavators. Find the right details to make your decision easier.

Comparison

Highlight differences

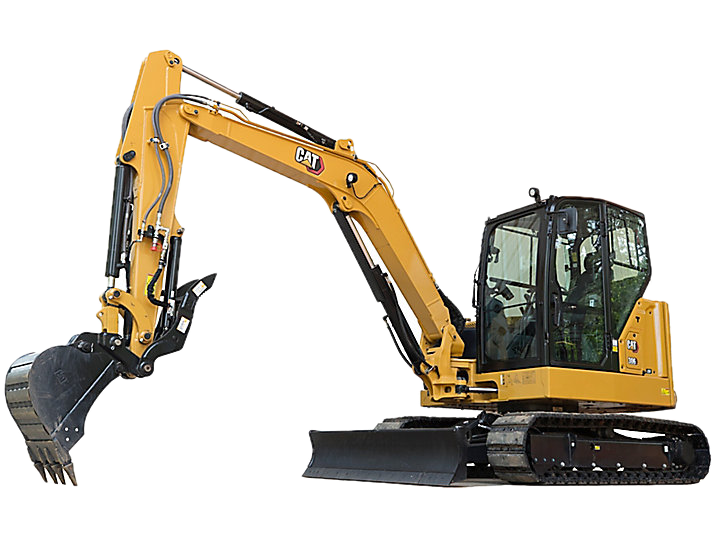

Cat 306 Mini excavators

306 CR

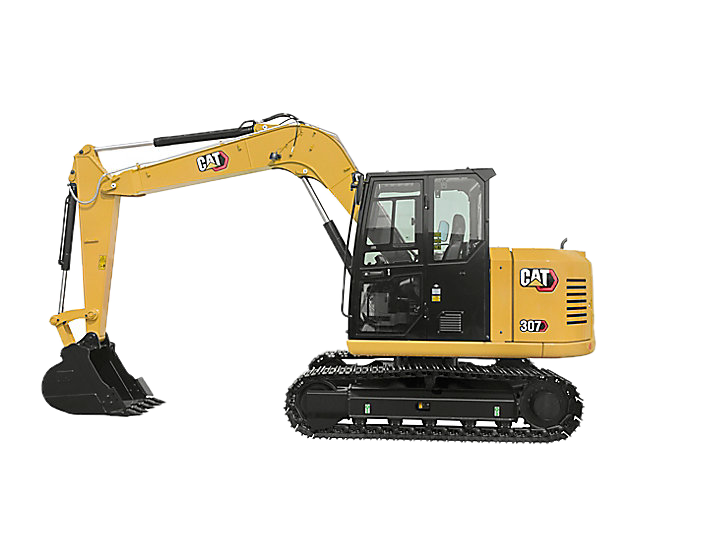

Cat 307 Mini excavators

307.5

General

Engine model

Engine model Cat C1.8

Engine model -

Operating weight

Operating weight 1,790 kg

Operating weight 8,233 kg

Max digging depth

Max digging depth 2,300 mm

Max digging depth 4,107.18 mm

Max dump height

Max dump height 2,880 mm

Max dump height 7,757.16 mm

Max digging reach

Max digging reach 3,620 mm

Max digging reach 6,804.66 mm

Boom length

Boom length 2.3 m

Boom length 1.68 m

Bucket width

Bucket width 400 mm

Bucket width -

Bucket capacity

Bucket capacity 0.04 cu m

Bucket capacity -

Max speed forward

Max speed forward 3.2 kph

Max speed forward 4.99 kph

Years

Years 2020-2025

Years 2018-2021

Market Average

Market Average AED 450,000

Market Average AED 158,000

Price

Price AED 280,000

Price AED 128,000

Engine

Gross power

Gross power 18.12 kw

Gross power 41.69 kw

Displacement

Displacement 1,800 cu cm

Displacement 2,425.29 cu cm

Bore

Bore -

Bore 8.64 cm

Stroke

Stroke -

Stroke 10.16 cm

Service refill capacities

Fuel cap

Fuel cap 28 liter

Fuel cap 143.83 liter

Hydraulic fluid cap

Hydraulic fluid cap 36 liter

Hydraulic fluid cap 102.2 liter

Cooling fluid cap

Cooling fluid cap -

Cooling fluid cap 9.84 liter

Operational specifications

Arm crowding force

Arm crowding force 9.8 kN

Arm crowding force 37.8 kN

Blade width

Blade width -

Blade width 228 cm

Attachments

Bucket digging force

Bucket digging force 12.7 kN

Bucket digging force 54.55 kN

Undercarriage

Drawbar Pull

Drawbar Pull 14.2 kN

Drawbar Pull 26.03 kN

Track width

Track width 10 cm

Track width 22 cm

Track length

Track length 1.4 m

Track length 2.88 m

Hydraulic system

Pump flow cap

Pump flow cap 31.5 lpm

Pump flow cap 166.54 lpm

Relief valve pressure

Relief valve pressure 219.94 bar

Relief valve pressure -

Dimensions

Blade height

Blade height -

Blade height 43.18 cm

Overall Length

Overall Length -

Overall Length 6.26 m

Height - top of cab

Height - top of cab -

Height - top of cab 2.5 m

Refill capacities

Engine oil cap

Engine oil cap -

Engine oil cap 9.46 liter

Performance

Looking at performance technical specs and key features the Cat 306 CR Mini excavators excels in terms of engine power at and operating weight 1790 compared to other models like the Cat 307.5 Mini excavators.

User rating

Owners operators and fleet managers recommend the Cat 306 CR Mini excavators for its high reliability and endurance in diverse applications. The same can be said about the Cat 307.5 Mini excavators.
