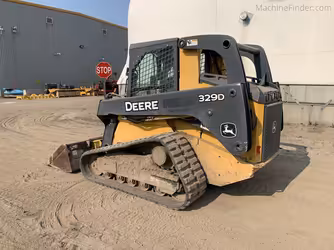

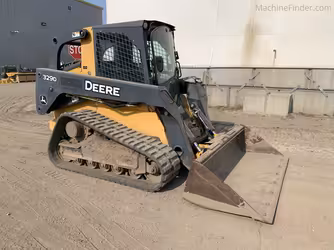

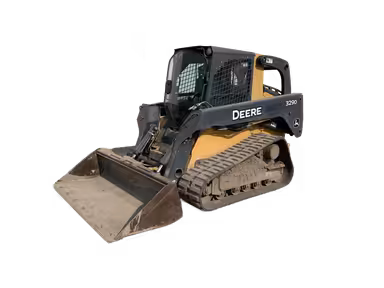

John deere 329 Compact track loaders tech specs

makana img
video play button
Video[1]

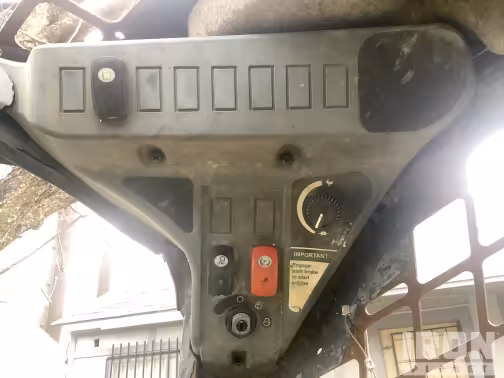

Interior [2]

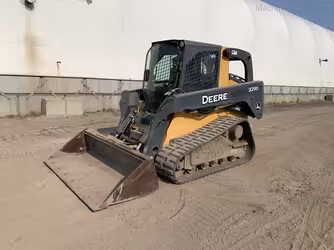

Exterior [4]

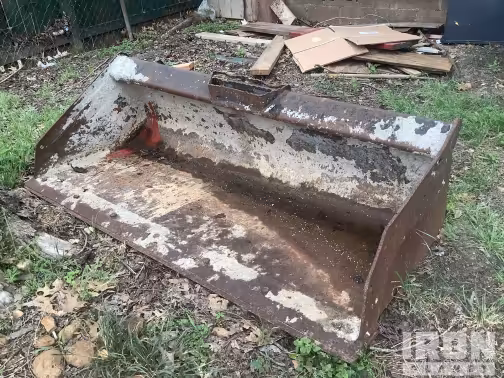

Attachments [2]
2005-2013
4,688.02 kg Breakout force
179.72 kw Gross power
2.59 m Loader dump height
1,317.01 kg Lifting capacity
5,221 kg Operating weight
3,768 kg Tipping load

A high-capacity compact track loader, the John Deere 329 steps above the 319 and 323D with stronger lift and breakout in a still-manageable footprint. With over 1.3 tons rated lift and nearly 4.7 tons of breakout, it’s built for heavier material handling on tight to mid-size jobsites.

Gross power 179.72 kW

Operating weight ~5,221 kg

Breakout force ~4,688 kg

Rated lifting capacity 1,317 kg

Loader dump height 2.59 m

Tipping load 3,768 kg

Price range AED 140.5K–163.5K

Makana rating

Owner rating

 | 2

Market average

AED 163,500

Starting from

AED 140,500

John deere 329 technical specifications

Highlight differences

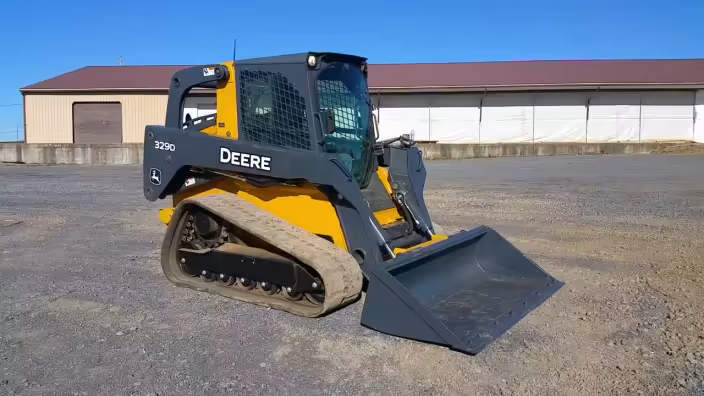

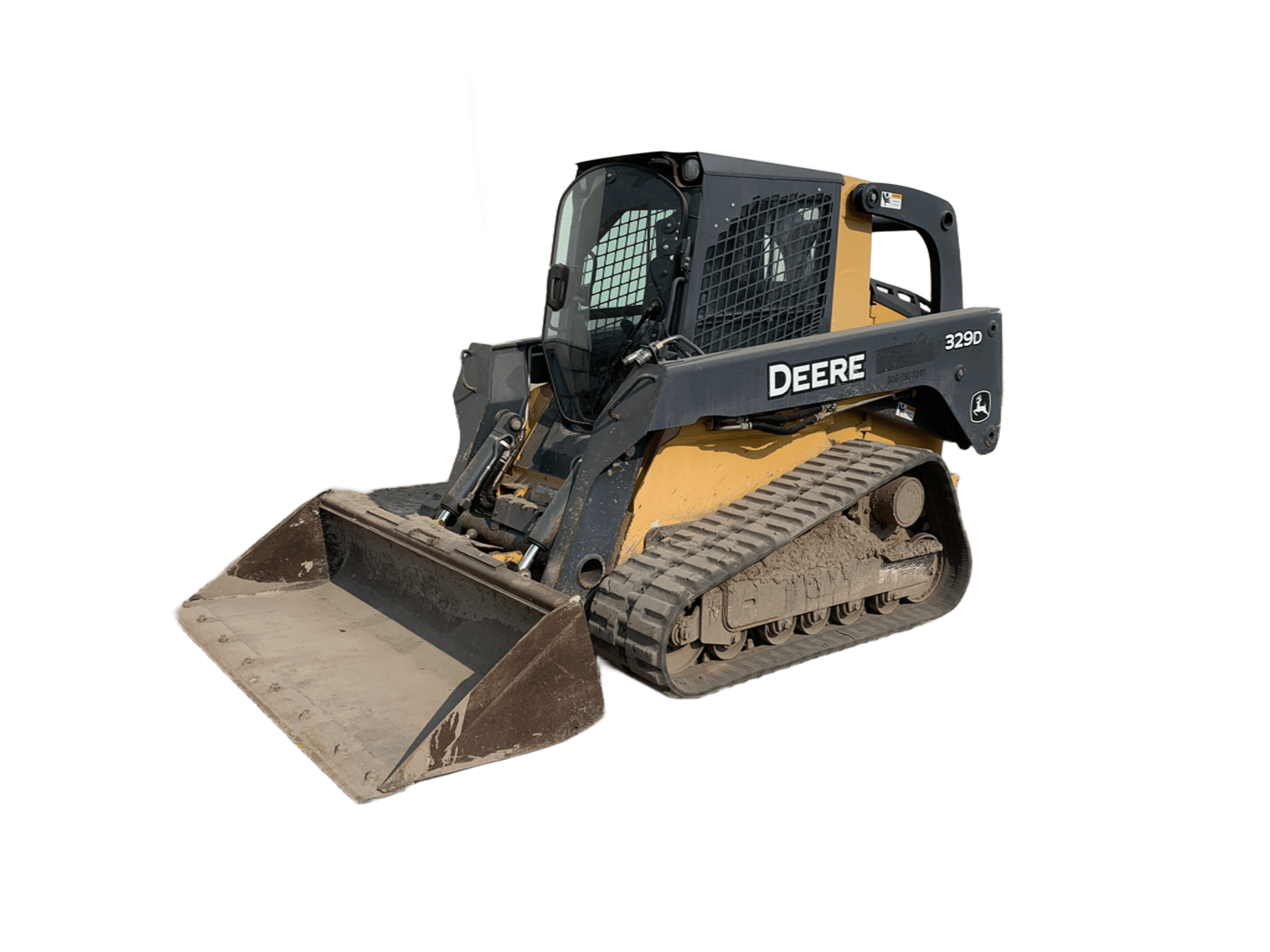

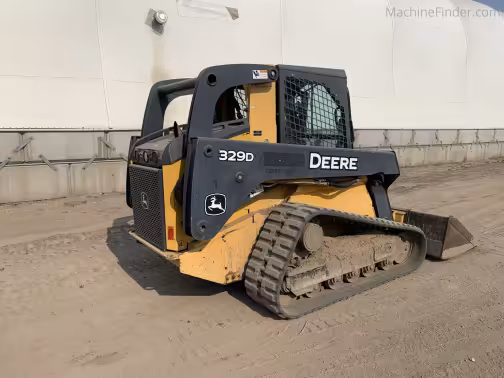

John deere 329D

John deere 329E

Loader
Breakout force 4,683.35 kg
Breakout force 4,688.02 kg
Loader dump height -
Loader dump height 2.59 m
Loader dump reach -
Loader dump reach 1 m
Years 2005-2013
Years 2005-2013
Market Average AED 163,500
Market Average AED 163,500
Price AED 140,500
Price AED 140,500
General
Engine model 4TNV94CHT
Engine model Cat C7.1 ACERT
Max speed forward 9.98 kph
Max speed forward 12.71 kph
Operating weight 5,216 kg
Operating weight 5,221 kg
Displacement -
Displacement 7,013.68 cu cm
Lifting capacity -
Lifting capacity 1,317.01 kg
Operating voltage -
Operating voltage 12 V
Tipping load -
Tipping load 3,768 kg
Service refill capacities
Fuel cap 96.52 liter
Fuel cap 96.52 liter
Cooling fluid cap -
Cooling fluid cap 44.28 liter
Hydraulic fluid cap -
Hydraulic fluid cap 155.19 liter
Engine
Gross power 64.13 kw
Gross power 179.72 kw
Net power 61.89 kw
Net power 62.04 kw
Power measured @ 2,500 rpm
Power measured @ 2,500 rpm
Alternator supplied amperage -
Alternator supplied amperage 70 Amh
Aspiration -
Aspiration Turbocharged
Bore -
Bore 10.67 cm
Engine make -
Engine make Yanmar
Max torque -
Max torque 360.1 Nm
Number of cylinders -
Number of cylinders 4
Stroke -
Stroke 13.72 cm
Torque measured @ -
Torque measured @ 1,700 rpm
Dimensions
Ground clearance 0.26 m
Ground clearance 0.26 m
Height - top of cab 2.16 m
Height - top of cab 2.15 m
Length with bucket 3.66 m
Length with bucket 3.69 m
Width over tracks 2.01 m
Width over tracks 0.43 m
Length without Bucket -
Length without Bucket 3.08 m
Max height to hinge pin -
Max height to hinge pin 320.04 cm
Turning radius -
Turning radius 2.19 m
Hydraulic system
Pump flow cap 79.49 lpm
Pump flow cap 80.24 lpm
Relief valve pressure 237.87 bar
Relief valve pressure 237.87 bar
Operating specifications
Dump angle -
Dump angle 45 º
Undercarriage
Ground pressure -
Ground pressure 0.34 bar
Number of track rollers per side -
Number of track rollers per side 5
Download datasheets
OEM product brochure

John deere 329 expert review

Reviewed by Raul M. on January 29, 2026

Overview

The John Deere 329 CTL delivers significantly higher lift and breakout than the 319 , targeting heavier pallet and bulk material handling.

Pros High lift for its class, strong breakout, stable truck-loading platform.

Cons Larger size reduces agility and higher weight increases ground impact.

Efficiency

Breakout near 4,700 kg and 1,317 kg rated lift support confident handling of dense materials.

In Cabin

Functional controls and good visibility, with comfort trailing newer premium CTLs.

In Comparison

Compared with John Deere 319, the 329 leads clearly in lift and loading capability.

Final Verdict

A 5-star compact track loader focused on heavy material handling in a compact footprint.

Show less

John deere 329 owner rating

John deere 329 Compact track loaders [2005-2013]

2005-2013

Overall rating

Based on 2 ratings

5.0
performance

4.5

comfort

4.5

fuel efficiency

5.0

safety

4.5

features

4.5

5 stars

100 %

4 stars

0 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros
Easily handles heavy pallets without feeling unstable.
Cons
Larger footprint makes tight residential access harder.
performance

5.0

comfort

5.0

fuel efficiency

5.0

safety

4.0

features

4.0

John deere 329 similar models

Highlight differences
John deere 329E

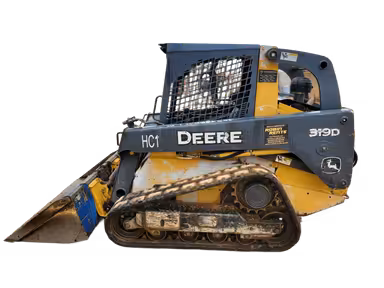

John deere 319D
Cat 323D3
Engine
Alternator supplied amperage 70 Amh
Alternator supplied amperage 70 Amh
Alternator supplied amperage -
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration -
Bore 10.67 cm
Bore -
Bore -
Engine make Yanmar
Engine make John Deere
Engine make -
Gross power 179.72 kw
Gross power 50.86 kw
Gross power 107 kw
Max torque 360.1 Nm
Max torque 230.08 Nm
Max torque -
Net power 62.04 kw
Net power 47.13 kw
Net power -
Number of cylinders 4
Number of cylinders 4
Number of cylinders -
Power measured @ 2,500 rpm
Power measured @ 2,300 rpm
Power measured @ -
Stroke 13.72 cm
Stroke -
Stroke -
Torque measured @ 1,700 rpm
Torque measured @ 2,000 rpm
Torque measured @ -
Years 2005-2013
Years 2005-2013
Years 2019-2025
Market Average AED 163,500
Market Average AED 106,000
Market Average AED 315,000
Price AED 140,500
Price AED 77,000
Price AED 287,000
Loader
Breakout force 4,688.02 kg
Breakout force 2,324.66 kg
Breakout force -
Loader dump height 2.59 m
Loader dump height 2.4 m
Loader dump height -
Loader dump reach 1 m
Loader dump reach 0.72 m
Loader dump reach -
Service refill capacities
Cooling fluid cap 44.28 liter
Cooling fluid cap -
Cooling fluid cap -
Fuel cap 96.52 liter
Fuel cap 70.02 liter
Fuel cap 390 liter
Hydraulic fluid cap 155.19 liter
Hydraulic fluid cap -
Hydraulic fluid cap 218 liter
General
Displacement 7,013.68 cu cm
Displacement 2,400.71 cu cm
Displacement 7,010 cm3
Engine model Cat C7.1 ACERT
Engine model E 4024HT
Engine model C7.1
Lifting capacity 1,317.01 kg
Lifting capacity 863.01 kg
Lifting capacity -
Max speed forward 12.71 kph
Max speed forward -
Max speed forward 5.8 kph
Operating voltage 12 V
Operating voltage 12 V
Operating voltage -
Operating weight 5,221 kg
Operating weight 3,882 kg
Operating weight 22,600 kg
Tipping load 3,768 kg
Tipping load 2,542 kg
Tipping load -
Max dump height -
Max dump height -
Max dump height 6.29 m
Boom length -
Boom length -
Boom length 5.7 m
Gradeability -
Gradeability -
Gradeability 35 %
Bucket width -
Bucket width -
Bucket width 1,450 mm
Bucket capacity -
Bucket capacity -
Bucket capacity 1.2 m3
Max digging depth -
Max digging depth -
Max digging depth 6,300 mm
Max digging reach -
Max digging reach -
Max digging reach 9,470 mm
Operating specifications
Dump angle 45 º
Dump angle 42 º
Dump angle -
Dimensions
Ground clearance 0.26 m
Ground clearance 0.25 m
Ground clearance -
Height - top of cab 2.15 m
Height - top of cab 2 m
Height - top of cab 3.05 m
Length with bucket 3.69 m
Length with bucket -
Length with bucket -
Length without Bucket 3.08 m
Length without Bucket 2.74 m
Length without Bucket -
Max height to hinge pin 320.04 cm
Max height to hinge pin 300.23 cm
Max height to hinge pin -
Turning radius 2.19 m
Turning radius 2.01 m
Turning radius -
Width over tracks 0.43 m
Width over tracks -
Width over tracks -
Undercarriage
Ground pressure 0.34 bar
Ground pressure 0.37 bar
Ground pressure -
Number of track rollers per side 5
Number of track rollers per side 4
Number of track rollers per side -
Drawbar Pull -
Drawbar Pull -
Drawbar Pull 210 kN
Track width -
Track width -
Track width 600 mm
Hydraulic system
Pump flow cap 80.24 lpm
Pump flow cap 59.05 lpm
Pump flow cap 429 lpm
Relief valve pressure 237.87 bar
Relief valve pressure 213.74 bar
Relief valve pressure 349.9 bar
Operational specifications
Swing speed -
Swing speed -
Swing speed 11.88 rpm
Arm crowding force -
Arm crowding force -
Arm crowding force 111 kN
Refill capacities
Engine oil cap -
Engine oil cap -
Engine oil cap 18 liter
Attachments
Bucket digging force -
Bucket digging force -
Bucket digging force 147 kN
