John deere

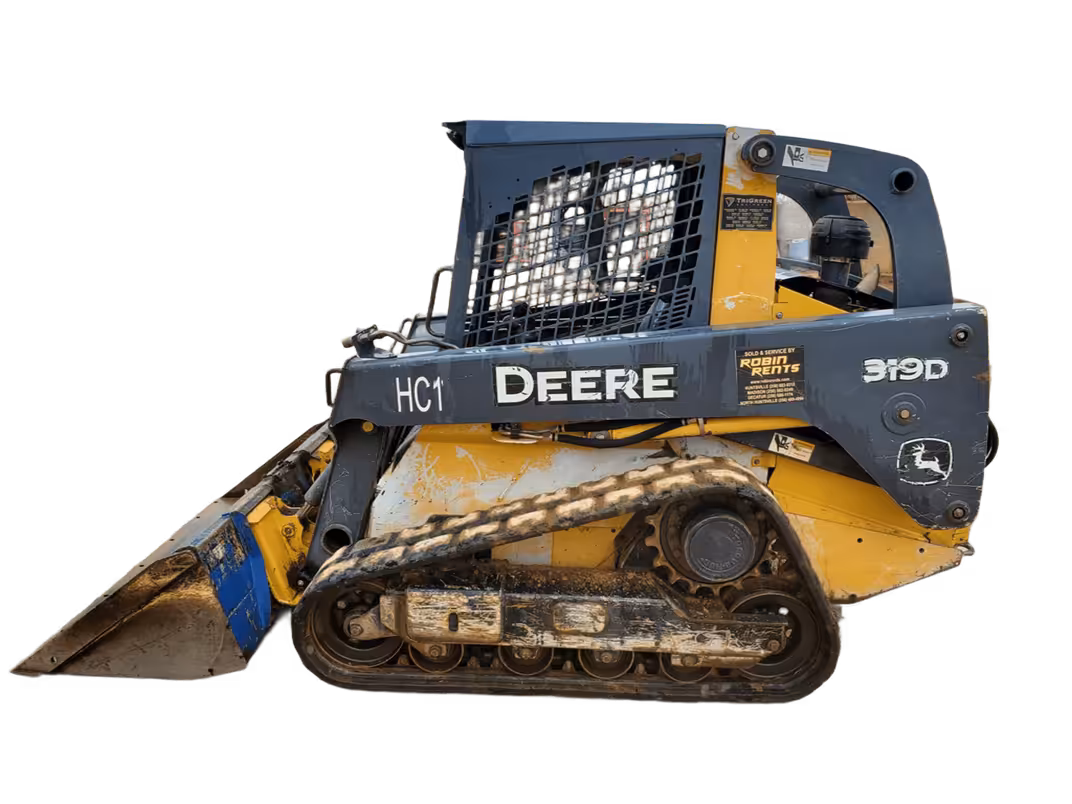

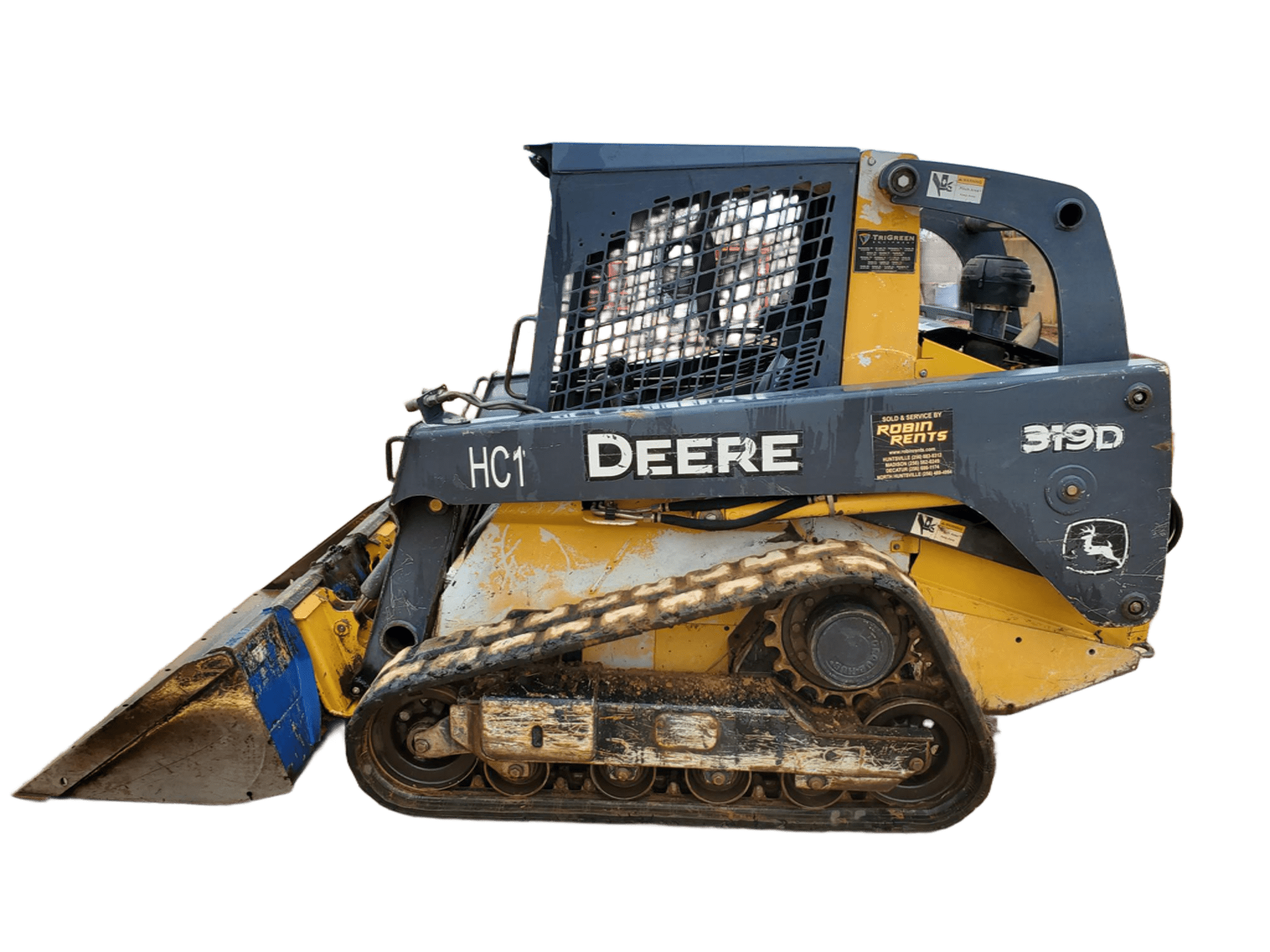

John deere 319 Compact track loaders
John deere 319 Compact track loaders tech specs
:quality(50)/https://www.makana.com/65852/conversions/d79040d6-e7b1-4938-b628-8eee54ae8ac2-webp.webp)
Video[1]
:quality(50)/https://www.makana.com/65844/conversions/d97ce2fc-2b6a-498e-8b40-739fb09b64a0-webp.webp)
Interior [2]
:quality(50)/https://www.makana.com/65846/conversions/c8c2ecec-7027-4ba8-af92-f6868ef368f2-webp.webp)
Exterior [4]
:quality(50)/https://www.makana.com/65850/conversions/719ff28e-8118-471a-8a22-3cd57f96b71b-webp.webp)
Attachments [2]
John deere 319 Technical specifications
Engine
Alternator supplied amperage
70 Amh
Aspiration
Turbocharged
Displacement
2400.71 cu cm
Engine make
John Deere
Gross power
50.86 kw
Max torque
230.08 Nm
Net power
47.13 kw
Number of cylinders
4
Power measured @
2,300 rpm
Torque measured @
2,000 rpm
Loader
Breakout force
2324.66 kg
Loader dump height
2.4 m
Loader dump reach
0.72 m
Operating specifications
Dump angle
42 º
General
Engine model
E 4024HT
Lifting capacity
863.01 kg
Operating voltage
12 V
Operating weight
3,882 kg
Tipping load
2,542 kg
Service refill capacities
Fuel cap
70.02 liter
Dimensions
Ground clearance
0.25 m
Height - top of cab
2 m
Length without Bucket
2.74 m
Max height to hinge pin
300.23 cm
Turning radius
2.01 m
Undercarriage
Ground pressure
0.37 bar
Number of track rollers per side
4
Hydraulic system
Pump flow cap
59.05 lpm
Relief valve pressure
213.74 bar
Download datasheets
John deere 319 expert review
John deere 319 similar models
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 70 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Aspiration
Aspiration Turbocharged
Aspiration -
Aspiration Turbocharged
Displacement
Displacement 2,400.71 cu cm
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Engine make
Engine make John Deere
Engine make -
Engine make -
Gross power
Gross power 50.86 kw
Gross power 70.1 kw
Gross power 70.1 kw
Max torque
Max torque 230.08 Nm
Max torque -
Max torque -
Net power
Net power 47.13 kw
Net power 67.11 kw
Net power 67.11 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,300 rpm
Power measured @ 2,500 rpm
Power measured @ 2,500 rpm
Torque measured @
Torque measured @ 2,000 rpm
Torque measured @ -
Torque measured @ -
Bore
Bore -
Bore 9.4 cm
Bore 9.4 cm
Stroke
Stroke -
Stroke 11.94 cm
Stroke 11.94 cm
Years
Years 2005-2013
Years 2007-2012
Years 2009-2015
Market Average
Market Average AED 106,000
Market Average AED 148,000
Market Average AED 140,000
Price
Price AED 77,000
Price AED 107,000
Price AED 110,000
Breakout force
Breakout force 2,324.66 kg
Breakout force -
Breakout force -
Loader dump height
Loader dump height 2.4 m
Loader dump height 2.5 m
Loader dump height 2.5 m
Loader dump reach
Loader dump reach 0.72 m
Loader dump reach 0.79 m
Loader dump reach 0.79 m
Breakout force - lift cylinder
Breakout force - lift cylinder -
Breakout force - lift cylinder 3,314.86 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - tilt cylinder
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 3,314.86 kg
Breakout force - tilt cylinder 3,314.86 kg
Dump angle
Dump angle 42 º
Dump angle 51 º
Dump angle 51 º
Angle of departure
Angle of departure -
Angle of departure 35 º
Angle of departure 38 º
Cab FOPS
Cab FOPS -
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II
Cab FOPS level II -
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Rack back angle
Rack back angle -
Rack back angle 85 º
Rack back angle 83 º
Engine model
Engine model E 4024HT
Engine model Cat C3.4 DIT
Engine model Cat C3.4T
Lifting capacity
Lifting capacity 863.01 kg
Lifting capacity 2,068.84 kg
Lifting capacity 1,882.41 kg
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 3,882 kg
Operating weight 4,598 kg
Operating weight 4,867 kg
Tipping load
Tipping load 2,542 kg
Tipping load 3,894 kg
Tipping load 3,782 kg
Bucket capacity
Bucket capacity -
Bucket capacity 0.46 cu m
Bucket capacity 0.46 cu m
Max horizontal reach
Max horizontal reach -
Max horizontal reach 1.27 m
Max horizontal reach 1.27 m
Max speed forward
Max speed forward -
Max speed forward 14.97 kph
Max speed forward 13.68 kph
Fuel cap
Fuel cap 70.02 liter
Fuel cap 98.03 liter
Fuel cap 98.03 liter
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap 14 liter
Cooling fluid cap 14 liter
Engine crankcase
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
Hydraulic fluid cap
Hydraulic fluid cap -
Hydraulic fluid cap 57.15 liter
Hydraulic fluid cap 57.15 liter
Ground clearance
Ground clearance 0.25 m
Ground clearance 0.22 m
Ground clearance 0.23 m
Height - top of cab
Height - top of cab 2 m
Height - top of cab 2.13 m
Height - top of cab 2.13 m
Length without Bucket
Length without Bucket 2.74 m
Length without Bucket -
Length without Bucket -
Max height to hinge pin
Max height to hinge pin 300.23 cm
Max height to hinge pin 19.81 cm
Max height to hinge pin 19.56 cm
Turning radius
Turning radius 2.01 m
Turning radius 1.76 m
Turning radius 1.78 m
Length with bucket
Length with bucket -
Length with bucket 3.84 m
Length with bucket 3.84 m
Overall Width
Overall Width -
Overall Width 1.98 m
Overall Width 1.98 m
Width over tracks
Width over tracks -
Width over tracks 1.98 m
Width over tracks 1.98 m
Ground pressure
Ground pressure 0.37 bar
Ground pressure 0.28 bar
Ground pressure 0.3 bar
Number of track rollers per side
Number of track rollers per side 4
Number of track rollers per side -
Number of track rollers per side -
Ground contact area
Ground contact area -
Ground contact area 41,656.01 cu cm
Ground contact area 41,033.3 cu cm
Track length
Track length -
Track length 1.83 m
Track length 1.77 m
Pump flow cap
Pump flow cap 59.05 lpm
Pump flow cap 124.91 lpm
Pump flow cap 124.91 lpm
Relief valve pressure
Relief valve pressure 213.74 bar
Relief valve pressure 279.99 bar
Relief valve pressure 279.99 bar
Pump type
Pump type -
Pump type High Flow XPS
Pump type High Flow XPS
Engine oil cap
Engine oil cap -
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter

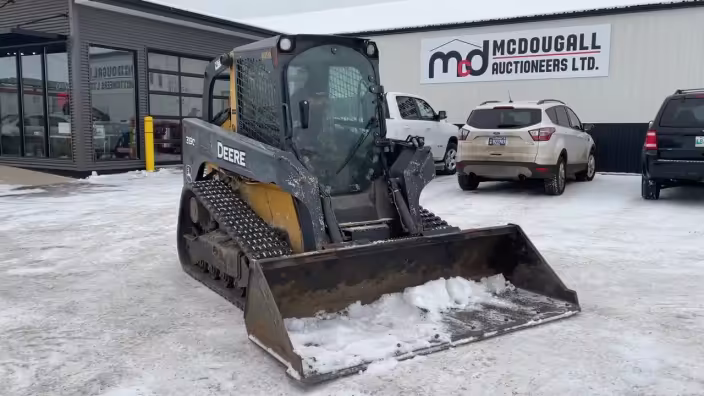

John deere 319 gallery
