John deere
John deere 323D Compact track loaders
John deere 323D Compact track loaders tech specs
:quality(50)/65876/conversions/9415c901-b1d3-4fb4-b240-e8233e4d22bc-webp.webp)
Video[1]
:quality(50)/65868/conversions/d36420da-def9-4517-a6ad-7700d34857d1-webp.webp)

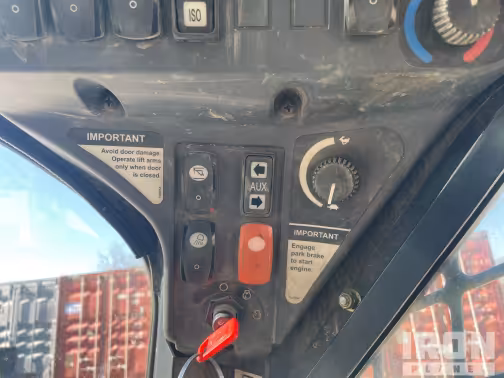

Interior [2]
:quality(50)/65870/conversions/191f4ead-2f89-4466-87c9-17ea8a15fd44-webp.webp)

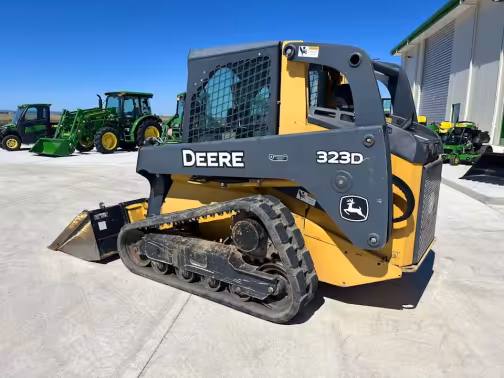

Exterior [4]
:quality(50)/65874/conversions/70de9ad4-3454-441b-95f6-6d7c8de6a09f-webp.webp)
Attachments [2]
2010-2013
2,542.03 kg Breakout force
2,400.71 cu cm Displacement
PowerTech E 4024HT Engine model
51.45 kw Net power
1,042 kg Operating weight
71 º Rack back angle
Makana rating
Market average
AED 178,000Starting from
AED 106,000John deere 323D Technical specifications
Engine
Aspiration
Turbocharged
Displacement
2400.71 cu cm
Net power
51.45 kw
Number of cylinders
4
Power measured @
2,300 rpm
Loader
Breakout force
2542.03 kg
General
Engine model
PowerTech E 4024HT
Operating voltage
12 V
Operating weight
1,042 kg
Service refill capacities
Fuel cap
70.02 liter
Dimensions
Ground clearance
0.25 m
Height - top of cab
2.01 m
Length with bucket
3.38 m
Length without Bucket
2.74 m
Turning radius
2.01 m
Width over tracks
1.83 m
Undercarriage
Number of track rollers per side
4
Track length
0.34 m
Hydraulic system
Pump type
Axial-piston hydrostatic
Operating specifications
Rack back angle
71 º
Download datasheets
John deere 323D similar models
Highlight differences

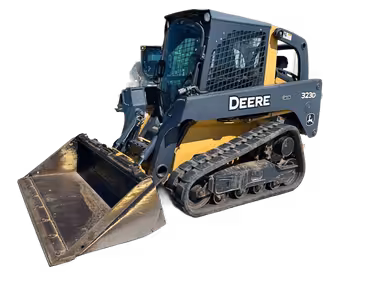

John deere 323D
323D

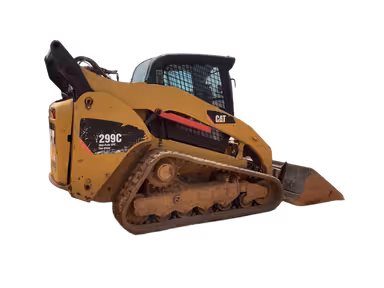

Cat 299C
299C
John deere 319D
319D
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Displacement
Displacement 2,400.71 cu cm
Displacement 3,293.81 cu cm
Displacement 2,400.71 cu cm
Net power
Net power 51.45 kw
Net power 67.11 kw
Net power 47.13 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,300 rpm
Power measured @ 2,500 rpm
Power measured @ 2,300 rpm
Alternator supplied amperage
Alternator supplied amperage -
Alternator supplied amperage 90 Amh
Alternator supplied amperage 70 Amh
Bore
Bore -
Bore 9.4 cm
Bore -
Gross power
Gross power -
Gross power 70.1 kw
Gross power 50.86 kw
Stroke
Stroke -
Stroke 11.94 cm
Stroke -
Engine make
Engine make -
Engine make -
Engine make John Deere
Max torque
Max torque -
Max torque -
Max torque 230.08 Nm
Torque measured @
Torque measured @ -
Torque measured @ -
Torque measured @ 2,000 rpm
Years
Years 2010-2013
Years 2009-2015
Years 2005-2013
Market Average
Market Average AED 178,000
Market Average AED 140,000
Market Average AED 106,000
Price
Price AED 106,000
Price AED 110,000
Price AED 77,000
Breakout force
Breakout force 2,542.03 kg
Breakout force -
Breakout force 2,324.66 kg
Breakout force - lift cylinder
Breakout force - lift cylinder -
Breakout force - lift cylinder 3,314.86 kg
Breakout force - lift cylinder -
Breakout force - tilt cylinder
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 3,314.86 kg
Breakout force - tilt cylinder -
Loader dump height
Loader dump height -
Loader dump height 2.5 m
Loader dump height 2.4 m
Loader dump reach
Loader dump reach -
Loader dump reach 0.79 m
Loader dump reach 0.72 m
Engine model
Engine model PowerTech E 4024HT
Engine model Cat C3.4T
Engine model E 4024HT
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 1,042 kg
Operating weight 4,867 kg
Operating weight 3,882 kg
Bucket capacity
Bucket capacity -
Bucket capacity 0.46 cu m
Bucket capacity -
Lifting capacity
Lifting capacity -
Lifting capacity 1,882.41 kg
Lifting capacity 863.01 kg
Max horizontal reach
Max horizontal reach -
Max horizontal reach 1.27 m
Max horizontal reach -
Max speed forward
Max speed forward -
Max speed forward 13.68 kph
Max speed forward -
Tipping load
Tipping load -
Tipping load 3,782 kg
Tipping load 2,542 kg
Fuel cap
Fuel cap 70.02 liter
Fuel cap 98.03 liter
Fuel cap 70.02 liter
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap 14 liter
Cooling fluid cap -
Engine crankcase
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase -
Hydraulic fluid cap
Hydraulic fluid cap -
Hydraulic fluid cap 57.15 liter
Hydraulic fluid cap -
Ground clearance
Ground clearance 0.25 m
Ground clearance 0.23 m
Ground clearance 0.25 m
Height - top of cab
Height - top of cab 2.01 m
Height - top of cab 2.13 m
Height - top of cab 2 m
Length with bucket
Length with bucket 3.38 m
Length with bucket 3.84 m
Length with bucket -
Length without Bucket
Length without Bucket 2.74 m
Length without Bucket -
Length without Bucket 2.74 m
Turning radius
Turning radius 2.01 m
Turning radius 1.78 m
Turning radius 2.01 m
Width over tracks
Width over tracks 1.83 m
Width over tracks 1.98 m
Width over tracks -
Max height to hinge pin
Max height to hinge pin -
Max height to hinge pin 19.56 cm
Max height to hinge pin 300.23 cm
Overall Width
Overall Width -
Overall Width 1.98 m
Overall Width -
Number of track rollers per side
Number of track rollers per side 4
Number of track rollers per side -
Number of track rollers per side 4
Track length
Track length 0.34 m
Track length 1.77 m
Track length -
Ground contact area
Ground contact area -
Ground contact area 41,033.3 cu cm
Ground contact area -
Ground pressure
Ground pressure -
Ground pressure 0.3 bar
Ground pressure 0.37 bar
Pump type
Pump type Axial-piston hydrostatic
Pump type High Flow XPS
Pump type -
Pump flow cap
Pump flow cap -
Pump flow cap 124.91 lpm
Pump flow cap 59.05 lpm
Relief valve pressure
Relief valve pressure -
Relief valve pressure 279.99 bar
Relief valve pressure 213.74 bar
Rack back angle
Rack back angle 71 º
Rack back angle 83 º
Rack back angle -
Angle of departure
Angle of departure -
Angle of departure 38 º
Angle of departure -
Cab FOPS
Cab FOPS -
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS -
Cab FOPS level II
Cab FOPS level II -
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab FOPS level II -
Cab ROPS
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS -
Dump angle
Dump angle -
Dump angle 51 º
Dump angle 42 º
Engine oil cap
Engine oil cap -
Engine oil cap 10.22 liter
Engine oil cap -
