Boxer 322D Compact track loaders tech specs

makana img
video play button
Video[1]
Interior [2]

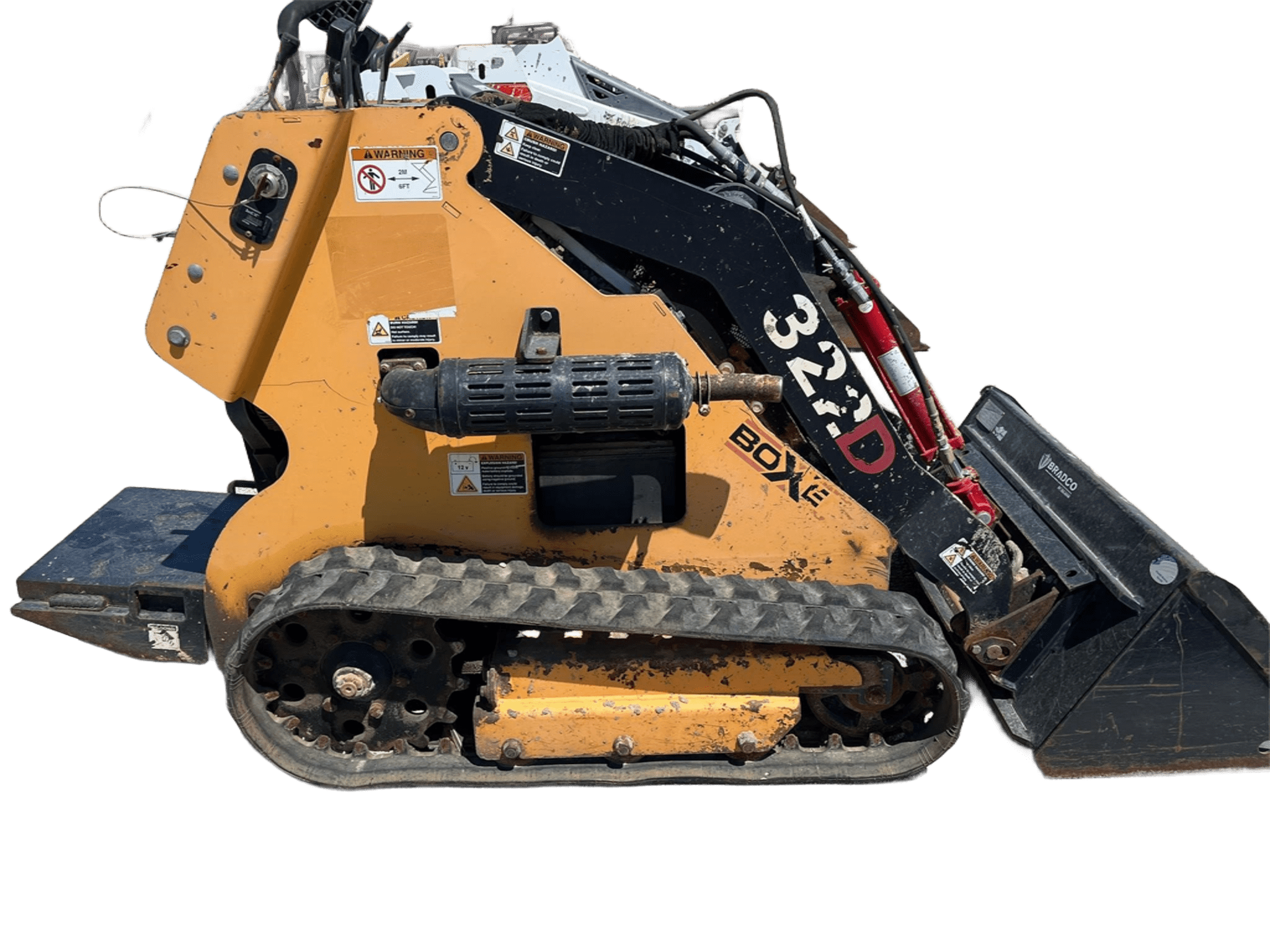

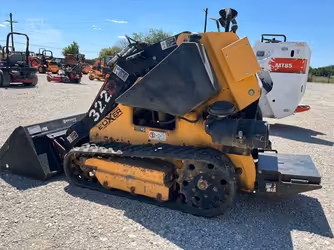

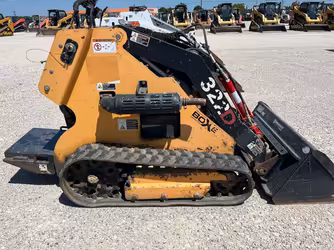

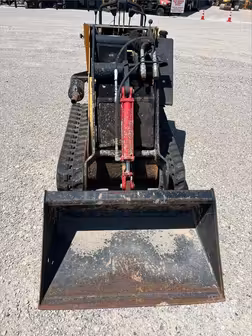

Exterior [4]

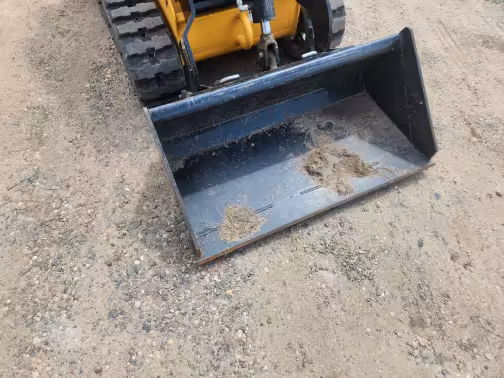

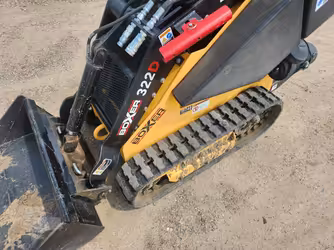

Attachments [2]
2012-2021
16.41 kw Gross power
1.37 m Loader dump height
210.01 kg Lifting capacity
5.63 kph Max speed forward
862 kg Operating weight
601 kg Tipping load

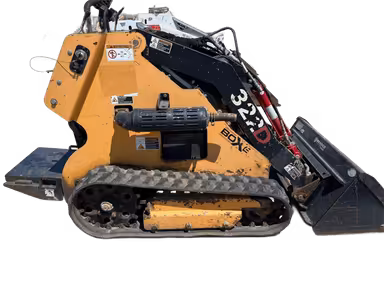

A micro-class compact track loader designed for tight-access landscaping, light construction, and indoor or backyard work, the Boxer 322D runs a Kohler Command engine at 16.41 kW with just 862 kg operating weight. With ultra-low ground pressure, narrow 0.88 m track width, and simple hydraulics, it’s built to squeeze through gates, work on finished surfaces, and handle light material handling where larger CTLs simply don’t fit.

Operating weight 862 kg

Gross power 16.41 kW (Kohler Command)

Rated lifting capacity 210 kg

Tipping load 601 kg

Loader dump height 1.37 m

Max hinge pin height 1.78 m

Track width 0.88 m, ground pressure 0.23 bar

Hydraulic flow 35.58 LPM, relief pressure 206.84 bar

Fuel tank 17.03 L, hydraulic oil 60.56 L

Compact dimensions for gates and indoor access

Price range AED 146,000–162,000

Makana rating

Owner rating

 | 3

Market average

AED 162,000

Starting from

AED 146,000

Boxer 322D Technical specifications

Operating specifications

Dump angle

34 º

Engine

Engine make

Kohler Command

Gross power

16.41 kw

Service refill capacities

Fuel cap

17.03 liter

Hydraulic fluid cap

60.56 liter

Dimensions

Ground clearance

0.13 m

Height - top of cab

1.25 m

Length with bucket

2.38 m

Length without Bucket

1.74 m

Max height to hinge pin

177.8 cm

Width over tracks

0.88 m

Undercarriage

Ground pressure

0.23 bar

Loader

Loader dump height

1.37 m

General

Lifting capacity

210.01 kg

Max speed forward

5.63 kph

Operating weight

862 kg

Tipping load

601 kg

Hydraulic system

Pump flow cap

35.58 lpm

Relief valve pressure

206.84 bar

View more
Download datasheets
OEM product brochure

Boxer 322D expert review

Reviewed by Raul M. on February 5, 2026

Overview

The Boxer 322D (2012–2021) is a micro compact track loader built for access-first jobs. With just 862 kg operating weight and under-1-meter track width, it’s designed to work where full-size CTLs cannot.

Key Features Highlight

  • Ultra-compact footprint for gates and narrow paths
  • 0.23 bar ground pressure for finished surfaces
  • 210 kg rated lifting capacity, 601 kg tipping load
  • 35.58 LPM hydraulic flow for light attachments
  • 1.37 m dump height for small trailers
  • Simple mechanical layout

Pros Fits through gates, very low ground pressure, simple hydraulics.

Cons Limited lift capacity, slow travel speed.

Efficiency

The 322D prioritizes access over output, best suited to landscaping prep and light indoor work.

In Cabin

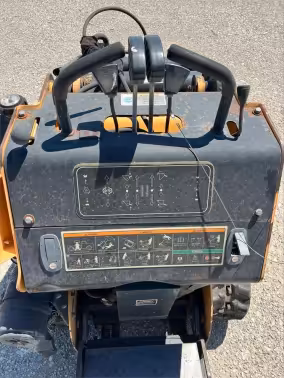

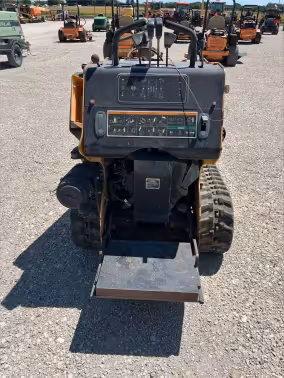

Minimal operator station with basic controls and clear bucket visibility.

In Comparison

  • JCB 300T: more lift and power.
  • JCB 320T: higher productivity.
  • Boxer 322D: access-first design.

Final Verdict

Rated 3 stars, the Boxer 322D fits tight-access work in the AED 146,000–162,000 range.

Show less

Boxer 322D owner rating

Boxer 322D Compact track loaders [2012-2021]

2012-2021

Overall rating

Based on 3 ratings

4.7
performance

4.7

comfort

4.7

fuel efficiency

4.7

safety

4.7

features

4.3

5 stars

67 %

4 stars

33 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros
Gets into places no standard CTL can reach.
Cons
Lift and speed are limiting on anything beyond light-duty jobs.
performance

5.0

comfort

5.0

fuel efficiency

5.0

safety

5.0

features

4.0

Pros
Extremely maneuverable in very tight spaces where larger machines can’t go.
Cons
Hydraulic power is weak with heavier attachments, limiting versatility.
performance

4.0

comfort

5.0

fuel efficiency

5.0

safety

4.0

features

4.0

Valuation

Last 12 month
2012

Boxer 322D similar models

Highlight differences
Boxer 322D

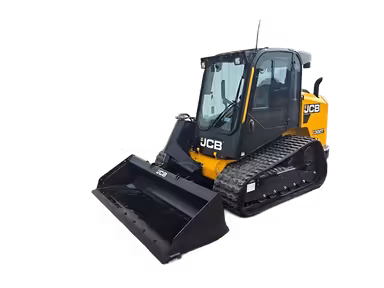

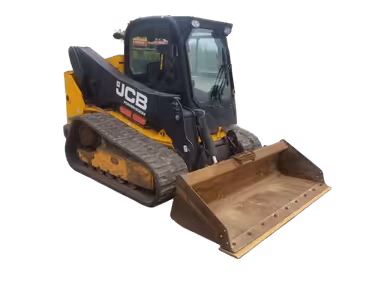

JCB 300T
JCB 320T
Operating specifications
Dump angle 34 º
Dump angle 42 º
Dump angle 42 º
Angle of departure -
Angle of departure 29 º
Angle of departure 29 º
Rack back angle -
Rack back angle 86 º
Rack back angle 91 º
Years 2012-2021
Years 2012-2025
Years 2011-2017
Market Average AED 162,000
Market Average AED 298,000
Market Average AED 232,000
Price AED 146,000
Price AED 245,000
Price AED 197,000
Engine
Engine make Kohler Command
Engine make -
Engine make -
Gross power 16.41 kw
Gross power 55.03 kw
Gross power 55.18 kw
Alternator supplied amperage -
Alternator supplied amperage 95 Amh
Alternator supplied amperage 95 Amh
Aspiration -
Aspiration Turbocharged
Aspiration Turbocharged
Emissions -
Emissions EPA-T4F (EU St3B)
Emissions EPA-T4F (EU St3B)
Engine cooling system -
Engine cooling system Liquid
Engine cooling system Liquid
Max torque -
Max torque 400.1 Nm
Max torque 400.1 Nm
Power measured @ -
Power measured @ 2,400 rpm
Power measured @ 2,400 rpm
Torque measured @ -
Torque measured @ 1,200 rpm
Torque measured @ 1,200 rpm
Service refill capacities
Fuel cap 17.03 liter
Fuel cap 103.33 liter
Fuel cap 103.33 liter
Hydraulic fluid cap 60.56 liter
Hydraulic fluid cap 55.26 liter
Hydraulic fluid cap 55.26 liter
Cooling fluid cap -
Cooling fluid cap 15.52 liter
Cooling fluid cap 22.33 liter
Dimensions
Ground clearance 0.13 m
Ground clearance 0.23 m
Ground clearance 0.23 m
Height - top of cab 1.25 m
Height - top of cab 2.1 m
Height - top of cab 2.1 m
Length with bucket 2.38 m
Length with bucket 3.81 m
Length with bucket 3.81 m
Length without Bucket 1.74 m
Length without Bucket -
Length without Bucket -
Max height to hinge pin 177.8 cm
Max height to hinge pin -
Max height to hinge pin -
Width over tracks 0.88 m
Width over tracks 1.92 m
Width over tracks 1.92 m
Undercarriage
Ground pressure 0.23 bar
Ground pressure 0.33 bar
Ground pressure 0.34 bar
Track width -
Track width 44.96 cm
Track width 44.96 cm
Loader
Loader dump height 1.37 m
Loader dump height 2.41 m
Loader dump height 2.41 m
Loader digging depth -
Loader digging depth 1,000 cm
Loader digging depth 1,000 cm
Loader dump reach -
Loader dump reach 1.31 m
Loader dump reach 1.31 m
Breakout force -
Breakout force -
Breakout force 2,968.04 kg
General
Lifting capacity 210.01 kg
Lifting capacity 5,089.04 kg
Lifting capacity 5,248.02 kg
Max speed forward 5.63 kph
Max speed forward 9.17 kph
Max speed forward 9.17 kph
Operating weight 862 kg
Operating weight 5,089 kg
Operating weight 5,248 kg
Tipping load 601 kg
Tipping load -
Tipping load -
Operating voltage -
Operating voltage 12 V
Operating voltage 12 V
Bucket capacity -
Bucket capacity 0.46 cu m
Bucket capacity 0.46 cu m
Bucket width -
Bucket width 190 cm
Bucket width 190 cm
Displacement -
Displacement 4,399.94 cu cm
Displacement 4,399.94 cu cm
Engine model -
Engine model EcoMAX TCAE-55
Engine model EcoMAX TCAE-55
Hydraulic system
Pump flow cap 35.58 lpm
Pump flow cap 87.06 lpm
Pump flow cap 87.06 lpm
Relief valve pressure 206.84 bar
Relief valve pressure 229.94 bar
Relief valve pressure 229.94 bar
Refill capacities
Engine oil cap -
Engine oil cap 15.14 liter
Engine oil cap 15.14 liter
