ASV RC-100 Compact track loaders tech specs

makana img
video play button
Video[1]

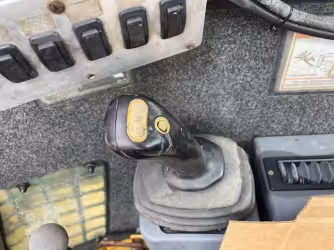

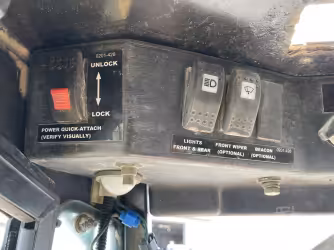

Interior [2]

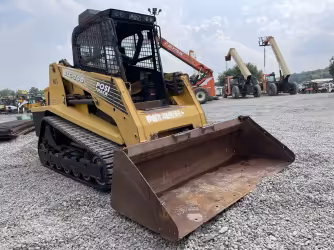

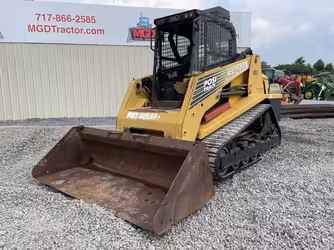

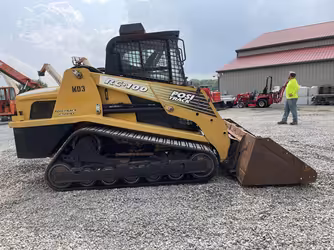

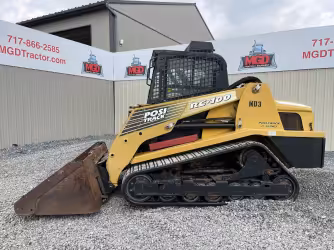

Exterior [4]

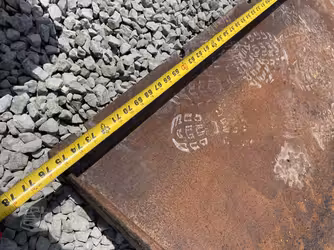

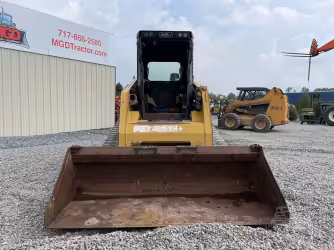

Attachments [2]
2002-2009
4,391.74 cu cm Displacement
74.2 kw Gross power
0.36 m Ground clearance
1,723.65 kg Lifting capacity
412.16 Nm Max torque
4,603 kg Operating weight
Show features

Makana rating

Market average

AED 200,000

Starting from

AED 47,000

ASV RC-100 Technical specifications

Engine

Aspiration

Turbocharged

Displacement

4391.74 cu cm

Gross power

74.2 kw

Max torque

412.16 Nm

Power measured @

2,300 rpm

Service refill capacities

Cooling fluid cap

12.11 liter

Fuel cap

98.41 liter

Hydraulic fluid cap

75.7 liter

General

Engine model

1104C-44

Lifting capacity

1723.65 kg

Max speed forward

18.51 kph

Operating weight

4,603 kg

Refill capacities

Engine oil cap

32.17 liter

Dimensions

Ground clearance

0.36 m

Height - top of cab

2.04 m

Length with bucket

3.78 m

Length without Bucket

2.99 m

Width over tracks

0.46 m

Undercarriage

Ground contact area

42770.33 cu cm

Ground pressure

0.24 bar

Number of track rollers per side

21

Track length

1.86 m

Track width

35.56 cm

Hydraulic system

Pump flow cap

143.83 lpm

Relief valve pressure

227.52 bar

Operating specifications

Rack back angle

76 º

View more
Download datasheets
OEM product brochure

ASV RC-100 similar models

Highlight differences
ASV RC-100
RC-100
Cat 277B
277B
Cat 279C
279C
Engine
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Displacement 4,391.74 cu cm
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Gross power 74.2 kw
Gross power 61.15 kw
Gross power 62.64 kw
Max torque 412.16 Nm
Max torque -
Max torque -
Power measured @ 2,300 rpm
Power measured @ -
Power measured @ 2,500 rpm
Alternator supplied amperage -
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Bore -
Bore 9.4 cm
Bore 8.64 cm
Net power -
Net power 58.17 kw
Net power 61.15 kw
Stroke -
Stroke 11.94 cm
Stroke 11.94 cm
Number of cylinders -
Number of cylinders -
Number of cylinders 4
Years 2002-2009
Years 2004-2007
Years 2009-2015
Market Average AED 200,000
Market Average AED 99,200
Market Average AED 168,000
Price AED 47,000
Price AED 62,500
Price AED 114,000
Service refill capacities
Cooling fluid cap 12.11 liter
Cooling fluid cap 10.22 liter
Cooling fluid cap 14 liter
Fuel cap 98.41 liter
Fuel cap 95 liter
Fuel cap 98.03 liter
Hydraulic fluid cap 75.7 liter
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 57.15 liter
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
General
Engine model 1104C-44
Engine model Cat 3044C DIT
Engine model Cat C3.4T
Lifting capacity 1,723.65 kg
Lifting capacity 1,338.01 kg
Lifting capacity 1,451.5 kg
Max speed forward 18.51 kph
Max speed forward 11.27 kph
Max speed forward 13.68 kph
Operating weight 4,603 kg
Operating weight 4,268 kg
Operating weight 4,486 kg
Max horizontal reach -
Max horizontal reach 1.46 m
Max horizontal reach 1.39 m
Operating voltage -
Operating voltage 12 V
Operating voltage 12 V
Tipping load -
Tipping load 2,676 kg
Tipping load 2,940 kg
Bucket capacity -
Bucket capacity -
Bucket capacity 0.46 cu m
Refill capacities
Engine oil cap 32.17 liter
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
Dimensions
Ground clearance 0.36 m
Ground clearance 0.36 m
Ground clearance 0.23 m
Height - top of cab 2.04 m
Height - top of cab 2.1 m
Height - top of cab 2.13 m
Length with bucket 3.78 m
Length with bucket 3.69 m
Length with bucket 3.69 m
Length without Bucket 2.99 m
Length without Bucket -
Length without Bucket -
Width over tracks 0.46 m
Width over tracks 1.92 m
Width over tracks 1.98 m
Max height to hinge pin -
Max height to hinge pin 25.4 cm
Max height to hinge pin 19.56 cm
Overall Width -
Overall Width 1.91 m
Overall Width 1.98 m
Turning radius -
Turning radius 1.55 m
Turning radius 1.64 m
Undercarriage
Ground contact area 42,770.33 cu cm
Ground contact area 47,489.82 cu cm
Ground contact area 41,033.3 cu cm
Ground pressure 0.24 bar
Ground pressure 0.22 bar
Ground pressure 0.28 bar
Number of track rollers per side 21
Number of track rollers per side -
Number of track rollers per side -
Track length 1.86 m
Track length 2.07 m
Track length 1.77 m
Track width 35.56 cm
Track width -
Track width -
Hydraulic system
Pump flow cap 143.83 lpm
Pump flow cap 83.27 lpm
Pump flow cap 124.91 lpm
Relief valve pressure 227.52 bar
Relief valve pressure 229.94 bar
Relief valve pressure 279.99 bar
Pump type -
Pump type Standard
Pump type High Flow XPS
Operating specifications
Rack back angle 76 º
Rack back angle 58 º
Rack back angle 64 º
Cab FOPS -
Cab FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II -
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Angle of departure -
Angle of departure -
Angle of departure 44 º
Dump angle -
Dump angle -
Dump angle 40 º
Loader
Breakout force - lift cylinder -
Breakout force - lift cylinder 2,487 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 2,487.5 kg
Breakout force - tilt cylinder 3,314.86 kg
Loader dump height -
Loader dump height 2.38 m
Loader dump height 2.44 m
Loader dump reach -
Loader dump reach 0.7 m
Loader dump reach 0.61 m
