Bobcat
Bobcat T190 Compact track loaders tech specs
:quality(50)/75402/conversions/ebc44510-55ec-4112-bc79-b5afbc45aa61-thumb.webp)
Video[1]
:quality(50)/75394/conversions/4d7ef186-1585-4d36-a08c-b13d815a8250-thumb.webp)

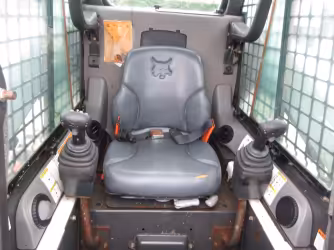

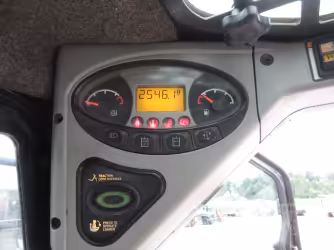

Interior [2]
:quality(50)/75396/conversions/67136d9a-24dc-4278-b00a-9bcb69826753-thumb.webp)
Exterior [4]
:quality(50)/75400/conversions/f088614d-825e-4258-8125-b260a3e00d27-thumb.webp)

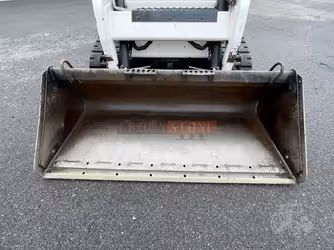

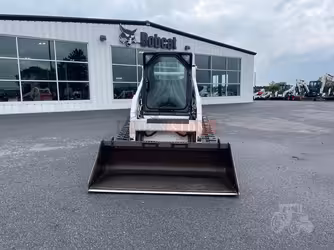

Attachments [2]
2001-2013
2,000.86 cu cm Displacement
45.49 kw Gross power
2.32 m Loader dump height
0.79 m Loader dump reach
861.83 kg Lifting capacity
3,452 kg Operating weight
Makana rating
Market average
AED 145,000Starting from
AED 50,000Bobcat T190 Technical specifications
Engine
Aspiration
Turbocharged
Displacement
2000.86 cu cm
Gross power
45.49 kw
Number of cylinders
4
Power measured @
2,800 rpm
General
Bucket capacity
0.46 cu m
Engine model
V2003T
Lifting capacity
861.83 kg
Max speed forward
11.43 kph
Operating weight
3,452 kg
Service refill capacities
Fuel cap
105.98 liter
Undercarriage
Ground pressure
0.34 bar
Number of track rollers per side
4
Track gauge
1.37 m
Track length
1.4 m
Track width
32 cm
Dimensions
Height - top of cab
1.95 m
Length with bucket
3.32 m
Length without Bucket
2.59 m
Overall Width
1.73 m
Turning radius
2 m
Width over tracks
1.68 m
Loader
Loader dump height
2.32 m
Loader dump reach
0.79 m
Hydraulic system
Pump flow cap
61.7 lpm
Relief valve pressure
227.52 bar
Operating specifications
Rack back angle
68 º
Download datasheets
Bobcat T190 similar models
Highlight differences
Bobcat T190
T190
Cat 249D
249D
Cat 257
257
Aspiration
Aspiration Turbocharged
Aspiration -
Aspiration Turbocharged
Displacement
Displacement 2,000.86 cu cm
Displacement 2,200.79 cu cm
Displacement 2,998.84 cu cm
Gross power
Gross power 45.49 kw
Gross power 50.04 kw
Gross power 46.98 kw
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Power measured @
Power measured @ 2,800 rpm
Power measured @ -
Power measured @ 2,600 rpm
Bore
Bore -
Bore 8.38 cm
Bore 9.91 cm
Max torque
Max torque -
Max torque 46.63 Nm
Max torque -
Net power
Net power -
Net power 49.07 kw
Net power 44 kw
Stroke
Stroke -
Stroke 9.91 cm
Stroke 10.16 cm
Years
Years 2001-2013
Years 2016-2019
Years 2014-2019
Market Average
Market Average AED 145,000
Market Average AED 228,000
Market Average AED 186,000
Price
Price AED 50,000
Price AED 191,000
Price AED 147,000
Bucket capacity
Bucket capacity 0.46 cu m
Bucket capacity -
Bucket capacity 0.46 cu m
Engine model
Engine model V2003T
Engine model Cat C2.2 CRDI
Engine model Cat 3034 naturally aspirated
Lifting capacity
Lifting capacity 861.83 kg
Lifting capacity 1,043.26 kg
Lifting capacity 1,065.94 kg
Max speed forward
Max speed forward 11.43 kph
Max speed forward -
Max speed forward 12.07 kph
Operating weight
Operating weight 3,452 kg
Operating weight -
Operating weight 3,460 kg
Max horizontal reach
Max horizontal reach -
Max horizontal reach 1.32 m
Max horizontal reach -
Tipping load
Tipping load -
Tipping load 2,086 kg
Tipping load 2,091 kg
Fuel cap
Fuel cap 105.98 liter
Fuel cap 57.15 liter
Fuel cap 90.08 liter
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap 12.11 liter
Cooling fluid cap 9.84 liter
Engine crankcase
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 6.81 liter
Hydraulic fluid cap
Hydraulic fluid cap -
Hydraulic fluid cap 45.04 liter
Hydraulic fluid cap 55.26 liter
Ground pressure
Ground pressure 0.34 bar
Ground pressure 0.32 bar
Ground pressure 0.3 bar
Number of track rollers per side
Number of track rollers per side 4
Number of track rollers per side -
Number of track rollers per side -
Track gauge
Track gauge 1.37 m
Track gauge -
Track gauge -
Track length
Track length 1.4 m
Track length 1.81 m
Track length 1.52 m
Track width
Track width 32 cm
Track width -
Track width 38.1 cm
Ground contact area
Ground contact area -
Ground contact area 28,120.26 cu cm
Ground contact area 29,005.17 cu cm
Height - top of cab
Height - top of cab 1.95 m
Height - top of cab 2.04 m
Height - top of cab 2.04 m
Length with bucket
Length with bucket 3.32 m
Length with bucket 3.23 m
Length with bucket 3.54 m
Length without Bucket
Length without Bucket 2.59 m
Length without Bucket 2.52 m
Length without Bucket 2.71 m
Overall Width
Overall Width 1.73 m
Overall Width 1.68 m
Overall Width -
Turning radius
Turning radius 2 m
Turning radius 1.46 m
Turning radius 2.29 m
Width over tracks
Width over tracks 1.68 m
Width over tracks -
Width over tracks 1.68 m
Ground clearance
Ground clearance -
Ground clearance 0.21 m
Ground clearance 0.26 m
Max height to hinge pin
Max height to hinge pin -
Max height to hinge pin 21.84 cm
Max height to hinge pin -
Loader dump height
Loader dump height 2.32 m
Loader dump height 2.25 m
Loader dump height 2.29 m
Loader dump reach
Loader dump reach 0.79 m
Loader dump reach 0.73 m
Loader dump reach 0.82 m
Breakout force - tilt cylinder
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 1,797.59 kg
Breakout force - tilt cylinder 1,602.09 kg
Breakout force - lift cylinder
Breakout force - lift cylinder -
Breakout force - lift cylinder -
Breakout force - lift cylinder 1,583.04 kg
Pump flow cap
Pump flow cap 61.7 lpm
Pump flow cap 98.41 lpm
Pump flow cap 57.53 lpm
Relief valve pressure
Relief valve pressure 227.52 bar
Relief valve pressure 230.01 bar
Relief valve pressure -
Rack back angle
Rack back angle 68 º
Rack back angle 87 º
Rack back angle 44 º
Air conditioning
Air conditioning -
Air conditioning Contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Air conditioning -
Angle of departure
Angle of departure -
Angle of departure 34 º
Angle of departure -
Cab FOPS
Cab FOPS -
Cab FOPS ISO 3449:2005 Level I
Cab FOPS -
Cab FOPS level II
Cab FOPS level II -
Cab FOPS level II ISO 3449:2005 Level II
Cab FOPS level II -
Cab ROPS
Cab ROPS -
Cab ROPS ISO 3471:2008
Cab ROPS -
Dump angle
Dump angle -
Dump angle 48 º
Dump angle -

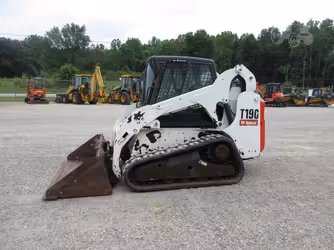

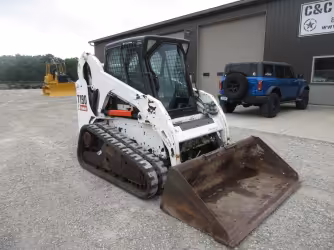

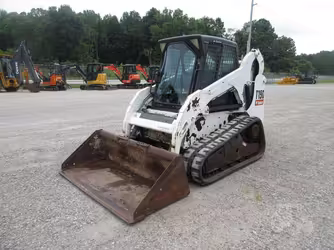

Bobcat T190 gallery
