Bobcat
Bobcat T250 Compact track loaders tech specs
:quality(50)/75438/conversions/844d9eb5-41e5-472d-9feb-a1c1e49ab12e-thumb.webp)
Video[1]
:quality(50)/75430/conversions/7139da2d-24e6-4bb5-ad10-49d73e8d1fa6-thumb.webp)

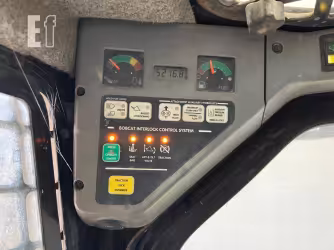

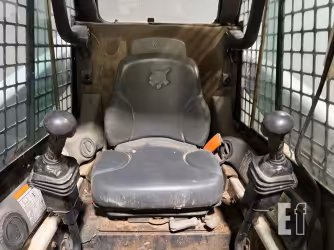

Interior [2]
:quality(50)/75432/conversions/a7e8e7ad-4a56-40af-b366-f5e4ea92715e-thumb.webp)

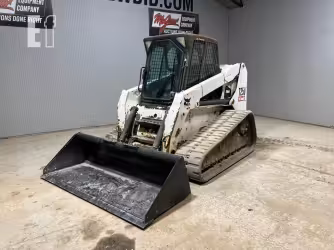

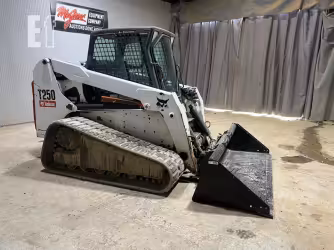

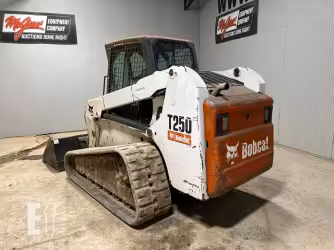

Exterior [4]
:quality(50)/75436/conversions/91c004e1-6dc1-47ca-a164-42c0a2827bee-thumb.webp)

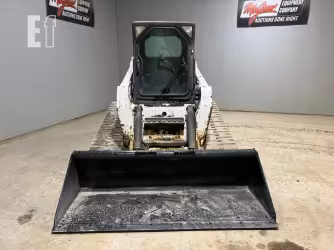

Attachments [2]
2004-2010
60.4 kw Gross power
2.44 m Loader dump height
0.61 m Loader dump reach
1,133.98 kg Lifting capacity
4,239 kg Operating weight
2.1 m Turning radius
Makana rating
Market average
AED 132,000Starting from
AED 67,000Bobcat T250 Technical specifications
Engine
Aspiration
Turbocharged
Gross power
60.4 kw
Service refill capacities
Fuel cap
114.31 liter
Undercarriage
Ground pressure
0.28 bar
Number of track rollers per side
5
Track gauge
1.55 m
Track length
1.65 m
Track width
45.21 cm
Dimensions
Height - top of cab
2.07 m
Length with bucket
3.66 m
Length without Bucket
2.93 m
Turning radius
2.1 m
Width over tracks
1.98 m
Loader
Loader dump height
2.44 m
Loader dump reach
0.61 m
General
Lifting capacity
1133.98 kg
Max speed forward
10.62 kph
Operating weight
4,239 kg
Hydraulic system
Pump flow cap
80.24 lpm
Relief valve pressure
227.52 bar
Operating specifications
Rack back angle
73 º
Download datasheets
Bobcat T250 similar models
Highlight differences
Bobcat T250
T250
Cat 277B
277B
Cat 279C
279C
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Gross power
Gross power 60.4 kw
Gross power 61.15 kw
Gross power 62.64 kw
Alternator supplied amperage
Alternator supplied amperage -
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Bore
Bore -
Bore 9.4 cm
Bore 8.64 cm
Displacement
Displacement -
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Net power
Net power -
Net power 58.17 kw
Net power 61.15 kw
Stroke
Stroke -
Stroke 11.94 cm
Stroke 11.94 cm
Number of cylinders
Number of cylinders -
Number of cylinders -
Number of cylinders 4
Power measured @
Power measured @ -
Power measured @ -
Power measured @ 2,500 rpm
Years
Years 2004-2010
Years 2004-2007
Years 2009-2015
Market Average
Market Average AED 132,000
Market Average AED 99,200
Market Average AED 168,000
Price
Price AED 67,000
Price AED 62,500
Price AED 114,000
Fuel cap
Fuel cap 114.31 liter
Fuel cap 95 liter
Fuel cap 98.03 liter
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap 10.22 liter
Cooling fluid cap 14 liter
Engine crankcase
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
Hydraulic fluid cap
Hydraulic fluid cap -
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 57.15 liter
Ground pressure
Ground pressure 0.28 bar
Ground pressure 0.22 bar
Ground pressure 0.28 bar
Number of track rollers per side
Number of track rollers per side 5
Number of track rollers per side -
Number of track rollers per side -
Track gauge
Track gauge 1.55 m
Track gauge -
Track gauge -
Track length
Track length 1.65 m
Track length 2.07 m
Track length 1.77 m
Track width
Track width 45.21 cm
Track width -
Track width -
Ground contact area
Ground contact area -
Ground contact area 47,489.82 cu cm
Ground contact area 41,033.3 cu cm
Height - top of cab
Height - top of cab 2.07 m
Height - top of cab 2.1 m
Height - top of cab 2.13 m
Length with bucket
Length with bucket 3.66 m
Length with bucket 3.69 m
Length with bucket 3.69 m
Length without Bucket
Length without Bucket 2.93 m
Length without Bucket -
Length without Bucket -
Turning radius
Turning radius 2.1 m
Turning radius 1.55 m
Turning radius 1.64 m
Width over tracks
Width over tracks 1.98 m
Width over tracks 1.92 m
Width over tracks 1.98 m
Ground clearance
Ground clearance -
Ground clearance 0.36 m
Ground clearance 0.23 m
Max height to hinge pin
Max height to hinge pin -
Max height to hinge pin 25.4 cm
Max height to hinge pin 19.56 cm
Overall Width
Overall Width -
Overall Width 1.91 m
Overall Width 1.98 m
Loader dump height
Loader dump height 2.44 m
Loader dump height 2.38 m
Loader dump height 2.44 m
Loader dump reach
Loader dump reach 0.61 m
Loader dump reach 0.7 m
Loader dump reach 0.61 m
Breakout force - lift cylinder
Breakout force - lift cylinder -
Breakout force - lift cylinder 2,487 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - tilt cylinder
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 2,487.5 kg
Breakout force - tilt cylinder 3,314.86 kg
Lifting capacity
Lifting capacity 1,133.98 kg
Lifting capacity 1,338.01 kg
Lifting capacity 1,451.5 kg
Max speed forward
Max speed forward 10.62 kph
Max speed forward 11.27 kph
Max speed forward 13.68 kph
Operating weight
Operating weight 4,239 kg
Operating weight 4,268 kg
Operating weight 4,486 kg
Engine model
Engine model -
Engine model Cat 3044C DIT
Engine model Cat C3.4T
Max horizontal reach
Max horizontal reach -
Max horizontal reach 1.46 m
Max horizontal reach 1.39 m
Operating voltage
Operating voltage -
Operating voltage 12 V
Operating voltage 12 V
Tipping load
Tipping load -
Tipping load 2,676 kg
Tipping load 2,940 kg
Bucket capacity
Bucket capacity -
Bucket capacity -
Bucket capacity 0.46 cu m
Pump flow cap
Pump flow cap 80.24 lpm
Pump flow cap 83.27 lpm
Pump flow cap 124.91 lpm
Relief valve pressure
Relief valve pressure 227.52 bar
Relief valve pressure 229.94 bar
Relief valve pressure 279.99 bar
Pump type
Pump type -
Pump type Standard
Pump type High Flow XPS
Rack back angle
Rack back angle 73 º
Rack back angle 58 º
Rack back angle 64 º
Cab FOPS
Cab FOPS -
Cab FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II
Cab FOPS level II -
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Angle of departure
Angle of departure -
Angle of departure -
Angle of departure 44 º
Dump angle
Dump angle -
Dump angle -
Dump angle 40 º
Engine oil cap
Engine oil cap -
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
