Bobcat
Bobcat T140 Compact track loaders tech specs
:quality(50)/75366/conversions/d2f37da4-bdb6-4ca3-8335-7d759ab0fef6-thumb.webp)
Video[1]
:quality(50)/75358/conversions/762cdbf3-394b-4700-86b9-9fb9f63cfc45-thumb.webp)

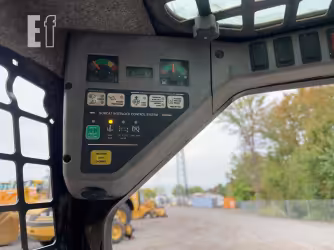

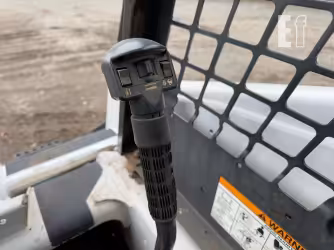

Interior [2]
:quality(50)/75360/conversions/e179f684-2c73-43d2-84fd-5d2f6dc8e415-thumb.webp)

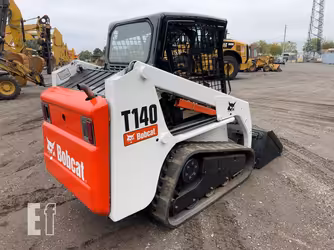

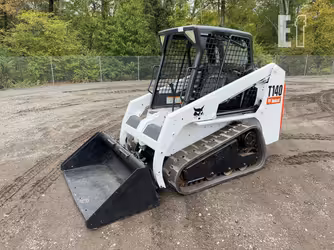

Exterior [4]
:quality(50)/75364/conversions/eb60c4d1-f53d-4767-b426-cc7710ca1b14-thumb.webp)

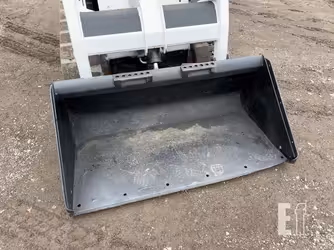

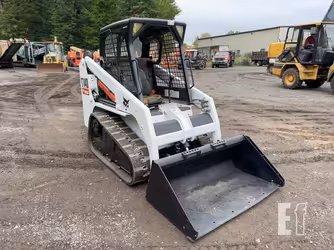

Attachments [2]
2006-2009
2,200.79 cu cm Displacement
34.3 kw Gross power
2.13 m Loader dump height
0.67 m Loader dump reach
635.03 kg Lifting capacity
3,020 kg Operating weight
Makana rating
Market average
AED 105,000Starting from
AED 63,000Bobcat T140 Technical specifications
General
Bucket capacity
0.38 cu m
Engine model
V2203M-DI
Lifting capacity
635.03 kg
Max speed forward
11.75 kph
Operating weight
3,020 kg
Engine
Displacement
2200.79 cu cm
Gross power
34.3 kw
Number of cylinders
4
Power measured @
2,800 rpm
Service refill capacities
Fuel cap
56.78 liter
Undercarriage
Ground pressure
0.36 bar
Number of track rollers per side
3
Track gauge
1.1 m
Track length
1.25 m
Track width
30.23 cm
Dimensions
Height - top of cab
1.98 m
Length with bucket
3.17 m
Length without Bucket
2.44 m
Turning radius
1.96 m
Width over tracks
1.4 m
Loader
Loader dump height
2.13 m
Loader dump reach
0.67 m
Hydraulic system
Pump flow cap
63.97 lpm
Relief valve pressure
186.16 bar
Operating specifications
Rack back angle
40 º
Download datasheets
Bobcat T140 similar models
Highlight differences
Bobcat T140
T140
Cat 257
257
Bucket capacity
Bucket capacity 0.38 cu m
Bucket capacity 0.46 cu m
Engine model
Engine model V2203M-DI
Engine model Cat 3034 naturally aspirated
Lifting capacity
Lifting capacity 635.03 kg
Lifting capacity 1,065.94 kg
Max speed forward
Max speed forward 11.75 kph
Max speed forward 12.07 kph
Operating weight
Operating weight 3,020 kg
Operating weight 3,460 kg
Tipping load
Tipping load -
Tipping load 2,091 kg
Years
Years 2006-2009
Years 2014-2019
Market Average
Market Average AED 105,000
Market Average AED 186,000
Price
Price AED 63,000
Price AED 147,000
Displacement
Displacement 2,200.79 cu cm
Displacement 2,998.84 cu cm
Gross power
Gross power 34.3 kw
Gross power 46.98 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,800 rpm
Power measured @ 2,600 rpm
Aspiration
Aspiration -
Aspiration Turbocharged
Bore
Bore -
Bore 9.91 cm
Net power
Net power -
Net power 44 kw
Stroke
Stroke -
Stroke 10.16 cm
Fuel cap
Fuel cap 56.78 liter
Fuel cap 90.08 liter
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap 9.84 liter
Engine crankcase
Engine crankcase -
Engine crankcase 6.81 liter
Hydraulic fluid cap
Hydraulic fluid cap -
Hydraulic fluid cap 55.26 liter
Ground pressure
Ground pressure 0.36 bar
Ground pressure 0.3 bar
Number of track rollers per side
Number of track rollers per side 3
Number of track rollers per side -
Track gauge
Track gauge 1.1 m
Track gauge -
Track length
Track length 1.25 m
Track length 1.52 m
Track width
Track width 30.23 cm
Track width 38.1 cm
Ground contact area
Ground contact area -
Ground contact area 29,005.17 cu cm
Height - top of cab
Height - top of cab 1.98 m
Height - top of cab 2.04 m
Length with bucket
Length with bucket 3.17 m
Length with bucket 3.54 m
Length without Bucket
Length without Bucket 2.44 m
Length without Bucket 2.71 m
Turning radius
Turning radius 1.96 m
Turning radius 2.29 m
Width over tracks
Width over tracks 1.4 m
Width over tracks 1.68 m
Ground clearance
Ground clearance -
Ground clearance 0.26 m
Loader dump height
Loader dump height 2.13 m
Loader dump height 2.29 m
Loader dump reach
Loader dump reach 0.67 m
Loader dump reach 0.82 m
Breakout force - lift cylinder
Breakout force - lift cylinder -
Breakout force - lift cylinder 1,583.04 kg
Breakout force - tilt cylinder
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 1,602.09 kg
Pump flow cap
Pump flow cap 63.97 lpm
Pump flow cap 57.53 lpm
Relief valve pressure
Relief valve pressure 186.16 bar
Relief valve pressure -
Rack back angle
Rack back angle 40 º
Rack back angle 44 º
