John deere

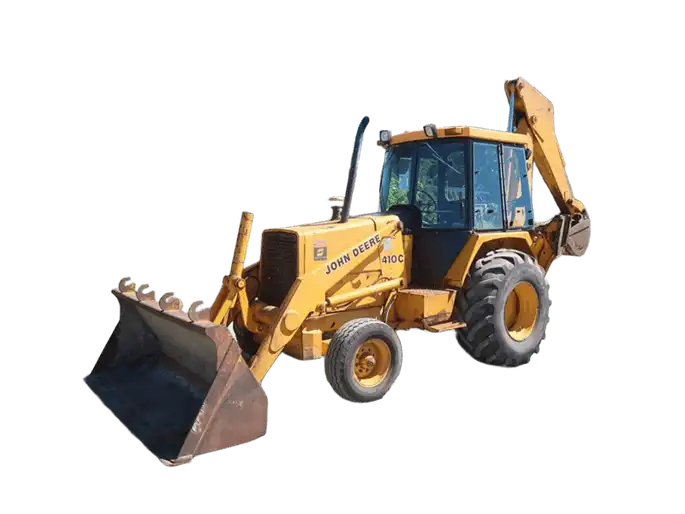

John deere 410 Backhoe loaders
John deere 410 Backhoe loaders tech specs
:quality(50)/65962/conversions/03108a2a-c258-4fd1-bc7c-33148693890c-webp.webp)

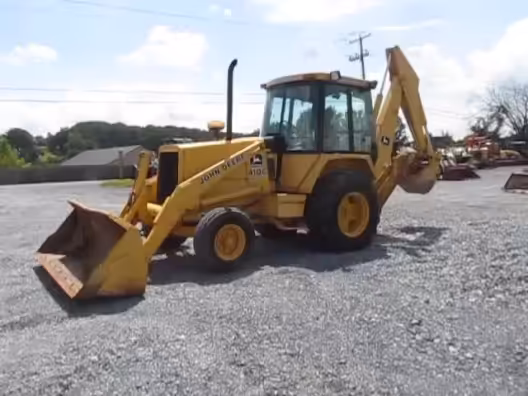

Video[1]
:quality(50)/65953/conversions/95416ddf-47ab-4950-aa1e-9b2dddc68600-webp.webp)

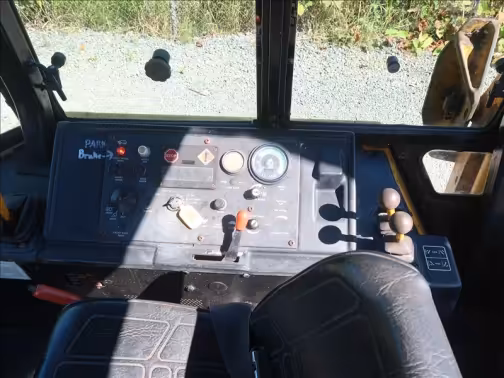

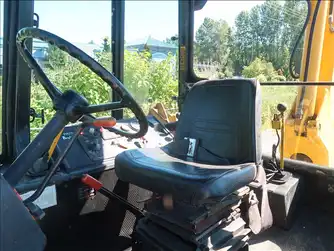

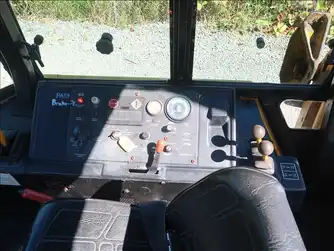

Interior [2]
:quality(50)/65955/conversions/f000051e-59fc-41e8-8b4f-741324743909-webp.webp)

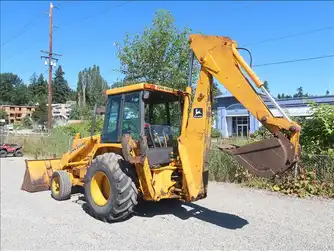

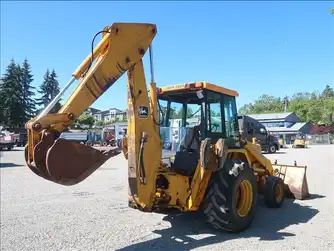

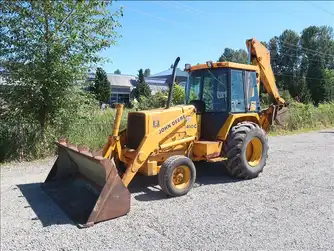

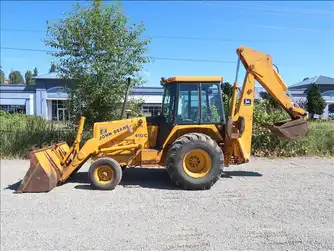

Exterior [4]
:quality(50)/65959/conversions/4cf0a7f5-adda-4fbe-999f-dc391c191e52-webp.webp)

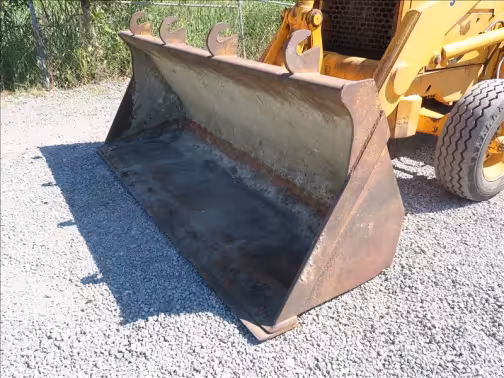

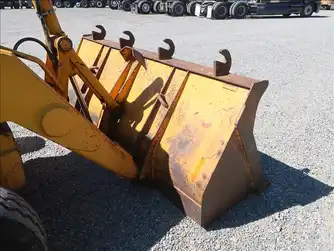

Attachments [3]
1973-2021
4.69 m Backhoe digging depth
3,401.95 kg Breakout force
3.54 m Extended backhoe dump height
49.22 kw Gross power
3.29 m Loader dump height
216.93 Nm Max torque
Makana rating
Market average
AED 740,000Starting from
AED 198,000John deere 410 technical specifications
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 35 Amh
Alternator supplied amperage 35 Amh
Alternator supplied amperage 65 Amh
Alternator supplied amperage 78 Amh
Alternator supplied amperage 65 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 120 Amh
Alternator supplied amperage 120 Amh
Displacement
Displacement 3,588.77 cu cm
Displacement 3,588.77 cu cm
Displacement 4,522.84 cu cm
Displacement 4,522.84 cu cm
Displacement 4,522.84 cu cm
Displacement -
Displacement 4,522.84 cu cm
Displacement 4,522.84 cu cm
Displacement 4,501.54 cu cm
Gross power
Gross power 49.22 kw
Gross power 49.22 kw
Gross power 59.66 kw
Gross power 63.39 kw
Gross power 73.08 kw
Gross power -
Gross power -
Gross power -
Gross power -
Max torque
Max torque 216.93 Nm
Max torque 211.5 Nm
Max torque 291.5 Nm
Max torque 303.7 Nm
Max torque 389.11 Nm
Max torque 378.27 Nm
Max torque 376.91 Nm
Max torque 376.91 Nm
Max torque 430.06 Nm
Net power
Net power 46.23 kw
Net power 46.23 kw
Net power 55.93 kw
Net power 55.93 kw
Net power 67.11 kw
Net power 71.59 kw
Net power 71.59 kw
Net power 71.59 kw
Net power 80.01 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Number of cylinders -
Number of cylinders -
Number of cylinders -
Number of cylinders -
Power measured @
Power measured @ 2,500 rpm
Power measured @ 2,500 rpm
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Power measured @ 2,100 rpm
Power measured @ 2,100 rpm
Power measured @ 2,100 rpm
Power measured @ 2,000 rpm
Torque measured @
Torque measured @ 1,300 rpm
Torque measured @ 1,300 rpm
Torque measured @ 1,200 rpm
Torque measured @ 1,300 rpm
Torque measured @ -
Torque measured @ 1,400 rpm
Torque measured @ 1,500 rpm
Torque measured @ 1,500 rpm
Torque measured @ 1,400 rpm
Aspiration
Aspiration -
Aspiration Naturally aspirated
Aspiration Naturally aspirated
Aspiration Naturally aspirated or turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Torque rise
Torque rise -
Torque rise 0.2 %
Torque rise 0.2 %
Torque rise -
Torque rise 0.34 %
Torque rise 0.23 %
Torque rise 0.26 %
Torque rise 0.26 %
Torque rise 0.35 %
Bore
Bore -
Bore -
Bore -
Bore -
Bore -
Bore -
Bore -
Bore -
Bore 9.14 cm
Engine make
Engine make -
Engine make -
Engine make -
Engine make -
Engine make -
Engine make -
Engine make -
Engine make -
Engine make John Deere PowerTech Plus
Stroke
Stroke -
Stroke -
Stroke -
Stroke -
Stroke -
Stroke -
Stroke -
Stroke -
Stroke 74.42 cm
Years
Years 1973-2021
Years 1973-2021
Years 1973-2021
Years 1973-2021
Years 1973-2021
Years 1973-2021
Years 1973-2021
Years 1973-2021
Years 1973-2021
Market Average
Market Average AED 740,000
Market Average AED 740,000
Market Average AED 740,000
Market Average AED 740,000
Market Average AED 740,000
Market Average AED 740,000
Market Average AED 740,000
Market Average AED 740,000
Market Average AED 740,000
Price
Price AED 198,000
Price AED 198,000
Price AED 198,000
Price AED 198,000
Price AED 198,000
Price AED 198,000
Price AED 198,000
Price AED 198,000
Price AED 198,000
Backhoe digging depth
Backhoe digging depth 4.69 m
Backhoe digging depth 4.42 m
Backhoe digging depth 4.69 m
Backhoe digging depth 4.69 m
Backhoe digging depth 4.85 m
Backhoe digging depth 4.85 m
Backhoe digging depth 4.85 m
Backhoe digging depth 4.91 m
Backhoe digging depth 4.6 m
Backhoe reach from swivel
Backhoe reach from swivel 5.7 m
Backhoe reach from swivel 5.36 m
Backhoe reach from swivel 5.64 m
Backhoe reach from swivel 5.64 m
Backhoe reach from swivel 6 m
Backhoe reach from swivel 6 m
Backhoe reach from swivel 6 m
Backhoe reach from swivel 6.1 m
Backhoe reach from swivel 6.04 m
Backhoe dump height
Backhoe dump height -
Backhoe dump height -
Backhoe dump height -
Backhoe dump height -
Backhoe dump height -
Backhoe dump height -
Backhoe dump height 3.81 m
Backhoe dump height 3.87 m
Backhoe dump height 3.84 m
Breakout force
Breakout force 3,401.95 kg
Breakout force 3,538.02 kg
Breakout force -
Breakout force -
Breakout force 4,631.18 kg
Breakout force 4,631.18 kg
Breakout force 4,631.18 kg
Breakout force 4,631.18 kg
Breakout force 4,672.01 kg
Loader digging depth
Loader digging depth 10.16 cm
Loader digging depth 10.16 cm
Loader digging depth -
Loader digging depth 10.92 cm
Loader digging depth 15.75 cm
Loader digging depth 10.67 cm
Loader digging depth 10.92 cm
Loader digging depth 10.92 cm
Loader digging depth 17.02 cm
Loader dump height
Loader dump height 3.29 m
Loader dump height 2.74 m
Loader dump height -
Loader dump height 2.74 m
Loader dump height 2.56 m
Loader dump height 3.78 m
Loader dump height 2.56 m
Loader dump height 2.56 m
Loader dump height 2.47 m
Loader dump reach
Loader dump reach 0.85 m
Loader dump reach 0.73 m
Loader dump reach -
Loader dump reach 0.76 m
Loader dump reach 0.91 m
Loader dump reach 0.91 m
Loader dump reach 0.91 m
Loader dump reach 0.91 m
Loader dump reach 0.76 m
Bucket capacity
Bucket capacity 0.99 cu m
Bucket capacity 0.99 cu m
Bucket capacity 0.99 cu m
Bucket capacity 0.99 cu m
Bucket capacity 1.15 cu m
Bucket capacity 0.99 cu m
Bucket capacity 0.99 cu m
Bucket capacity 0.99 cu m
Bucket capacity 1.07 cu m
Bucket width
Bucket width 227 cm
Bucket width 233 cm
Bucket width 233 cm
Bucket width 227 cm
Bucket width 233 cm
Bucket width 91 cm
Bucket width 218 cm
Bucket width 218 cm
Bucket width 233 cm
Engine model
Engine model 300 Series
Engine model 4-219D
Engine model 4276D
Engine model 4045T
Engine model 4045T
Engine model 4045T
Engine model 4045T
Engine model 4045T
Engine model 4045HT063
Max speed forward
Max speed forward 26.39 kph
Max speed forward 35.89 kph
Max speed forward 35.57 kph
Max speed forward -
Max speed forward 39.27 kph
Max speed forward 32.99 kph
Max speed forward 37.34 kph
Max speed forward 37.34 kph
Max speed forward 40.23 kph
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Transmission type
Transmission type Constant mesh, 8-speed forward and reverse. Standard hydraulic direction reverser permits no clutch reversing in all gears
Transmission type Manual shift with first and second speeds having sliding collar engagement and third and fourth speeds engaged in cone-type synchronizers.
Transmission type Manual shift with first and second speeds having sliding collar engagement and third and fourth speeds engaged in cone-type synchronizers.
Transmission type Fully synchronized, 4-speed with collar shift with hydraulic reverser
Transmission type 4-speed, helical cut gear, collar shift synchronized in all gears with hydraulic reverser
Transmission type 4-speed, helical cut gear, full power shifted transmission with hydraulic reverser
Transmission type Powershift
Transmission type Powershift
Transmission type 5 speed, helical-cut gears, full PowerShift
Operating weight
Operating weight -
Operating weight 6,531 kg
Operating weight 6,531 kg
Operating weight 7,076 kg
Operating weight 6,803 kg
Operating weight 7,384 kg
Operating weight 8,391 kg
Operating weight 8,590 kg
Operating weight 7,721 kg
Lifting capacity
Lifting capacity -
Lifting capacity -
Lifting capacity -
Lifting capacity -
Lifting capacity -
Lifting capacity -
Lifting capacity 3,329.37 kg
Lifting capacity -
Lifting capacity 3,265.87 kg
Bucket digging force
Bucket digging force 4,377.17 kg
Bucket digging force 4,626.65 kg
Bucket digging force 5,307.04 kg
Bucket digging force -
Bucket digging force 6,808.43 kg
Bucket digging force 6,713.63 kg
Bucket digging force 6,713.63 kg
Bucket digging force 6,713.63 kg
Bucket digging force 6,908.22 kg
Cooling fluid cap
Cooling fluid cap 12.49 liter
Cooling fluid cap 16.28 liter
Cooling fluid cap 16.28 liter
Cooling fluid cap 16.28 liter
Cooling fluid cap 16.28 liter
Cooling fluid cap 16.28 liter
Cooling fluid cap 21.2 liter
Cooling fluid cap 21.2 liter
Cooling fluid cap 32.93 liter
Fuel cap
Fuel cap 13.25 liter
Fuel cap 87.06 liter
Fuel cap 87.06 liter
Fuel cap 128.69 liter
Fuel cap 136.26 liter
Fuel cap 136.26 liter
Fuel cap 155.19 liter
Fuel cap 155.19 liter
Fuel cap 155.19 liter
Hydraulic fluid cap
Hydraulic fluid cap 77.59 liter
Hydraulic fluid cap 71.92 liter
Hydraulic fluid cap 79.49 liter
Hydraulic fluid cap 41.64 liter
Hydraulic fluid cap 94.63 liter
Hydraulic fluid cap 98.41 liter
Hydraulic fluid cap 94.63 liter
Hydraulic fluid cap 94.63 liter
Hydraulic fluid cap 93.11 liter
Transmission fluid cap
Transmission fluid cap 37.85 liter
Transmission fluid cap 13.25 liter
Transmission fluid cap 79.49 liter
Transmission fluid cap 41.64 liter
Transmission fluid cap 14 liter
Transmission fluid cap 15.14 liter
Transmission fluid cap 15.14 liter
Transmission fluid cap 15.14 liter
Transmission fluid cap 15.14 liter
Front axle fluid capacity
Front axle fluid capacity -
Front axle fluid capacity -
Front axle fluid capacity -
Front axle fluid capacity 6.81 liter
Front axle fluid capacity 8.71 liter
Front axle fluid capacity 7.57 liter
Front axle fluid capacity 6.81 liter
Front axle fluid capacity 6.81 liter
Front axle fluid capacity 6.81 liter
Rear axle fluid capacity
Rear axle fluid capacity -
Rear axle fluid capacity -
Rear axle fluid capacity -
Rear axle fluid capacity -
Rear axle fluid capacity 13.25 liter
Rear axle fluid capacity 15.9 liter
Rear axle fluid capacity 18.17 liter
Rear axle fluid capacity 18.17 liter
Rear axle fluid capacity 18.17 liter
Engine oil cap
Engine oil cap 8.71 liter
Engine oil cap 8.71 liter
Engine oil cap 8.71 liter
Engine oil cap 9.08 liter
Engine oil cap 13.25 liter
Engine oil cap 13.25 liter
Engine oil cap 13.25 liter
Engine oil cap 13.25 liter
Engine oil cap 13.25 liter
Extended backhoe digging depth
Extended backhoe digging depth 4.33 m
Extended backhoe digging depth 5.64 m
Extended backhoe digging depth 5.64 m
Extended backhoe digging depth 5.64 m
Extended backhoe digging depth 6.1 m
Extended backhoe digging depth 6.25 m
Extended backhoe digging depth 6.1 m
Extended backhoe digging depth 6.1 m
Extended backhoe digging depth 6.1 m
Extended backhoe dump height
Extended backhoe dump height 3.54 m
Extended backhoe dump height 3.93 m
Extended backhoe dump height 4.27 m
Extended backhoe dump height -
Extended backhoe dump height 4.72 m
Extended backhoe dump height 4.72 m
Extended backhoe dump height 4.72 m
Extended backhoe dump height 4.72 m
Extended backhoe dump height 4.75 m
Extended backhoe dump reach
Extended backhoe dump reach 6.71 m
Extended backhoe dump reach 7.77 m
Extended backhoe dump reach 7.68 m
Extended backhoe dump reach -
Extended backhoe dump reach 8.35 m
Extended backhoe dump reach 8.35 m
Extended backhoe dump reach -
Extended backhoe dump reach -
Extended backhoe dump reach -
Extended backhoe reach from swivel
Extended backhoe reach from swivel 5.7 m
Extended backhoe reach from swivel 6.58 m
Extended backhoe reach from swivel 6.55 m
Extended backhoe reach from swivel 6.55 m
Extended backhoe reach from swivel 7.22 m
Extended backhoe reach from swivel 7.22 m
Extended backhoe reach from swivel 7.22 m
Extended backhoe reach from swivel 7.22 m
Extended backhoe reach from swivel 7.25 m
Front tires size (2WD)
Front tires size (2WD) 11L-16,10ply rating,F3/7.50/8.00-16,10ply rating,F3
Front tires size (2WD) 11L-15,10PR,F3;12.00-16.5,8PR,R4
Front tires size (2WD) 11L-15,12PR F3;12.00-16.5,8PR
Front tires size (2WD) 11-162PR F3F/12-16.58PR F3
Front tires size (2WD) 11L-16,12 PR F3/12.5/80-18,10 PR
Front tires size (2WD) 11L-16 F3
Front tires size (2WD) 11L-16 12PR/12.5/80-18 10PR
Front tires size (2WD) 11L-16 12PR/12.5/80-18 10PR
Front tires size (2WD) 14.5/75-16.1 SL F-3
Rear tires size
Rear tires size 16.9-24,8ply rating,R4/19.5L-24 8ply rating,R4
Rear tires size 19.5L-24,10PR,R4
Rear tires size 17.5-24 10PR R4;19.5L-24,10PR R4/21L-24,10PR R4
Rear tires size 19.5-24 10PR R4
Rear tires size 19.5L-24,10 PR R4
Rear tires size 19.5L-24 R4
Rear tires size 19.5L-24 10PR
Rear tires size 19.5L-24 10PR
Rear tires size 21L-24 R-4
Height - top of cab
Height - top of cab 2.59 m
Height - top of cab -
Height - top of cab 2.65 m
Height - top of cab -
Height - top of cab 2.83 m
Height - top of cab 2.83 m
Height - top of cab 2.83 m
Height - top of cab 2.83 m
Height - top of cab 2.83 m
Overall Length
Overall Length 7.25 m
Overall Length 7.01 m
Overall Length 7.16 m
Overall Length 7.16 m
Overall Length 7.32 m
Overall Length 7.32 m
Overall Length 7.32 m
Overall Length 7.32 m
Overall Length 7.07 m
Overall Width
Overall Width 3.11 m
Overall Width 2.35 m
Overall Width 2.35 m
Overall Width 2.35 m
Overall Width 2.19 m
Overall Width 2.32 m
Overall Width 2.32 m
Overall Width 2.32 m
Overall Width 2.35 m
Turning radius
Turning radius 3.11 m
Turning radius 3.14 m
Turning radius 3.57 m
Turning radius 3.57 m
Turning radius 3.57 m
Turning radius 3.57 m
Turning radius -
Turning radius -
Turning radius -
Ground clearance
Ground clearance -
Ground clearance 0.34 m
Ground clearance 0.34 m
Ground clearance 0.34 m
Ground clearance 0.37 m
Ground clearance 0.37 m
Ground clearance 0.37 m
Ground clearance 0.37 m
Ground clearance 0.37 m
Wheelbase
Wheelbase -
Wheelbase 2.1 m
Wheelbase 2.1 m
Wheelbase 2.1 m
Wheelbase 2.1 m
Wheelbase 2.1 m
Wheelbase 2.13 m
Wheelbase 2.13 m
Wheelbase 1.89 m
Max speed reverse
Max speed reverse 30.09 kph
Max speed reverse 41.68 kph
Max speed reverse 41.2 kph
Max speed reverse -
Max speed reverse 43.77 kph
Max speed reverse 25.91 kph
Max speed reverse 21.57 kph
Max speed reverse 21.57 kph
Max speed reverse 21.24 kph
Number of forward gears
Number of forward gears 8
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of forward gears 5
Number of reverse gears
Number of reverse gears 8
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 3
Number of reverse gears 3
Number of reverse gears 3
Number of reverse gears 3
Pump flow cap
Pump flow cap 143.83 lpm
Pump flow cap 113.55 lpm
Pump flow cap 132.48 lpm
Pump flow cap -
Pump flow cap 158.97 lpm
Pump flow cap 162.76 lpm
Pump flow cap 158.97 lpm
Pump flow cap 159.35 lpm
Pump flow cap 158.97 lpm
Pump type
Pump type Variable flow, axial piston
Pump type 8 radial piston, closed center, variable flow, constant pressure
Pump type 8 radial pistons, variable flow
Pump type Naturally aspirated and turbocharged with static and dynamic timing
Pump type Axial piston
Pump type Axial piston
Pump type Axial piston
Pump type Axial piston
Pump type Pressure compensated load sensing
Relief valve pressure
Relief valve pressure 162.02 bar
Relief valve pressure 172.37 bar
Relief valve pressure 172.37 bar
Relief valve pressure -
Relief valve pressure 249.93 bar
Relief valve pressure 249.93 bar
Relief valve pressure 249.93 bar
Relief valve pressure 249.93 bar
Relief valve pressure 249.93 bar
Download datasheets

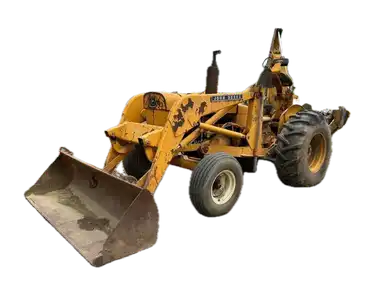

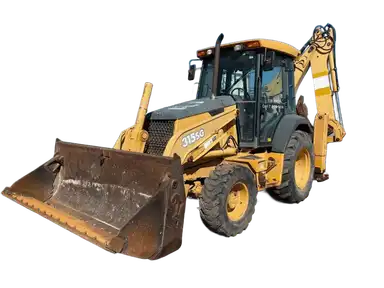

John deere 410 similar models
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 35 Amh
Alternator supplied amperage 65 Amh
Alternator supplied amperage -
Displacement
Displacement 3,588.77 cu cm
Displacement 3,916.52 cu cm
Displacement 3,300.36 cu cm
Gross power
Gross power 49.22 kw
Gross power 52.95 kw
Gross power -
Max torque
Max torque 216.93 Nm
Max torque 260.31 Nm
Max torque 196.59 Nm
Net power
Net power 46.23 kw
Net power 49.96 kw
Net power 44 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,500 rpm
Power measured @ 2,200 rpm
Power measured @ 2,500 rpm
Torque measured @
Torque measured @ 1,300 rpm
Torque measured @ 1,200 rpm
Torque measured @ 1,300 rpm
Torque rise
Torque rise -
Torque rise 0.2 %
Torque rise -
Bore
Bore -
Bore -
Bore 9.91 cm
Engine make
Engine make -
Engine make -
Engine make John Deere
Stroke
Stroke -
Stroke -
Stroke 10.92 cm
Years
Years 1973-2021
Years 1986-1998
Years 1965-1971
Market Average
Market Average AED 740,000
Market Average AED 199,000
Market Average AED 51,000
Price
Price AED 198,000
Price AED 181,000
Price AED 32,000
Backhoe digging depth
Backhoe digging depth 4.69 m
Backhoe digging depth 4.3 m
Backhoe digging depth -
Backhoe reach from swivel
Backhoe reach from swivel 5.7 m
Backhoe reach from swivel 5.33 m
Backhoe reach from swivel -
Breakout force
Breakout force 3,401.95 kg
Breakout force 4,241.09 kg
Breakout force 1,814.37 kg
Loader digging depth
Loader digging depth 10.16 cm
Loader digging depth 45.72 cm
Loader digging depth -
Loader dump height
Loader dump height 3.29 m
Loader dump height 3.35 m
Loader dump height 2.53 m
Loader dump reach
Loader dump reach 0.85 m
Loader dump reach -
Loader dump reach 0.73 m
Bucket capacity
Bucket capacity 0.99 cu m
Bucket capacity 0.99 cu m
Bucket capacity -
Bucket width
Bucket width 227 cm
Bucket width 233 cm
Bucket width -
Engine model
Engine model 300 Series
Engine model 4039D
Engine model -
Max speed forward
Max speed forward 26.39 kph
Max speed forward 40.72 kph
Max speed forward 25.91 kph
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Transmission type
Transmission type Constant mesh, 8-speed forward and reverse. Standard hydraulic direction reverser permits no clutch reversing in all gears
Transmission type 4-speed helical gear, synchronized, collar shift transmission with hydraulic reverser
Transmission type Constant mesh
Operating weight
Operating weight -
Operating weight 6,282 kg
Operating weight 4,762 kg
Bucket digging force
Bucket digging force 4,377.17 kg
Bucket digging force 5,170.96 kg
Bucket digging force -
Cooling fluid cap
Cooling fluid cap 12.49 liter
Cooling fluid cap 16.28 liter
Cooling fluid cap 11.73 liter
Fuel cap
Fuel cap 13.25 liter
Fuel cap 98.41 liter
Fuel cap 73.81 liter
Hydraulic fluid cap
Hydraulic fluid cap 77.59 liter
Hydraulic fluid cap 79.49 liter
Hydraulic fluid cap 40.88 liter
Transmission fluid cap
Transmission fluid cap 37.85 liter
Transmission fluid cap 7.19 liter
Transmission fluid cap -
Front axle fluid capacity
Front axle fluid capacity -
Front axle fluid capacity 22.71 liter
Front axle fluid capacity -
Engine oil cap
Engine oil cap 8.71 liter
Engine oil cap 8.71 liter
Engine oil cap 6.81 liter
Extended backhoe digging depth
Extended backhoe digging depth 4.33 m
Extended backhoe digging depth 5.15 m
Extended backhoe digging depth -
Extended backhoe dump height
Extended backhoe dump height 3.54 m
Extended backhoe dump height 3.6 m
Extended backhoe dump height -
Extended backhoe dump reach
Extended backhoe dump reach 6.71 m
Extended backhoe dump reach 7.71 m
Extended backhoe dump reach -
Extended backhoe reach from swivel
Extended backhoe reach from swivel 5.7 m
Extended backhoe reach from swivel 6.43 m
Extended backhoe reach from swivel -
Front tires size (2WD)
Front tires size (2WD) 11L-16,10ply rating,F3/7.50/8.00-16,10ply rating,F3
Front tires size (2WD) 11L-16,8PRF3/10.5/-18,8PRTG2
Front tires size (2WD) 7.50-16
Rear tires size
Rear tires size 16.9-24,8ply rating,R4/19.5L-24 8ply rating,R4
Rear tires size 16.9-28,10PR,R1/R4
Rear tires size 13.6-28
Height - top of cab
Height - top of cab 2.59 m
Height - top of cab 2.62 m
Height - top of cab 2.04 m
Overall Length
Overall Length 7.25 m
Overall Length 5.52 m
Overall Length 3.23 m
Overall Width
Overall Width 3.11 m
Overall Width 2.38 m
Overall Width 1.92 m
Turning radius
Turning radius 3.11 m
Turning radius 3.02 m
Turning radius -
Ground clearance
Ground clearance -
Ground clearance 0.37 m
Ground clearance -
Wheelbase
Wheelbase -
Wheelbase 2.1 m
Wheelbase 2.1 m
Front tread range
Front tread range -
Front tread range -
Front tread range 142.24 cm
Rear tread range
Rear tread range -
Rear tread range -
Rear tread range 198.12 cm
Max speed reverse
Max speed reverse 30.09 kph
Max speed reverse 36.69 kph
Max speed reverse 7.72 kph
Number of forward gears
Number of forward gears 8
Number of forward gears 4
Number of forward gears 8
Number of reverse gears
Number of reverse gears 8
Number of reverse gears 4
Number of reverse gears 4
Pump flow cap
Pump flow cap 143.83 lpm
Pump flow cap 132.48 lpm
Pump flow cap 105.98 lpm
Pump type
Pump type Variable flow, axial piston
Pump type Open center
Pump type Closed center
Relief valve pressure
Relief valve pressure 162.02 bar
Relief valve pressure 186.16 bar
Relief valve pressure 155.13 bar
John deere 410 gallery
:quality(50)/65962/conversions/03108a2a-c258-4fd1-bc7c-33148693890c-thumb.webp)
Customs paid
Great deal:quality(75)/products/10077/view_360/748f9164-0b67-49d4-aa7f-0550dacb5ac7.png "Cat 426F2 backhoe loader")
BHL-001
Cat 426F2 backhoe loader
:quality(75)/products/10078/view_360/242622af-fd6d-4f8c-84eb-9871c9e2ff4f.png "Cat 428 backhoe loader")
:quality(75)/products/10123/view_360/bbb4e853-cbf8-4ea4-832e-deee377b5adb.png "JCB 3DX Plus backhoe loader")
Similar machines. Other reviews.
:quality(80)/55273/41b09ad1-b53b-4b46-b674-2d9366e34cba.webp)
:quality(50)/59488/e84b1cc0-d394-4c8f-b45d-14b7a230a453.png)
:quality(80)/60953/d01e174e-11e1-47e0-987c-da947df67259.jpeg)
:quality(50)/59550/2a86e61e-1b20-43eb-94ad-dac76d51ba33.png)
:quality(80)/60954/da9b802d-b520-43dc-bd53-3e63229572e1.webp)
:quality(50)/59562/809f0deb-fdbd-4b3a-85fc-05506430bb28.png)
:quality(80)/60951/b376c375-391e-4221-936c-4c863ae106c1.jpeg)
John deere 350 Medium excavators specsJohn Deere 310 Backhoe loaders specsJohn Deere 524 Wheel loaders specsJohn Deere 544 Wheel loaders specsJohn Deere 624 Wheel loaders specsJohn Deere 644 Wheel loaders specsJohn deere 110 Backhoe loaders specsJohn deere 300 Backhoe loaders specsJohn deere 302 Backhoe loaders specsJohn deere 315 Backhoe loaders specs
Get the latest from Makana
Subscribe to receive auction dates, exclusive deals, and news in your inbox.
