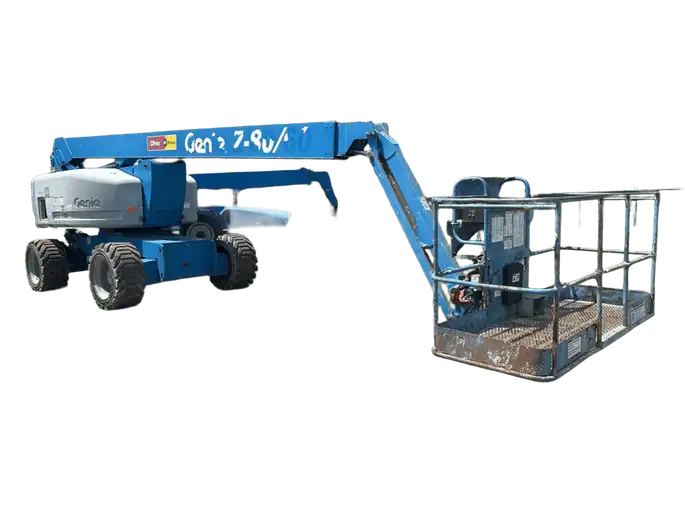

Genie Z-80 Boom lifts tech specs
:quality(50)/76223/conversions/b75707f2-a840-4af0-adc3-fc2eb721b772-thumb.webp)
Video[1]
:quality(50)/76215/conversions/112d2023-77ba-4d0d-b5c3-772d8f777acd-thumb.webp)

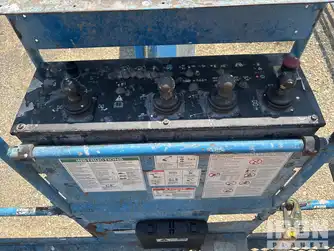

Interior [2]
:quality(50)/76217/conversions/8ed15ad5-8021-481a-b40f-ebab45a3b108-thumb.webp)

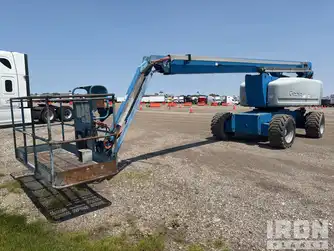

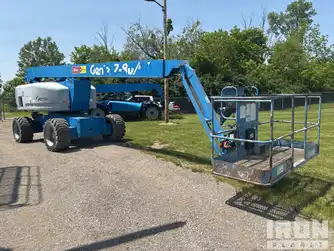

Exterior [4]
:quality(50)/76221/conversions/470f43ab-358c-4faa-9772-96b3c4b1bc01-thumb.webp)

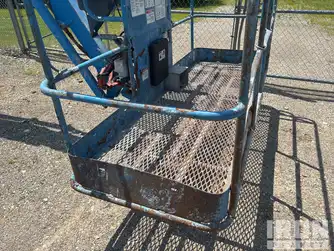

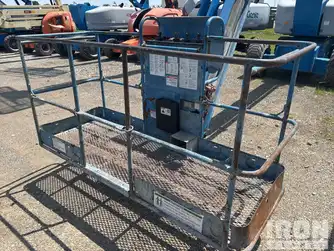

Attachments [2]
Genie Z-80 technical specifications
Highlight differences
Engine model
Engine model TD 2011 L04i
Engine model TD 2011 L04i
Engine model TD 2011 L04i
Fuel type
Fuel type Diesel
Fuel type Diesel
Fuel type Diesel
Max horizontal reach
Max horizontal reach 18.32 m
Max horizontal reach 18.32 m
Max horizontal reach 18.32 m
Max speed forward
Max speed forward 4.83 kph
Max speed forward 4.83 kph
Max speed forward 4.83 kph
Max working height
Max working height 25.79 m
Max working height 25.79 m
Max working height 25.79 m
Operating weight
Operating weight 16,284 kg
Operating weight 16,284 kg
Operating weight 17,010 kg
Platform rotation
Platform rotation 160 º
Platform rotation 160 º
Platform rotation 160 º
Tire size
Tire size 18-625 NHS
Tire size 18-625 NHS
Tire size 18-625 NHS
Wheelbase
Wheelbase 2.87 m
Wheelbase 2.87 m
Wheelbase 2.87 m
Years
Years 2007-2012
Years 2007-2012
Years 2007-2012
Market Average
Market Average AED 185,000
Market Average AED 185,000
Market Average AED 185,000
Price
Price AED 115,000
Price AED 115,000
Price AED 115,000
Fuel cap
Fuel cap 132.1 liter
Fuel cap 132.1 liter
Fuel cap 132.1 liter
Hydraulic fluid cap
Hydraulic fluid cap 170.33 liter
Hydraulic fluid cap 170.33 liter
Hydraulic fluid cap 170.33 liter
Gross power
Gross power 58.17 kw
Gross power 58.17 kw
Gross power 58.17 kw
Ground clearance
Ground clearance 0.3 m
Ground clearance 0.3 m
Ground clearance 0.3 m
Stowed height
Stowed height 3.02 m
Stowed height 3.02 m
Stowed height 3.02 m
Overall Length
Overall Length 0.94 m
Overall Length 0.94 m
Overall Length 0.94 m
Overall Width
Overall Width 2.5 m
Overall Width 2.5 m
Overall Width 2.5 m
Turning radius
Turning radius 7.5 m
Turning radius 7.5 m
Turning radius 4.57 m
Platform Dimension B
Platform Dimension B 244.09 cm
Platform Dimension B 244.09 cm
Platform Dimension B 244.09 cm
Platform Dimension A
Platform Dimension A 91.19 cm
Platform Dimension A 91.19 cm
Platform Dimension A 91.19 cm
Platform Capacity - Unrestricted
Platform Capacity - Unrestricted 227.02 kg
Platform Capacity - Unrestricted 227.02 kg
Platform Capacity - Unrestricted 227.02 kg
Download datasheets
Genie Z-80 expert review
:quality(50)/60952/a25e1d76-5098-4ef7-a6f5-fe8bc1dffd1a.jpeg)
Overview
The Genie Z-80 (2007–2012) is a large diesel articulating boom lift designed for high-reach construction access, industrial maintenance, façade work, steel structure access, and outdoor service jobs. It offers a 25.77 m maximum working height, 18.29 m horizontal reach, and a 16,284 kg operating weight, giving crews strong access capability for demanding sites.
Expert rating: 4 stars
Pros Strong working height and long horizontal reach for demanding outdoor access work.
Cons Heavy 16,284 kg operating weight and 2.5 m width need careful jobsite planning.
Performance & Efficiency
The diesel-powered Z-80 is built for outdoor access work across construction and industrial sites. Its 25.77 m working height, 18.29 m horizontal reach, 132.1 liter fuel tank, and 16,284 kg operating weight make it useful for crews working around façades, structural steel, equipment, and elevated service points.
In Comparison
JLG 860: Strong high-reach boom lift with similar outdoor access capability.
Genie S-80: Straight boom option with good reach, but less flexibility around obstacles.
Genie Z-80: Offers high reach with articulating positioning for complex construction and industrial access work.
Final Verdict
Rated 4 stars, the Genie Z-80 is a capable diesel boom lift within the AED 115,000–185,000 range, offering strong height, long outreach, and practical value for demanding outdoor access jobs.
Genie Z-80 owner rating
Genie Z-80 Boom lifts [2007-2012]
2007-2012
Overall rating
Based on 3 ratings
4.3
performance
4.3
comfort
4.3
fuel efficiency
4.7
safety
4.7
features
4.3
5 stars
33 %
4 stars
67 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Genie Z-80 similar models
Highlight differences
Engine model
Engine model TD 2011 L04i
Engine model Deutz D2.9L4
Engine model TD2011 L04i
Fuel type
Fuel type Diesel
Fuel type Diesel
Fuel type Diesel
Max horizontal reach
Max horizontal reach 18.32 m
Max horizontal reach 22,860 mm
Max horizontal reach 21.82 m
Max speed forward
Max speed forward 4.83 kph
Max speed forward -
Max speed forward 5.63 kph
Max working height
Max working height 25.79 m
Max working height 28.21 m
Max working height 26.21 m
Operating weight
Operating weight 16,284 kg
Operating weight 16,710 kg
Operating weight 16,103 kg
Platform rotation
Platform rotation 160 º
Platform rotation 180 º
Platform rotation 160 º
Tire size
Tire size 18-625 NHS
Tire size 15-625
Tire size 18-625 16PLY
Wheelbase
Wheelbase 2.87 m
Wheelbase 3.05 m
Wheelbase 2.8 m
Gradeability
Gradeability -
Gradeability 24 º
Gradeability -
Operating voltage
Operating voltage -
Operating voltage 12 V
Operating voltage -
Years
Years 2007-2012
Years 2002-2020
Years 2007-2017
Market Average
Market Average AED 185,000
Market Average AED 697,860
Market Average AED 210,000
Price
Price AED 115,000
Price AED 153,470
Price AED 150,000
Fuel cap
Fuel cap 132.1 liter
Fuel cap 117.35 liter
Fuel cap 132.1 liter
Hydraulic fluid cap
Hydraulic fluid cap 170.33 liter
Hydraulic fluid cap 181.7 liter
Hydraulic fluid cap 150.26 liter
Gross power
Gross power 58.17 kw
Gross power 49.96 kw
Gross power 55.18 kw
Ground clearance
Ground clearance 0.3 m
Ground clearance 0.28 cm
Ground clearance 0.03 m
Stowed height
Stowed height 3.02 m
Stowed height 3.05 m
Stowed height 2.53 m
Overall Length
Overall Length 0.94 m
Overall Length 12.19 m
Overall Length 0.93 m
Overall Width
Overall Width 2.5 m
Overall Width 2.49 m
Overall Width 2.53 m
Turning radius
Turning radius 7.5 m
Turning radius 6.02 m
Turning radius 6.61 m
Axle Oscillation
Axle Oscillation -
Axle Oscillation 0.2 m
Axle Oscillation -
Platform Dimension B
Platform Dimension B 244.09 cm
Platform Dimension B 0.91 m
Platform Dimension B 244.09 cm
Platform Dimension A
Platform Dimension A 91.19 cm
Platform Dimension A 2.44 m
Platform Dimension A 91.19 cm
Platform Capacity - Unrestricted
Platform Capacity - Unrestricted 227.02 kg
Platform Capacity - Unrestricted 227 kg
Platform Capacity - Unrestricted 227.02 kg
Drive Speed - Platform Lowered
Drive Speed - Platform Lowered -
Drive Speed - Platform Lowered 5.6 kph
Drive Speed - Platform Lowered -
Swing
Swing -
Swing 360 º
Swing -
Swing type
Swing type -
Swing type Continuous
Swing type -
Tire Type
Tire Type -
Tire Type Foam-Filled
Tire Type Foam filled
