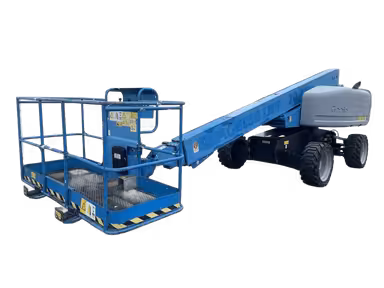

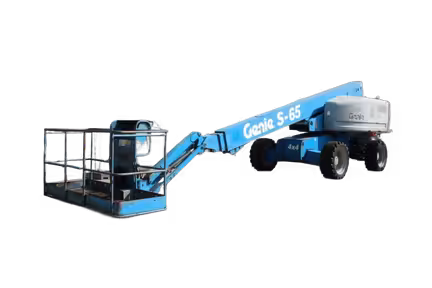

Genie S-65 Boom lifts tech specs
:quality(50)/75188/conversions/976a6d6a-4b5f-476b-b33e-3226e3f1f89c-thumb.webp)
Video[1]
:quality(50)/75180/conversions/6acf9769-d103-4a6b-9088-0348be644429-thumb.webp)
Interior [2]
:quality(50)/75182/conversions/f5d5ff5e-16b7-43ef-ae5c-3cb11fe62ff2-thumb.webp)

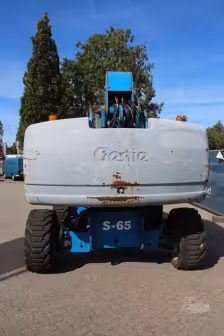

Exterior [4]
:quality(50)/75186/conversions/1666ea31-12d4-4973-accb-9b896e27bf8a-thumb.webp)

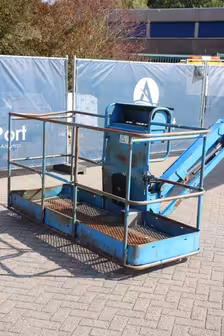

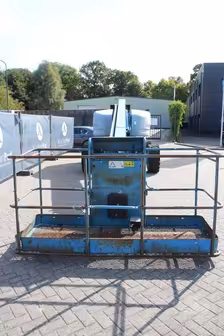

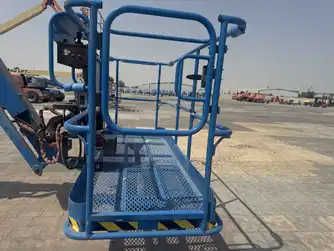

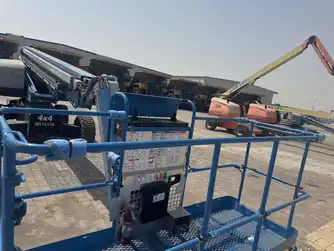

Attachments [2]
Genie S-65 Technical specifications
Transmission
Drive speed - platform elevated
1.13 kph
Service refill capacities
Fuel cap
170.33 liter
Hydraulic fluid cap
170.33 liter
General
Fuel type
Gas/LPG
Max horizontal reach
17.13 m
Max speed forward
6.44 kph
Max working height
21.82 m
Operating voltage
12 V
Operating weight
10,024 kg
Platform rotation
160 º
Tire size
355/55D 625
Engine
Gross power
55.93 kw
Dimensions
Ground clearance
0.37 m
Stowed height
2.74 m
Overall Length
9.42 m
Overall Width
2.5 m
Turning radius
2.38 m
Wheelbase
2.53 m
Platform
Platform Dimension B
91.19 cm
Platform Dimension A
244.09 cm
Performance
Platform Capacity - Unrestricted
227.02 kg
Operating specifications
Tire Type
RT-Lug
Download datasheets
Genie S-65 similar models
Highlight differences
:quality(50)/72552/a4c93ae9-61e9-4a71-b031-ecb53ddba83f.png)
Drive speed - platform elevated
Drive speed - platform elevated 1.13 kph
Drive speed - platform elevated -
Drive speed - platform elevated -
Years
Years 2007-2018
Years 2013-2020
Years 2007-2018
Market Average
Market Average AED 180,000
Market Average AED 19,800
Market Average AED 140,000
Price
Price AED 130,000
Price AED 15,000
Price AED 90,000
Fuel cap
Fuel cap 170.33 liter
Fuel cap -
Fuel cap 132.1 liter
Hydraulic fluid cap
Hydraulic fluid cap 170.33 liter
Hydraulic fluid cap -
Hydraulic fluid cap 170.33 liter
Fuel type
Fuel type Gas/LPG
Fuel type -
Fuel type Gas/LPG
Max horizontal reach
Max horizontal reach 17.13 m
Max horizontal reach -
Max horizontal reach 15.48 m
Max speed forward
Max speed forward 6.44 kph
Max speed forward -
Max speed forward 6.44 kph
Max working height
Max working height 21.82 m
Max working height -
Max working height 20.33 m
Operating voltage
Operating voltage 12 V
Operating voltage -
Operating voltage -
Operating weight
Operating weight 10,024 kg
Operating weight -
Operating weight 9,308 kg
Platform rotation
Platform rotation 160 º
Platform rotation -
Platform rotation 160 º
Tire size
Tire size 355/55D 625
Tire size 14x17.5
Tire size 355/55D 325
Engine model
Engine model -
Engine model Deutz D2.9L4
Engine model DSG 423
Drive type
Drive type -
Drive type 4WD
Drive type 4WD
Gross power
Gross power 55.93 kw
Gross power -
Gross power 55.93 kw
Ground clearance
Ground clearance 0.37 m
Ground clearance -
Ground clearance 0.04 m
Stowed height
Stowed height 2.74 m
Stowed height 2.56 mm
Stowed height 2.74 m
Overall Length
Overall Length 9.42 m
Overall Length -
Overall Length 0.71 m
Overall Width
Overall Width 2.5 m
Overall Width 2.44 m
Overall Width 2.5 m
Turning radius
Turning radius 2.38 m
Turning radius -
Turning radius 5.55 m
Wheelbase
Wheelbase 2.53 m
Wheelbase -
Wheelbase 2.53 m
Boom size
Boom size -
Boom size -
Boom size 18.29 m
Platform Dimension B
Platform Dimension B 91.19 cm
Platform Dimension B -
Platform Dimension B 244.09 cm
Platform Dimension A
Platform Dimension A 244.09 cm
Platform Dimension A -
Platform Dimension A 91.19 cm
Platform Capacity - Unrestricted
Platform Capacity - Unrestricted 227.02 kg
Platform Capacity - Unrestricted -
Platform Capacity - Unrestricted 227.02 kg
Boom Type
Boom Type -
Boom Type AT/60.7
Boom Type -
Tire Type
Tire Type RT-Lug
Tire Type -
Tire Type RT-Lug

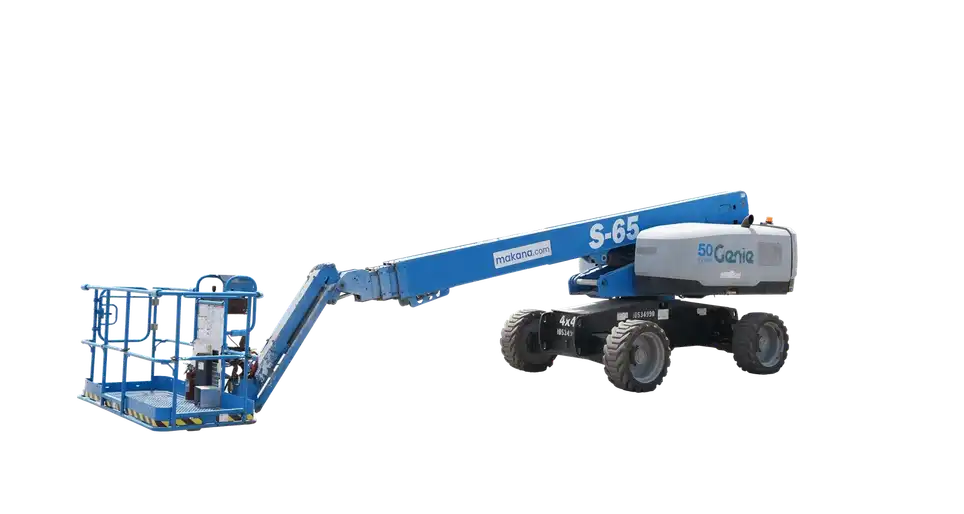

Genie S-65 gallery
:quality(50)/75188/conversions/976a6d6a-4b5f-476b-b33e-3226e3f1f89c-thumb.webp)

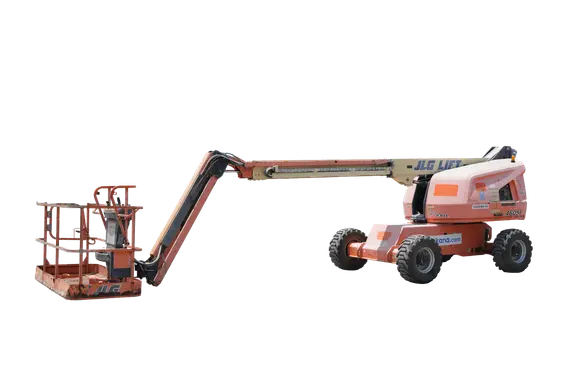

:quality(75)/products/10211/view_360/d0150d16-bb30-4597-b8fc-9300a621b4b5.png "2016 JLG 460SJ 4WD diesel telescopic boom lift")
