JLG

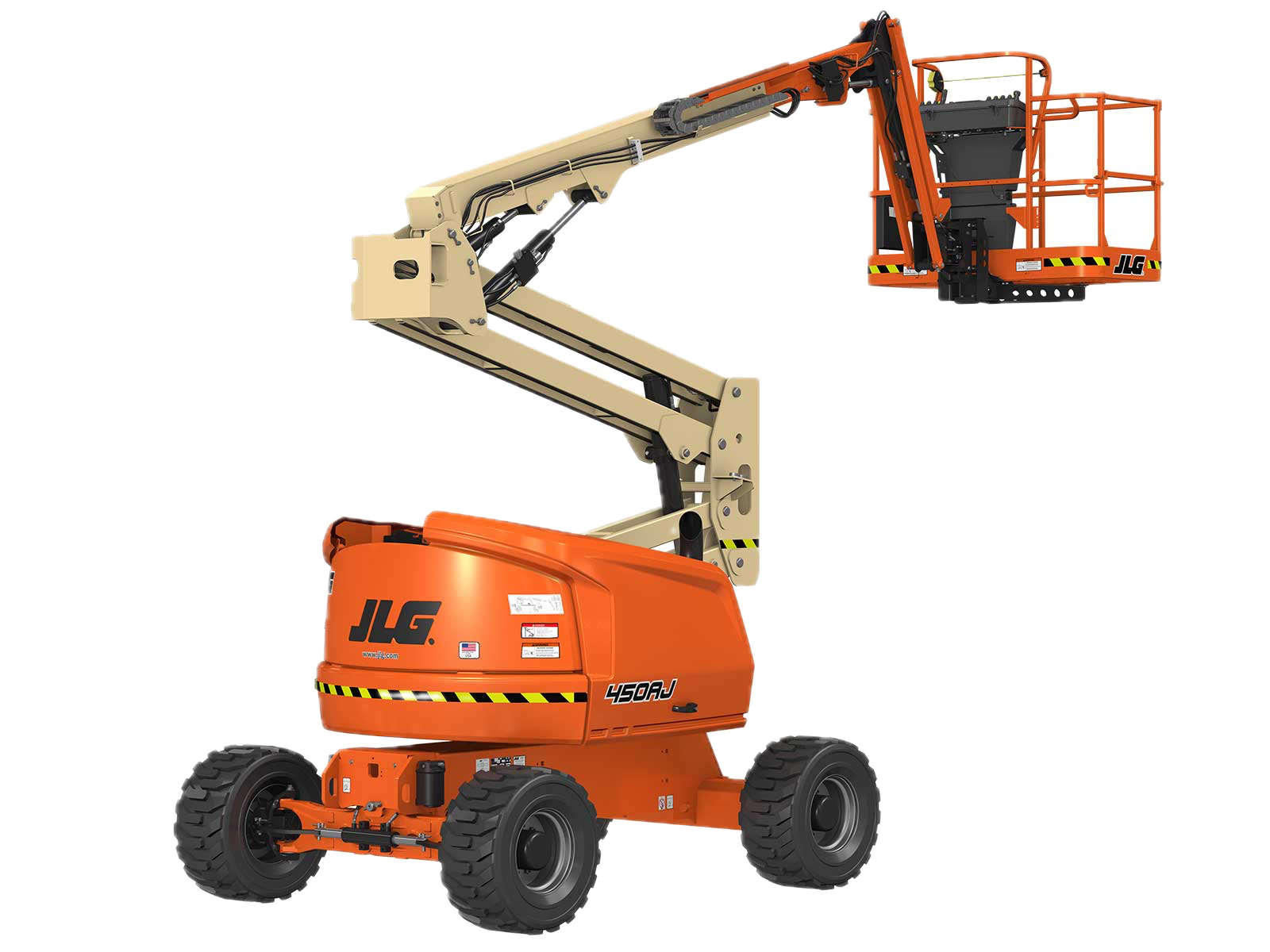

JLG 450 Boom lifts
JLG 450 Boom lifts tech specs
:quality(50)/58928/8984e9d8-de1c-472e-b751-291e2d117ae7.png)
:quality(50)/58939/conversions/1d03662e-09f3-4fb7-b570-ccbeafa2f8a4-webp.webp)

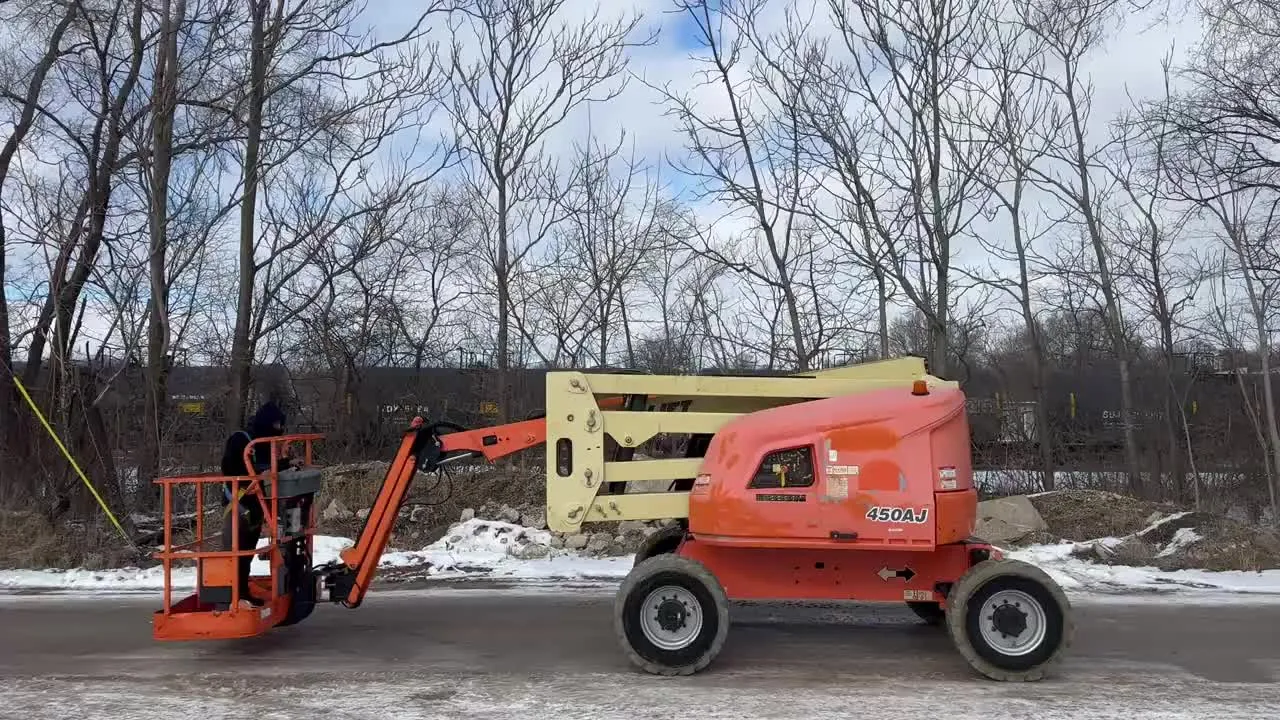

Video[1]
:quality(50)/58931/conversions/eeb7148a-e271-434a-8e37-3d2b63dcc68a-webp.webp)

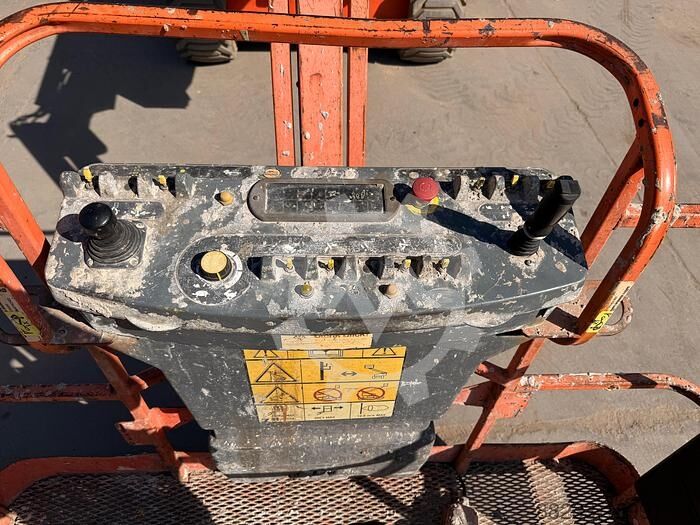

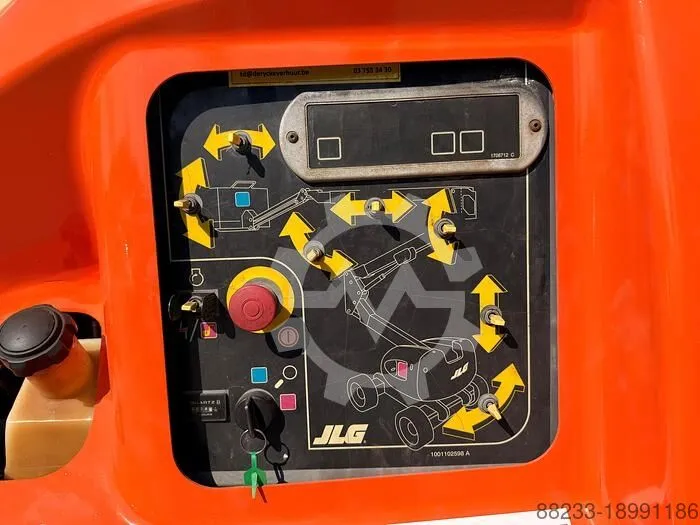

Interior [2]
:quality(50)/58933/conversions/54cdc377-ab14-4aa9-bfb6-c6f5fc3db2c9-webp.webp)

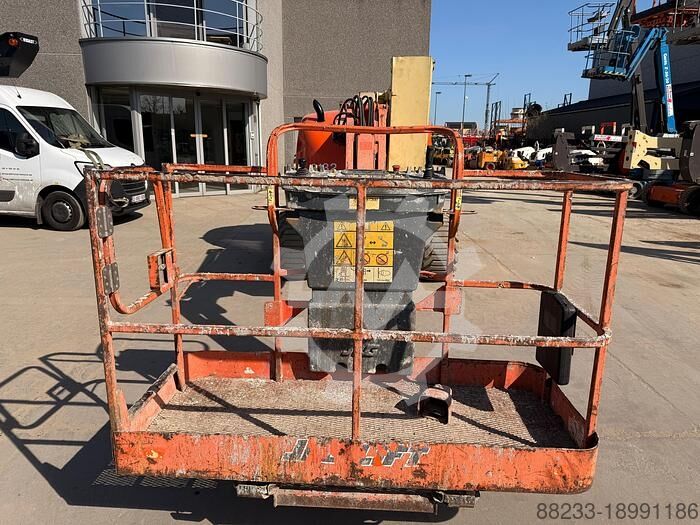

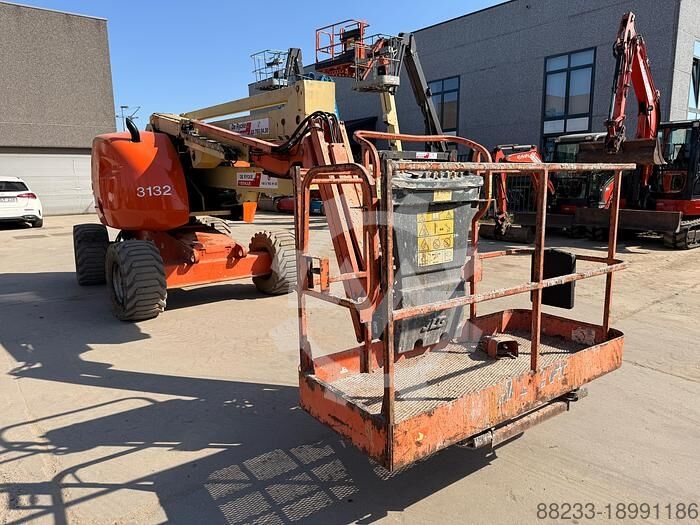

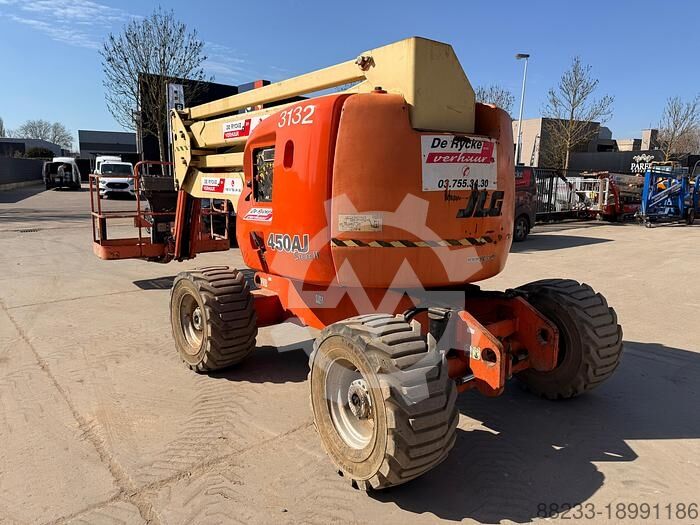

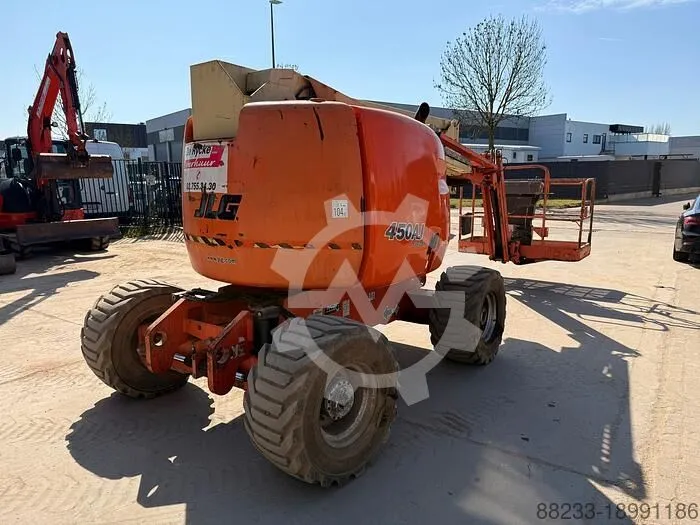

Exterior [4]
:quality(50)/58937/conversions/9a70d887-2dbf-4ba7-8183-70883577f165-webp.webp)
Attachments [2]
2016-2020
61.15 kw Gross power
7,320 mm Max horizontal reach
5,737 kg Operating weight
249.48 kg Platform Capacity - Unrestricted
2.29 m Stowed height
33/1550 x 16.5 Superwide Tire size
The JLG 450 AJ (2016–2020) gives you serious reach—13.7 m (45 ft) platform height, 7.6 m (25 ft) horizontal outreach—in a tough, compact package. With 249 kg unrestricted capacity and smart ride tech, it gets the job done where others can’t fit in or reach up.
Platform Height: 45 ft ~ 13.72 m; Working Height: ~51 ft
Horizontal Reach: 25 ft ~ 7.62 m
Platform Capacity: 550 lb ~ 249 kg (unrestricted)
Up & Over Clearance: ~20–24 ft / ~6–7.3 m
Weight: ~14,150–16,550 lb ≈ 6,418–7,512 kg depending on spec level
Drive & Mobility: Diesel or dual-fuel; 4WD; ~6.8 km/h; gradeability ~45%
JLG 450 technical specifications
Highlight differences
:quality(50)/58929/de0697b4-c446-4a8a-821f-7e0d3a8c836f.png)
:quality(50)/58930/4fdfb38b-eda6-48cd-8c27-3cc9422e5cb4.png)
Axle Oscillation
Axle Oscillation 0.12 m
Axle Oscillation -
Ground clearance
Ground clearance 30.48 cm
Ground clearance -
Overall Length
Overall Length 5.51 m
Overall Length 5.59 m
Overall Width
Overall Width 2.41 m
Overall Width 2.41 m
Stowed height
Stowed height 2.29 m
Stowed height 2.32 m
Turning radius
Turning radius 4.82 m
Turning radius 2.04 m
Wheelbase
Wheelbase -
Wheelbase 2.38 m
Years
Years 2016-2020
Years 2016-2020
Market Average
Market Average AED 76,000
Market Average AED 76,000
Price
Price AED 44,000
Price AED 44,000
Engine model
Engine model Deutz D2.9 L4 Tier 4 Final
Engine model -
Gradeability
Gradeability 45 º
Gradeability 30 º
Max horizontal reach
Max horizontal reach 7,320 mm
Max horizontal reach 7,500 mm
Operating weight
Operating weight 5,737 kg
Operating weight -
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Tire size
Tire size 33/1550 x 16.5 Superwide
Tire size 33/1550 x 16.5 Superwide
Max working height
Max working height -
Max working height 13.72 m
Platform rotation
Platform rotation -
Platform rotation 180 º
Fuel cap
Fuel cap 60.56 liter
Fuel cap 64.35 liter
Hydraulic fluid cap
Hydraulic fluid cap 136.26 liter
Hydraulic fluid cap 102.2 liter
Gross power
Gross power 61.15 kw
Gross power 61.15 kw
Ground pressure
Ground pressure 3.31 bar
Ground pressure -
Drive Speed - Platform Lowered
Drive Speed - Platform Lowered 6.92 kph
Drive Speed - Platform Lowered -
Platform Capacity - Unrestricted
Platform Capacity - Unrestricted 249.48 kg
Platform Capacity - Unrestricted 226.8 kg
Platform Dimension A
Platform Dimension A 0.79 m
Platform Dimension A -
Platform Dimension B
Platform Dimension B 1.83 m
Platform Dimension B -
Platform railing height
Platform railing height 137 cm
Platform railing height -
Swing
Swing 355 º
Swing -
Swing type
Swing type Non-Continuous
Swing type -
Download datasheets
JLG 450 expert review
Overview
Compact reach and tough exterior with service-savvy touches like DuraTough hoods and framed service points make it meet expectations, not just check boxes.
Pros Tall, narrow work envelope.
Strong load rating and rugged design.
Strong load rating and rugged design.
Cons Heavy—must manage transport.
Diesel engine—fuel & emission considerations.
Diesel engine—fuel & emission considerations.
Performance & Efficiency
Hydrostatic 4WD, load-sensing dynamics, and smart design elements keep this one rolling, not stalling.
Verdict
JLG 450 AJ: heavy, smart, and built to stretch into high, tight places with zero BS.
JLG 450 owner rating
JLG 450 Boom lifts [2016-2020]
2016-2020
Overall rating
Based on 0 ratings
5.0
5 stars
100 %
4 stars
0 %
3 stars
0 %
2 stars
0 %
1 stars
0 %

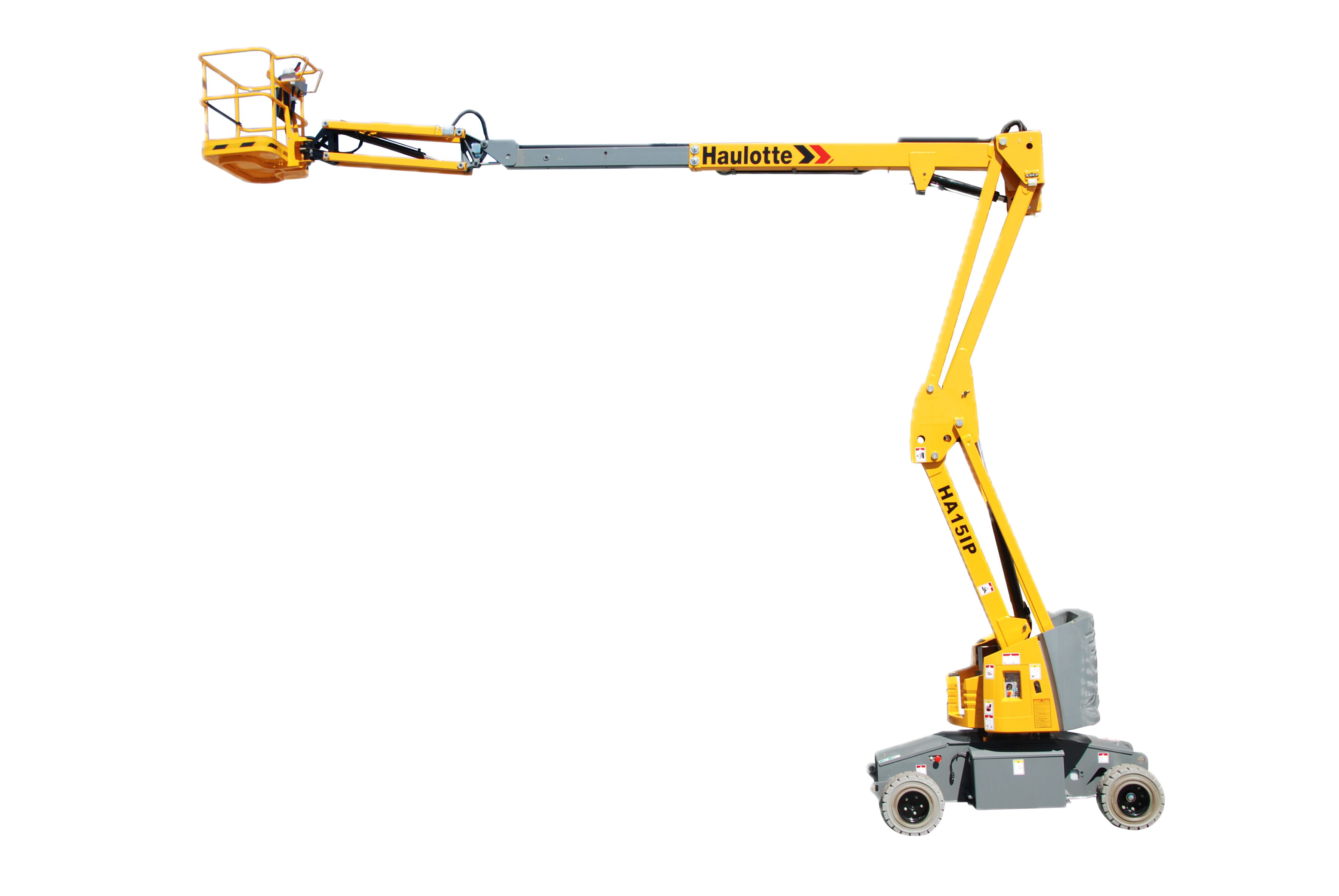

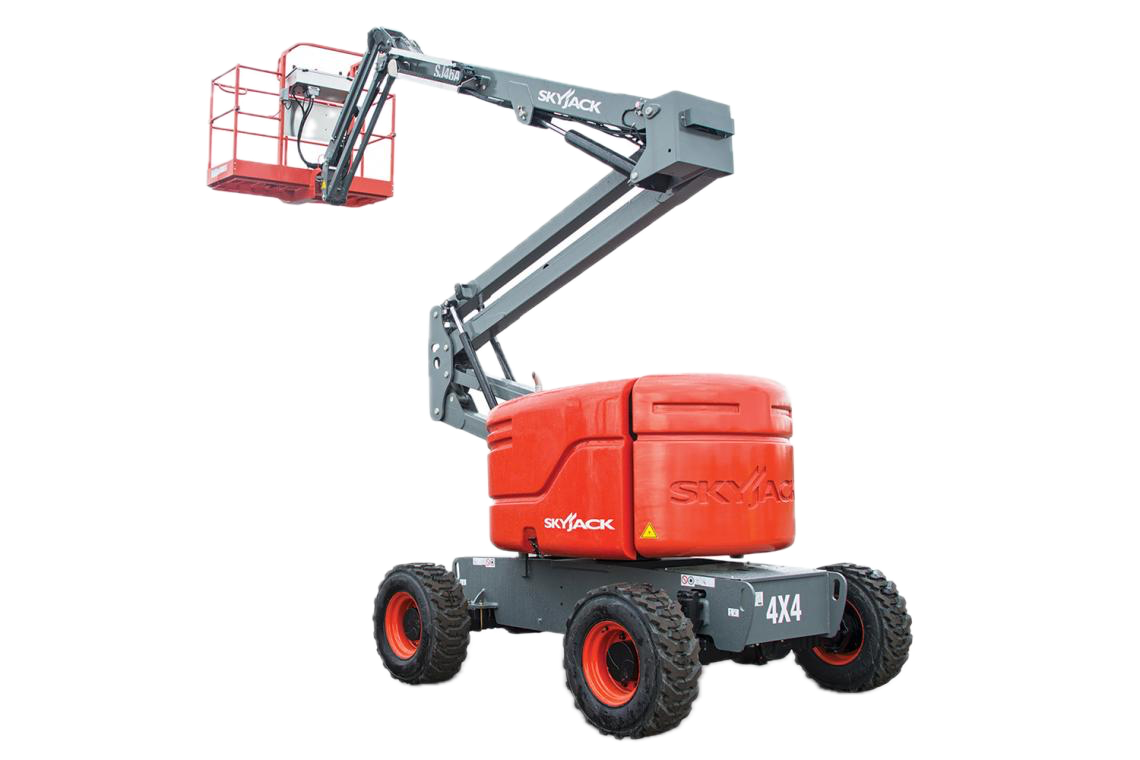

JLG 450 similar models
Highlight differences
:quality(50)/59009/4d4421d5-0e50-442b-b402-2cdb5faa5469.png)
:quality(50)/59054/b2562971-254a-48b5-89d5-d59c59a05444.png)
Axle Oscillation
Axle Oscillation 0.12 m
Axle Oscillation -
Axle Oscillation 12.71 m
Ground clearance
Ground clearance 30.48 cm
Ground clearance 15.24 cm
Ground clearance 39.12 cm
Overall Length
Overall Length 5.51 m
Overall Length 5.51 m
Overall Length -
Overall Width
Overall Width 2.41 m
Overall Width 1.52 m
Overall Width -
Stowed height
Stowed height 2.29 m
Stowed height 2.01 m
Stowed height -
Turning radius
Turning radius 4.82 m
Turning radius 3.72 m
Turning radius 2.5 m
Wheelbase
Wheelbase -
Wheelbase 2.01 m
Wheelbase 2.04 m
Years
Years 2016-2020
Years 2004-2020
Years 2008-2025
Market Average
Market Average AED 76,000
Market Average AED 143,000
Market Average AED 194,000
Price
Price AED 44,000
Price AED 71,000
Price AED 150,000
Engine model
Engine model Deutz D2.9 L4 Tier 4 Final
Engine model -
Engine model -
Gradeability
Gradeability 45 º
Gradeability -
Gradeability 45 º
Max horizontal reach
Max horizontal reach 7,320 mm
Max horizontal reach 8,470 mm
Max horizontal reach 7,560 mm
Operating weight
Operating weight 5,737 kg
Operating weight 7,300 kg
Operating weight 6,033 kg
Operating voltage
Operating voltage 12 V
Operating voltage 48 V
Operating voltage -
Tire size
Tire size 33/1550 x 16.5 Superwide
Tire size 23x10x12
Tire size 12 x 16.5
Max working height
Max working height -
Max working height 15.03 m
Max working height -
Platform rotation
Platform rotation -
Platform rotation 180 º
Platform rotation 170 º
Fuel cap
Fuel cap 60.56 liter
Fuel cap -
Fuel cap 64.35 liter
Hydraulic fluid cap
Hydraulic fluid cap 136.26 liter
Hydraulic fluid cap 50.34 liter
Hydraulic fluid cap 91.22 liter
Gross power
Gross power 61.15 kw
Gross power -
Gross power 61.15 kw
Battery amps
Battery amps -
Battery amps 360 Amh
Battery amps -
Charger amps
Charger amps -
Charger amps 50 Amh
Charger amps -
Ground pressure
Ground pressure 3.31 bar
Ground pressure -
Ground pressure 7.93 bar
Drive Speed - Platform Lowered
Drive Speed - Platform Lowered 6.92 kph
Drive Speed - Platform Lowered 4.51 kph
Drive Speed - Platform Lowered 7.72 kph
Platform Capacity - Unrestricted
Platform Capacity - Unrestricted 249.48 kg
Platform Capacity - Unrestricted 230.02 kg
Platform Capacity - Unrestricted 227.02 kg
Platform Dimension A
Platform Dimension A 0.79 m
Platform Dimension A 0.81 m
Platform Dimension A -
Platform Dimension B
Platform Dimension B 1.83 m
Platform Dimension B 1.21 m
Platform Dimension B -
Jib Length
Jib Length -
Jib Length -
Jib Length 1.52 m
Platform railing height
Platform railing height 137 cm
Platform railing height -
Platform railing height -
Swing
Swing 355 º
Swing -
Swing -
Swing type
Swing type Non-Continuous
Swing type -
Swing type -
Tire Type
Tire Type -
Tire Type non marking
Tire Type Air Filled

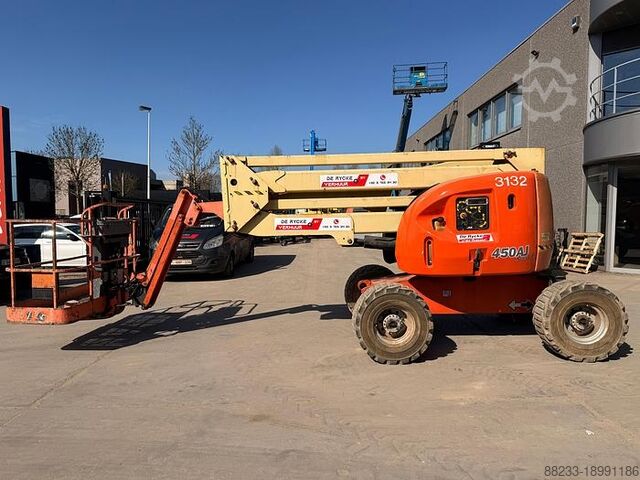

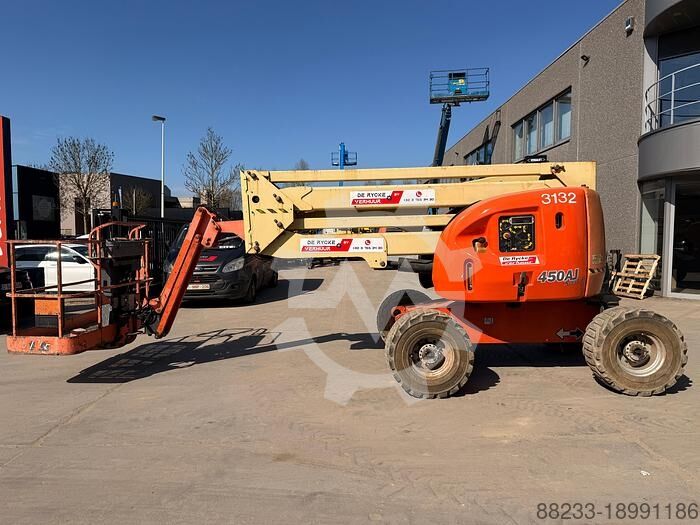

JLG 450 gallery
