JLG 2632 Scissor lifts tech specs

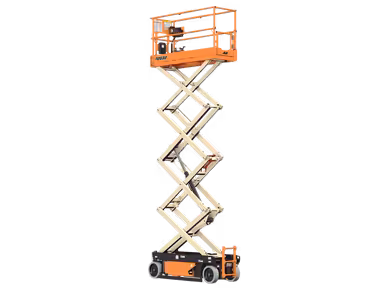

The JLG 2632 ES is a narrow, electric scissor lift that still packs decent reach with minimal bulk. Platform height is 7.77 m, working height about 9.77 m, and width only 0.81 m, so it slides through standard doors. With 230 kg capacity (and 113 kg on the extension deck), it’s built to go long and stay easy—quiet, efficient, and fleet-friendly.
Platform Height: ~7.77 m (~25′ 6″); Working Height: ~9.77 m (~32′)
Width: ~0.81 m (~2′ 8″)
Platform Size: ~0.7 m × 2.1 m; extension deck ~0.9 m
Capacity: 230 kg; extension adds 113 kg
Weight: ~2,135 kg
Cycle Time: Lift ~32 s; Lower ~24 s
Drive Speed: Lowered ~4.4 km/h; Elevated ~0.8 km/h
Gradeability: ~25%
Turning Radius: Inside 0; Outside ~2.06 m
Drive & Power: 24 V DC electric; 4 × 6 V 220 Ah batteries; fixed-displacement gear pump

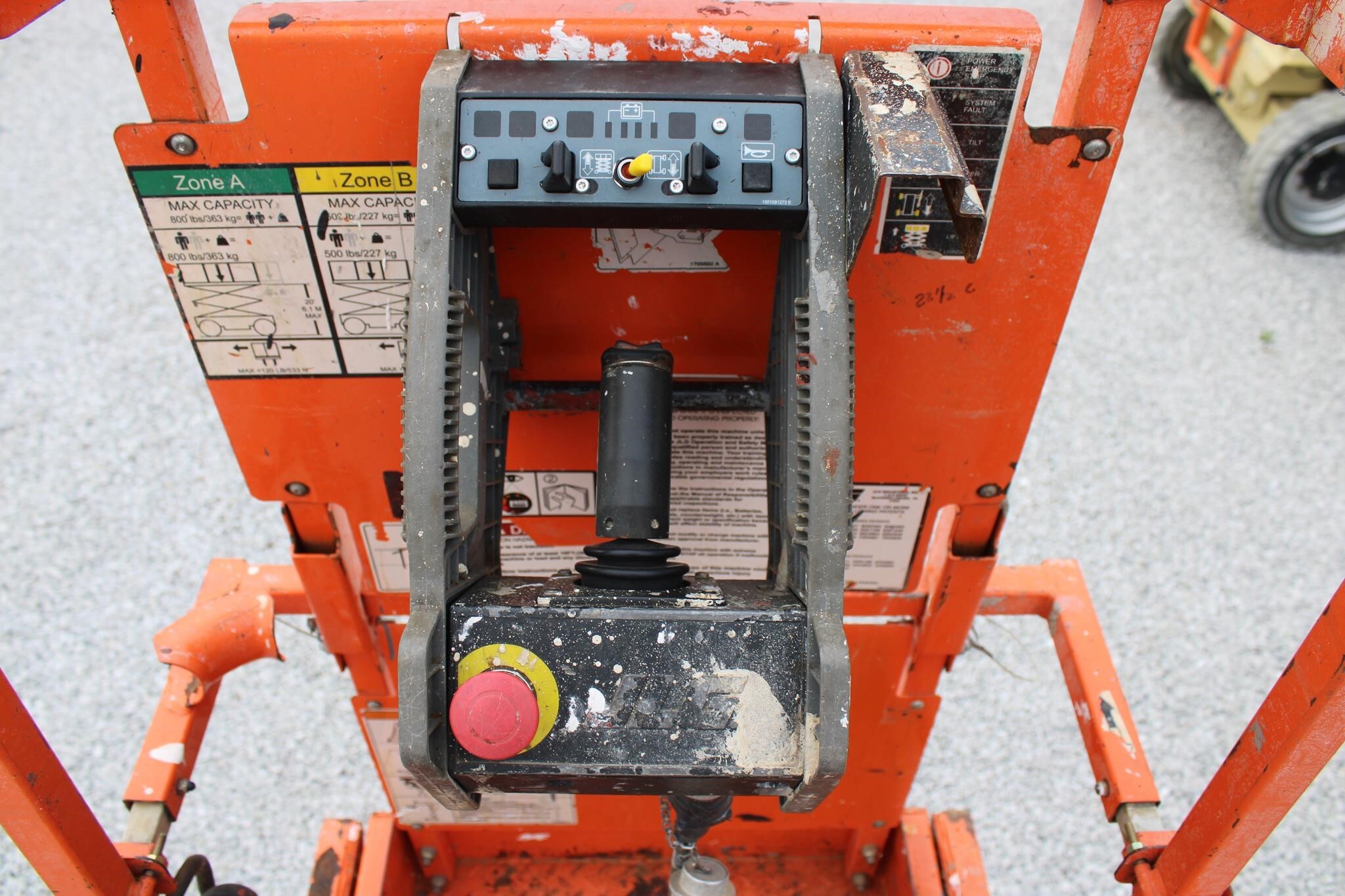

Service Features: Minimal hydraulics (just 2 hoses, 4 fittings), roll-out deck, pothole protection, diagnostics, swing-out panels, and proportional controls
JLG 2632 Technical specifications
Engine
Battery amps
220 Amh
Charger amps
20 Amh
Operating specifications
Brake system
Electric, Friction
Platform railing height
113 cm
Raise time
33 seconds
Lower time
37 seconds
Transmission
Drive speed - platform elevated
0.8 kph
Performance
Drive Speed - Platform Lowered
4.51 kph
Platform Capacity - Extension
113.4 kg
Platform Capacity - Unrestricted
226.8 kg
General
Drive type
24V Electric
Gradeability
25 º
Max working height
9.63 m
Operating weight
2,102 kg
Tire size
16 X 5
Dimensions
Ground clearance
10.16 cm
Height w/ Rails
2.38 m
Overall Length
23.11 m
Overall Width
0.85 m
Turning radius
2.1 m
Wheelbase
1.89 m
Undercarriage
Ground pressure
6.21 bar
Hydraulic system
Pump type
Fixed Displacement Gear
Service refill capacities
Hydraulic fluid cap
4.92 liter
Platform
Platform Dimension A
0.79 m
Platform Dimension B
2.35 m
JLG 2632 expert review
Overview
Efficient, narrow workhorse—designed for uptime, low maintenance, and tight spaces.
Long battery life with sleek service design.
Heavy—transport needs prep.
Performance & Efficiency
Fast lifts, smooth control, minimal daily service—designed to stay working.
Verdict
JLG 2632 ES is compact, efficient, and built for repeatable performance. No fluff—just work.
JLG 2632 owner rating
2015-2021
Overall rating
Based on 0 ratings
0 %
100 %
0 %
0 %
0 %

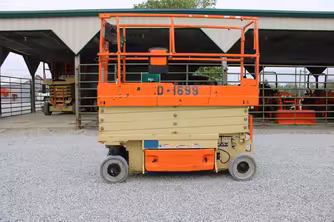

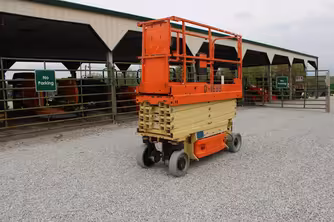

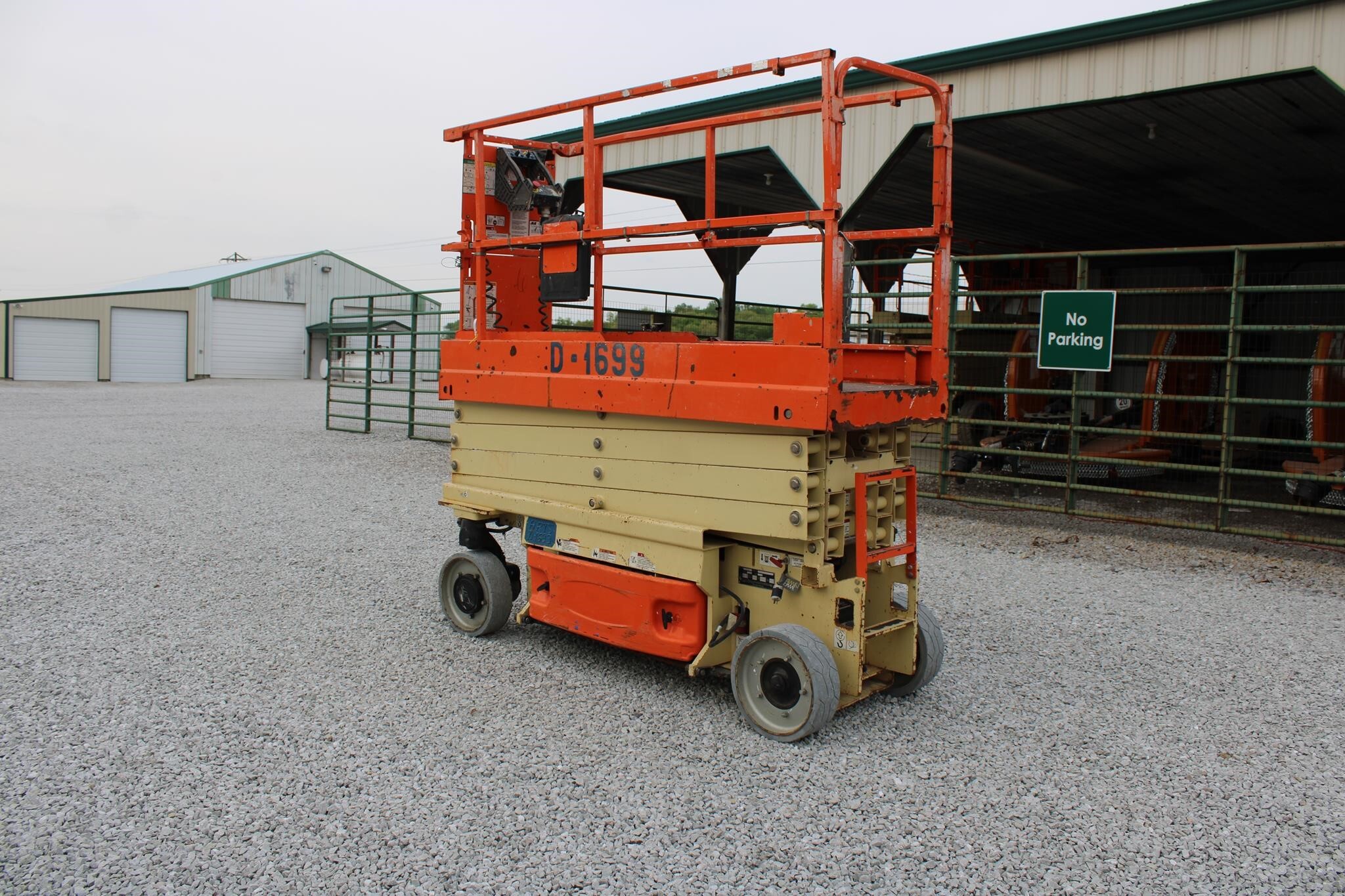

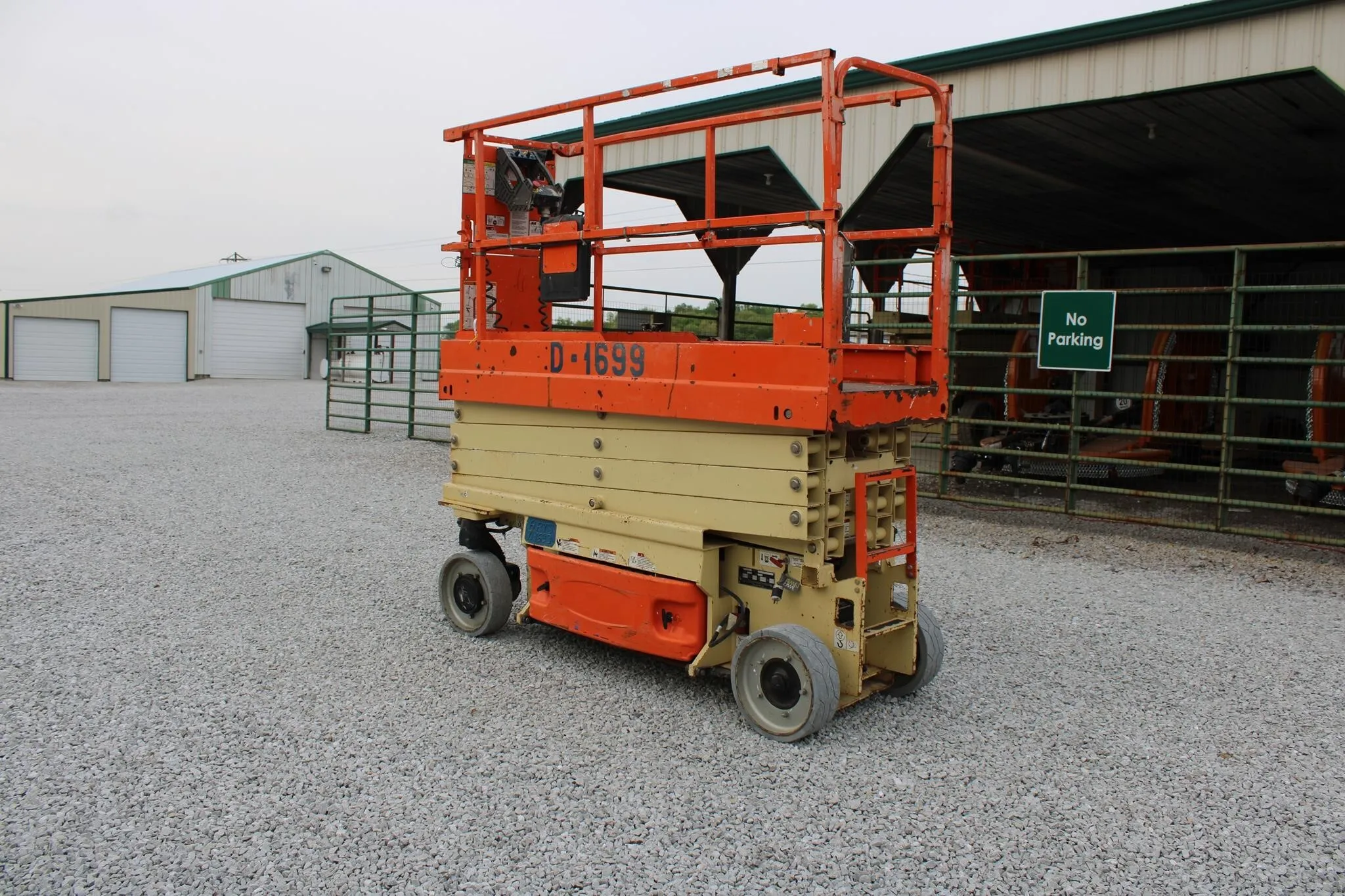

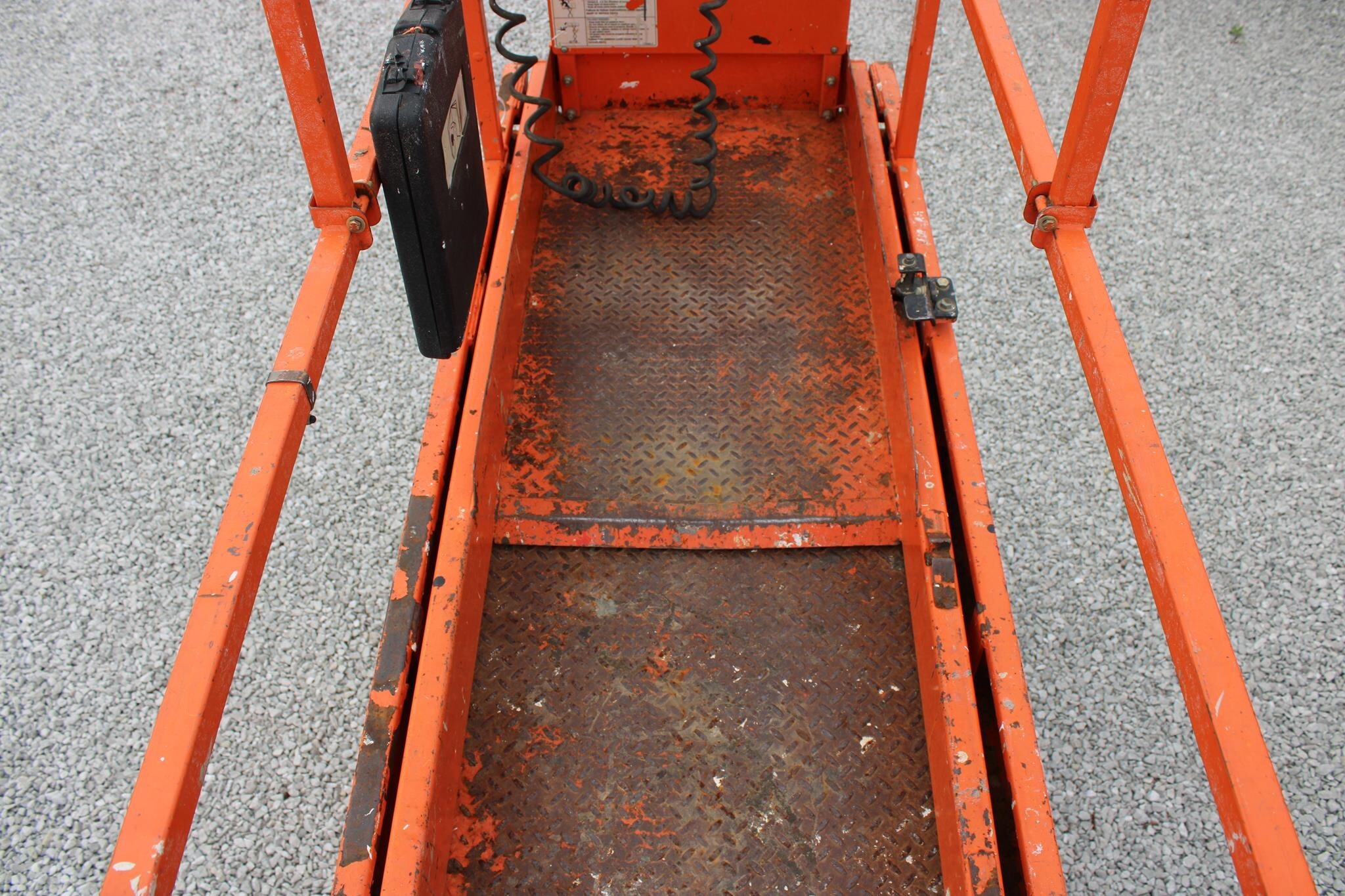

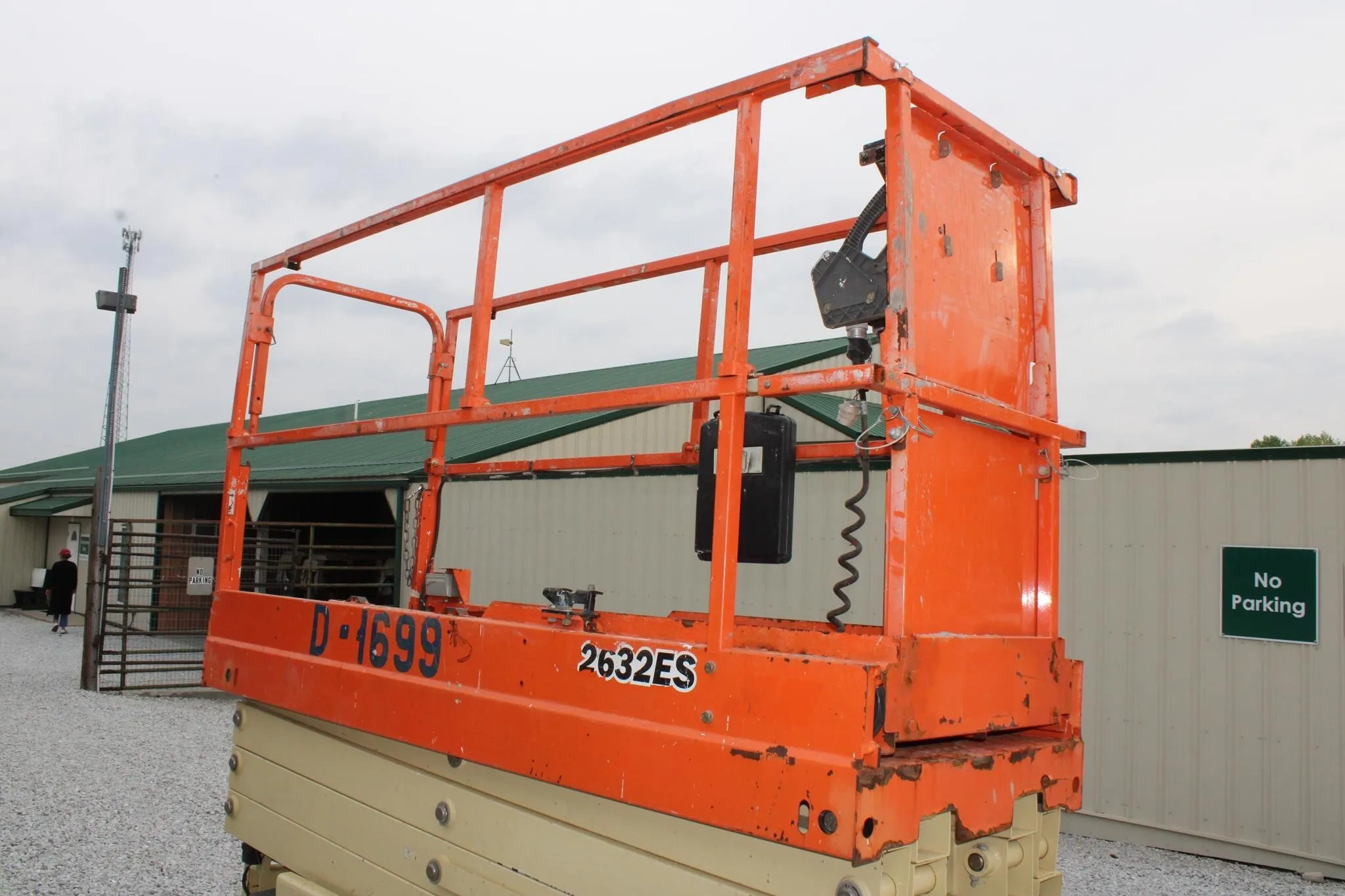

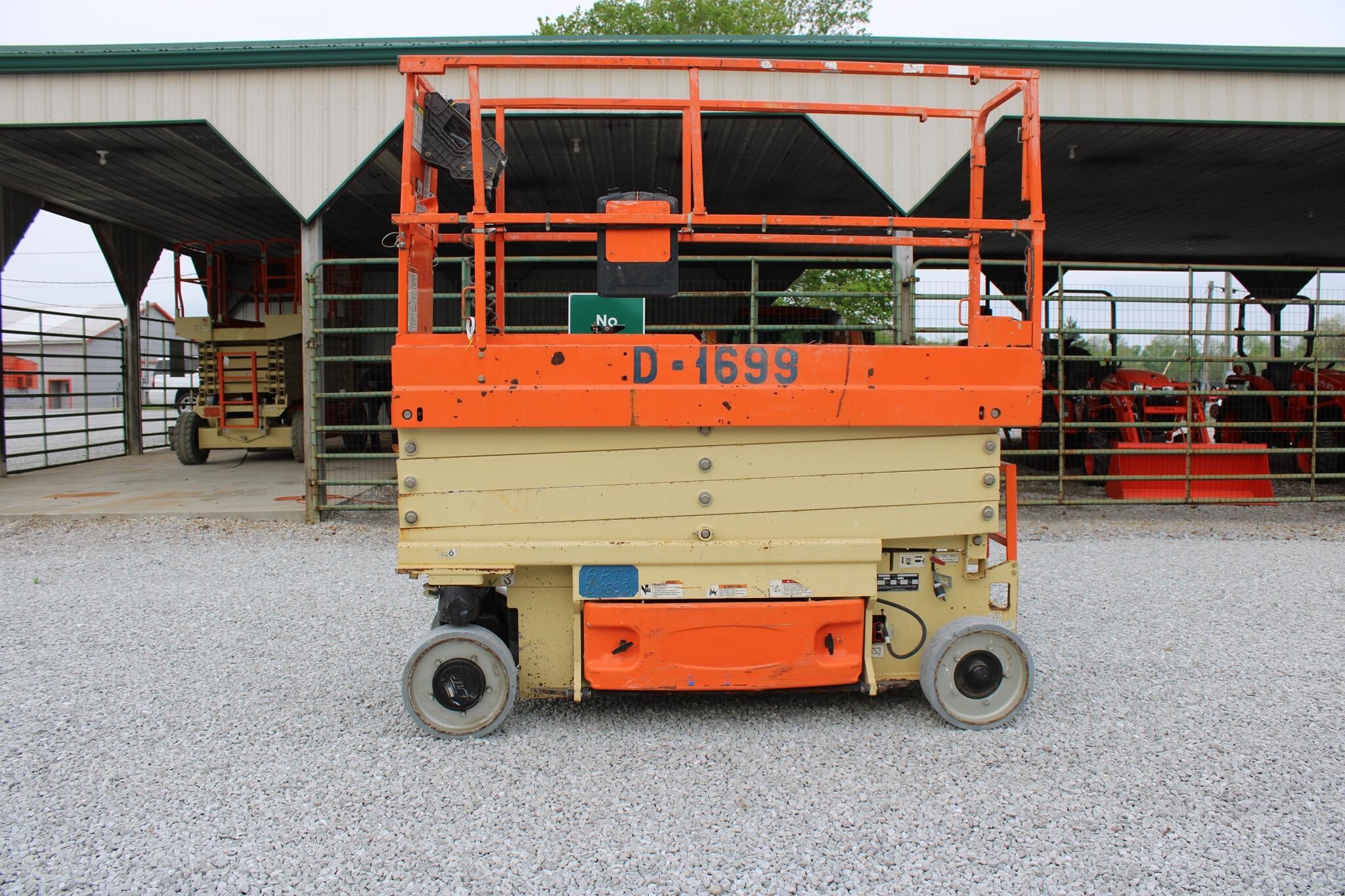

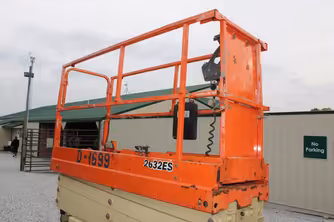

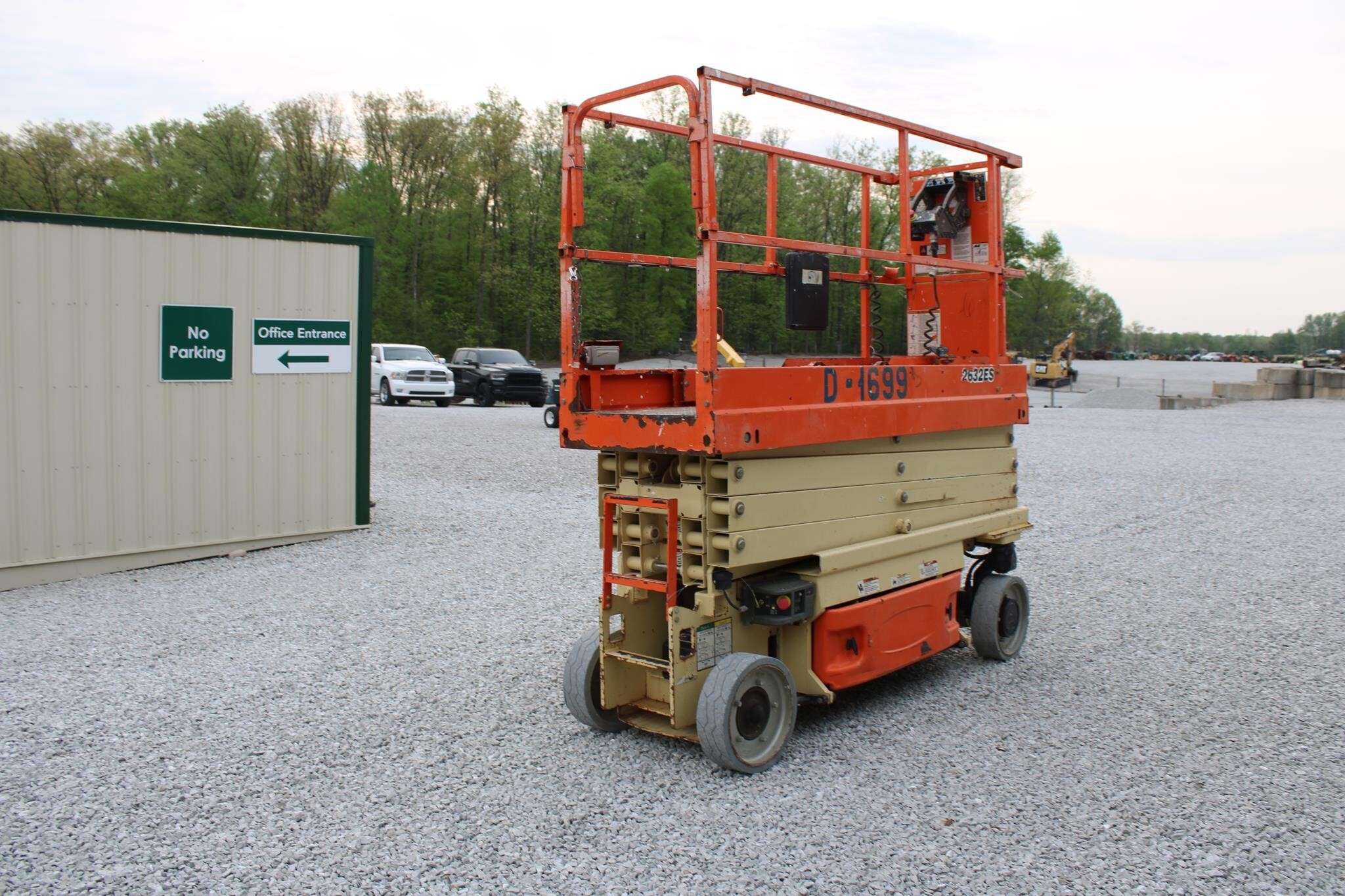

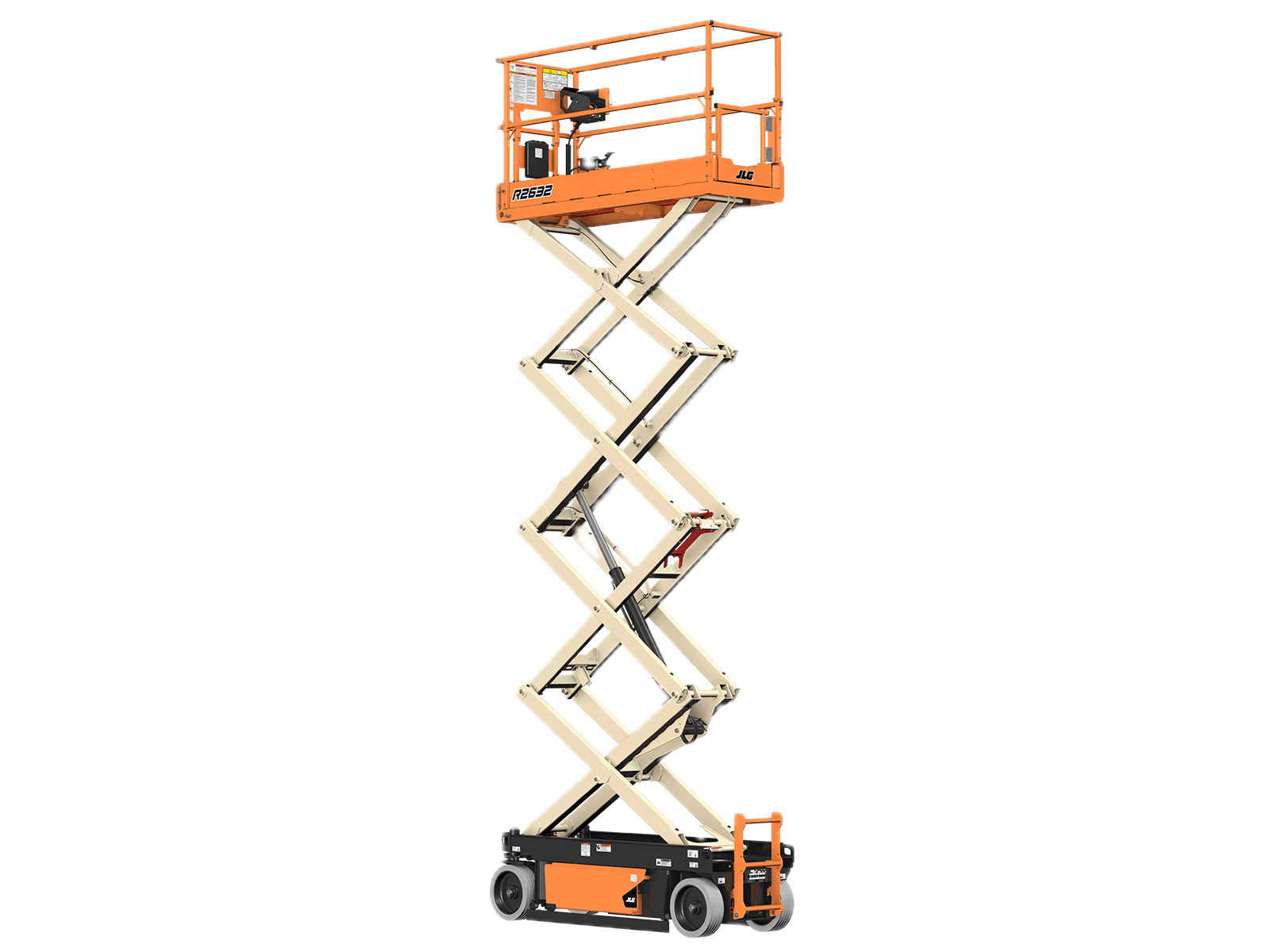

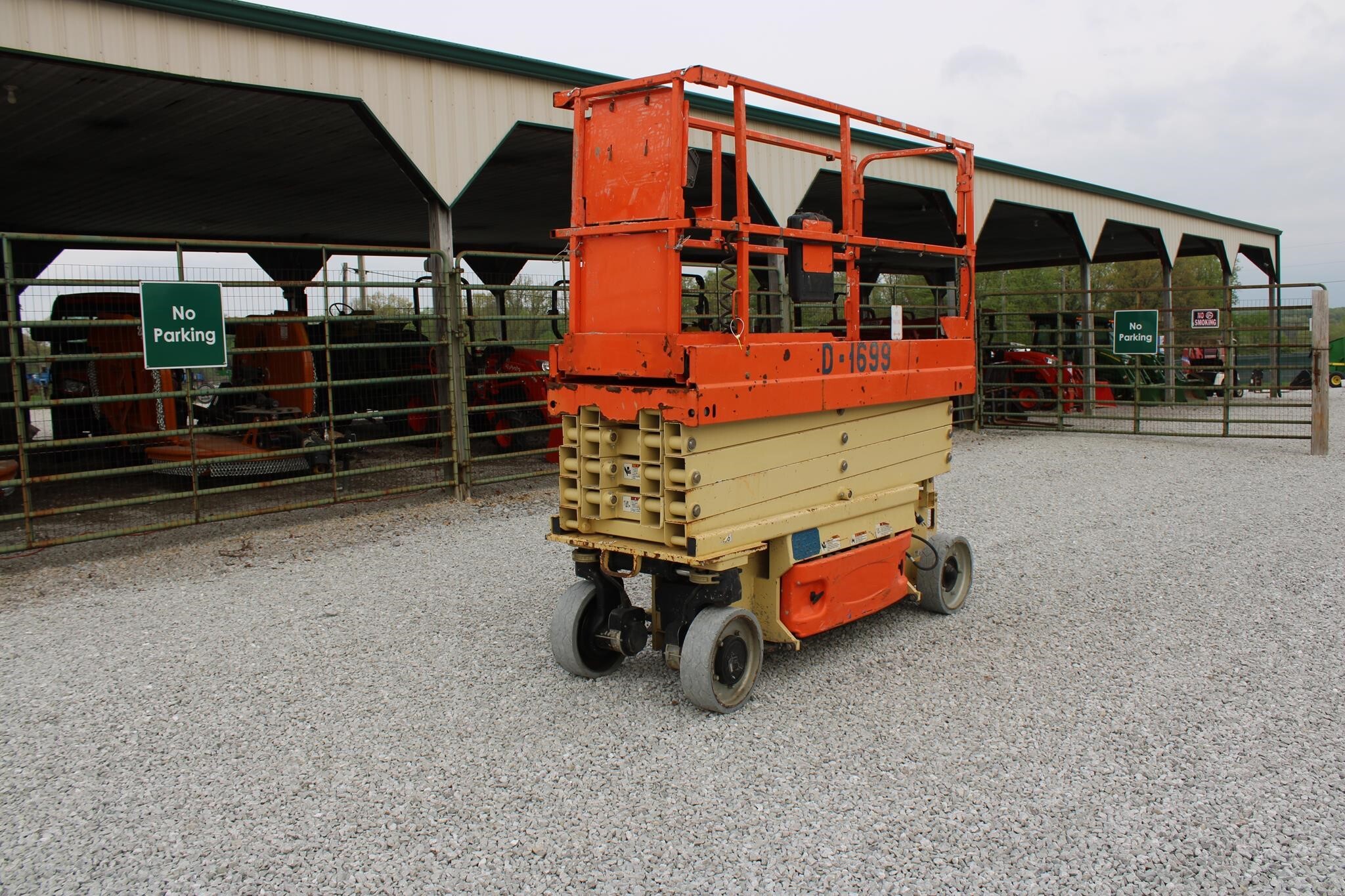

JLG 2632 gallery
