Skyjack SJ6826 Scissor lifts tech specs

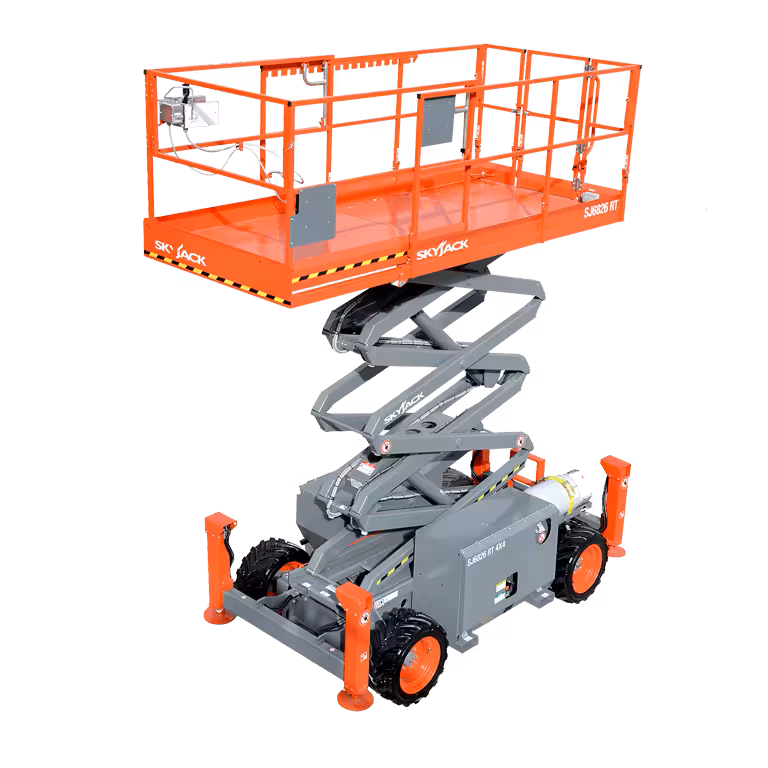

The Skyjack SJ6826 RT is a diesel (or dual-fuel) rough-terrain scissor that marries serious reach with real grit. It hits a working height of 9.92 m (32 ft), tucks into a 1.76 m width (nice for narrow corridors), and handles up to 567 kg—including 136 kg on the 1.52 m extension. Built tough, straightforward, and made to stay running when the dust settles.
Working Height: 9.92 m (32 ft); Platform Height: 7.92 m (26 ft)
Stowed Dimensions: Width 1.76 m; Length 2.72–3.35 m; Height (rails up) ~2.37 m; (down) ~1.61 m
Platform Size: 2.44 m × 1.42 m with 1.52 m roll-out deck extension
Capacity: Total 567 kg (431 kg main deck, 136 kg extension)
Weight: ~2,903 kg (6,400 lb)
Performance: Lift & lower ~36 sec; Drive ~6.1 km/h stowed, ~0.6 km/h raised; Gradeability up to 50%
Notable Features: 4WD (crossover), drive-at-full-height, foam-filled tires, outriggers, Kubota diesel, tilt alarm, overload sensing, AC outlet, color-coded wiring, telematics ready
Skyjack SJ6826 Technical specifications
Operating specifications
Deck extension
152.15 cm
Platform railing height
82 cm
Raise time
36 seconds
Lower time
36 seconds
Tire Type
Foam Filled
General
Fuel type
Gas/propane
Gradeability
50 º
Max working height
9.75 m
Operating weight
2,903 kg
Operating voltage
110 V
Tire size
26 x 12
Engine
Gross power
3.5 kw
Dimensions
Ground clearance
20.07 cm
Height w/ Rails
2.41 m
Height w/o Rails
1.62 m
Overall Length
27.2 m
Overall Width
1.77 m
Stowed height
1.23 m
Turning radius
3.96 m
Wheelbase
2.04 m
Performance
Platform Capacity - Unrestricted
567.04 kg
Drive Speed - Platform Lowered
6.12 kph
Platform
Platform Dimension B
2.44 m
Platform Dimension A
1.42 m
Skyjack SJ6826 expert review
Overview
Heavy-duty yet smart—designed to work longer, go higher, and stay where others stall.
Built for site abuse and high uptime.
Diesel engine—fumes and fuel to manage.
Performance & Efficiency
Fast, stable cycles and easy service keep uptime high and frustration low.
Verdict
Skyjack SJ6826 RT is a no-nonsense terrain conqueror with reach—smart, rugged, and built for the long haul.
Skyjack SJ6826 owner rating
2007-2025
Overall rating
Based on 0 ratings
100 %
0 %
0 %
0 %
0 %

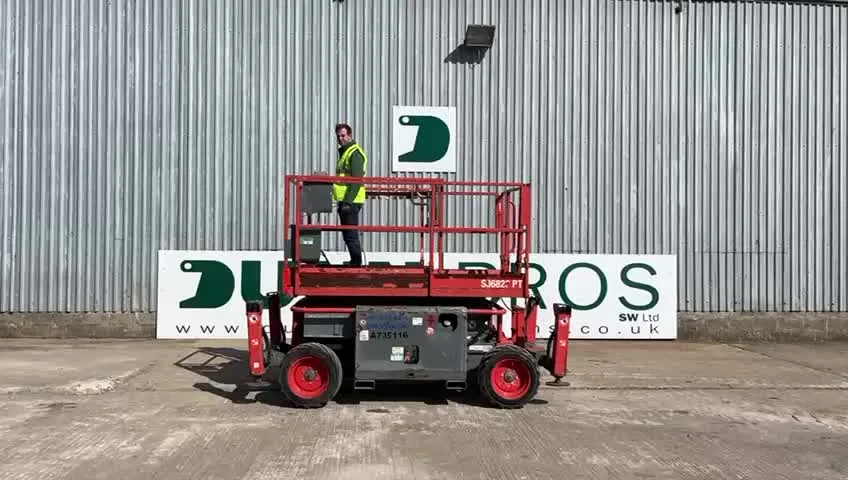

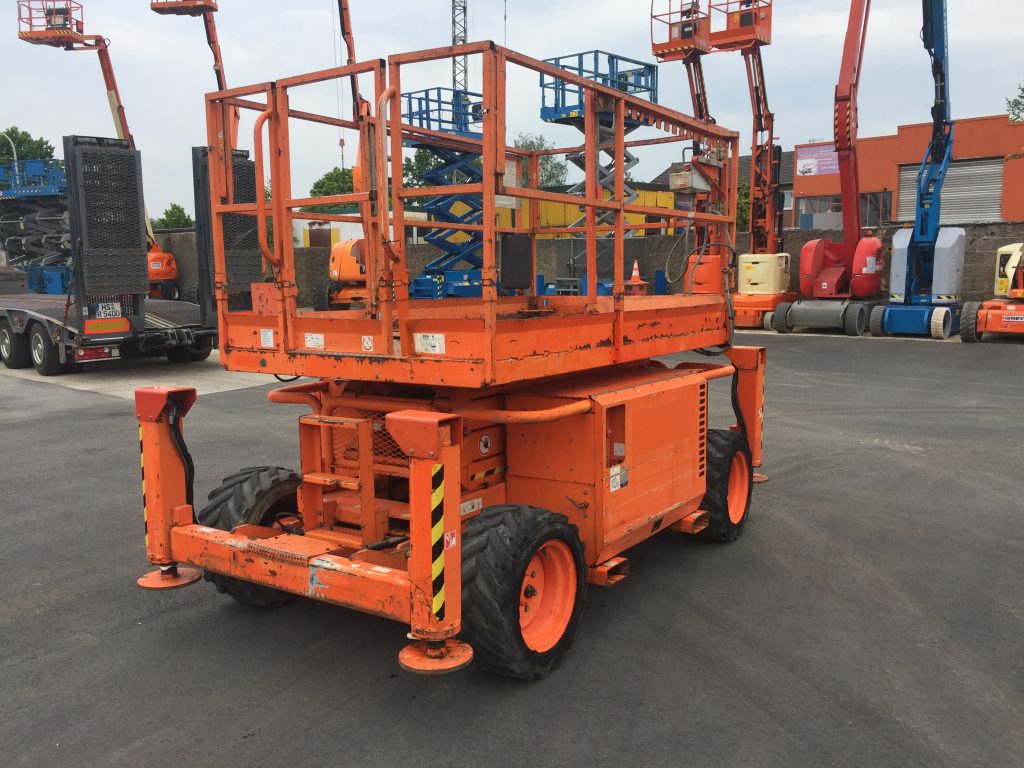

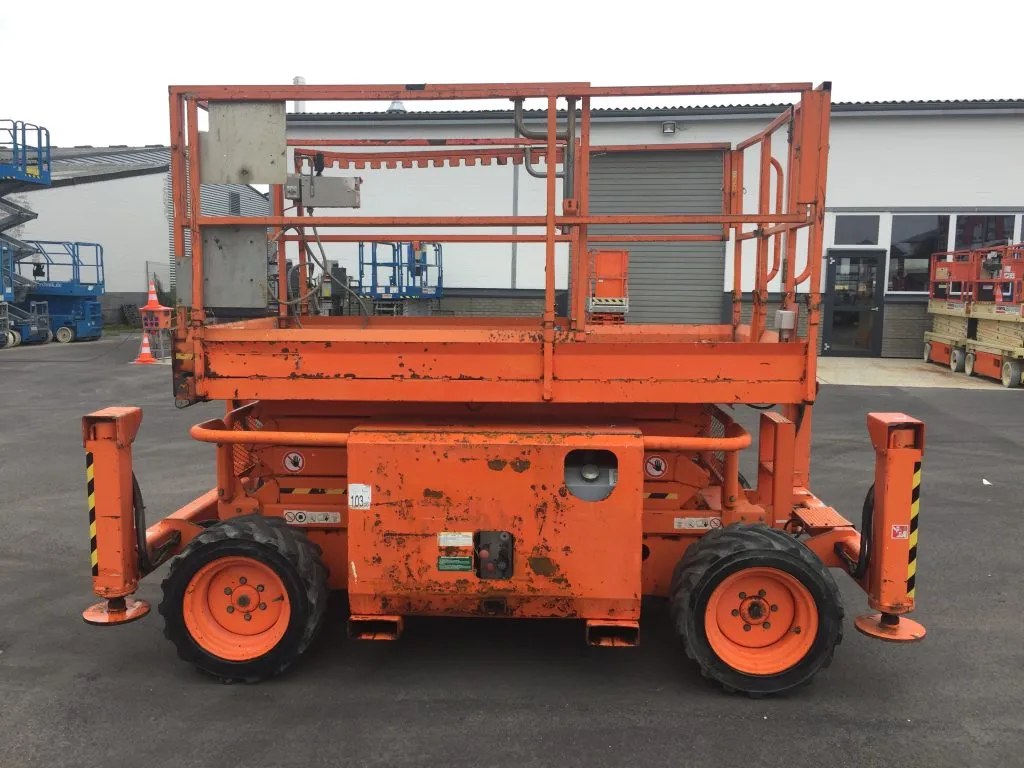

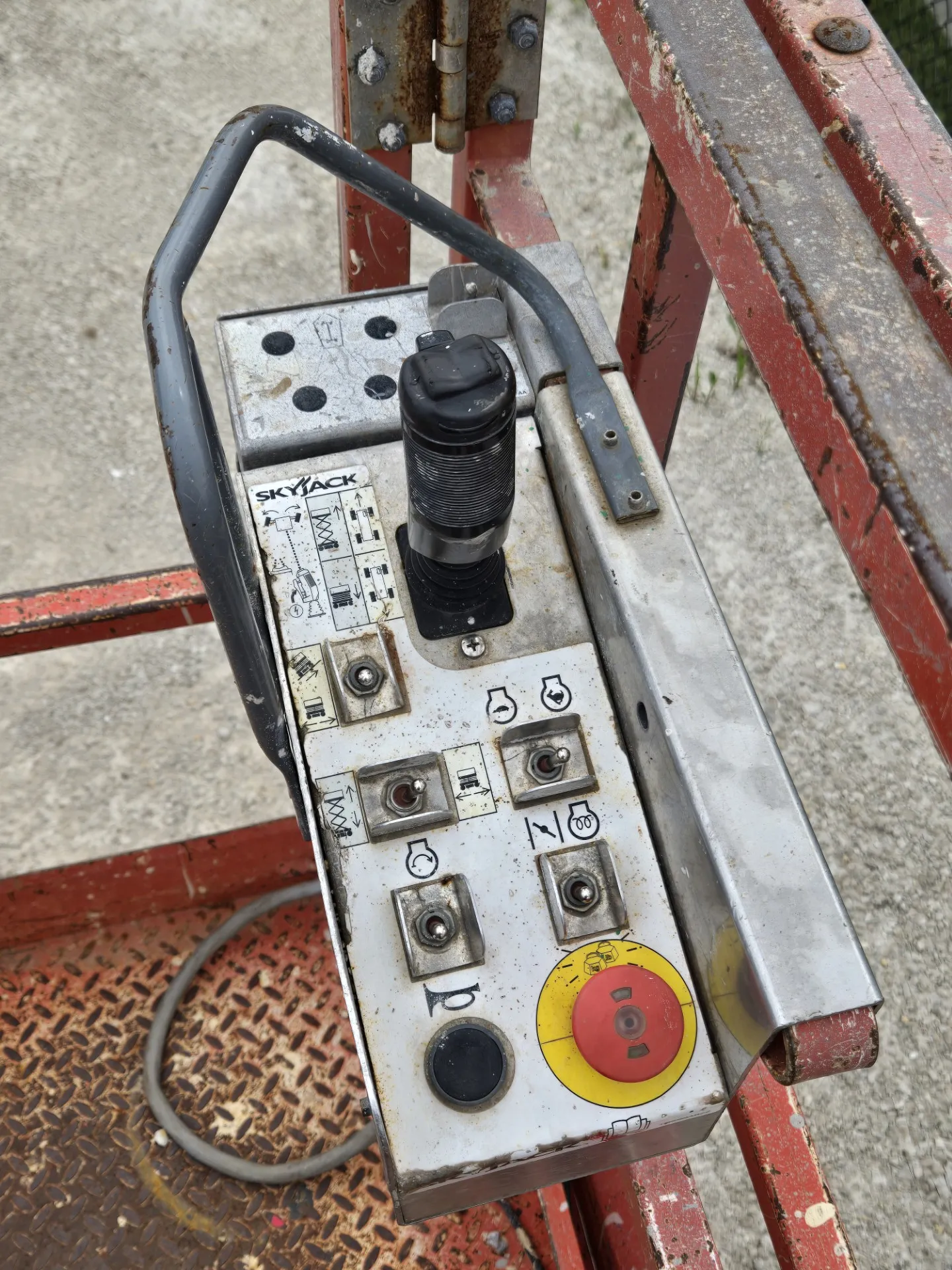

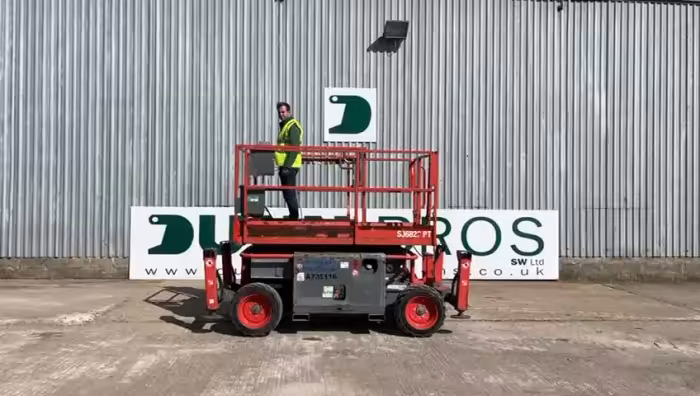

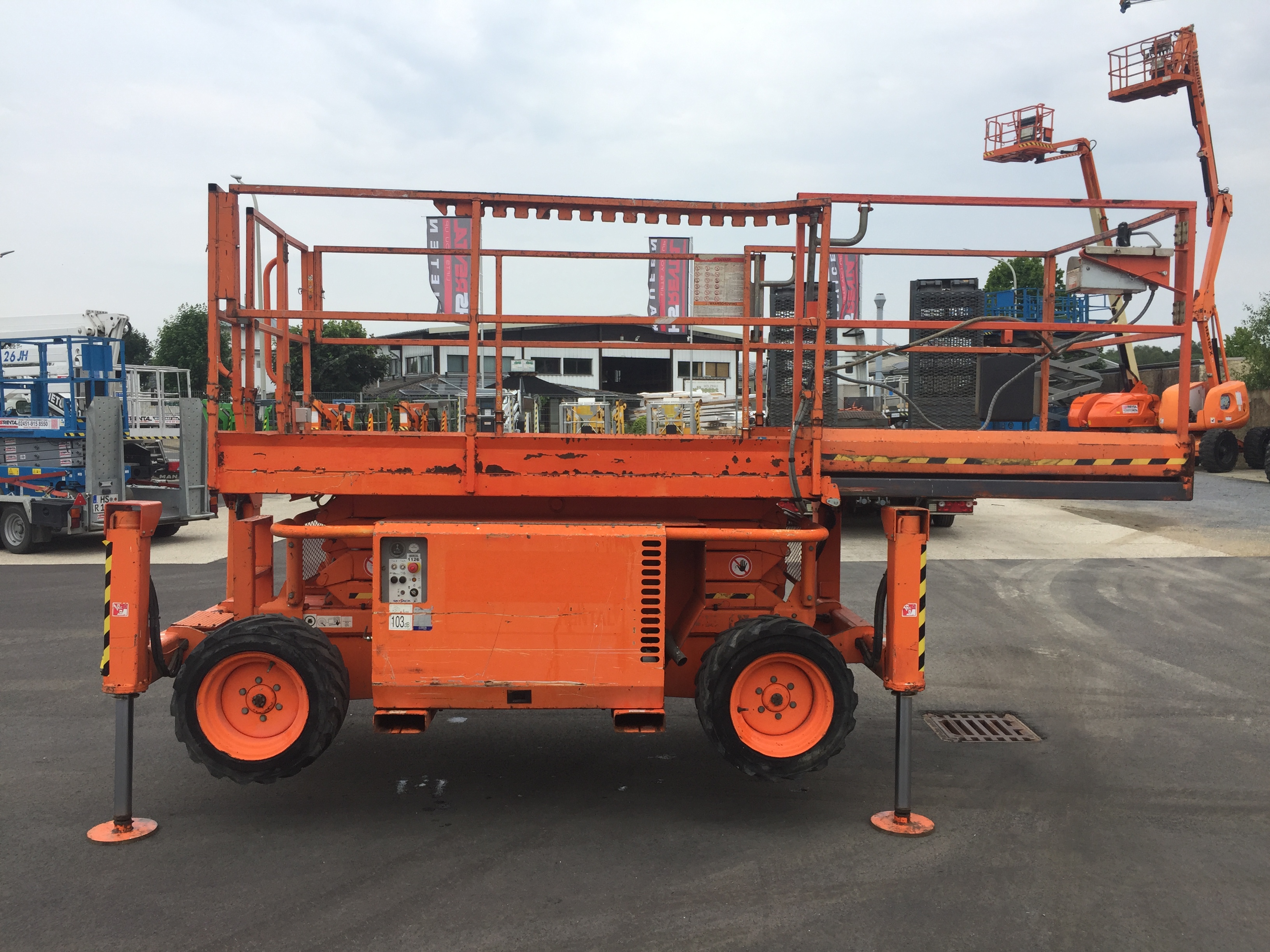

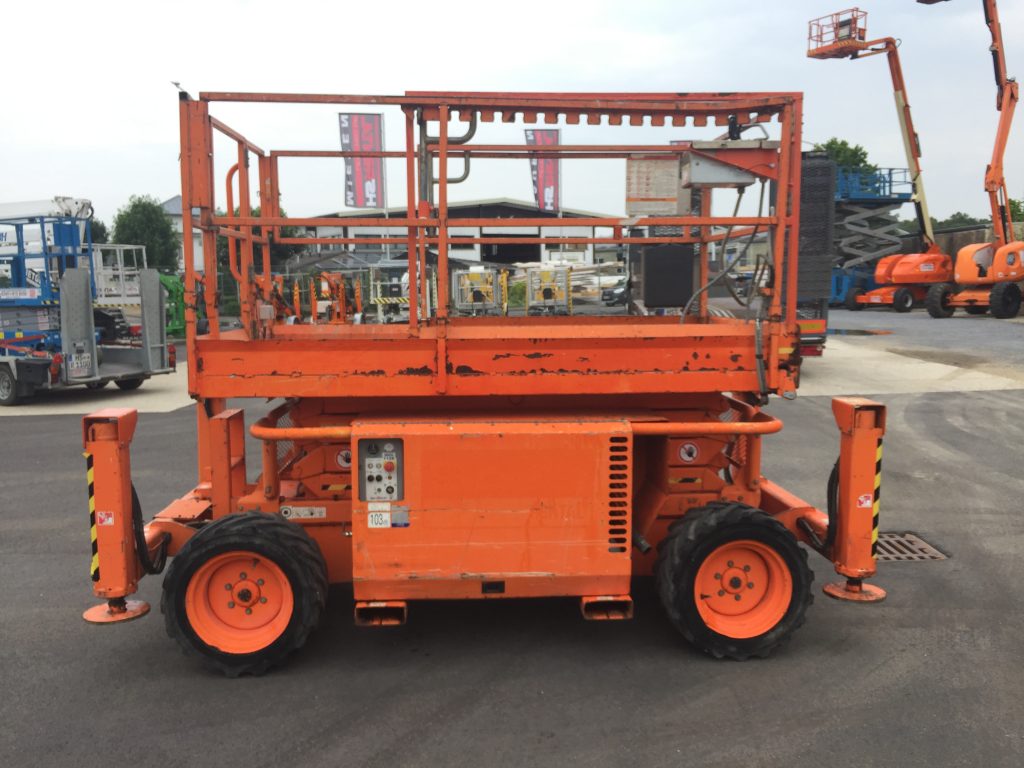

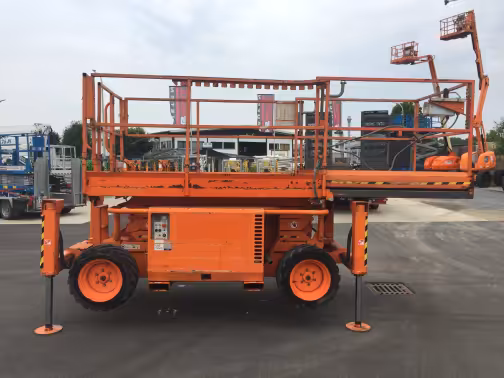

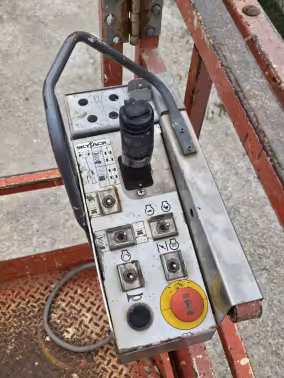

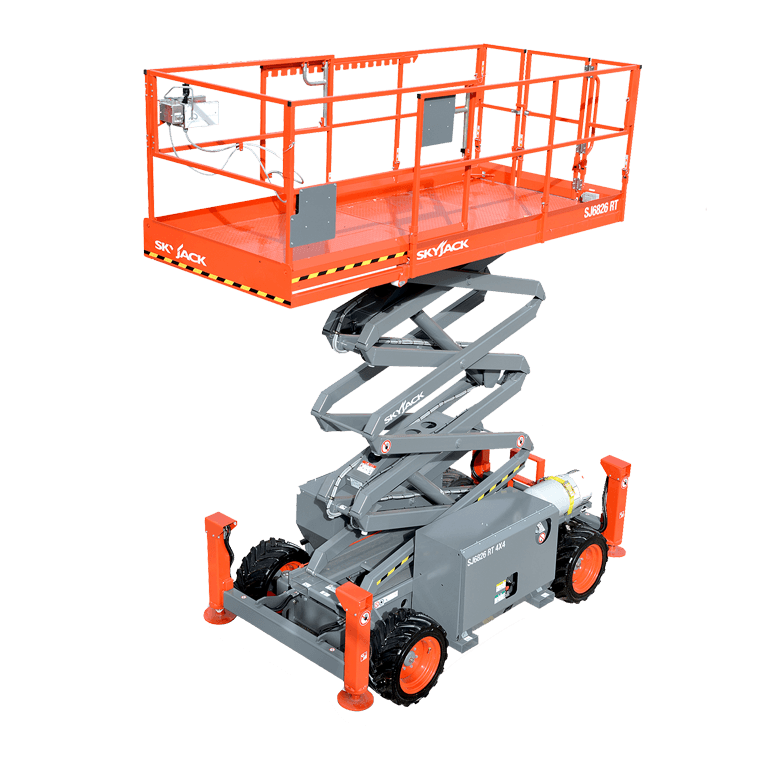

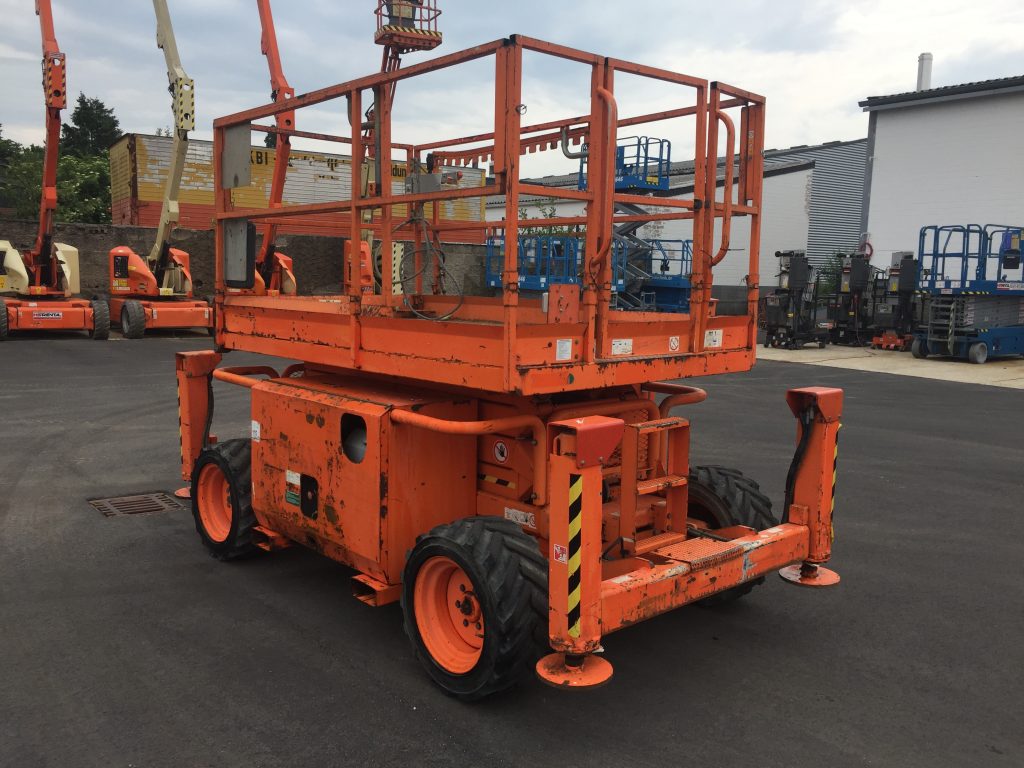

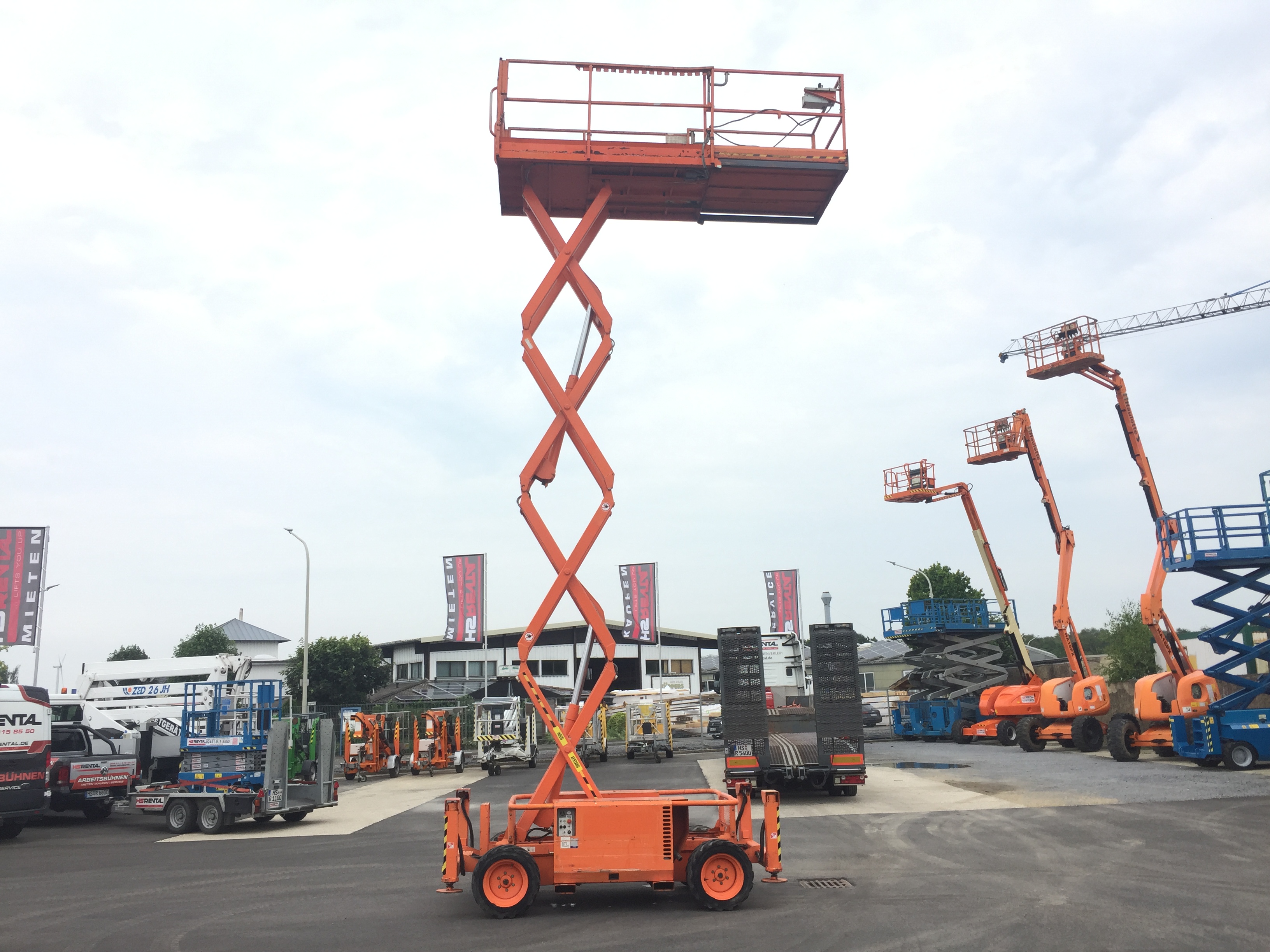

Skyjack SJ6826 gallery
