JLG 1930 Scissor lifts tech specs

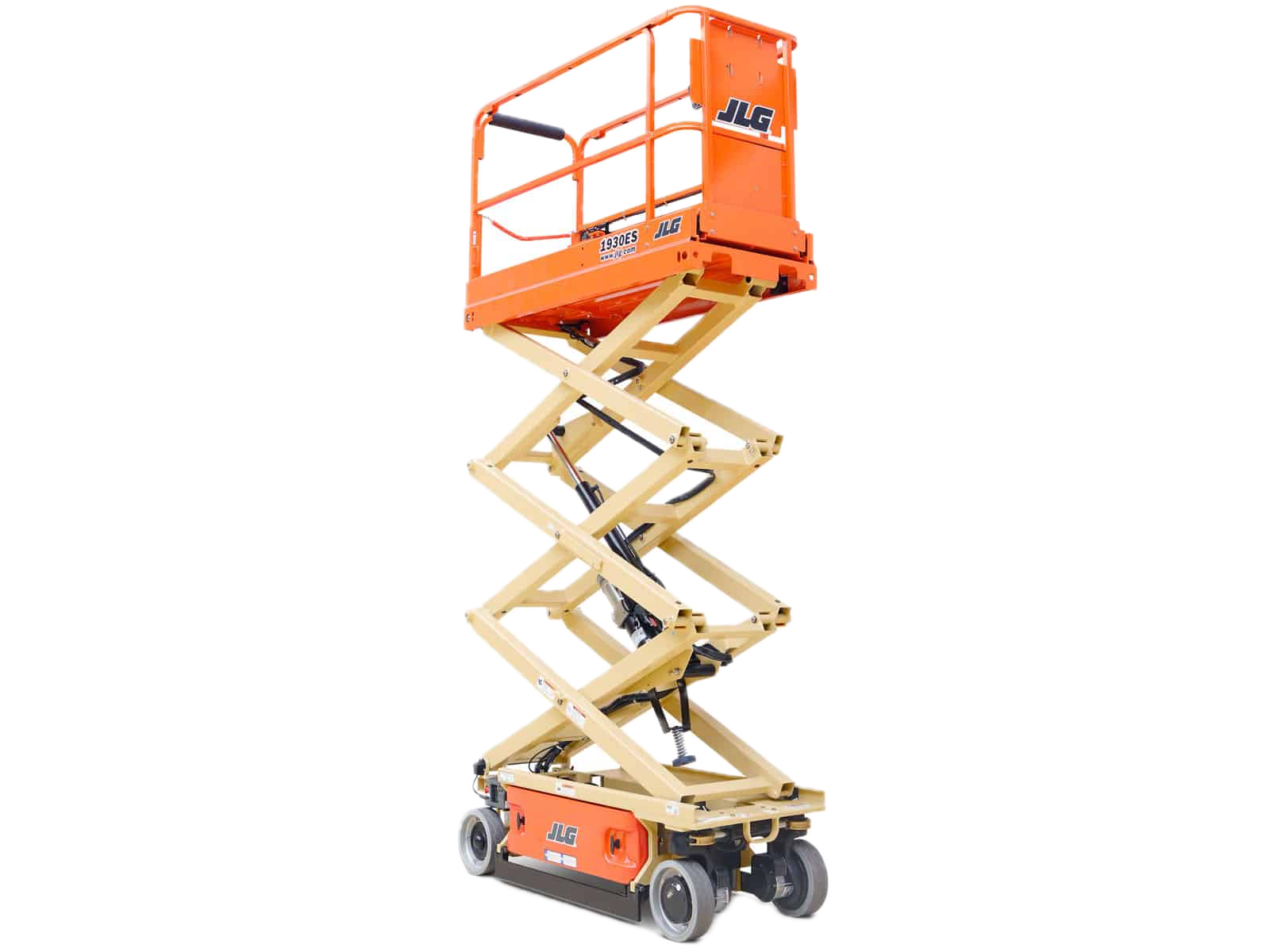

The JLG 1930ES (2005–2021) is a compact electric slab scissor with a working height of ~7.72 m (25.3 ft), a narrow 0.76 m (2.5 ft) width, and a sturdy 230 kg capacity. It fits through tight doorways, works smooth, and stays working—not a showboat, but a daily beast.
Working Height: ~7.72 m (~25.3 ft)
Platform Capacity: 230 kg (~507 lb) net; 113 kg (~250 lb) on extension
Stowed Width: 0.76 m (2.5 ft), Length ~1.87 m

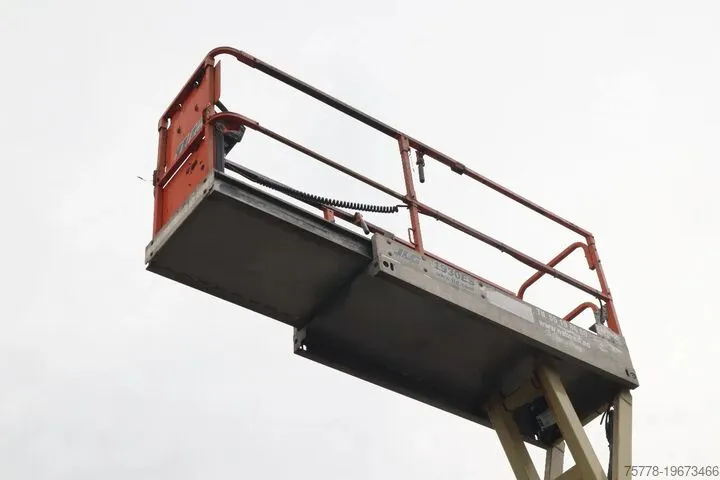

Platform Size: ~0.76 m × 1.87 m with ~0.9 m slide-out deck
Operating Weight: ~1,550 kg (3,420 lb)
Drive Speeds: ~4.8 km/h lowered, ~0.8 km/h elevated
Lift/Lower Time: Lift ~26 sec, Lower ~30 sec
Gradeability: ~25%
Turning Radius (Outside): ~1.75 m (69 in)
Power: 24 V electric (4 × 6 V batteries), auto charger 20 A
JLG 1930 Technical specifications
Engine
Battery amps
220 Amh
Charger amps
20 Amh
Number of batteries
4
Operating specifications
Brake system
Electric, Friction
Deck extension
90.17 cm
Platform railing height
113 cm
Raise time
20 seconds
Lower time
30 seconds
Tire Type
Solid, Non-marking
Transmission
Drive speed - platform elevated
0.8 kph
Performance
Drive Speed - Platform Lowered
4.83 kph
Platform Capacity - Extension
120 kg
Platform Capacity - Unrestricted
230 kg
General
Drive type
24V Electric
Gradeability
25 º
Max horizontal reach
5730 mm
Max working height
7.59 m
Operating weight
1,229 kg
Operating voltage
24 V
Tire size
12.5x4
Dimensions
Ground clearance
10.16 cm
Height w/ Rails
2.01 m
Height w/o Rails
1.58 m
Overall Length
18.8 m
Overall Width
0.79 m
Stowed height
0.88 m
Turning radius
1.74 m
Wheelbase
1.62 m
Undercarriage
Ground pressure
7.52 bar
Hydraulic system
Pump type
Fixed Displacement Gear
Service refill capacities
Hydraulic fluid cap
4.54 liter
Platform
Platform Dimension A
0.79 m
Platform Dimension B
1.89 m
JLG 1930 expert review
Overview
Compact and rugged—this lift is made for tight jobs with minimal downtime and simple service.
Durable, low-maintenance, smooth controls.
Moderate weight—requires logistical thought.
Performance & Efficiency
Fast cycle times and smooth control keep it hands-free—and working.
Verdict
The 1930ES is your dependable, compact go-to scissor—nothing flashy, everything functional.
JLG 1930 owner rating
2005-2021
Overall rating
Based on 0 ratings
0 %
100 %
0 %
0 %
0 %

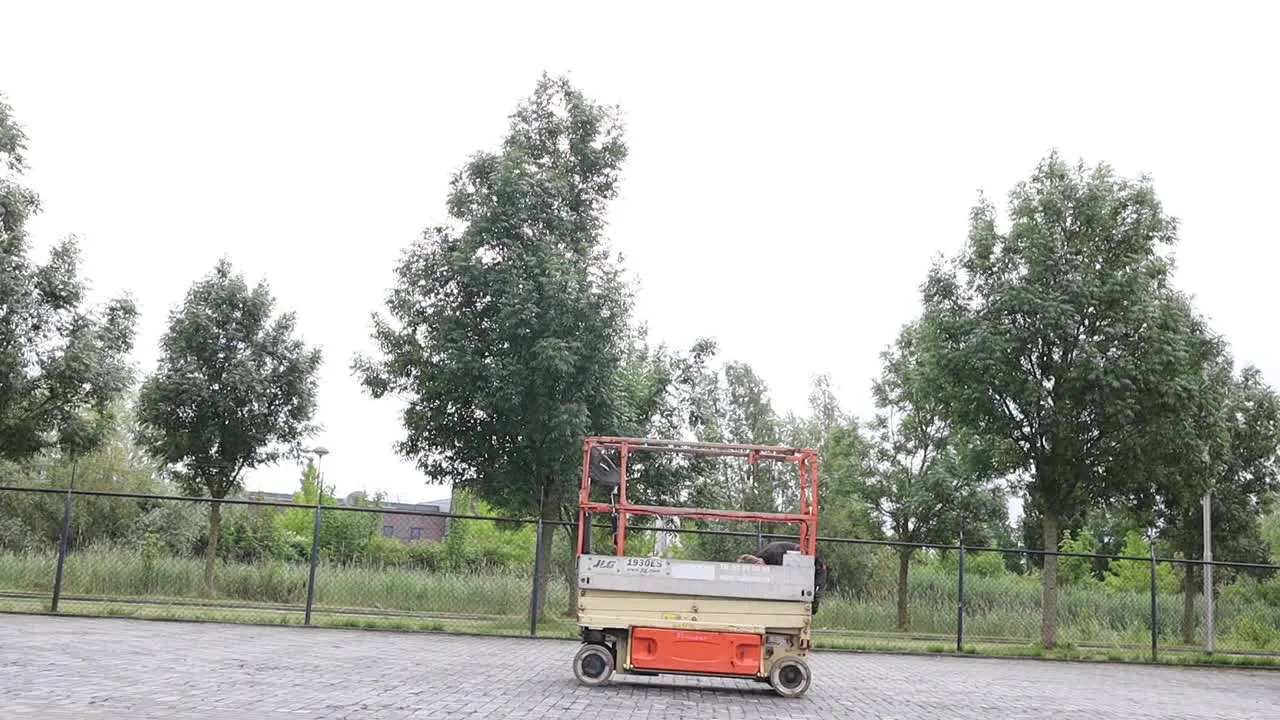

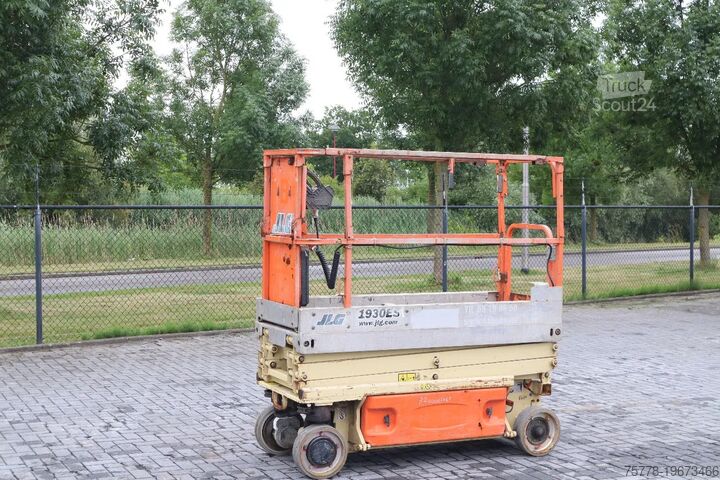

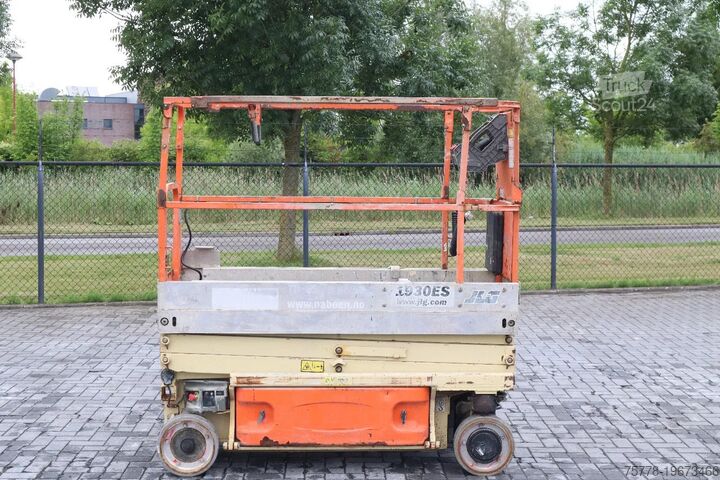

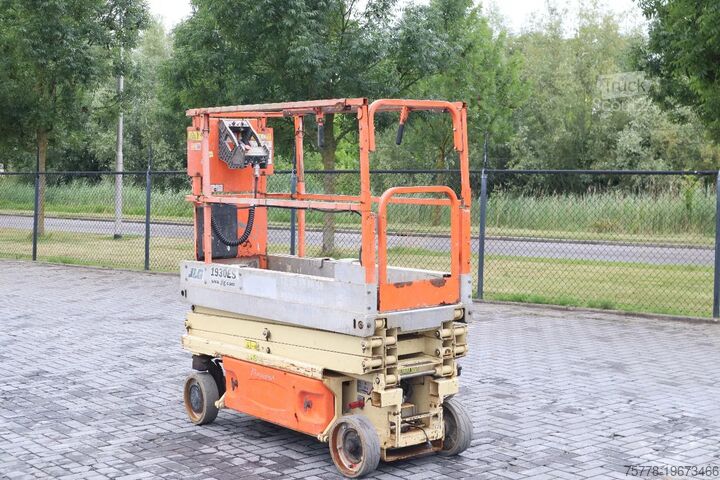

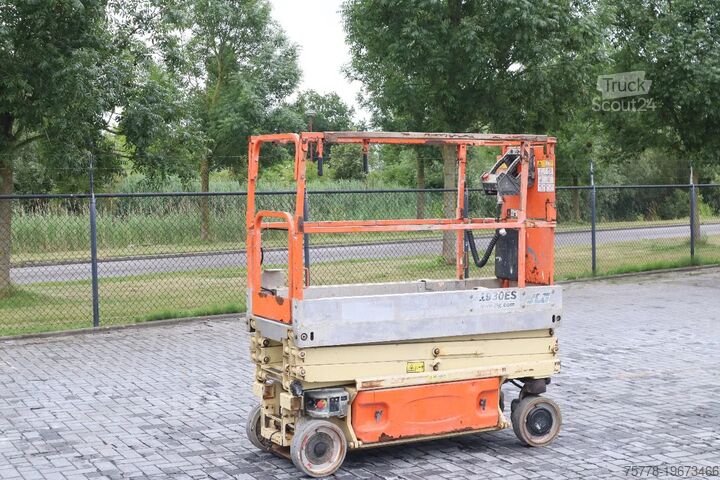

JLG 1930 gallery
