JLG 1932 Scissor lifts tech specs

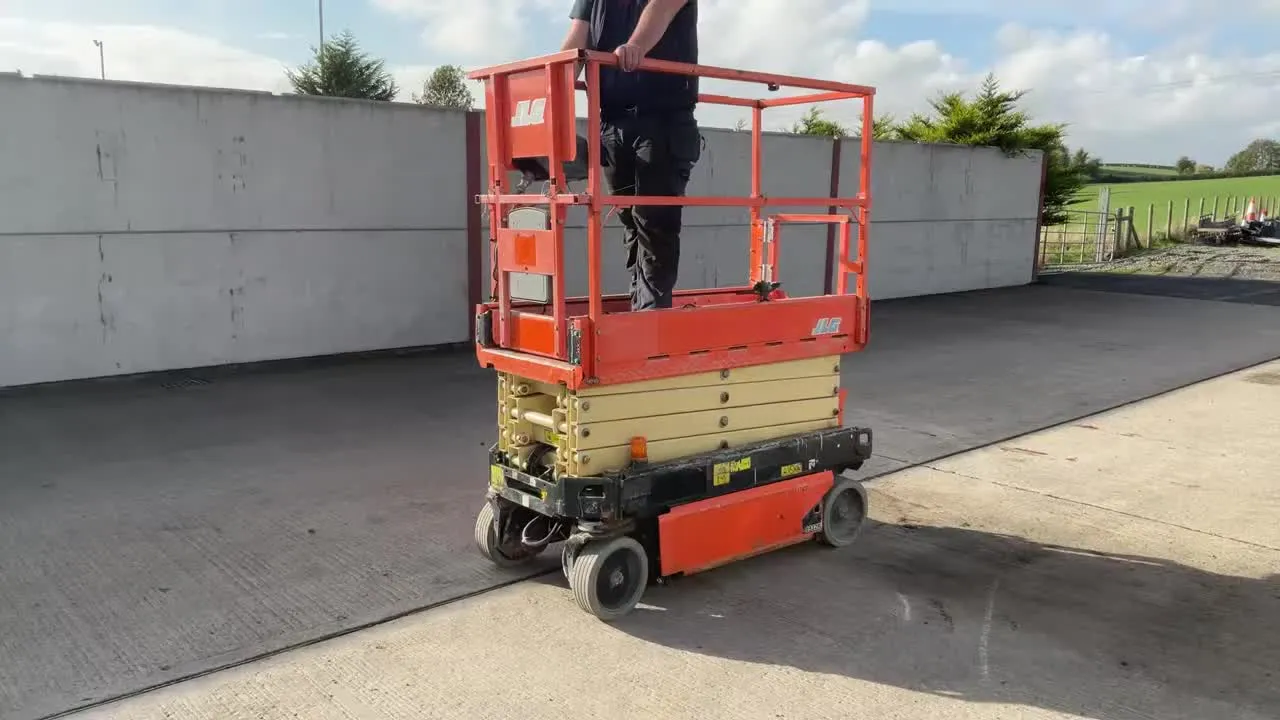

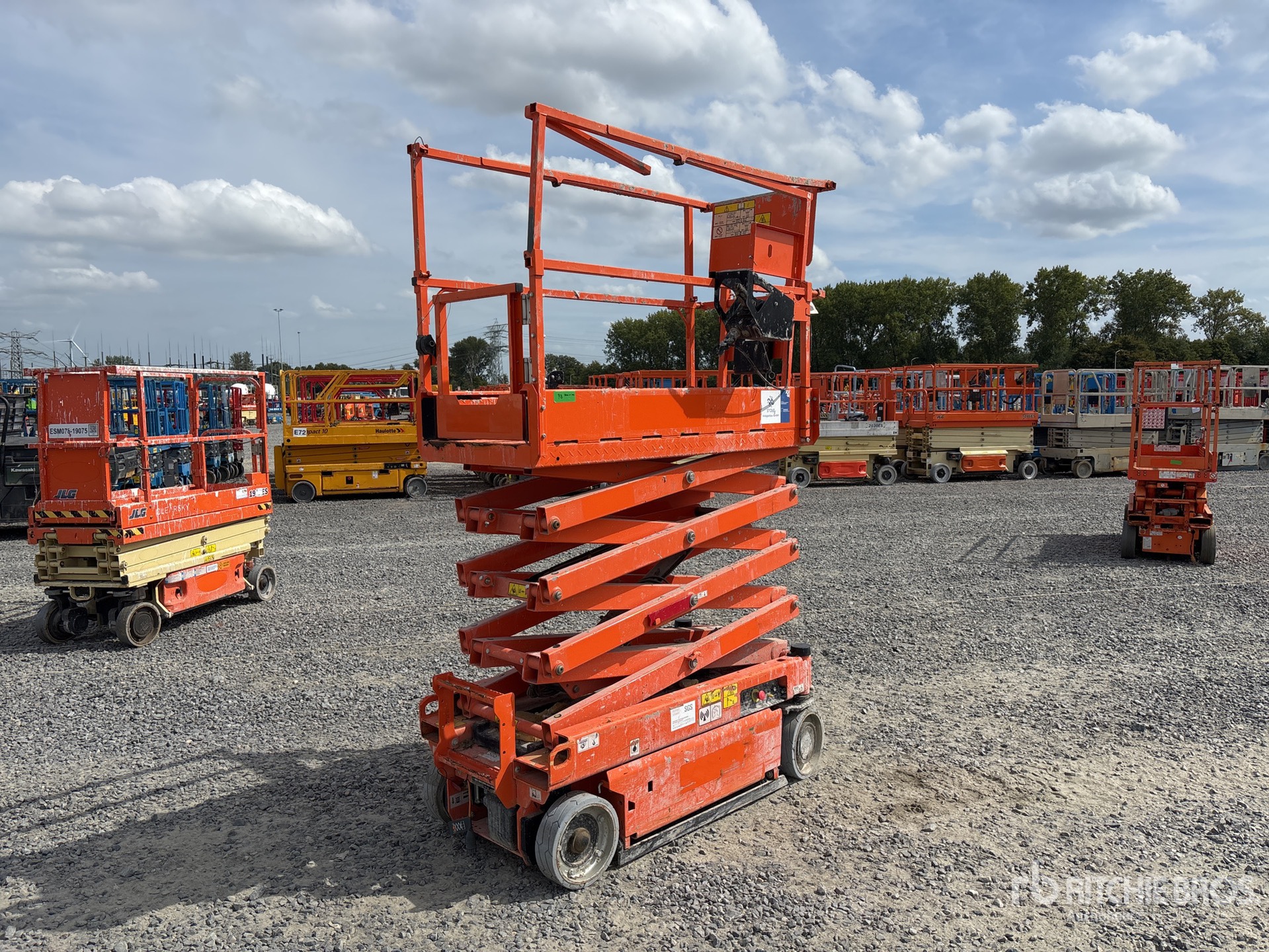

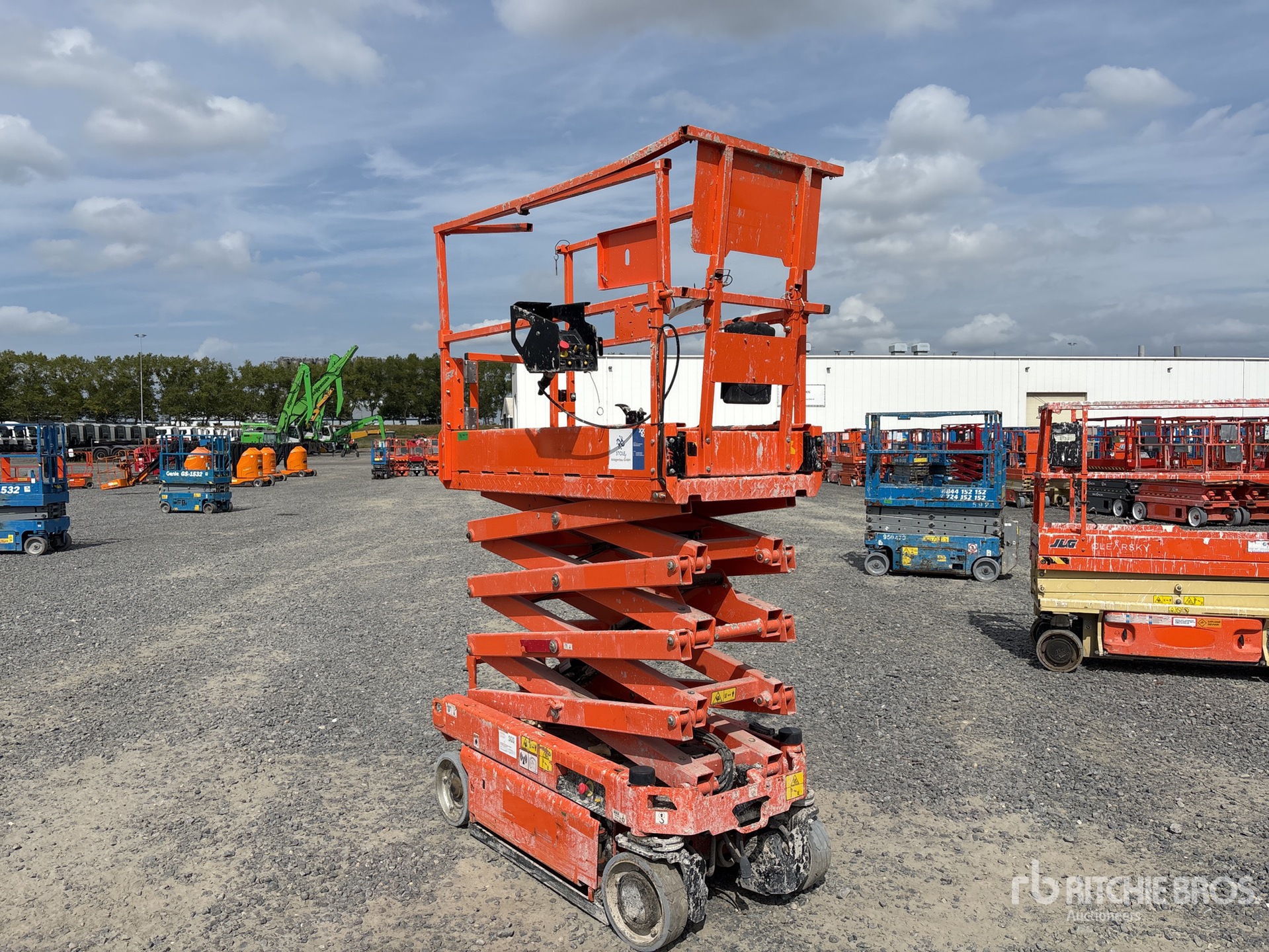

The JLG 1932 RS (2017–2020) is a dependable electric slab scissor lift with a 19 ft (5.8 m) platform height, a narrow 0.81 m width, and robust 230 kg (500 lb) payload (with extra 113 kg on the extension). It’s built to slide through standard doors, deliver consistent runtime, and outlast mismanaged machines.
Platform Height: 19 ft (5.8 m); Working Height: ~25 ft (7.62 m)
Width (Stowed): 2 ft 8 in (0.81 m)

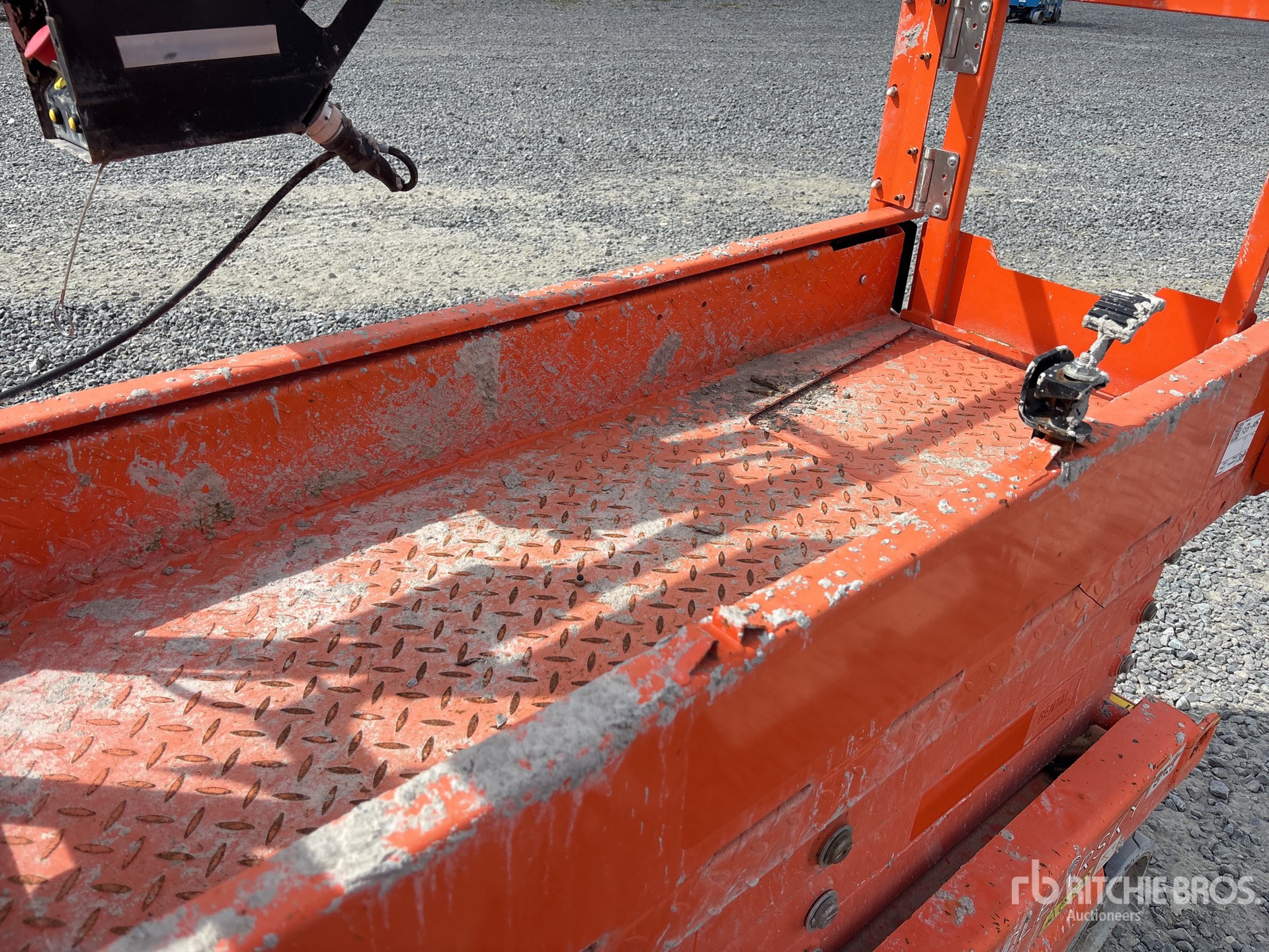

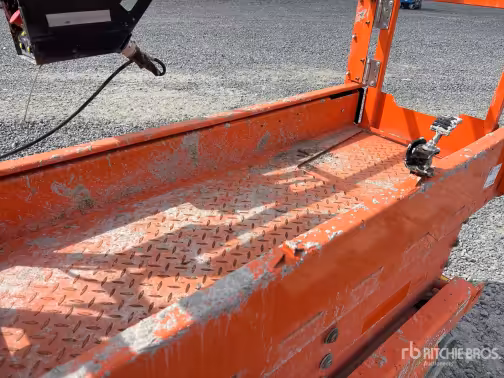

Platform Size: ~6 ft × 2 ft 3 in (1.83 m × 0.69 m) with a 0.7 m extension
Capacity: 500 lb (227 kg) main; 250 lb (113 kg) extension
Weight: ~1,565 kg (3,450 lb)
Drive Speeds: ~4 km/h stowed; ~0.5 km/h elevated
Lift/Lower Time: ~25 s / ~26 s
Gradeability: ~25%
Features: Passive pothole protection, fewer leak points, longer battery runtime, fixed displacement pump, and simplified service access
JLG 1932 Technical specifications
Engine
Battery amps
220 Amh
Charger amps
25 Amh
Operating specifications
Brake system
Electric, friction
Raise time
25 seconds
Lower time
26 seconds
Platform railing height
101 cm
Transmission
Drive speed - platform elevated
4 kph
Performance
Drive Speed - Platform Lowered
4 kph
Platform Capacity - Extension
113 kg
Platform Capacity - Unrestricted
227 kg
General
Drive type
24V DC
Gradeability
25 º
Max working height
5.8 m
Operating weight
1,565 kg
Tire size
3.18 x 10 cm
Dimensions
Ground clearance
7.87 cm
Overall Length
20.7 m
Overall Width
0.81 m
Turning radius
2.2 m
Wheelbase
1.39 m
Undercarriage
Ground pressure
9.8 bar
Service refill capacities
Hydraulic fluid cap
5 liter
Platform
Platform Dimension A
1.82 m
Platform Dimension B
0.68 m
JLG 1932 expert review
Overview
Compact, robust, and low-maintenance—this lift is made to work multiple shifts with minimal downtime.
Durable design with extended runtime.
Heavy for some transport setups.
Performance & Efficiency
Fast cycles, smooth handling, and low-maintenance design make this a fleet-friendly reliable unit.
Verdict
JLG 1932 RS is a durable, efficient, and compact lift built to keep working without the drama.
JLG 1932 owner rating
2017-2020
Overall rating
Based on 0 ratings
100 %
0 %
0 %
0 %
0 %

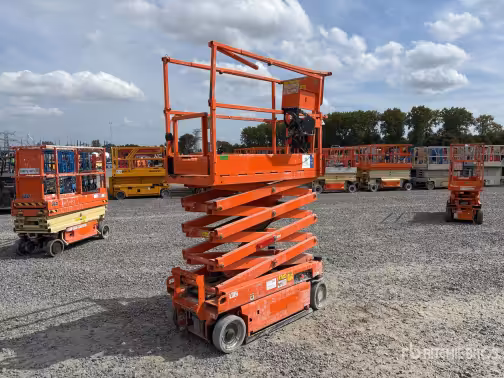

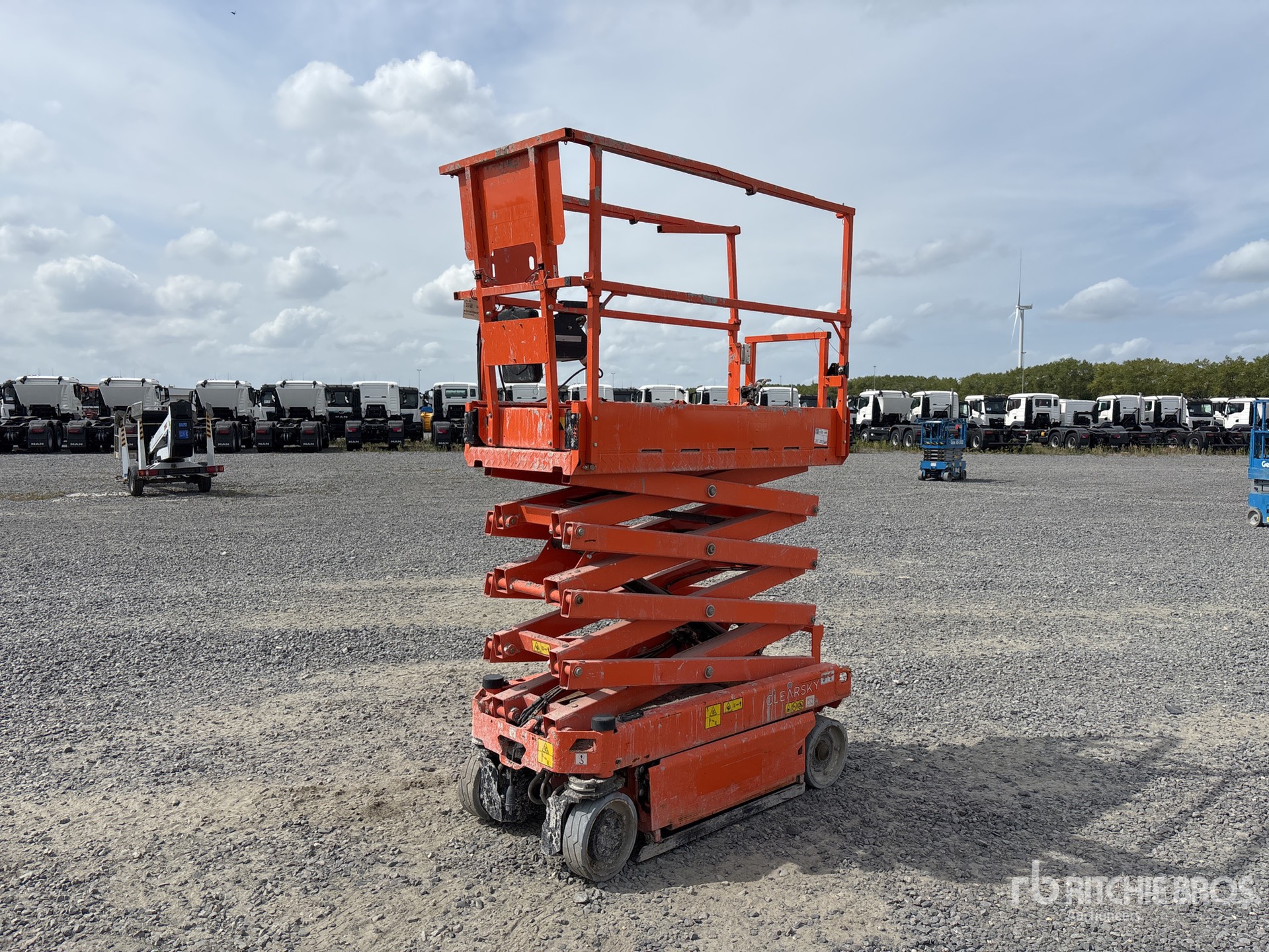

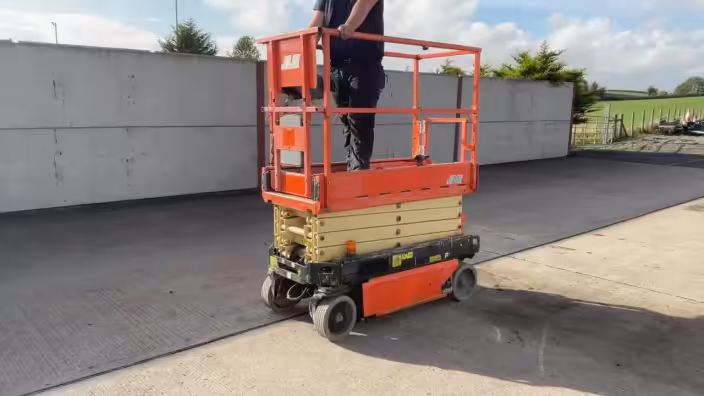

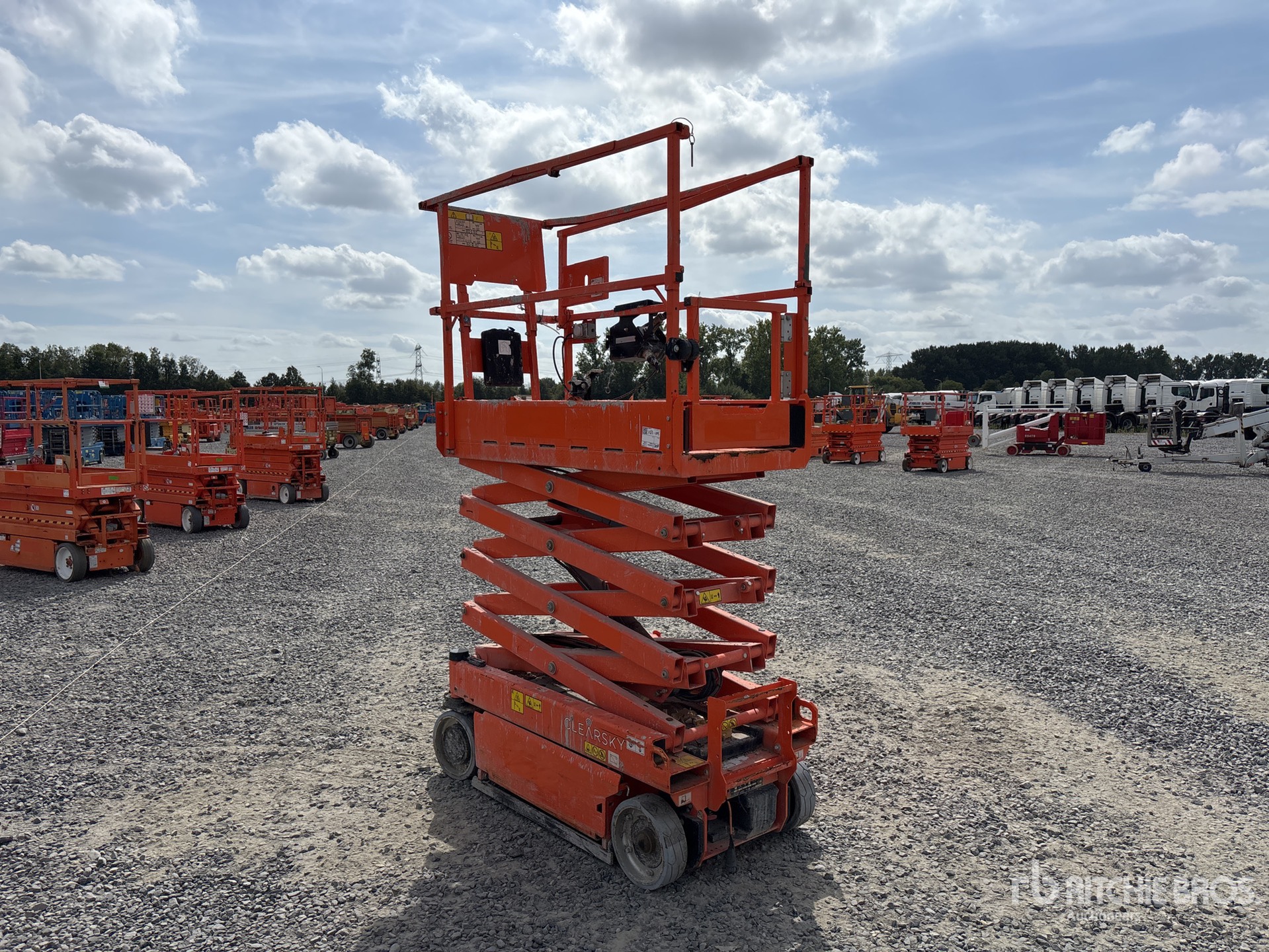

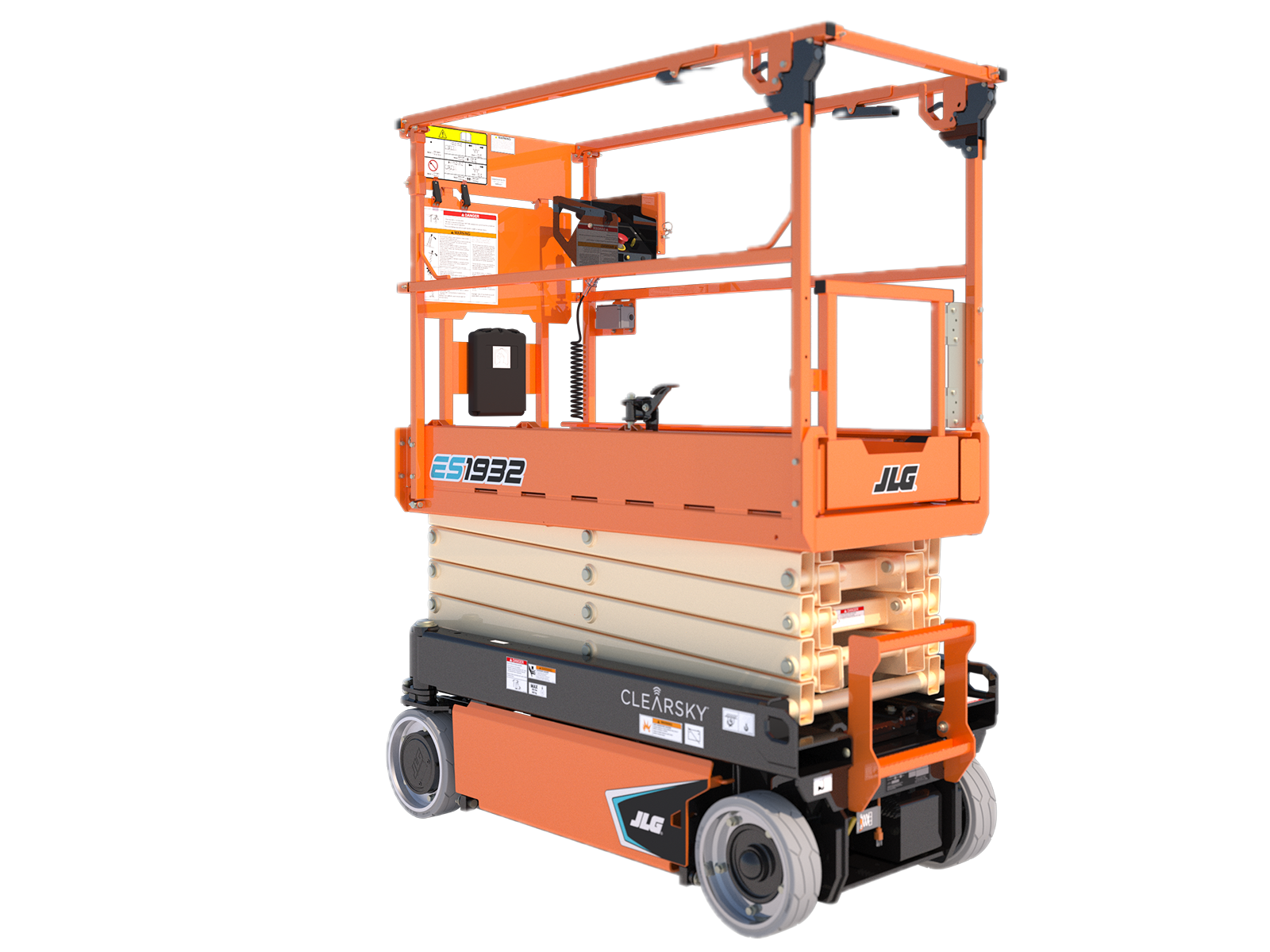

JLG 1932 gallery
