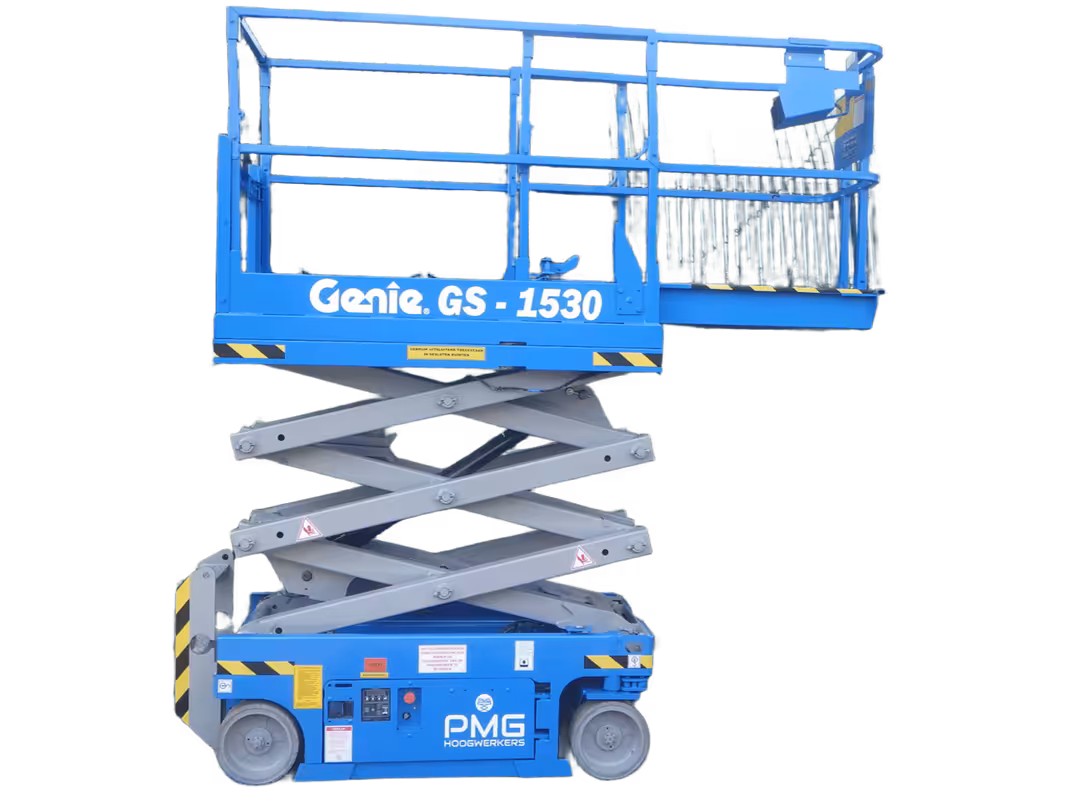

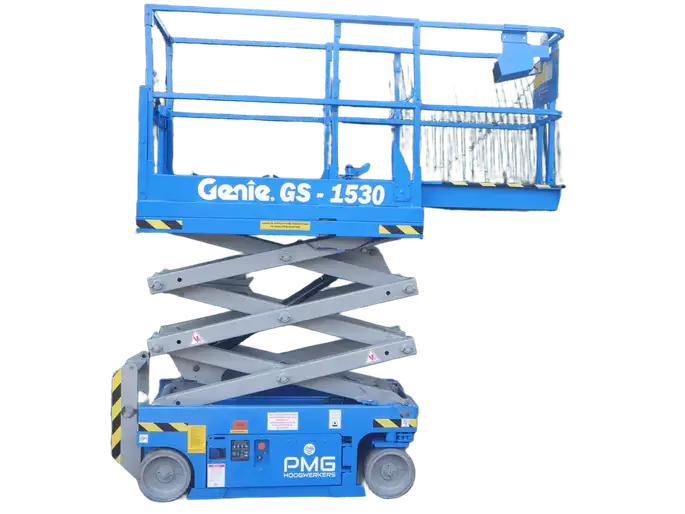

Genie GS-15 Scissor lifts tech specs

makana img
video play button
Video[1]

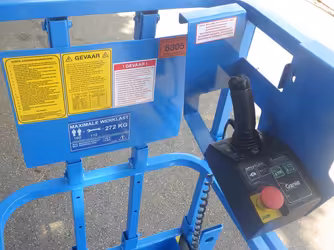

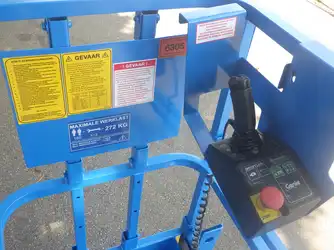

Interior [1]

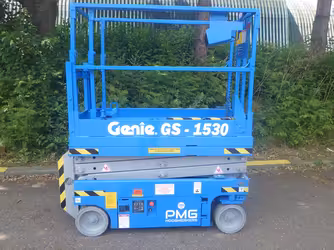

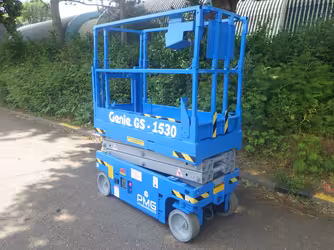

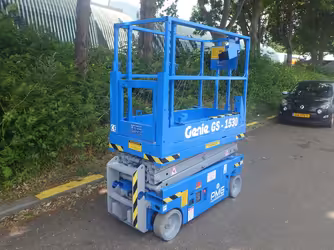

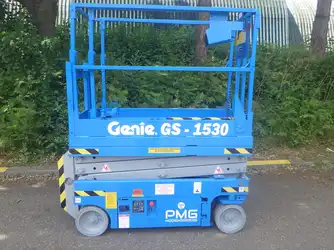

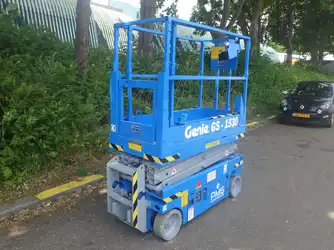

Exterior [4]

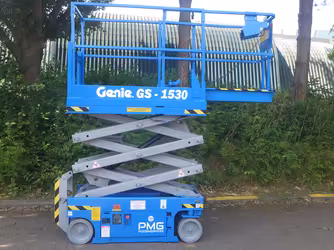

Attachments [1]
2001-2021
91.19 cm Deck extension
6.58 m Max working height
4.02 kph Max speed forward
1,168 kg Operating weight
1.74 m Stowed height
1.34 m Wheelbase
Show features

Makana rating

Market average

AED 25,000

Starting from

AED 11,000

Genie GS-15 technical specifications

Highlight differences

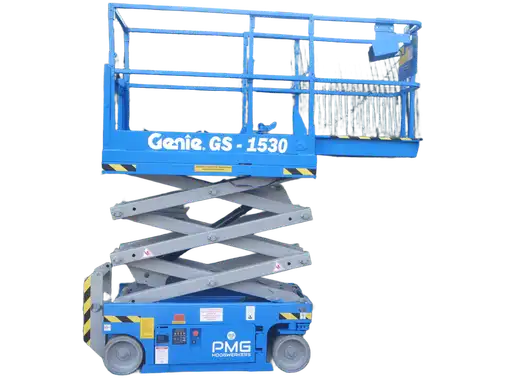

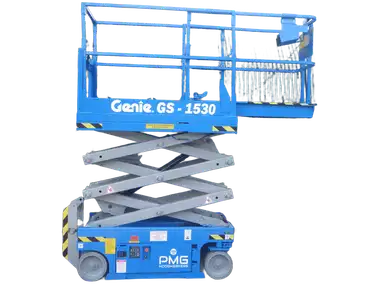

Genie GS-1530

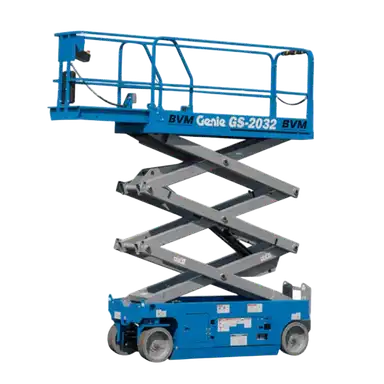

Genie GS-1532

Operating specifications
Deck extension 91.19 cm
Deck extension 90.17 cm
Lower time 29 s
Lower time 17 s
Raise time 16 s
Raise time 16 s
Tire Type Solid non-marking
Tire Type Solid non-marking
Years 2001-2021
Years 2001-2021
Market Average AED 25,000
Market Average AED 25,000
Price AED 11,000
Price AED 11,000
Dimensions
Ground clearance 0.06 m
Ground clearance 0.06 m
Stowed height 1.74 m
Stowed height 1.74 m
Overall Length 0.15 m
Overall Length 0.15 m
Overall Width 0.76 m
Overall Width 0.82 m
Turning radius 1.55 m
Turning radius 1.65 m
Wheelbase 1.34 m
Wheelbase 1.34 m
Service refill capacities
Hydraulic fluid cap 14.38 liter
Hydraulic fluid cap -
General
Max working height 6.58 m
Max working height 6.61 m
Max speed forward 4.02 kph
Max speed forward 4.02 kph
Operating weight 1,168 kg
Operating weight 1,238 kg
Tire size 12x4.5x8
Tire size 12x4.5x8
Operating voltage -
Operating voltage 24 V
Engine
Number of batteries 4
Number of batteries 4
Battery amperage -
Battery amperage 245 Amh
Performance
Platform Capacity - Unrestricted 272.02 kg
Platform Capacity - Unrestricted 272.02 kg
Platform
Platform Dimension B -
Platform Dimension B 163.07 cm
Platform Dimension A -
Platform Dimension A 74.17 cm
Download datasheets
OEM product brochure

Genie GS-15 similar models

Highlight differences

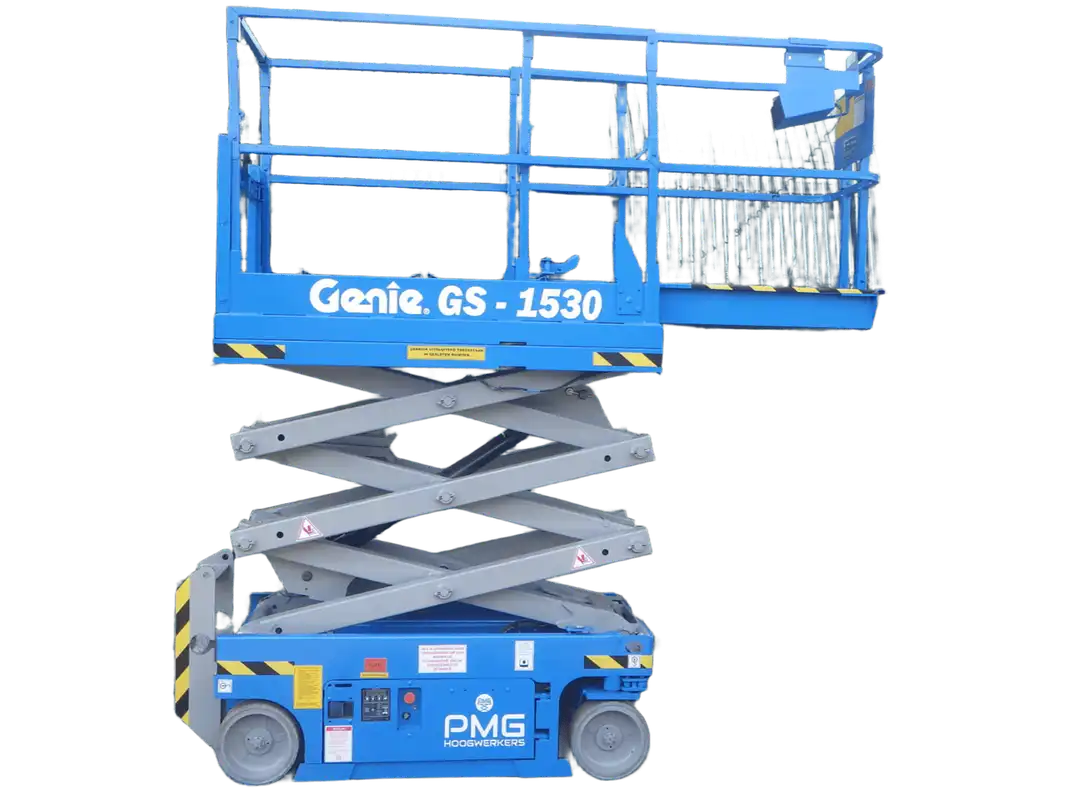

Genie GS-1530
GS-1530

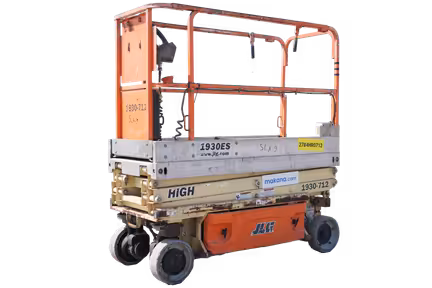

JLG 1930ES
1930ES
Skyjack SJIII 3219
SJIII 3219
Operating specifications
Deck extension 91.19 cm
Deck extension 90.17 cm
Deck extension 90.17 cm
Lower time 29 s
Lower time 30 seconds
Lower time 29 seconds
Raise time 16 s
Raise time 20 seconds
Raise time 25 seconds
Tire Type Solid non-marking
Tire Type Solid, Non-marking
Tire Type Solid/non marking
Brake system -
Brake system Electric, Friction
Brake system -
Platform railing height -
Platform railing height 113 cm
Platform railing height -
Years 2001-2021
Years 2005-2021
Years 2010-2020
Market Average AED 25,000
Market Average AED 65,000
Market Average AED 88,000
Price AED 11,000
Price AED 38,000
Price AED 55,000
Dimensions
Ground clearance 0.06 m
Ground clearance 10.16 cm
Ground clearance 6.1 cm
Stowed height 1.74 m
Stowed height 0.88 m
Stowed height 1.99 m
Overall Length 0.15 m
Overall Length 18.8 m
Overall Length 15.24 m
Overall Width 0.76 m
Overall Width 0.79 m
Overall Width 0.82 m
Turning radius 1.55 m
Turning radius 1.74 m
Turning radius 1.71 m
Wheelbase 1.34 m
Wheelbase 1.62 m
Wheelbase 1.4 m
Height w/ Rails -
Height w/ Rails 2.01 m
Height w/ Rails 2.01 m
Height w/o Rails -
Height w/o Rails 1.58 m
Height w/o Rails 1.62 m
Service refill capacities
Hydraulic fluid cap 14.38 liter
Hydraulic fluid cap 4.54 liter
Hydraulic fluid cap -
General
Max working height 6.58 m
Max working height 7.59 m
Max working height 7.62 m
Max speed forward 4.02 kph
Max speed forward -
Max speed forward -
Operating weight 1,168 kg
Operating weight 1,229 kg
Operating weight 1,170 kg
Tire size 12x4.5x8
Tire size 12.5x4
Tire size 12 x 4 x 8
Drive type -
Drive type 24V Electric
Drive type -
Gradeability -
Gradeability 25 º
Gradeability 30 º
Max horizontal reach -
Max horizontal reach 5,730 mm
Max horizontal reach -
Operating voltage -
Operating voltage 24 V
Operating voltage 24 V
Engine
Number of batteries 4
Number of batteries 4
Number of batteries -
Battery amps -
Battery amps 220 Amh
Battery amps -
Charger amps -
Charger amps 20 Amh
Charger amps -
Performance
Platform Capacity - Unrestricted 272.02 kg
Platform Capacity - Unrestricted 230 kg
Platform Capacity - Unrestricted 249.02 kg
Drive Speed - Platform Lowered -
Drive Speed - Platform Lowered 4.83 kph
Drive Speed - Platform Lowered 3.22 kph
Platform Capacity - Extension -
Platform Capacity - Extension 120 kg
Platform Capacity - Extension -
Transmission
Drive speed - platform elevated -
Drive speed - platform elevated 0.8 kph
Drive speed - platform elevated -
Undercarriage
Ground pressure -
Ground pressure 7.52 bar
Ground pressure -
Hydraulic system
Pump type -
Pump type Fixed Displacement Gear
Pump type -
Platform
Platform Dimension A -
Platform Dimension A 0.79 m
Platform Dimension A 0.66 m
Platform Dimension B -
Platform Dimension B 1.89 m
Platform Dimension B 1.63 m
