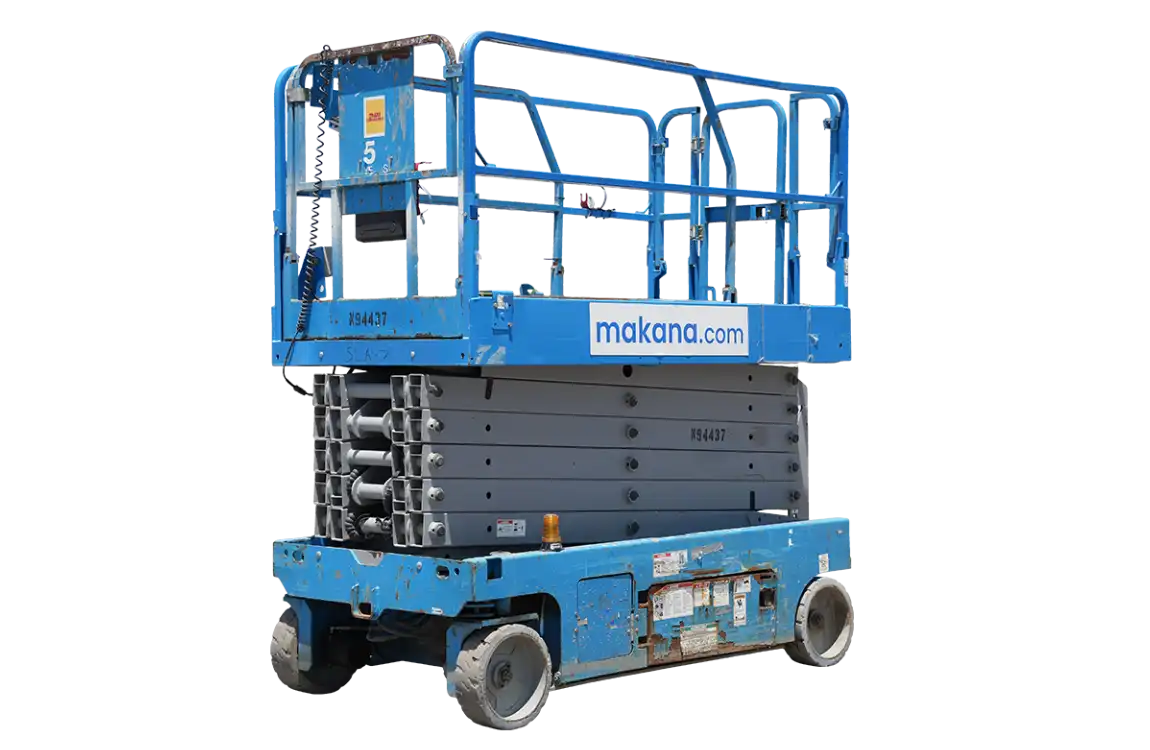

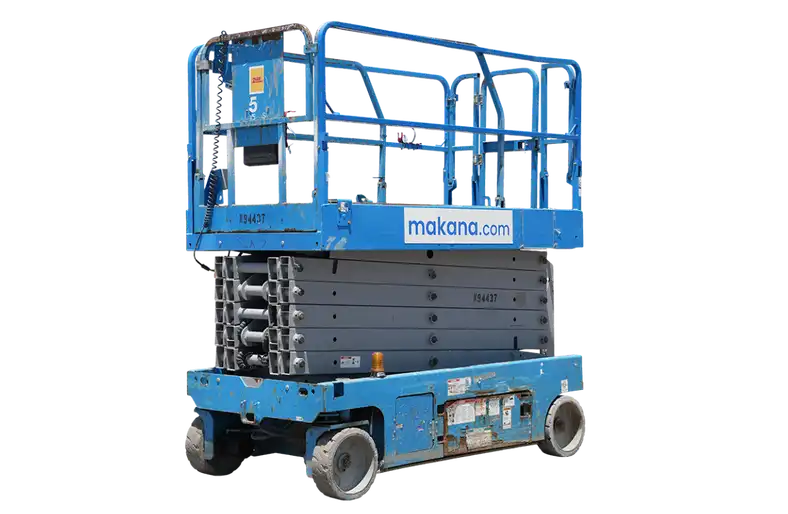

Genie GS-40 Scissor lifts tech specs
:quality(50)/105909/a721637a-b780-4d64-a66e-916268f0d4d0.png)
:quality(50)/105916/conversions/3b8bda9f-f13f-41fd-845c-ae1d21fe4c2d-thumb.webp)
Video[1]
:quality(50)/105912/conversions/37b7400b-46d2-49ac-9750-fa2a79a9f38e-thumb.webp)
Exterior [4]
:quality(50)/105917/conversions/5b579c97-6c13-4c77-9e0f-1bd57f2d9418-thumb.webp)
Interior [2]
:quality(50)/105919/conversions/fd554c40-d6d4-457b-94b1-7aa0ce7081e7-thumb.webp)
Attachments [2]
Genie GS-40 technical specifications
Highlight differences
:quality(50)/105910/1d592e88-994b-463b-b3a2-5b3386167a0e.png)
:quality(50)/105911/3cbbcaa4-cec3-4b4b-805e-f4ebf5da52a7.png)
Operating weight
Operating weight 3,252 kg
Operating weight 3,250 kg
Drive type
Drive type Dual front wheel drive
Drive type Dual front wheel drive
Gradeability
Gradeability 25 %
Gradeability 25 º
Tire size
Tire size 38 x 13
Tire size 38 x 13
Operating voltage
Operating voltage 24
Operating voltage 24
Max working height
Max working height 14.12 m
Max working height 13.7 m
Turning radius
Turning radius 2.3 m
Turning radius 2.3 m
Wheelbase
Wheelbase 1.85 mm
Wheelbase 1.85 m
Years
Years 2011-2020
Years 2011-2020
Market Average
Market Average AED 146,918
Market Average AED 146,918
Price
Price AED 62,190
Price AED 62,190
Charger amps
Charger amps 20 Amh
Charger amps 20 Amh
Number of batteries
Number of batteries 4
Number of batteries 4
Battery amps
Battery amps 300 Amh
Battery amps 300 Amh
Ground pressure
Ground pressure 12.38 bar
Ground pressure 12.38 bar
Ground clearance
Ground clearance 10 cm
Ground clearance 10 m
Stowed height
Stowed height 2.54 mm
Stowed height 2.54 mm
Overall Length
Overall Length 2.48 m
Overall Length 2.48 m
Overall Width
Overall Width 1.19 m
Overall Width 1.19 m
Height w/ Rails
Height w/ Rails 2.36 m
Height w/ Rails 2.36 m
Height w/o Rails
Height w/o Rails 1.96 m
Height w/o Rails 1.96 m
Pump type
Pump type Proportional
Pump type Proportional
Hydraulic fluid cap
Hydraulic fluid cap 28.4 liter
Hydraulic fluid cap 28.4 liter
Drive speed - platform elevated
Drive speed - platform elevated 0.8 kph
Drive speed - platform elevated 0.8 kph
Brake system
Brake system Dual rear wheel multiple disc brakes; dual front wheel hydraulic dynamic braking
Brake system Dual rear wheel multiple disc brakes; dual front wheel hydraulic dynamic braking
Lower time
Lower time 41 s
Lower time 41 s
Raise time
Raise time 71 seconds
Raise time 71 seconds
Deck extension
Deck extension 91 cm
Deck extension 91 cm
Platform railing height
Platform railing height 110 cm
Platform railing height 110 cm
Tire Type
Tire Type Solid, Non-marking
Tire Type Solid, Non-marking
Platform Capacity - Unrestricted
Platform Capacity - Unrestricted 350 kg
Platform Capacity - Unrestricted 350 kg
Drive Speed - Platform Lowered
Drive Speed - Platform Lowered 3.2 kph
Drive Speed - Platform Lowered 3.2 kph
Platform Capacity - Extension
Platform Capacity - Extension 113 kg
Platform Capacity - Extension 113 kg
Platform Dimension A
Platform Dimension A 2.26 m
Platform Dimension A 2.26 m
Platform Dimension B
Platform Dimension B 1.16 m
Platform Dimension B 1.16 m
Download datasheets
Genie GS-40 expert review
:quality(50)/55273/41b09ad1-b53b-4b46-b674-2d9366e34cba.webp)
Overview
The Genie GS (2011–2020) is a reliable electric scissor lift built for indoor precision work. It offers a 14.12 m max working height, 350 kg unrestricted platform capacity, and smooth proportional controls.
Expert rating: 5 stars
Pros: Quiet electric operation, high platform capacity, smooth proportional control.
Cons: Limited rough-terrain use; slower travel speed when elevated.
Performance & Efficiency
Smooth lift and drive motions suit finishing and installation work. Electric power keeps operating costs low and enables full indoor shifts.
Maintenance & Ownership
Battery-based maintenance focuses on charging systems, brakes, and hydraulics. The 300 Ah battery setup supports long work cycles.
On Platform
A practical deck with 2.26 m × 1.16 m dimensions and a 91 cm extension improves reach and productivity.
In Comparison
Skyjack SJ6832: Similar class with simpler controls.
JLG 2646: Comparable footprint with a rugged feel.
Genie GS: Best-in-class control smoothness.
Final Verdict
Rated 5 stars, the Genie GS (2011–2020) is a top indoor scissor lift in the AED 62,190–146,918 range.
Genie GS-40 owner rating
Genie GS-40 Scissor lifts [2011-2020]
2011-2020
Overall rating
Based on 3 ratings
4.3
performance
4.3
comfort
4.7
fuel efficiency
4.3
safety
4.7
features
4.0
5 stars
33 %
4 stars
67 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
